KM20V-JDZTW (1979)

Toyota Lite/Townace Truck

Production Oct 1979 - Oct 1982
Engine 4KJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910- )

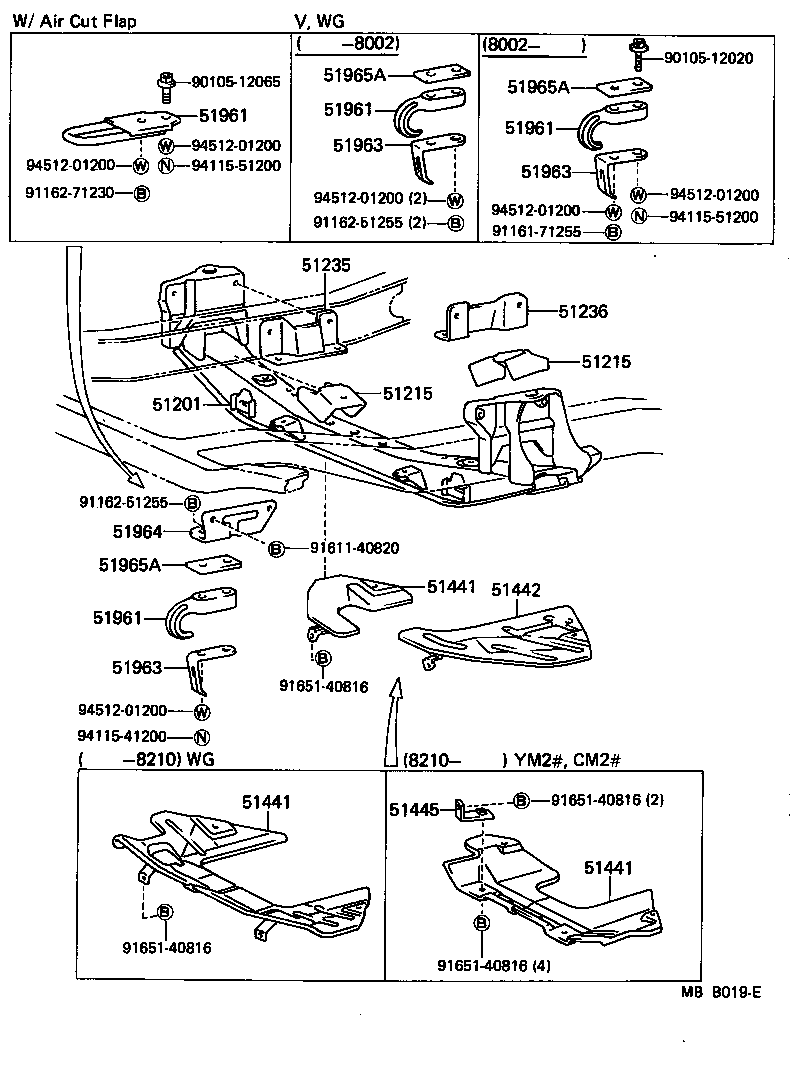

Click highlighted areas on diagram

diagram 51201 51215 51215 51235 51236 51441 51441 51441 51442 51445 51961 51961 51961 51961 51963 51963 51963 51964 51965A 51965A 51965A 9010512020 9010512065 9116171255 9116251255 9116251255 9116271230 9161140820 9165140816 9165140816 9165140816 9165140816 9411541200 9411551200 9411551200 9451201200 9451201200 9451201200 9451201200 9451201200 9451201200
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51203-27030

KM20..V

 1
51215 - REINFORCEMENT, FRONT SUSPENSION CROSSMEMBER
51215-27040

CM2#,KM2#,TM20,YM2#

 2
51215 - REINFORCEMENT, FRONT SUSPENSION CROSSMEMBER
51215-27040

CM2#,KM2#,TM20,YM2#

 2
51235 - BRACKET, FRONT SUSPENSION CROSSMEMBER, RH
51225-27030

CM20,KM2#,TM20,YM20,21..V,WG

 1
51236 - BRACKET, FRONT SUSPENSION CROSSMEMBER, LH
51226-27030

CM20,KM2#,TM20,YM20,21..V,WG

 1
51441 - COVER, ENGINE UNDER, NO.1
51408-27010

KM2#

 1
51441 - COVER, ENGINE UNDER, NO.1
51408-27010

KM2#

 1
51441 - COVER, ENGINE UNDER, NO.1
51408-27010

KM2#

 1
51442 - COVER, ENGINE UNDER, NO.2
51409-27020

KM2#

 1
51961 - HOOK, NO.1
51961-60010

CM2#,KM2#,TM20,YM2#

 1
51961 - HOOK, NO.1
51961-60010

CM2#,KM2#,TM20,YM2#

 1
51961 - HOOK, NO.1
51961-60010

CM2#,KM2#,TM20,YM2#

 1
51961 - HOOK, NO.1
51961-60010

CM2#,KM2#,TM20,YM2#

 1
51963 - STOPPER, HOOK WIRE
51963-35010

CM2#,KM2#,TM20,YM2#

 1
51963 - STOPPER, HOOK WIRE
51963-35010

CM2#,KM2#,TM20,YM2#

 1
51963 - STOPPER, HOOK WIRE
51963-35010

CM2#,KM2#,TM20,YM2#

 1
51965A - RETAINER, FRONT HOOK
51965-27010

CM2#,KM2#,TM20,YM2#

 1
51965A - RETAINER, FRONT HOOK
51965-27010

CM2#,KM2#,TM20,YM2#

 1
51965A - RETAINER, FRONT HOOK
51965-27010

CM2#,KM2#,TM20,YM2#

 1
Common parts
90105-12020
90105-12065
91161-71255
91162-51255
91162-71230
91611-40820
91651-40816
94115-41200
94115-51200
94512-01200
