KM20V-JDZTW (1979)
Toyota Lite/Townace Truck
Production
Oct 1979
-
Oct 1982
Engine
4KJ
Transmission
4H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7910- )4KJ

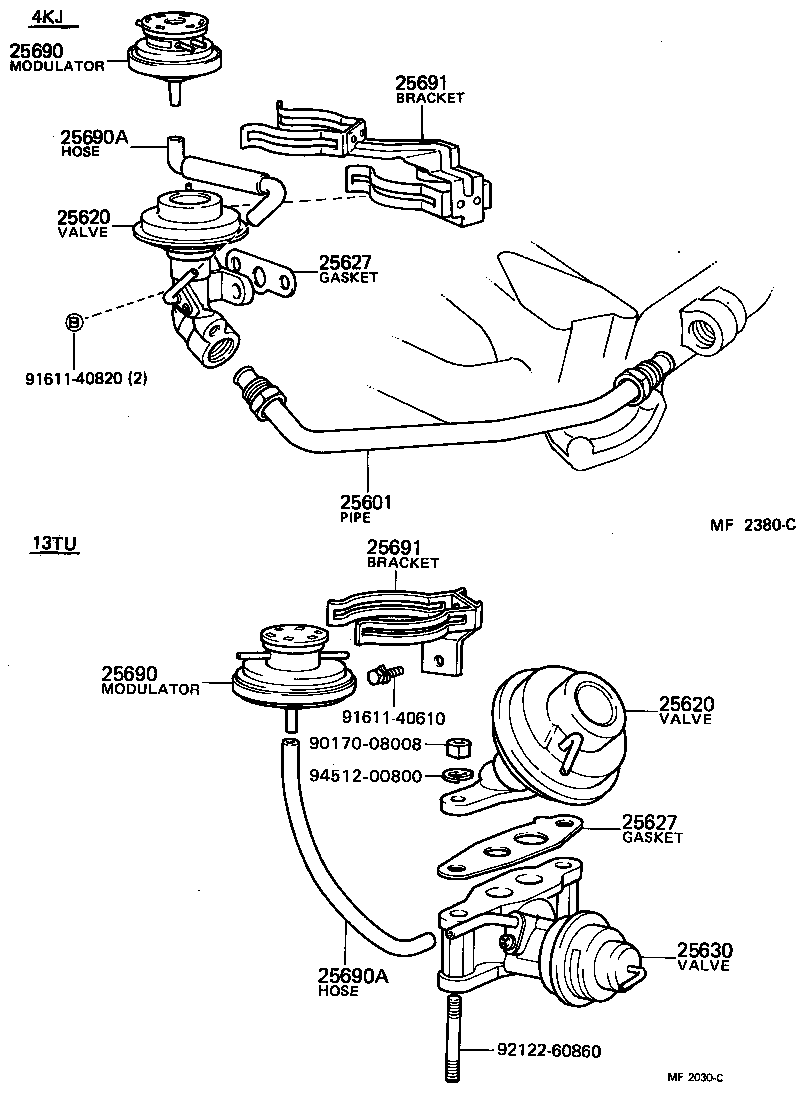

Click highlighted areas on diagram
MF2380C,MF2030C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 25601 - PIPE SUB-ASSY, EGR, NO.1 | ||||
| 25601-13020 |
4KJ..KM2# |
1 | ||
| 25601-13020 |
4KJ..KM2# |
1 | ||
| 25620 - VALVE ASSY, EGR | ||||
| 25620-13051 |
4KJ..KM20 |
1 | ||
| 25620-13051 |
4KJ..KM20 |
1 | ||
| 25620-13050 |
4KJ..KM20 |
1 | ||
| 25620-13050 |
4KJ..KM20 |
1 | ||
| 25620 - VALVE ASSY, EGR | ||||
| 25620-13051 |
4KJ..KM20 |
1 | ||
| 25620-13051 |
4KJ..KM20 |
1 | ||
| 25620-13050 |
4KJ..KM20 |
1 | ||
| 25620-13050 |
4KJ..KM20 |
1 | ||
| 25627 - GASKET, EGR VALVE | ||||
| 25627-13010 |
4KJ..KM2# |
2 | ||
| 25627-13010 |
4KJ..KM2# |
2 | ||
| 25627 - GASKET, EGR VALVE | ||||
| 25627-13010 |
4KJ..KM2# |
2 | ||
| 25627-13010 |
4KJ..KM2# |
2 | ||
| 25690 - MODULATOR ASSY, EGR VACUUM | ||||
| 25870-13020 |
4KJ..KM20 |
1 | ||
| 25870-13020 |
4KJ..KM20 |
1 | ||
| 25690 - MODULATOR ASSY, EGR VACUUM | ||||
| 25870-13020 |
4KJ..KM20 |
1 | ||
| 25870-13020 |
4KJ..KM20 |
1 | ||
| 25690A - HOSE(FOR EGR VACUUM MODULATOR) | ||||
| 25695-13010 |
4KJ..KM2# |
1 | ||
| 25695-13010 |
4KJ..KM2# |
1 | ||
| 25690A - HOSE(FOR EGR VACUUM MODULATOR) | ||||
| 25695-13010 |
4KJ..KM2# |
1 | ||
| 25695-13010 |
4KJ..KM2# |
1 | ||
| 25691 - BRACKET, EGR VACUUM MODULATOR | ||||
| 25691-13010 |
4KJ..KM2# |
1 | ||
| 25691-13010 |
4KJ..KM2# |
1 | ||
| 25691 - BRACKET, EGR VACUUM MODULATOR | ||||
| 25691-13010 |
4KJ..KM2# |
1 | ||
| 25691-13010 |
4KJ..KM2# |
1 | ||
| Common parts | ||||
| 90170-08008 | ||||
| 91611-40610 | ||||
| 91611-40820 | ||||
| 92122-60860 | ||||
| 94512-00800 | ||||
