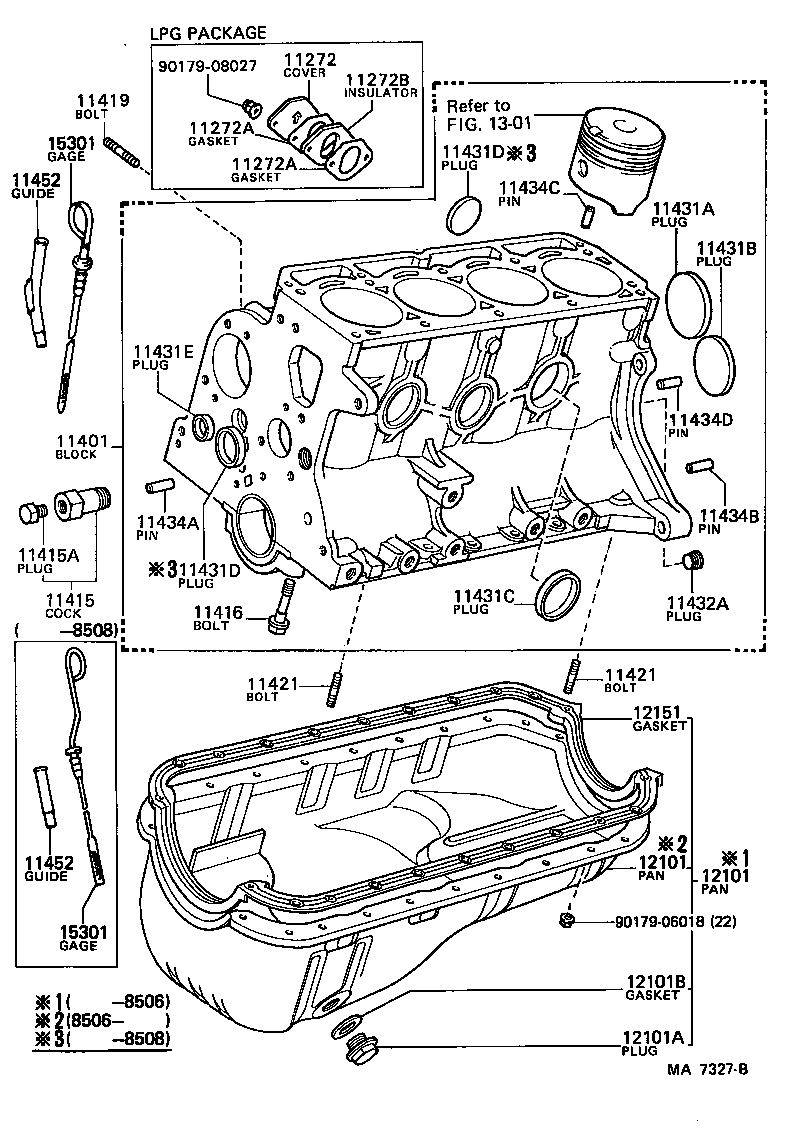

KM20V-JDZFEW (1981)
Toyota Lite/Townace Truck
(7910-8206)4KJ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-19036 |
4KJ..KM20 |
1 | ||
| 11401-19035 |
4KJ..KM20 |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 96431-03850 |
4KJ..KM2# |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 96431-23814 |
4KJ..KM2# |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02019 |
4KJ..KM2# |
10 | ||
| 11419 - BOLT, STUD(FOR FUEL PUMP) | ||||
| 90116-08288 |
4KJ..KM20 L=42,S=10&21 |
2 | ||
| 11421 - BOLT, STUD(FOR OIL PAN) | ||||
| 90116-06012 |
4KJ..KM2# L=23,S=12&12 |
4 | ||
| 90116-06006 |
4KJ..KM2# L=26.4,S=12&12 |
12 | ||
| 11421 - BOLT, STUD(FOR OIL PAN) | ||||
| 90116-06012 |
4KJ..KM2# L=23,S=12&12 |
4 | ||
| 90116-06006 |
4KJ..KM2# L=26.4,S=12&12 |
12 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 90331-47025 |
4KJ..KM2# OD=46.5 |
1 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-44500 |
4KJ..KM2# OD=45 |
1 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 96411-43500 |
4KJ..KM2# OD=35 |
3 | ||
| 11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK) | ||||
| 96411-42500 |
4KJ..KM2# OD=25 |
4 | ||
| 11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK) | ||||
| 96411-42500 |
4KJ..KM2# OD=25 |
4 | ||
| 11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK) | ||||
| 96411-42500 |
4KJ..KM2# OD=25 |
4 | ||
| 11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK) | ||||
| 96411-42500 |
4KJ..KM2# OD=25 |
4 | ||
| 11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK) | ||||
| 96412-01800 |
4KJ..KM2# OD=18 |
1 | ||
| 11432A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90344-53011 |
4KJ..KM20 |
1 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90250-08120 |
4KJ..KM2# 長さ=18,外径=8,L=18,OD=8 |
2 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-10113 |
4KJ..KM2# 長さ=22,外径=10,L=22,OD=10 |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90250-08120 |
4KJ..KM2# 長さ=18,外径=8,L=18,OD=8 |
2 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90250-08120 |
4KJ..KM2# 長さ=18,外径=8,L=18,OD=8 |
2 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-24010 |
4KJ..KM2# |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-19035 |
4KJ..KM2# |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-18089 |
4KJ..KM2# *18-1.5PX12-10 |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-18244 |
4KJ..KM2# ID=18 |
1 | ||
| 12151 - GASKET, OIL PAN | ||||
| 12151-13010 |
4KJ..KM2# |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-24010 |
4KJ..KM2# |
1 | ||
| Common parts | ||||
| 90179-06018 | ||||
| Linked diagrams | ||||
| 1301 | ||||
(8206- )4KJ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-19036 |
4KJ..KM20 |
1 | ||
| 11401-19035 |
4KJ..KM20 |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 96431-03850 |
4KJ..KM2# |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 96431-23814 |
4KJ..KM2# |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02019 |
4KJ..KM2# |
10 | ||
| 11419 - BOLT, STUD(FOR FUEL PUMP) | ||||
| 90116-08288 |
4KJ..KM20 L=42,S=10&21 |
2 | ||
| 11421 - BOLT, STUD(FOR OIL PAN) | ||||
| 90116-06012 |
4KJ..KM2# L=23,S=12&12 |
4 | ||
| 90116-06006 |
4KJ..KM2# L=26.4,S=12&12 |
12 | ||
| 11421 - BOLT, STUD(FOR OIL PAN) | ||||
| 90116-06012 |
4KJ..KM2# L=23,S=12&12 |
4 | ||
| 90116-06006 |
4KJ..KM2# L=26.4,S=12&12 |
12 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 90331-47025 |
4KJ..KM2# OD=46.5 |
1 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-44500 |
4KJ..KM2# OD=45 |
1 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 96411-43500 |
4KJ..KM2# OD=35 |
3 | ||
| 11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK) | ||||
| 96411-42500 |
4KJ..KM2# OD=25 |
4 | ||
| 11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK) | ||||
| 96411-42500 |
4KJ..KM2# OD=25 |
4 | ||
| 11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK) | ||||
| 96412-01800 |
4KJ..KM2# OD=18 |
1 | ||
| 11432A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90344-53011 |
4KJ..KM20 |
1 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90250-08120 |
4KJ..KM2# 長さ=18,外径=8,L=18,OD=8 |
2 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-10113 |
4KJ..KM2# 長さ=22,外径=10,L=22,OD=10 |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90250-08120 |
4KJ..KM2# 長さ=18,外径=8,L=18,OD=8 |
2 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90250-08120 |
4KJ..KM2# 長さ=18,外径=8,L=18,OD=8 |
2 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-24010 |
4KJ..KM2# |
1 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-24010 |
4KJ..KM2# |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-19035 |
4KJ..KM2# |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-19035 |
4KJ..KM2# |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-18089 |
4KJ..KM2# *18-1.5PX12-10 |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-18244 |
4KJ..KM2# ID=18 |
1 | ||
| 12151 - GASKET, OIL PAN | ||||
| 12151-13010 |
4KJ..KM2# |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-24010 |
4KJ..KM2# |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-24010 |
4KJ..KM2# |
1 | ||
| Common parts | ||||
| 90179-06018 | ||||
| 90179-08027 | ||||
| Linked diagrams | ||||
| 1301 | ||||
