KM20V-JDW (1979)

Toyota Lite/Townace Truck

Production Oct 1979 - Oct 1982
Engine 4KJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910- )

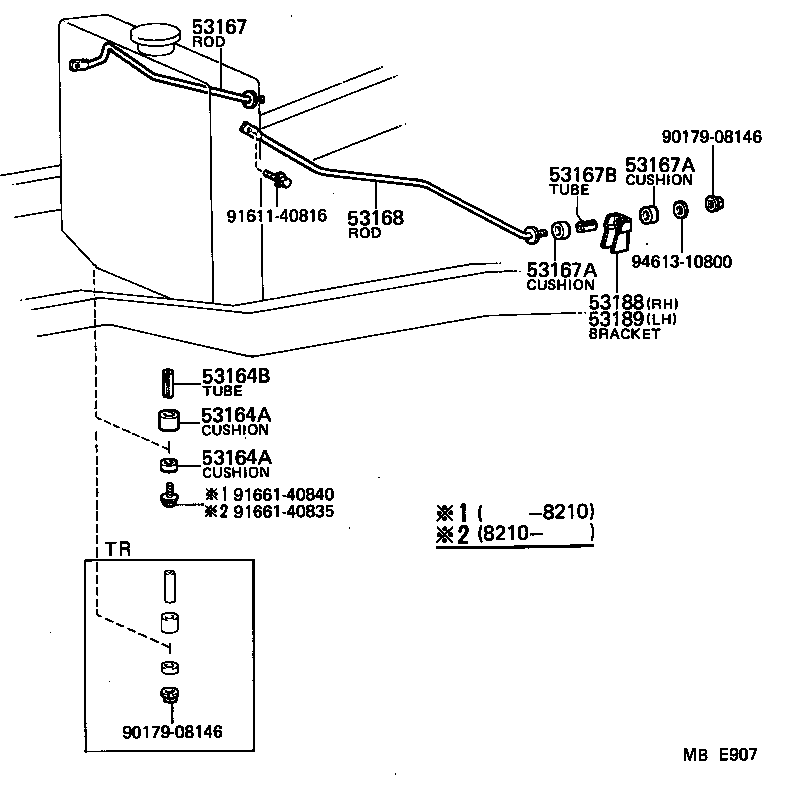

Click highlighted areas on diagram

diagram 53164A 53164A 53164B 53167 53167A 53167A 53167B 53168 53188 53189 9017908146 9017908146 9161140816 9166140835 9166140840 9461310800
Part # Description Qty Price
53164A - CUSHION, RADIATOR SUPPORT
90540-10022

CM2#,KM2#,TM20,YM2#

OD=22

 2
90540-10011

CM2#,KM2#,TM20,YM2#

OD=28

 2
53164A - CUSHION, RADIATOR SUPPORT
90540-10022

CM2#,KM2#,TM20,YM2#

OD=22

 2
90540-10011

CM2#,KM2#,TM20,YM2#

OD=28

 2
53164B - TUBE, RADIATOR SUPPORT
90440-11042

CM2#,KM2#,TM20,YM2#

 2
53167 - ROD, RADIATOR BRACE, RH
53167-27040

KM20..V

 1
53167A - CUSHION(FOR RADIATOR BRACE ROD)
90540-10022

KM20,TM20

 4
53167A - CUSHION(FOR RADIATOR BRACE ROD)
90540-10022

KM20,TM20

 4
53167B - TUBE(FOR RADIATOR BRACE ROD)
90440-11043

KM20,TM20

 2
53168 - ROD, RADIATOR BRACE, LH
53169-27040

KM20..V

 1
Common parts
90179-08146
91611-40816
91661-40835
91661-40840
94613-10800
