KM20V-JDW (1979)

Toyota Lite/Townace Truck

Production Oct 1979 - Oct 1982
Engine 4KJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910-8210)KM20

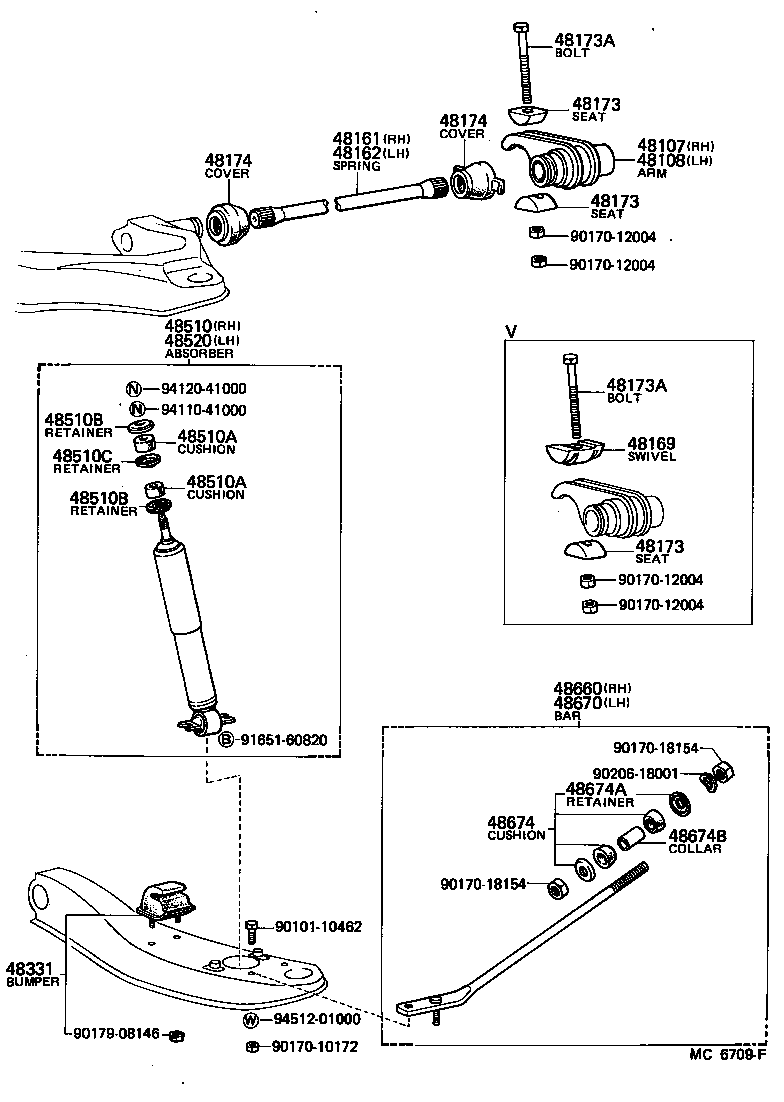

Click highlighted areas on diagram

diagram 48107 48108 48161 48162 48169 48173 48173 48173 48173A 48173A 48174 48174 48331 48510 48510A 48510A 48510B 48510B 48510C 48520 48660 48670 48674 48674A 48674B 9010110462 9017010172 9017012004 9017012004 9017012004 9017012004 9017018154 9017018154 9017908146 9020618001 9165160820 9411041000 9412041000 9451201000
Part # Description Qty Price
48107 - ARM SUB-ASSY, ANCHOR, RH
48107-27010

KM20,TM20

 1
48108 - ARM SUB-ASSY, ANCHOR, LH
48108-27010

KM20,TM20

 1
48161 - SPRING, TORSION BAR, RH
48161-27020

CM20,KM2#,TM20,YM20,21..V,WG

 1
48162 - SPRING, TORSION BAR, LH
48162-27020

CM20,KM2#,TM20,YM20,21..V,WG

 1
48169 - SWIVEL, ANCHOR ARM
48169-27010

KM20,TM20..V,WG

 2
48173 - SEAT, ANCHOR ARM ADJUSTER
48173-27010

KM20,TM20..V,WG

 2
48173 - SEAT, ANCHOR ARM ADJUSTER
48173-27010

KM20,TM20..V,WG

 2
48173 - SEAT, ANCHOR ARM ADJUSTER
48173-27010

KM20,TM20..V,WG

 2
48173A - BOLT, HEXAGON(FOR ANCHOR ARM ADJUSTING)
90101-12059

CM2#,KM2#,TM20,YM2#

 2
48173A - BOLT, HEXAGON(FOR ANCHOR ARM ADJUSTING)
90101-12059

CM2#,KM2#,TM20,YM2#

 2
48174 - COVER, TORSION BAR DUST
48175-27010

CM2#,KM2#,TM20,YM2#

RR

 2
48174-27010

CM2#,KM2#,TM20,YM2#

FR

 2
48174 - COVER, TORSION BAR DUST
48175-27010

CM2#,KM2#,TM20,YM2#

RR

 2
48174-27010

CM2#,KM2#,TM20,YM2#

FR

 2
48331 - BUMPER, FRONT SPRING, NO.1
48331-29045

CM2#,KM2#,TM20,YM2#

 2
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48500-29255

CM20,KM2#,TM20,YM20,21..V,WG

 1
48510A - CUSHION, FRONT SHOCK ABSORBER
90948-01003

CM2#,KM2#,TM20,YM2#

 4
48510A - CUSHION, FRONT SHOCK ABSORBER
90948-01003

CM2#,KM2#,TM20,YM2#

 4
48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
90948-02002

CM2#,KM2#,TM20,YM2#

 4
48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
90948-02002

CM2#,KM2#,TM20,YM2#

 4
48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
90948-02007

CM2#,KM2#,TM20,YM2#

 2
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48500-29255

CM20,KM2#,TM20,YM20,21..V,WG

 1
48660 - BAR ASSY, STRUT, RH
48660-29075

KM20,TM20

 1
48670 - BAR ASSY, STRUT, LH
48670-29075

KM20,TM20

 1
48674 - CUSHION, STRUT BAR
48674-29026

CM2#,KM2#,TM20,YM2#

 2
48674A - RETAINER, CUSHION(FOR STRUT BAR CUSHION)
90948-02030

CM2#,KM2#,TM20,YM2#

 4
48674B - COLLAR(FOR STRUT BAR CUSHION)
90387-18090

CM2#,KM2#,TM20,YM2#

 2
Common parts
90101-10462
90170-10172
90170-12004
90170-18154
90179-08146
90206-18001
91651-60820
94110-41000
94120-41000
94512-01000
