KM20V-JDFEW (1979)

Toyota Lite/Townace Truck

Production Oct 1979 - Oct 1982
Engine 4KJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 4(7910-8210)DLX,FXV,GXL,SUP,XL

Click highlighted areas on diagram

diagram 8202 8202 86011 86011A 86011A 86011A 8602 86120 86124 86124 86125 86125 86211 86211 9011908063 9011908103 9017009167 9017009167 9017906070 9020109351 9020109351 9046108972 9046312005 9338215012 9338515010 9338616016
Part # Description Qty Price
86011 - RADIO & SETTING PARTS SET
86011-29195

KM20,TM20..DLX,SUP,XL

AM

 1
86011A - CONDENSER, RADIO SETTING
90980-04023

CM2#,KM2#,TM20,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

REGULATOR

 1
90980-04037

KM20..V..(DLX,SUP)

IGNITION COIL

 1
86011A - CONDENSER, RADIO SETTING
90980-04023

CM2#,KM2#,TM20,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

REGULATOR

 1
90980-04037

KM20..V..(DLX,SUP)

IGNITION COIL

 1
86011A - CONDENSER, RADIO SETTING
90980-04023

CM2#,KM2#,TM20,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

REGULATOR

 1
90980-04037

KM20..V..(DLX,SUP)

IGNITION COIL

 1
86120 - RECEIVER ASSY, RADIO
86120-95700

KM20,TM20..DLX,SUP,XL

AM

 1
86124 - KNOB, RADIO RECEIVER CONTROL
86124-12010

KM20,TM20..DLX,FXV,GXL,SUP,XL

 2
86124 - KNOB, RADIO RECEIVER CONTROL
86124-12010

KM20,TM20..DLX,FXV,GXL,SUP,XL

 2
86125 - KNOB, RADIO RECEIVER SWITCH
86125-12011

KM20,TM20..DLX,FXV,GXL,SUP,XL

 2
86125 - KNOB, RADIO RECEIVER SWITCH
86125-12011

KM20,TM20..DLX,FXV,GXL,SUP,XL

 2
86211 - BRACKET, RADIO, NO.1
86211-95703

KM20,TM20..DLX,SUP,XL

AM

 1
86211 - BRACKET, RADIO, NO.1
86211-95703

KM20,TM20..DLX,SUP,XL

AM

 1
Common parts
90119-08063
90119-08103
90170-09167
90179-06070
90201-09351
90461-08972
90463-12005
93382-15012
93385-15010
93386-16016
Linked diagrams
8202
8602

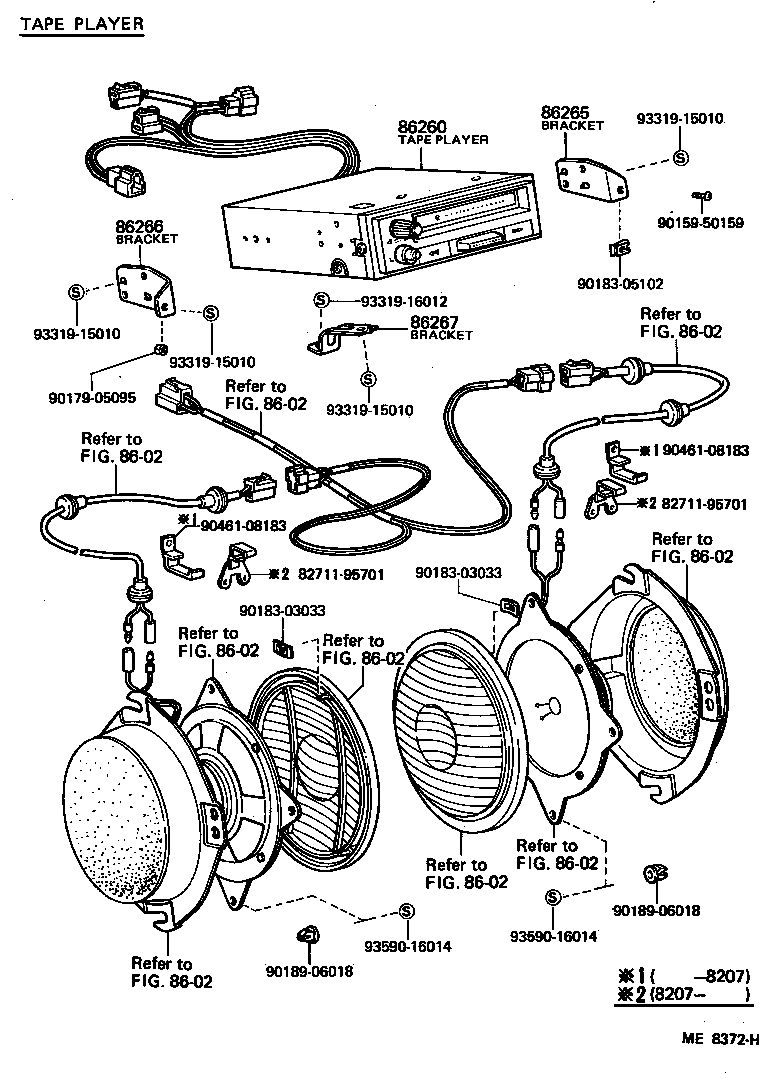

ILLUST NO. 2 OF 4(7910-8101)DLX,GXL,SUP,XL

Click highlighted areas on diagram

diagram 8271195701 8271195701 8602 8602 8602 8602 8602 8602 8602 8602 8602 86260 86265 86266 86267 9015950159 9017905095 9018303033 9018303033 9018305102 9018906018 9018906018 9046108183 9046108183 9331915010 9331915010 9331915010 9331915010 9331916012 9359016014 9359016014
Part # Description Qty Price
86260 - TAPE PLAYER ASSY
86260-95700

KM20,TM20..DLX,FXV,GXL,SUP,XL

 1
86265 - BRACKET, TAPE PLAYER, NO.1
86237-95700

KM20,TM20..DLX,FXV,GXL,SUP,XL

 1
86266 - BRACKET, TAPE PLAYER, NO.2
86238-95700

KM20,TM20

 1
86267 - BRACKET, TAPE PLAYER, NO.3
86239-95700

KM20,TM20..DLX,FXV,GXL,SUP,XL

 1
Common parts
82711-95701
90159-50159
90179-05095
90183-03033
90183-05102
90189-06018
90461-08183
93319-15010
93319-16012
93590-16014
Linked diagrams
8602

ILLUST NO. 2 OF 4(8101-8210)DLX,FXV,GXL,SUP,XL

Click highlighted areas on diagram

diagram 86021 86260 86265 86266 86267 9018305012 9331915008 9331915008 9338516012
Part # Description Qty Price
86021 - TAPE PLAYER AND SETTING PARTS SET
86021-29135

KM20,TM20..DLX,FXV,GXL,SUP,XL

 1
86260 - TAPE PLAYER ASSY
86260-95700

KM20,TM20..DLX,FXV,GXL,SUP,XL

 1
86265 - BRACKET, TAPE PLAYER, NO.1
86237-95700

KM20,TM20..DLX,FXV,GXL,SUP,XL

 1
86266 - BRACKET, TAPE PLAYER, NO.2
86238-95700

KM20,TM20

 1
86267 - BRACKET, TAPE PLAYER, NO.3
86239-95700

KM20,TM20..DLX,FXV,GXL,SUP,XL

 1
Common parts
90183-05012
93319-15008
93385-16012
