KM20V-JDFEW (1979)
Toyota Lite/Townace Truck
(7910- )

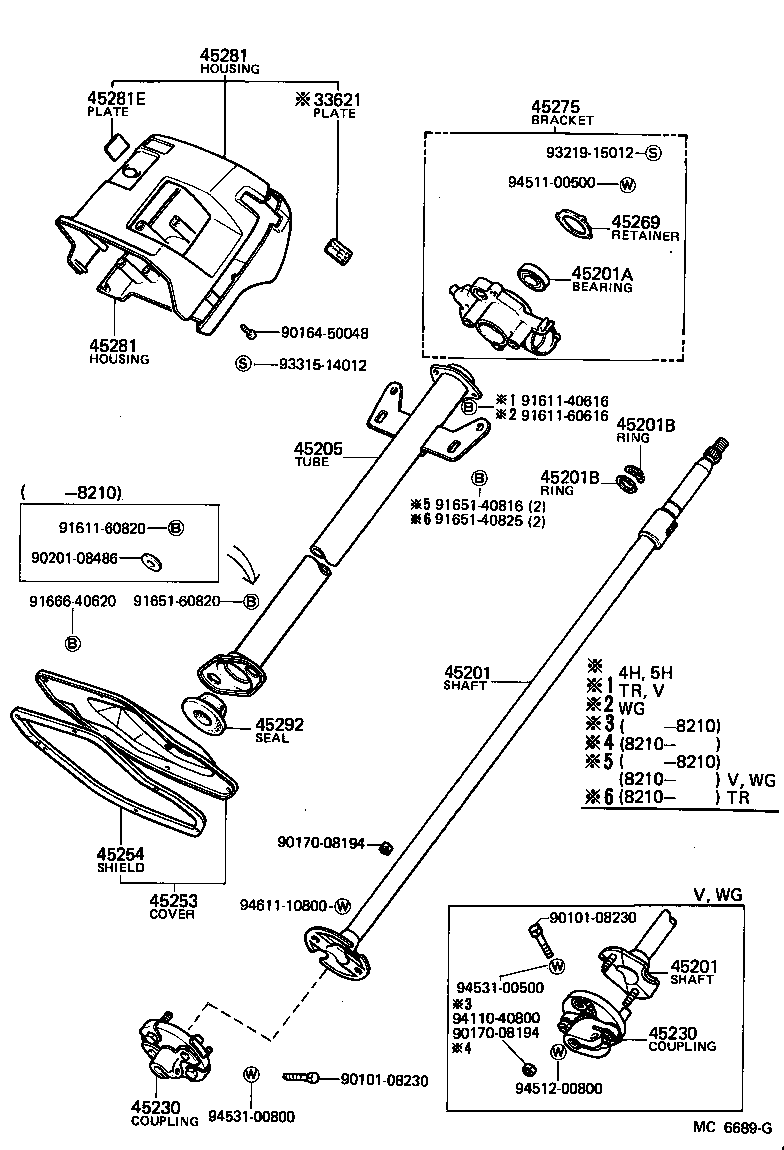

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33621 - PLATE, CONTROL LEVER CAUTION | ||||
| 33621-36040 |
KM2#,TM20,YM25..4H |
1 | ||
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45201-27080 |
KM20,TM20..HRF,SRF |
1 | ||
| 45201-27070 |
KM20,TM20..DLX,GXL,STD,SUP,XL |
1 | ||
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45201-27080 |
KM20,TM20..HRF,SRF |
1 | ||
| 45201-27070 |
KM20,TM20..DLX,GXL,STD,SUP,XL |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
KM20,TM20..DLX,GXL,STD,SUP,XL |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17269 |
CM2#,KM2#,TM20,YM2#..CS7,DLX,GXL,S,STD,SUP,SW,XL 厚さ=1.20,UPR |
1 | ||
| 90520-17042 |
CM2#,KM2#,TM20,YM2# 厚さ=1.20,LWR |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17269 |
CM2#,KM2#,TM20,YM2#..CS7,DLX,GXL,S,STD,SUP,SW,XL 厚さ=1.20,UPR |
1 | ||
| 90520-17042 |
CM2#,KM2#,TM20,YM2# 厚さ=1.20,LWR |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-27030 |
KM20,TM20..DLX,GXL,STD,SUP,XL |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-36010 |
KM20,TM20..HRF,SRF |
1 | ||
| 45230-35020 |
KM20,TM20..HRF,SRF |
1 | ||
| 45230-36010 |
KM20,TM20..DLX,GXL,STD,SUP,XL |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-36010 |
KM20,TM20..HRF,SRF |
1 | ||
| 45230-35020 |
KM20,TM20..HRF,SRF |
1 | ||
| 45230-36010 |
KM20,TM20..DLX,GXL,STD,SUP,XL |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45253-27010 |
KM20,TM20..4H |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-27010 |
KM20,TM20 |
1 | ||
| 45269 - RETAINER, MAIN SHAFT BEARING | ||||
| 45269-36010 |
KM20 |
1 | ||
| 45269-35010 |
KM20,TM20 |
1 | ||
| 45269-35010 |
KM20,TM20..03S,06S,08S |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45307-28010 |
KM20 |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45287-27030 |
KM20,TM20 LWR |
1 | ||
| 45286-27070 |
KM20,TM20..4H UPR |
1 | ||
| 45287-27030 |
KM20,TM20..4H LWR |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45287-27030 |
KM20,TM20 LWR |
1 | ||
| 45286-27070 |
KM20,TM20..4H UPR |
1 | ||
| 45287-27030 |
KM20,TM20..4H LWR |
1 | ||
| 45281E - PLATE, SAFETY CAUTION | ||||
| 45283-22010 |
CM2#,KM2#,TM20,YM2# |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-36010 |
KM20,TM20 |
1 | ||
| Common parts | ||||
| 90101-08230 | ||||
| 90164-50048 | ||||
| 90170-08194 | ||||
| 90201-08486 | ||||
| 91611-40616 | ||||
| 91611-60616 | ||||
| 91611-60820 | ||||
| 91651-40816 | ||||
| 91651-40825 | ||||
| 91651-60820 | ||||
| 91666-40620 | ||||
| 93219-15012 | ||||
| 93315-14012 | ||||
| 94110-40800 | ||||
| 94511-00500 | ||||
| 94512-00800 | ||||
| 94531-00500 | ||||
| 94531-00800 | ||||
| 94611-10800 | ||||
