KM20V-JDFEW (1979)

Toyota Lite/Townace Truck

Production Oct 1979 - Oct 1982
Engine 4KJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910- )4KJ

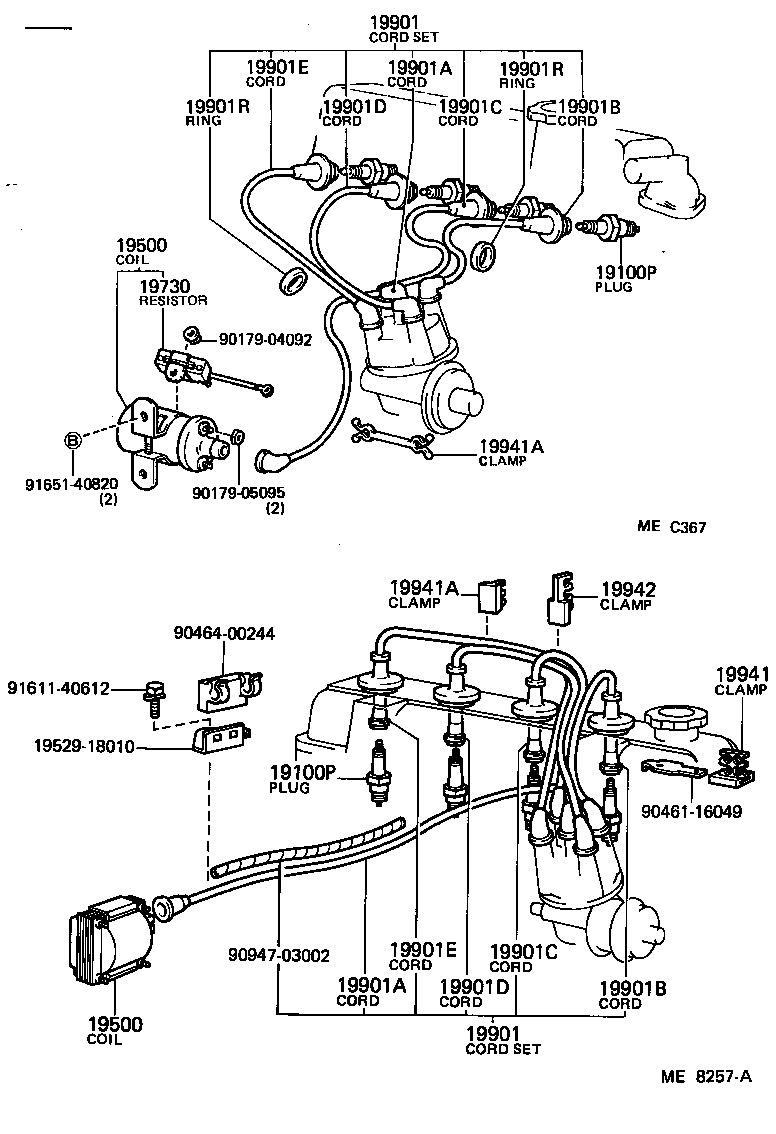

Click highlighted areas on diagram

MEC367,ME8257A

diagram 19100P 19100P 19500 19500 1952918010 19730 19901 19901 19901A 19901A 19901B 19901B 19901C 19901C 19901D 19901D 19901E 19901E 19901R 19901R 19941 19941A 19941A 19942 9017904092 9017905095 9046116049 9046400244 9094703002 9161140612 9165140820
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01059

4KJ..KM2#

W16EX−U,W16EX-U

 4
90919-01059

4KJ..KM2#

W16EX−U,W16EX-U

 4
19100P - PLUG, SPARK
90919-01059

4KJ..KM2#

W16EX−U,W16EX-U

 4
90919-01059

4KJ..KM2#

W16EX−U,W16EX-U

 4
19500 - COIL ASSY, IGNITION
90919-02125

4KJ..KM20..V

 1
90919-02125

4KJ..KM20..V

 1
90919-02119

4KJ..KM20..V

COLD SPEC

 1
90919-02119

4KJ..KM20..V

COLD SPEC

 1
19500 - COIL ASSY, IGNITION
90919-02125

4KJ..KM20..V

 1
90919-02125

4KJ..KM20..V

 1
90919-02119

4KJ..KM20..V

COLD SPEC

 1
90919-02119

4KJ..KM20..V

COLD SPEC

 1
19730 - RESISTOR, IGNITION COIL
90919-04033

4KJ..KM2#

 1
90919-04033

4KJ..KM2#

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21235

4KJ..KM20

 1
90919-21235

4KJ..KM20

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21235

4KJ..KM20

 1
90919-21235

4KJ..KM20

 1
19901A - CORD, COIL RESISTIVE
90919-13126

4KJ..KM2#

 1
90919-13126

4KJ..KM2#

 1
19901A - CORD, COIL RESISTIVE
90919-13126

4KJ..KM2#

 1
90919-13126

4KJ..KM2#

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12228

4KJ..KM20

 1
90919-12228

4KJ..KM20

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12228

4KJ..KM20

 1
90919-12228

4KJ..KM20

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12228

4KJ..KM20

 1
90919-12228

4KJ..KM20

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12228

4KJ..KM20

 1
90919-12228

4KJ..KM20

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12228

4KJ..KM20

 1
90919-12228

4KJ..KM20

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12228

4KJ..KM20

 1
90919-12228

4KJ..KM20

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12228

4KJ..KM20

 1
90919-12228

4KJ..KM20

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12228

4KJ..KM20

 1
90919-12228

4KJ..KM20

 1
19901R - RING, RUBBER SPARK PLUG RESISTIVE CORD
90202-11067

4KJ..KM2#

 2
90202-11067

4KJ..KM2#

 2
19901R - RING, RUBBER SPARK PLUG RESISTIVE CORD
90202-11067

4KJ..KM2#

 2
90202-11067

4KJ..KM2#

 2
19941A - CLAMP(FOR RESISTIVE CORD)
90464-00073

4KJ..KM20..V

 1
90464-00073

4KJ..KM20..V

 1
19941A - CLAMP(FOR RESISTIVE CORD)
90464-00073

4KJ..KM20..V

 1
90464-00073

4KJ..KM20..V

 1
Common parts
19529-18010
90179-04092
90179-05095
90461-16049
90464-00244
90947-03002
91611-40612
91651-40820
