KM20V-JDEW (1979)

Toyota Lite/Townace Truck

Production Oct 1979 - Oct 1982
Engine 4KJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910- )4KJ

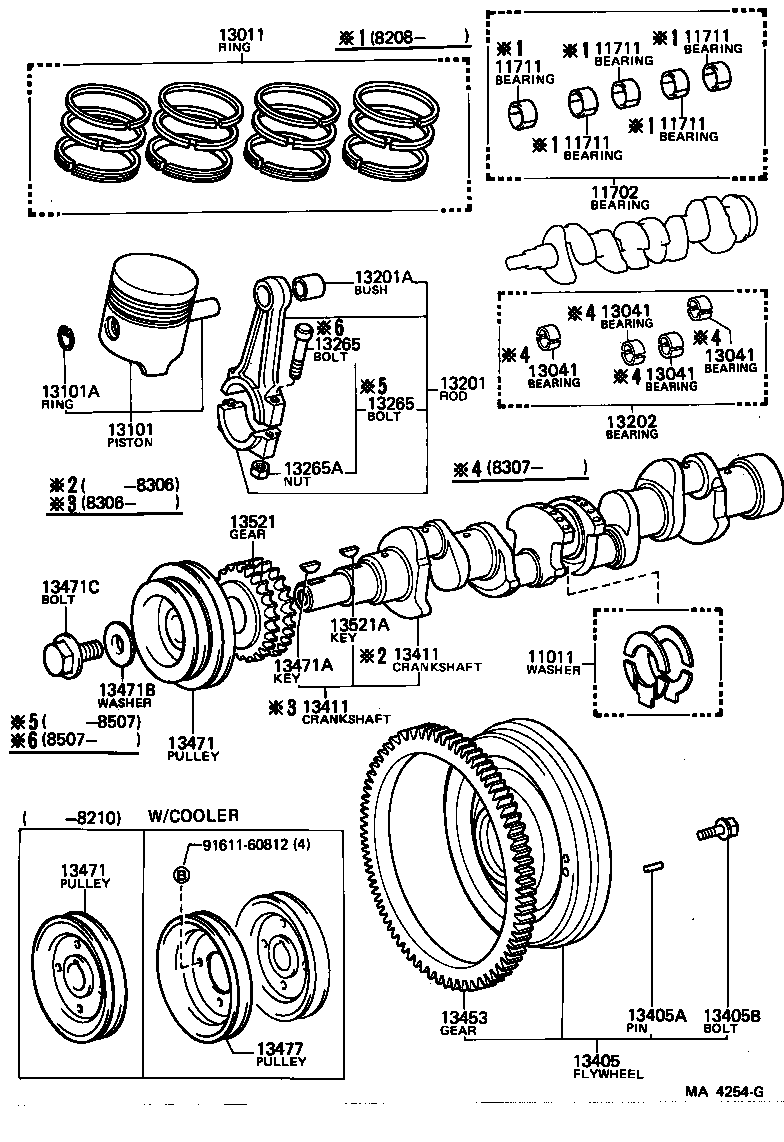

Click highlighted areas on diagram

diagram 11011 11702 11711 11711 11711 11711 11711 13011 13041 13041 13041 13041 13101 13101A 13201 13201A 13202 13265 13265 13265A 13405 13405A 13405B 13411 13411 13453 13471 13471 13471A 13471B 13471C 13477 13521 13521A 9161160812
Part # Description Qty Price
11011 - WASHER SET, CRANKSHAFT THRUST
11013-22011

4KJ..KM2#

O/S 0.250,O/S 0.250

 1
11012-22011

4KJ..KM2#

O/S 0.125,O/S 0.125

 1
11011-22011

4KJ..KM2#

STD,STD

 1
11702 - BEARING SET, CRANKSHAFT
11703-22020

4KJ..KM20

U/S 0.05

 1
11702-22020

4KJ..KM20

STD

 1
11704-22020

4KJ..KM20

U/S 0.25,U/S 0.25

 1
11705-22020

4KJ..KM20

U/S 0.50

 1
13011 - RING SET, PISTON
13014-24011

4KJ..KM20

O/S 0.75

 1
13015-24011

4KJ..KM20

O/S 1.00

 1
13011-24011

4KJ..KM20

STD

 1
13013-24011

4KJ..KM20

O/S 0.50

 1
13101 - PISTON SUB-ASSY, W/PIN
13103-24010

4KJ..KM2#

O/S 0.50,O/S 0.50

 4
13104-24010

4KJ..KM2#

O/S 0.75,O/S 0.75

 4
13101-24011

4KJ..KM2#

STD,STD

 4
13105-24010

4KJ..KM2#

O/S 1.00,O/S 1.00

 4
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90521-21088

4KJ..KM2#

 8
13201 - ROD SUB-ASSY, CONNECTING
13201-13010

4KJ..KM2#

 4
13201A - BUSH(FOR CONNECTING ROD SMALL END)
90999-73070

4KJ..KM2#

 4
13202 - BEARING SET, CONNECTING ROD
13203-13010

4KJ..KM2#

U/S 0.05,REP STD #2,U/S 0.05

 1
13202-13010

4KJ..KM2#

STD,REP STD #1

 1
13206-13010

4KJ..KM2#

U/S 0.75,U/S 0.75

 1
13204-13010

4KJ..KM2#

U/S 0.25,U/S 0.25

 1
13205-13010

4KJ..KM2#

U/S 0.50,U/S 0.50

 1
13265 - BOLT, CONNECTING ROD
13265-29015

4KJ..KM2#

 8
13265 - BOLT, CONNECTING ROD
13265-29015

4KJ..KM2#

 8
13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT)
90170-09195

4KJ..KM20

 8
13405 - FLYWHEEL SUB-ASSY
13405-29125

4KJ..KM2#

N=106

 1
13405A - PIN, STRAIGHT(FOR FLYWHEEL)
90250-08120

4KJ..KM2#

長さ=18,外径=8,L=18,OD=8

 3
13405B - BOLT, FLYWHEEL SETTING
90913-01005

4KJ..KM2#

 6
13411 - CRANKSHAFT
13411-13010

4KJ..KM2#

 1
13411 - CRANKSHAFT
13411-13010

4KJ..KM2#

 1
13453 - GEAR, FLYWHEEL RING
13453-10010

4KJ..KM2#

N=106

 1
13471 - PULLEY, CRANKSHAFT
13471-13020

4KJ..KM20

 1
13471 - PULLEY, CRANKSHAFT
13471-13020

4KJ..KM20

 1
13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
90280-05010

4KJ..KM2#

 1
13471B - WASHER, PLATE(FOR CRANKSHAFT PULLEY SET)
90209-13003

4KJ..KM2#

 1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90105-12050

4KJ..KM20

 1
13477 - PULLEY, CRANKSHAFT, NO.2
88358-16010

4KJ..KM20

W/COOLER

 1
13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING
13521-22010

4KJ..KM20

N=18

 1
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
90280-05010

4KJ..KM2#

 1
Common parts
91611-60812
