KM20V-JDBEW (1979)
Toyota Lite/Townace Truck

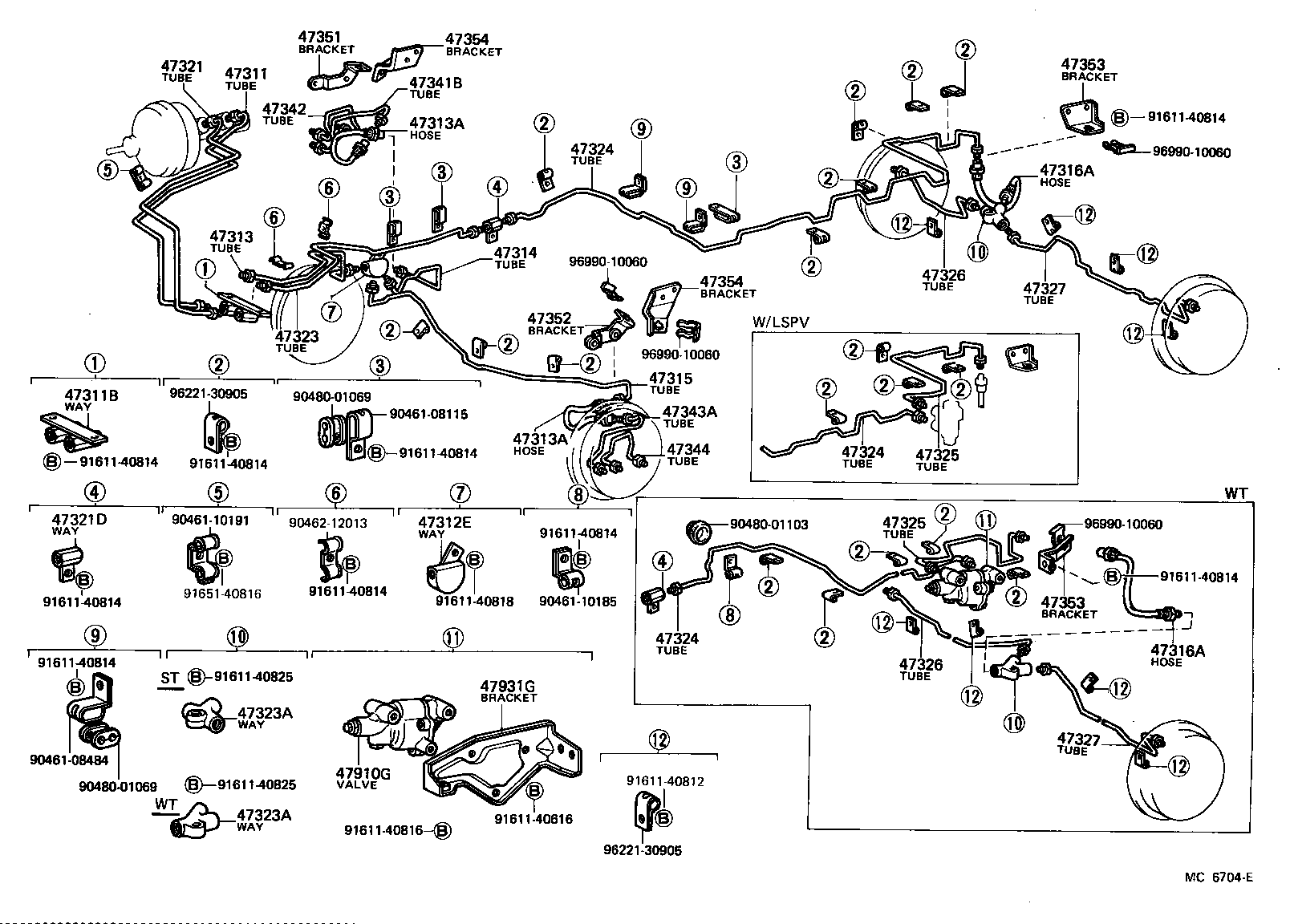

ILLUST NO. 1 OF 2(7910-8210)V
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-27050 |
KM20 |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10057 |
KM20..V |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90413-10096 |
KM20,TM20 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47312-27040 |
KM20..V |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 96940-32805 |
TM20;KM20..STD..WT;KM20..(DLX,SUP)..CBU FR DISC BRAKE |
2 | ||
| 96940-32805 |
KM20,TM20..(HRF,SRF)..(DLX,GXL,SUP,XL)..ST FR DISC BRAKE |
2 | ||
| 96950-32805 |
KM20,TM20..DLX,GXL,STD,SUP,XL FR DRUM BRAKE |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 96940-32805 |
TM20;KM20..STD..WT;KM20..(DLX,SUP)..CBU FR DISC BRAKE |
2 | ||
| 96940-32805 |
KM20,TM20..(HRF,SRF)..(DLX,GXL,SUP,XL)..ST FR DISC BRAKE |
2 | ||
| 96950-32805 |
KM20,TM20..DLX,GXL,STD,SUP,XL FR DRUM BRAKE |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47313-27030 |
KM20,TM20..V,WG |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47314-27040 |
KM20,TM20 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96940-33805 |
CM20,KM2#,YM20,21..(V,WG)..ST |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96940-33805 |
CM20,KM2#,YM20,21..(V,WG)..ST |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-27020 |
KM20 |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10063 |
CM2#,KM2#,TM20,YM2# |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47322-27020 |
KM20..V |
1 | ||
| 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) | ||||
| 90413-10098 |
KM20,TM20..(V,WG)..ST |
1 | ||
| 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) | ||||
| 90413-10098 |
KM20,TM20..(V,WG)..ST |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47323-27010 |
KM20,TM20..(HRF,SRF)..ST W/O LSPV |
1 | ||
| 47323-27010 |
KM20..V..ST W/O LSPV |
1 | ||
| 47323-27030 |
KM2#..V..ST W/LSPV |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47323-27010 |
KM20,TM20..(HRF,SRF)..ST W/O LSPV |
1 | ||
| 47323-27010 |
KM20..V..ST W/O LSPV |
1 | ||
| 47323-27030 |
KM2#..V..ST W/LSPV |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47323-27010 |
KM20,TM20..(HRF,SRF)..ST W/O LSPV |
1 | ||
| 47323-27010 |
KM20..V..ST W/O LSPV |
1 | ||
| 47323-27030 |
KM2#..V..ST W/LSPV |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47324-27010 |
KM20..V..ST |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47324-27010 |
KM20..V..ST |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47325-27030 |
KM20,TM20..(V,WG)..ST |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47325-27030 |
KM20,TM20..(V,WG)..ST |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47326-27010 |
KM20,TM20..(V,WG)..ST |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47326-27010 |
KM20,TM20..(V,WG)..ST |
1 | ||
| 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 | ||||
| 47341-27020 |
KM20,TM20..DLX,GXL,STD,SUP,XL |
1 | ||
| 47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2 | ||||
| 47342-27020 |
KM20,TM20..DLX,GXL,STD,SUP,XL |
1 | ||
| 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 | ||||
| 47343-27020 |
KM20,TM20..DLX,GXL,STD,SUP,XL |
1 | ||
| 47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2 | ||||
| 47344-27020 |
KM20,TM20..DLX,GXL,STD,SUP,XL |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-27020 |
KM20,TM20..DLX,GXL,STD,SUP,XL |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-27030 |
KM20,TM20..DLX,GXL,STD,SUP,XL |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47355-27010 |
KM20,TM20..(V,WG)..ST |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47355-27010 |
KM20,TM20..(V,WG)..ST |
1 | ||
| 47354 - BRACKET, FRONT FLEXIBLE HOSE | ||||
| 47353-27030 |
KM20,TM20..V,WG RH |
1 | ||
| 47354-27020 |
KM20,TM20..V,WG LH |
1 | ||
| 47354 - BRACKET, FRONT FLEXIBLE HOSE | ||||
| 47353-27030 |
KM20,TM20..V,WG RH |
1 | ||
| 47354-27020 |
KM20,TM20..V,WG LH |
1 | ||
| Common parts | ||||
| 90461-08115 | ||||
| 90461-08484 | ||||
| 90461-10185 | ||||
| 90461-10191 | ||||
| 90462-12013 | ||||
| 90480-01069 | ||||
| 90480-01103 | ||||
| 91611-40616 | ||||
| 91611-40812 | ||||
| 91611-40814 | ||||
| 91611-40816 | ||||
| 91611-40818 | ||||
| 91611-40825 | ||||
| 91651-40816 | ||||
| 96221-30905 | ||||
| 96990-10060 | ||||
