KM20-JRW (1979)

Toyota Lite/Townace Truck

Production Oct 1979 - Oct 1982
Engine 4KJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910- )ST

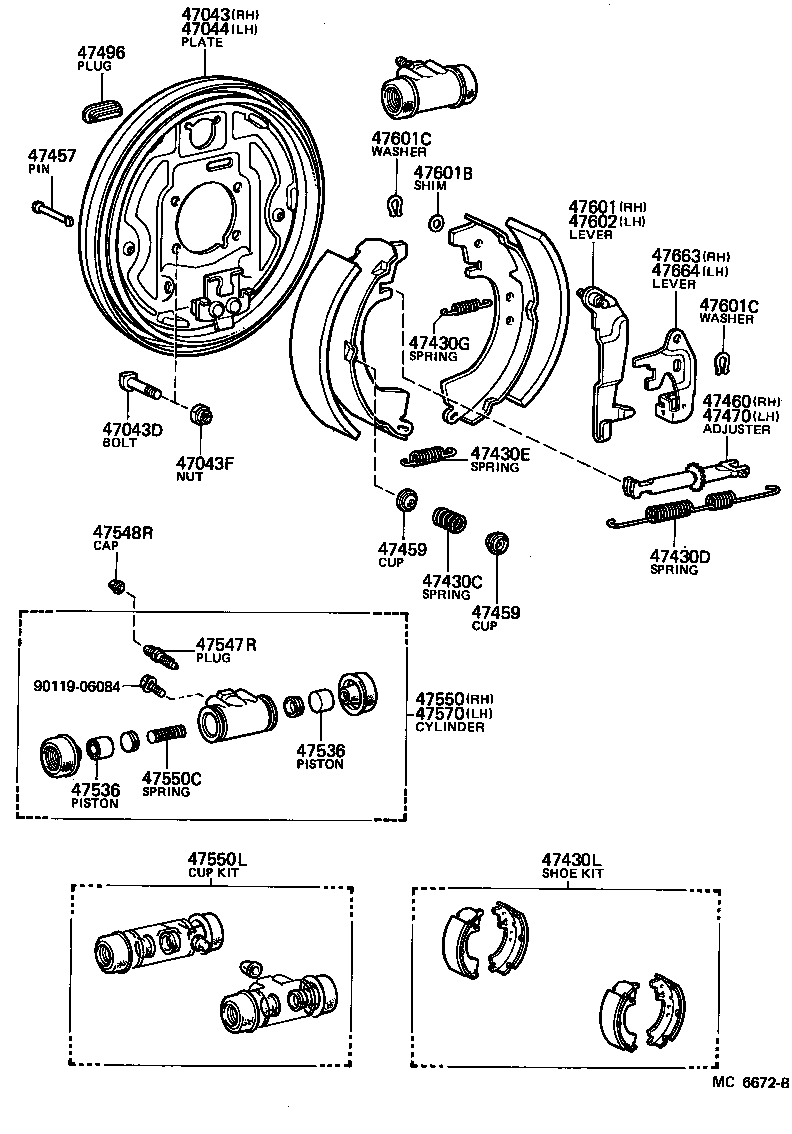

Click highlighted areas on diagram

diagram 47043 47043D 47043F 47044 47430C 47430D 47430E 47430G 47430L 47457 47459 47459 47460 47470 47496 47536 47536 47547R 47548R 47550 47550C 47550L 47570 47601 47601B 47601C 47601C 47602 47663 47664 9011906084
Part # Description Qty Price
47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH
47043-28020

CM20,KM2#,TM20,YM20,21..ST

 1
47043D - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
42184-22011

CM20,KM2#,TM20,YM20,21..ST

 8
47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
94181-11000

CM20,KM2#,TM20,YM20,21..ST

 8
47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH
47044-28020

CM20,KM2#,TM20,YM20,21..ST

 1
47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN)
90501-18017

CM2#,KM2#,TM20,YM2#

 4
47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
90506-23375

CM20,KM2#,TM20,YM20,21..ST

 2
47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
90506-23346

CM20,KM2#,TM20,YM20,21..ST

 2
47430G - SPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)
90506-12011

CM20,KM2#,TM20,YM20,21..ST

 2
47430L - SHOE KIT, REAR BRAKE
04495-20080

KM20,TM20..(DLX,GXL,STD,SUP,XL)..ST

FR DRUM BRAKE

 1
04497-20060

KM20,TM20..(DLX,GXL,STD,SUP,XL)..ST

REBUILT,FR DRUM BRAKE

 1
47457 - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47447-20030

CM20,KM2#,TM20,YM20,21..ST

 4
47459 - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47449-30020

CM2#,KM2#,TM20,YM2#

 8
47459 - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47449-30020

CM2#,KM2#,TM20,YM2#

 8
47460 - ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)
47061-14021

CM20,KM2#,TM20,YM20,21..ST

 1
47470 - ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)
47062-14021

CM20,KM2#,TM20,YM20,21..ST

 1
47496 - PLUG, HOLE(FOR REAR BRAKE)
47491-20011

CM20,KM2#,TM20,YM20,21..ST

 2
47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)
47051-22031

KM20..ST

ID=19.05W/C,FR DRUM,W/O LSPV

 4
47051-22040

KM20..ST

ID=20.64W/C,FR DRUM,W/LSPV

 4
47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)
47051-22031

KM20..ST

ID=19.05W/C,FR DRUM,W/O LSPV

 4
47051-22040

KM20..ST

ID=20.64W/C,FR DRUM,W/LSPV

 4
47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR)
47547-20010

CM2#,KM2#,TM20,YM2#

 2
47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)
31478-30010

CM2#,KM2#,TM20,YM2#

 2
47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)
47550-19135

KM20,TM20..(DLX,GXL,STD,SUP,XL)..ST

W/LSPV,ID=20.64

 1
47550-19125

KM20,TM20..ST

ID=19.05

 1
47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)
47509-12010

KM20..ST

ID=19.05W/C,FR DRUM,W/O LSPV

 2
47509-12020

KM20..ST

ID=20.64W/C,FR DRUM,W/LSPV

 2
47550L - CUP KIT, REAR WHEEL CYLINDER
04906-12040

KM20..ST

ID=20.64W/C,FR DRUM,W/LSPV

 1
04906-12030

KM20..ST

ID=19.05W/C,FR DRUM,W/O LSPV

 1
47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)
47550-19135

KM20,TM20..(DLX,GXL,STD,SUP,XL)..ST

W/LSPV,ID=20.64

 1
47550-19125

KM20,TM20..ST

ID=19.05

 1
47601 - LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)
47601-14010

CM20,KM2#,TM20,YM20,21..ST

 1
47601B - SHIM, REAR PARKING BRAKE SHOE LEVER
90564-08151

CM20,KM2#,TM20,YM20,21..ST

厚さ=0.6,T=0.6

 2
90564-08172

CM20,KM2#,TM20,YM20,21..ST

厚さ=0.2,T=0.2

 2
90564-08152

CM20,KM2#,TM20,YM20,21..ST

厚さ=0.9,T=0.9

 2
90564-08150

CM20,KM2#,TM20,YM20,21..ST

厚さ=0.3,T=0.3

 2
47601C - WASHER, C(FOR REAR BRAKE)
90213-06013

CM20,KM2#,TM20,YM20,21..ST

厚さ=1.2

 4
47601C - WASHER, C(FOR REAR BRAKE)
90213-06013

CM20,KM2#,TM20,YM20,21..ST

厚さ=1.2

 4
47602 - LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)
47602-14010

CM20,KM2#,TM20,YM20,21..ST

 1
47663 - LEVER, AUTOMATIC ADJUST, RH(FOR REAR BRAKE)
47643-20020

CM20,KM2#,TM20,YM20,21..ST

 1
47664 - LEVER, AUTOMATIC ADJUST, LH(FOR REAR BRAKE)
47644-20020

CM20,KM2#,TM20,YM20,21..ST

 1
Common parts
90119-06084
