KM20-JDW (1979)
Toyota Lite/Townace Truck
Production
Oct 1979
-
Oct 1982
Engine
4KJ
Transmission
4H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7910- )TR

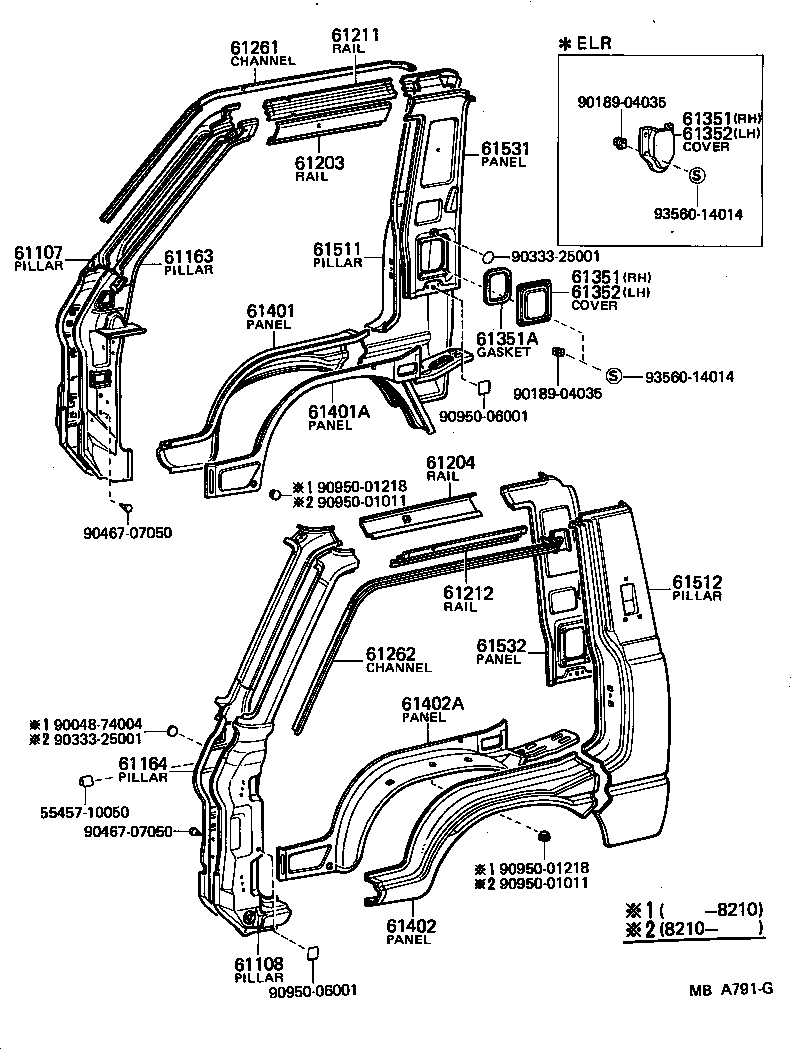

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61107 - PILLAR SUB-ASSY, FRONT BODY OUTER, RH | ||||
| 61103-95713 |
KM20..TR |
1 | ||
| 61103-95706 |
KM20,TM20 |
1 | ||
| 61103-95710 |
KM20,TM20 |
1 | ||
| 61108 - PILLAR SUB-ASSY, FRONT BODY OUTER, LH | ||||
| 61104-87402 |
KM20..TR |
1 | ||
| 61104-95705 |
KM20,TM20 |
1 | ||
| 61104-87403 |
KM20..TR |
1 | ||
| 61163 - PILLAR, FRONT BODY, INNER RH | ||||
| 61105-95703 |
KM20,TM20 W/SIDE DEFROSTOR |
1 | ||
| 61105-95702 |
KM20,TM20..DLX,STD,SUP,XL |
1 | ||
| 61105-95702 |
KM20 |
1 | ||
| 61105-95703 |
KM20 W/SIDE DEFROSTOR |
1 | ||
| 61164 - PILLAR, FRONT BODY, INNER LH | ||||
| 61106-95704 |
KM20,TM20 W/SIDE DEFROSTOR |
1 | ||
| 61106-95702 |
KM20,TM20..DLX,STD,SUP,XL |
1 | ||
| 61203 - RAIL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61231-87403 |
KM20..TR |
1 | ||
| 61204 - RAIL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61232-87401 |
KM20..TR |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-87402 |
CM2#,KM2#,YM25..TR |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-87402 |
CM2#,KM2#,YM25..TR |
1 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61223-87401 |
CM2#,KM2#,YM25..TR |
1 | ||
| 61262 - CHANNEL, ROOF DRIP, LH | ||||
| 61224-87401 |
CM2#,KM2#,YM25..TR |
1 | ||
| 61351 - COVER, CENTER BODY, INNER RH | ||||
| 61509-87401 |
CM2#,KM2#,YM25..TR |
1 | ||
| 61351 - COVER, CENTER BODY, INNER RH | ||||
| 61509-87401 |
CM2#,KM2#,YM25..TR |
1 | ||
| 61351A - GASKET(FOR CENTER BODY INNER COVER) | ||||
| 61519-87403 |
CM2#,KM2#,YM25..TR |
2 | ||
| 61352 - COVER, CENTER BODY, INNER, LH | ||||
| 61509-87401 |
CM2#,KM2#,YM25..TR |
1 | ||
| 61352 - COVER, CENTER BODY, INNER, LH | ||||
| 61509-87401 |
CM2#,KM2#,YM25..TR |
1 | ||
| 61401 - PANEL SUB-ASSY, FENDER, RH | ||||
| 61411-95701 |
CM2#,KM2#,TM20,YM2# |
1 | ||
| 61401A - PANEL SUB-ASSY, FENDER, INNER RH | ||||
| 61403-87401 |
KM20..TR |
1 | ||
| 61402 - PANEL SUB-ASSY, FENDER, LH | ||||
| 61412-95701 |
CM2#,KM2#,TM20,YM2# |
1 | ||
| 61402A - PANEL SUB-ASSY, FENDER, INNER LH | ||||
| 61404-87401 |
KM20..TR |
1 | ||
| 61511 - PILLAR, QUARTER LOCK, RH | ||||
| 61501-87401 |
KM20..TR |
1 | ||
| 61512 - PILLAR, QUARTER LOCK, LH | ||||
| 61502-87401 |
KM20..TR |
1 | ||
| 61531 - PANEL, BACK CORNER, INNER RH | ||||
| 61023-87401 |
KM20..TR |
1 | ||
| 61023-87402 |
KM20..TR W/*ELR |
1 | ||
| 61532 - PANEL, BACK CORNER, INNER LH | ||||
| 61024-87401 |
KM20..TR |
1 | ||
| 61024-87403 |
KM20..TR W/*ELR |
1 | ||
| Common parts | ||||
| 55457-10050 | ||||
| 90048-74004 | ||||
| 90189-04035 | ||||
| 90333-25001 | ||||
| 90467-07050 | ||||
| 90950-01011 | ||||
| 90950-01218 | ||||
| 90950-06001 | ||||
| 93560-14014 | ||||
