KM20-JDW (1979)
Toyota Lite/Townace Truck

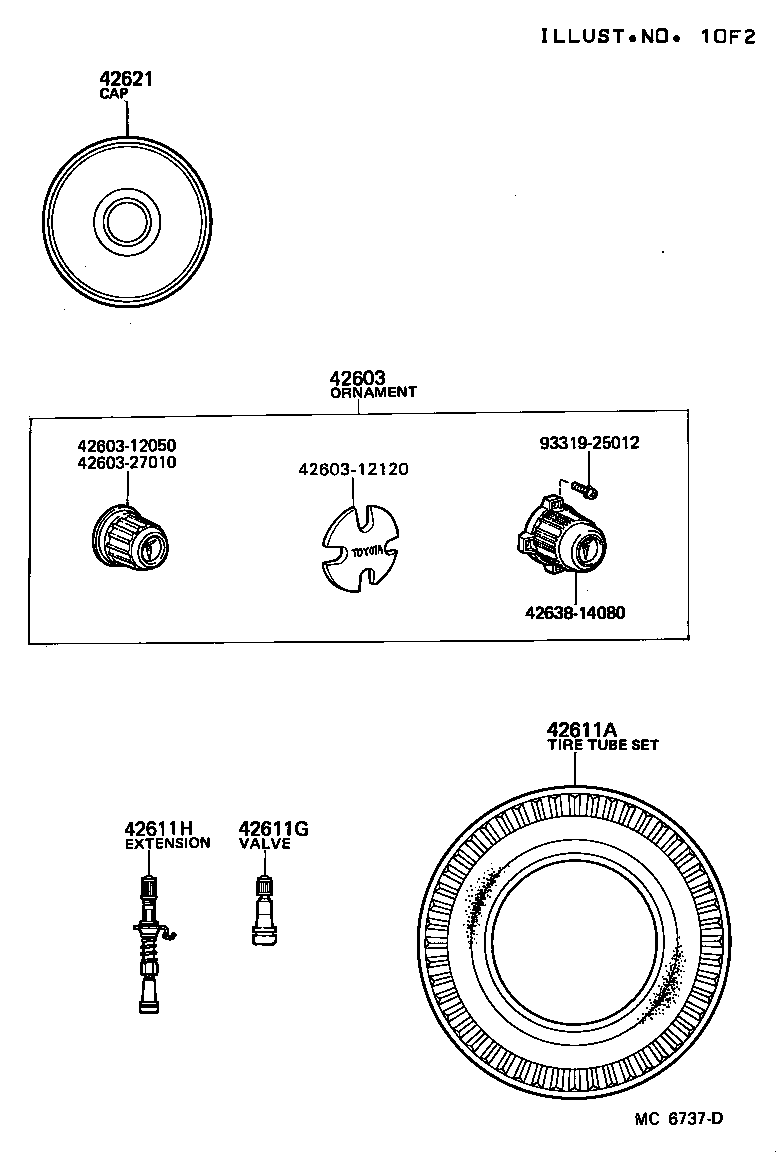

ILLUST NO. 1 OF 2(7910- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42611A - TIRE TUBE SET OR TUBELESS TIRE | ||||
| 42605-28010 |
KM20..TR..ST 165R-13-6 |
5 | ||
| 98061-55134 |
KM20..TR..ST 5.50-13-8,RR |
3 | ||
| 98061-55133 |
CM2#,KM2#,YM2# 5.50-13-6,*(B) & *(D) |
5 | ||
| 98961-55133 |
CM2#,KM2#,YM2# 5.50-13-6,*(T) & *(Y) |
5 | ||
| 42621 - CAP, WHEEL | ||||
| 42621-27020 |
KM20..(DLX,SUP)..ST |
4 | ||
| Common parts | ||||
| 42603-12050 | ||||
| 42603-12120 | ||||
| 42603-27010 | ||||
| 42638-14080 | ||||
| 93319-25012 | ||||

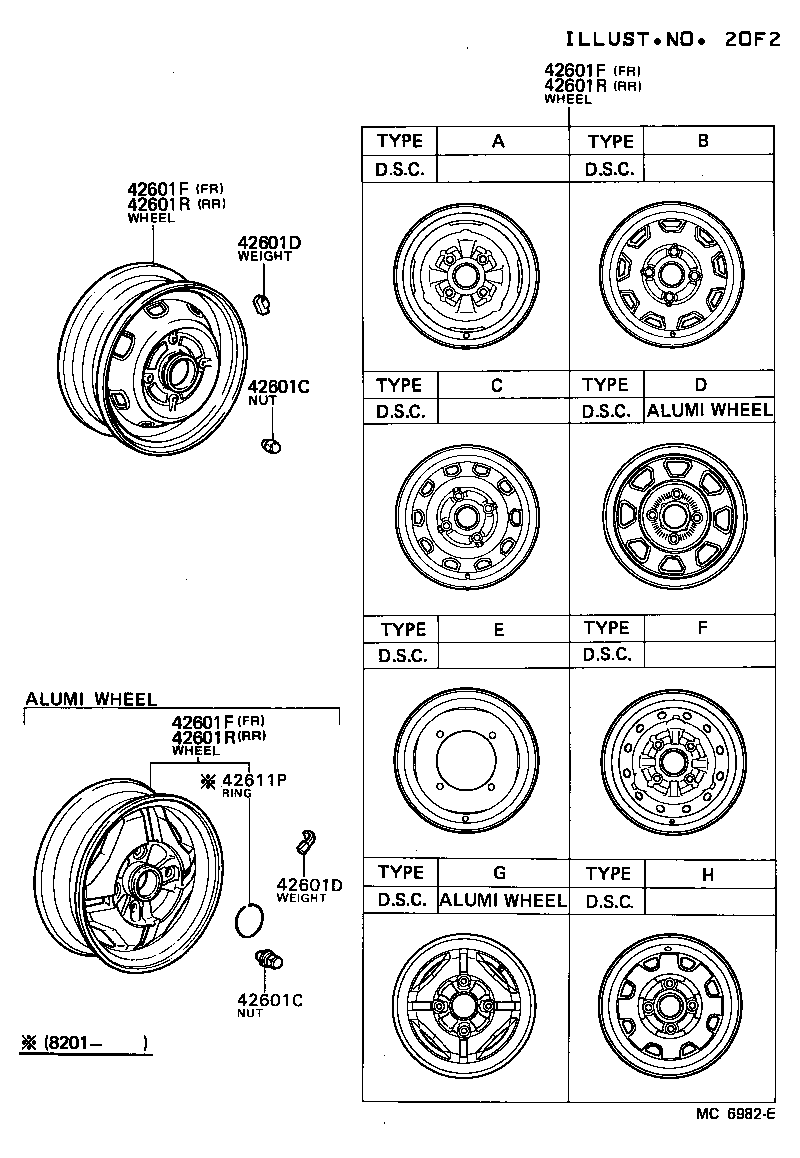

ILLUST NO. 2 OF 2(7910- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01007 |
KM20..ST 12P=1.5,L=16 |
16 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01007 |
KM20..ST 12P=1.5,L=16 |
16 | ||
| 42601D - WEIGHT, BALANCE (FOR DISC WHEEL) | ||||
| 90942-03020 |
CM2#,KM2#,TM20,YM2# 30G,厚さ=10,30G |
1 | ||
| 90942-03031 |
CM2#,KM2#,TM20,YM2# 80G,厚さ=9.5,80G |
1 | ||
| 90942-03029 |
CM2#,KM2#,TM20,YM2# 70G,厚さ=9.5,70G |
1 | ||
| 90942-03017 |
CM2#,KM2#,TM20,YM2# 20G,厚さ=8,20G |
1 | ||
| 90942-03027 |
CM2#,KM2#,TM20,YM2# 60G,厚さ=9.5,60G |
1 | ||
| 90942-03022 |
CM2#,KM2#,TM20,YM2# 40G,厚さ=9.5,40G |
1 | ||
| 90942-03025 |
CM2#,KM2#,TM20,YM2# 50G,厚さ=9.5,50G |
1 | ||
| 90942-03041 |
CM2#,KM2#,TM20,YM2# 10G,厚さ=7.5,10G |
1 | ||
| 42601D - WEIGHT, BALANCE (FOR DISC WHEEL) | ||||
| 90942-03020 |
CM2#,KM2#,TM20,YM2# 30G,厚さ=10,30G |
1 | ||
| 90942-03031 |
CM2#,KM2#,TM20,YM2# 80G,厚さ=9.5,80G |
1 | ||
| 90942-03029 |
CM2#,KM2#,TM20,YM2# 70G,厚さ=9.5,70G |
1 | ||
| 90942-03017 |
CM2#,KM2#,TM20,YM2# 20G,厚さ=8,20G |
1 | ||
| 90942-03027 |
CM2#,KM2#,TM20,YM2# 60G,厚さ=9.5,60G |
1 | ||
| 90942-03022 |
CM2#,KM2#,TM20,YM2# 40G,厚さ=9.5,40G |
1 | ||
| 90942-03025 |
CM2#,KM2#,TM20,YM2# 50G,厚さ=9.5,50G |
1 | ||
| 90942-03041 |
CM2#,KM2#,TM20,YM2# 10G,厚さ=7.5,10G |
1 | ||
| 42601F - WHEEL, DISC (FOR FRONT) | ||||
| 42601-27040 |
KM20 4J-13,TYPE A |
2 | ||
| 42611-28020 |
KM20..TR..DLX..CBU 4J−13,4J-13,TYPE F |
2 | ||
| 42601F - WHEEL, DISC (FOR FRONT) | ||||
| 42601-27040 |
KM20 4J-13,TYPE A |
2 | ||
| 42611-28020 |
KM20..TR..DLX..CBU 4J−13,4J-13,TYPE F |
2 | ||
| 42601F - WHEEL, DISC (FOR FRONT) | ||||
| 42601-27040 |
KM20 4J-13,TYPE A |
2 | ||
| 42611-28020 |
KM20..TR..DLX..CBU 4J−13,4J-13,TYPE F |
2 | ||
| 42601R - WHEEL, DISC (FOR REAR) | ||||
| 42601-27040 |
KM20..ST 4J-13,TYPE A |
3 | ||
| 42611-28020 |
KM20..TS..DLX..ST 4J−13,4J-13,TYPE F |
3 | ||
| 42601R - WHEEL, DISC (FOR REAR) | ||||
| 42601-27040 |
KM20..ST 4J-13,TYPE A |
3 | ||
| 42611-28020 |
KM20..TS..DLX..ST 4J−13,4J-13,TYPE F |
3 | ||
| 42601R - WHEEL, DISC (FOR REAR) | ||||
| 42601-27040 |
KM20..ST 4J-13,TYPE A |
3 | ||
| 42611-28020 |
KM20..TS..DLX..ST 4J−13,4J-13,TYPE F |
3 | ||
