KM20-JDLTW (1979)

Toyota Lite/Townace Truck

Production Oct 1979 - Oct 1982
Engine 4KJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

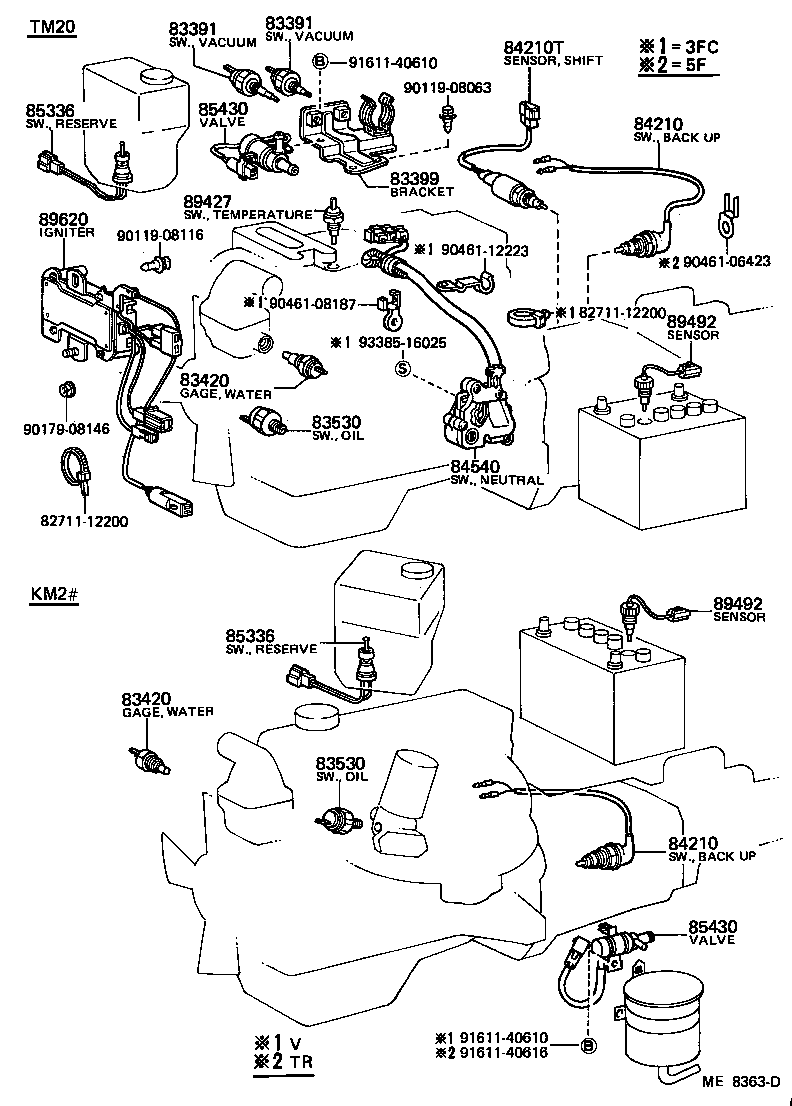

ILLUST NO. 1 OF 6(7910- )KM2#,TM20

Click highlighted areas on diagram

diagram 8271112200 8271112200 83391 83391 83399 83420 83420 83530 83530 84210 84210 84210T 84540 85336 85336 85430 85430 89427 89492 89492 89620 9011908063 9011908116 9017908146 9046106423 9046108187 9046112223 9161140610 9161140610 9161140616 9338516025
Part # Description Qty Price
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-16010

CM2#,KM2#,TM20,YM2#

DENSO

 1
83420-20020

CM2#,KM2#,TM20,YM2#

YAZAKI

 1
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-16010

CM2#,KM2#,TM20,YM2#

DENSO

 1
83420-20020

CM2#,KM2#,TM20,YM2#

YAZAKI

 1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-10020

KM2#,TM20,YM2#

 1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-10020

KM2#,TM20,YM2#

 1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-26010

KM2#,TM20,YM25..4F,4H

 1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-26010

KM2#,TM20,YM25..4F,4H

 1
Common parts
82711-12200
90119-08063
90119-08116
90179-08146
90461-06423
90461-08187
90461-12223
91611-40610
91611-40616
93385-16025

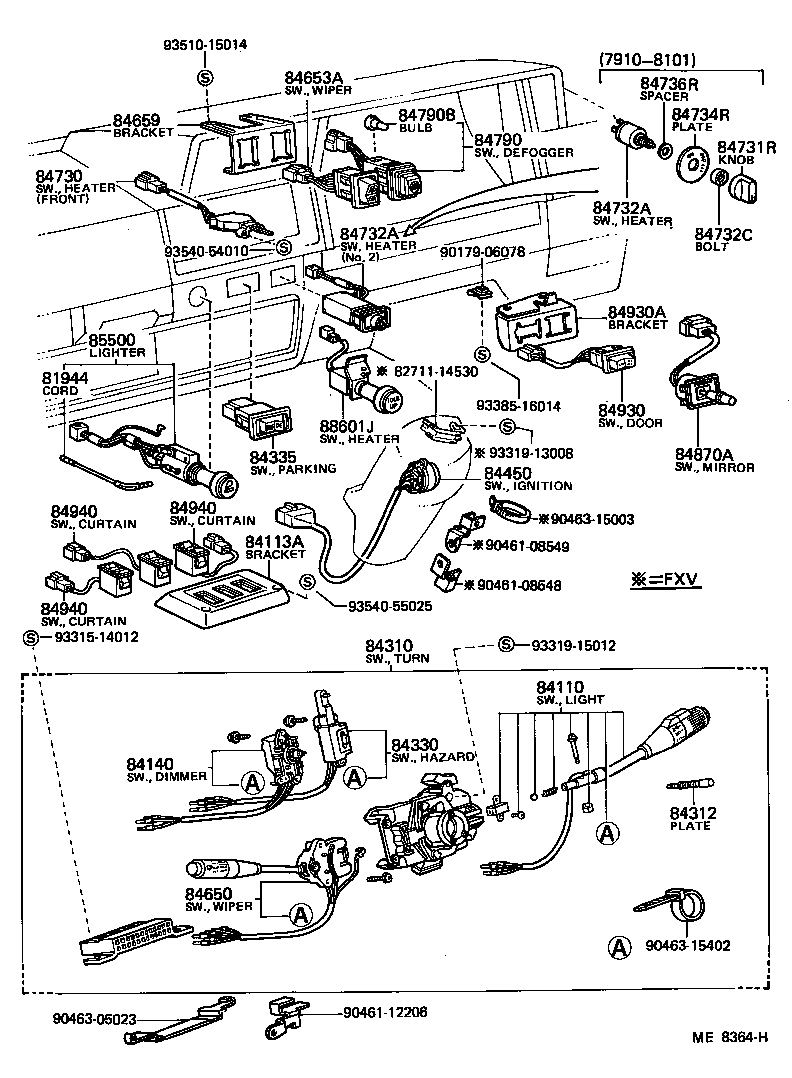

ILLUST NO. 2 OF 6(7910-8210)

Click highlighted areas on diagram

diagram 81944 8271114530 84110 84113A 84140 84310 84312 84330 84335 84450 84650 84653A 84659 84730 84731R 84732A 84732A 84732C 84734R 84736R 84790 84790B 84870A 84930 84930A 84940 84940 84940 85500 88601J 9017906078 9046108548 9046108549 9046112206 9046305023 9046315003 9046315402 9331514012 9331913008 9331915012 9338516014 9351015014 9354054010 9354055025
Part # Description Qty Price
84110 - SWITCH ASSY, LIGHT CONTROL, NO.1
84112-29205

KM20,TM20

 1
84112-29206

KM20,TM20..DLX,GXL,STD,SUP,XL

 1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-29055

KM20,TM20..DLX,GXL,STD,SUP,XL

 1
84310 - SWITCH ASSY, TURN SIGNAL
84310-28040

KM20,TM20..DLX,GXL,SUP,XL

W/*IW

 1
84310-28030

KM20..DLX,STD

 1
84310-28031

KM20..DLX,STD

 1
84310-28041

KM20,TM20..DLX,GXL,SUP,XL

W/*IW

 1
84312 - PLATE, HORN CONTACT
84312-20011

CM2#,KM2#,TM20,YM2#

 1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-29075

KM20,TM20..DLX,GXL,STD,SUP,XL

 1
84335 - SWITCH ASSY, PARKING LAMP
84330-95700

KM20,TM20

 1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-27050

KM20

 1
84450-27060

KM20

COLD SPEC

 1
84450-27060

CM2#,KM2#,YM20,25..TR,V

 1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-29245

KM20..DLX,STD

 1
84652-29255

KM20,TM20..DLX,GXL,SUP,XL

W/*IW

 1
84652-29256

KM20,TM20..DLX,GXL,SUP,XL

W/*IW

 1
84730 - SWITCH ASSY, HEATER BLOWER
84732-95701

KM20..DLX,STD

 1
84732-95701

KM20..TR

 1
85500 - LIGHTER ASSY, CIGARETTE
85500-30340

KM20,TM20..DLX,GXL,SUP,XL

 1
85500-87001

KM20..TR..DLX

 1
85500-87001

KM20,TM20..DLX,SUP,XL

 1
Common parts
82711-14530
90179-06078
90461-08548
90461-08549
90461-12206
90463-05023
90463-15003
90463-15402
93315-14012
93319-13008
93319-15012
93385-16014
93510-15014
93540-54010
93540-55025

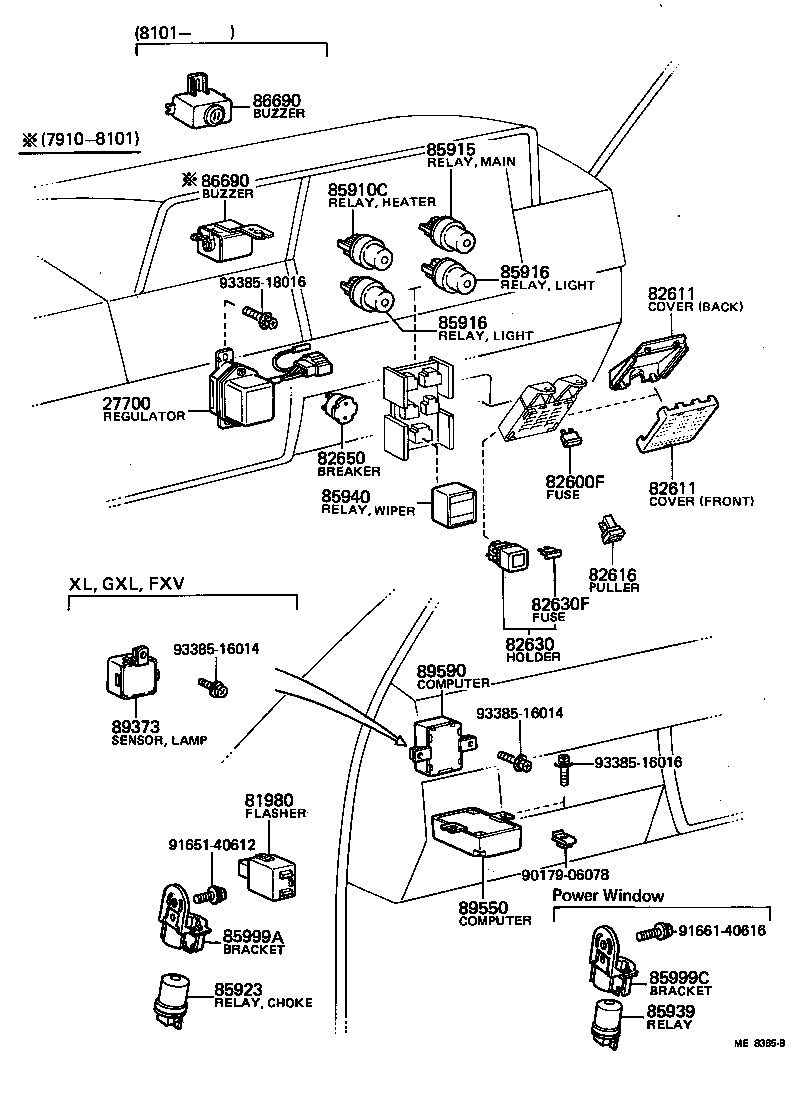

ILLUST NO. 3 OF 6(7910-8210)

Click highlighted areas on diagram

diagram 27700 81980 82600F 82611 82611 82616 82630 82630F 82650 85910C 85915 85916 85916 85923 85939 85940 85999A 85999C 86690 86690 89373 89550 89590 9017906078 9165140612 9166140616 9338516014 9338516014 9338516016 9338518016
Part # Description Qty Price
27700 - REGULATOR ASSY, GENERATOR
27700-13040

13TU,1C,4KJ,1YJ,2YU..CM2#,KM2#,TM20,YM2#

 1
81980 - FLASHER ASSY, TURN SIGNAL
81980-22060

KM20,TM20

 1
82600F - FUSE, FUSE BLOCK
90982-09001

KM20,TM20

5A,5A

 3
90982-09002

CM20,25,KM2#,TM20,YM2#

10A,10A

 8
90982-09003

CM2#,KM2#,TM20,YM2#

15A,15A

 11
82611 - COVER, FUSE BLOCK
82611-87401

KM20..TR

FR

 1
82612-95701

KM20,TM20

BACK

 1
82611 - COVER, FUSE BLOCK
82611-87401

KM20..TR

FR

 1
82612-95701

KM20,TM20

BACK

 1
82616 - PULLER, FUSE
82616-12010

CM2#,KM2#,TM20,YM2#

 1
85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR)
90987-02004

KM20,TM20

 1
90987-02001

KM20,TM20

 1
85915 - RELAY, MAIN
90987-02004

CM2#,KM2#,TM20,YM2#

 1
90987-02001

KM20,TM20

 1
85916 - RELAY, LIGHT CONTROL
90987-01001

KM20,TM20

 2
90987-01003

CM2#,KM2#,TM20,YM2#

 2
85916 - RELAY, LIGHT CONTROL
90987-01001

KM20,TM20

 2
90987-01003

CM2#,KM2#,TM20,YM2#

 2
85923 - RELAY, CHOKE CONTROL
90987-02001

KM20,TM20

 1
85940 - RELAY ASSY, WINDSHIELD WIPER
85940-22051

KM20,TM20..DLX,FXV,GXL,SUP,XL

 1
85999A - BRACKET, RELAY, NO.2
85999-26010

KM20,TM20

 1
86690 - BUZZER ASSY, SPEED INDICATOR
86650-30040

KM20,TM20

 1
86650-95010

KM20,TM20

 1
86690 - BUZZER ASSY, SPEED INDICATOR
86650-30040

KM20,TM20

 1
86650-95010

KM20,TM20

 1
Common parts
90179-06078
91651-40612
91661-40616
93385-16014
93385-16016
93385-18016

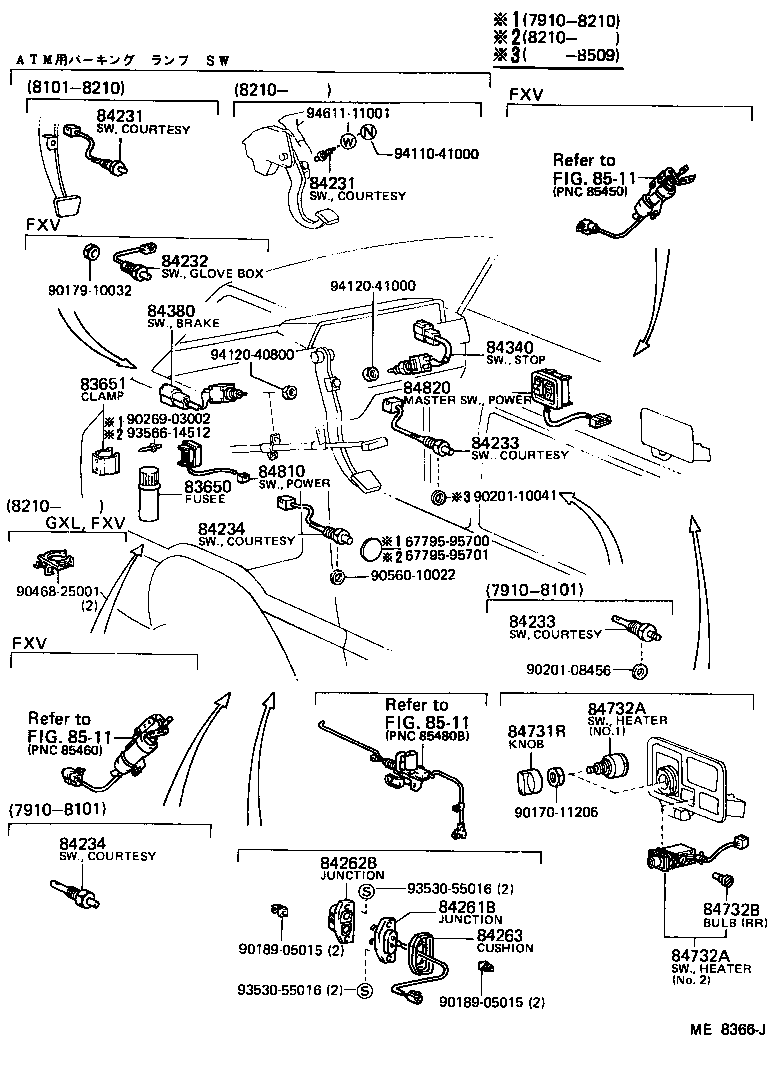

ILLUST NO. 4 OF 6(7910- )

Click highlighted areas on diagram

diagram 6779595700 6779595701 83650 83651 84231 84231 84232 84233 84233 84234 84234 84261B 84262B 84263 84340 84380 84731R 84732A 84732A 84732B 84810 84820 8511 8511 8511 9017011206 9017910032 9018905015 9018905015 9020108456 9020110041 9026903002 9046825001 9056010022 9353055016 9353055016 9356614512 9411041000 9412040800 9412041000 9461111001
Part # Description Qty Price
83650 - FUSEE
90986-01003

CM2#,KM2#,TM20,YM2#

 1
83651 - CLAMP, FUSEE
81711-95401

TM20;CM2#,KM2#,YM2#..CS7,DLX,MTP,S,STD,SUP,SW,XL

 1
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84230-30080

KM20,TM20

 2
84231-20010

KM20,TM20

 2
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84230-30080

KM20,TM20

 2
84231-20010

KM20,TM20

 2
84340 - SWITCH ASSY, STOP LAMP
84340-22060

KM20,TM20

 1
84340-22072

KM20,TM20

 1
84380 - SWITCH ASSY, BRAKE WARNING TEST
84380-35010

CM2#,KM2#,TM20,YM2#..MTM

 1
Common parts
67795-95700
67795-95701
90170-11206
90179-10032
90189-05015
90201-08456
90201-10041
90269-03002
90468-25001
90560-10022
93530-55016
93566-14512
94110-41000
94120-40800
94120-41000
94611-11001
Linked diagrams
8511

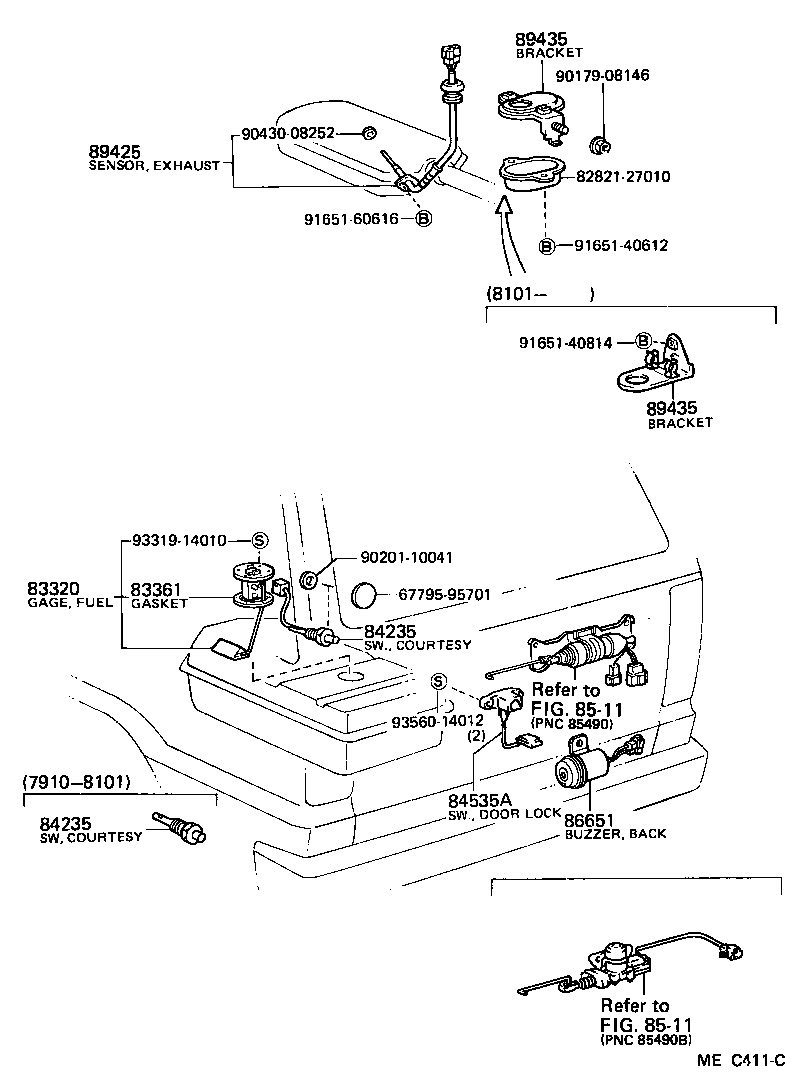

ILLUST NO. 5 OF 6(7910- )

Click highlighted areas on diagram

diagram 6779595701 8282127010 83320 83361 84235 84235 84535A 8511 8511 86651 89425 89435 89435 9017908146 9020110041 9043008252 9165140612 9165140814 9165160616 9331914010 9356014012
Part # Description Qty Price
83320 - GAGE ASSY, FUEL SENDER
83320-29315

KM20..TR

 1
83361 - GASKET, FUEL SENDER GAGE
83361-20030

CM2#,KM2#,TM20,YM2#

 1
Common parts
67795-95701
82821-27010
90179-08146
90201-10041
90430-08252
91651-40612
91651-40814
91651-60616
93319-14010
93560-14012
Linked diagrams
8511
