KM20-JDLTW (1979)

Toyota Lite/Townace Truck

Production Oct 1979 - Oct 1982
Engine 4KJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910-8210)TR

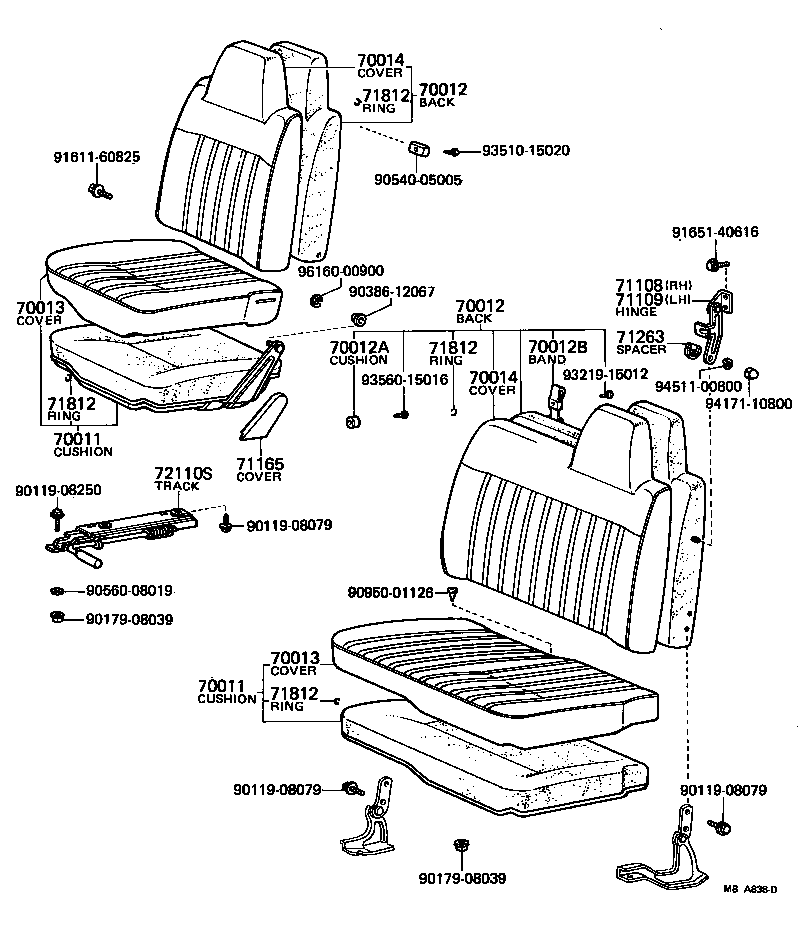

Click highlighted areas on diagram

diagram 70011 70011 70012 70012 70012A 70012B 70013 70013 70014 70014 71108 71109 71165 71263 71812 71812 71812 71812 72110S 9011908079 9011908079 9011908079 9011908250 9017908039 9017908039 9038612067 9054005005 9056008019 9095001126 9161160825 9165140616 9321915012 9351015020 9356015016 9417110800 9451100800 9616000900
Part # Description Qty Price
70011 - CUSHION ASSY, NO.1 SEAT
71110-87402

KM20..TR..DLX

RH,VL PRINT

 1
71210-87402

KM20..TR..DLX

LH,VL PRINT

 1
70011 - CUSHION ASSY, NO.1 SEAT
71110-87402

KM20..TR..DLX

RH,VL PRINT

 1
71210-87402

KM20..TR..DLX

LH,VL PRINT

 1
70012 - BACK ASSY, NO.1 SEAT
71150-87402

KM20..TR..DLX

RH,VL PRINT

 1
71250-87402

KM20..TR..DLX

LH,VL PRINT

 1
70012 - BACK ASSY, NO.1 SEAT
71150-87402

KM20..TR..DLX

RH,VL PRINT

 1
71250-87402

KM20..TR..DLX

LH,VL PRINT

 1
70012A - CUSHION(FOR NO.1 SEAT BACK)
71268-95702

KM2#

 2
70012B - BAND, ENGINE SERVICE HOLE COVER SUPPORT
71240-95700

KM20

 1
70013 - COVER ASSY, NO.1 SEAT CUSHION
71108-87404

KM20..TR..DLX

RH,VL PRINT

 1
71208-87402

KM20..TR..DLX

LH,VL PRINT

 1
70013 - COVER ASSY, NO.1 SEAT CUSHION
71108-87404

KM20..TR..DLX

RH,VL PRINT

 1
71208-87402

KM20..TR..DLX

LH,VL PRINT

 1
70014 - COVER ASSY, NO.1 SEAT BACK
71109-87404

KM20..TR..DLX

RH,VL PRINT

 1
71209-87402

KM20..TR..DLX

LH,VL PRINT

 1
70014 - COVER ASSY, NO.1 SEAT BACK
71109-87404

KM20..TR..DLX

RH,VL PRINT

 1
71209-87402

KM20..TR..DLX

LH,VL PRINT

 1
71108 - HINGE SUB-ASSY, FRONT SEAT BACK, UPPER RH
71025-87401

KM20..TR

 1
71109 - HINGE SUB-ASSY, FRONT SEAT BACK, UPPER LH
71026-87401

KM20..TR

 1
71165 - COVER, FRONT RH SEAT HINGE
71165-9570006

KM20,TM20

BROWN,BROWN

 1
71165-9570001

KM20,TM20

BLACK,BLACK

 1
71263 - SPACER, FRONT SEAT BACK HINGE
71263-95700

KM20

 2
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
71812-87401

KM20..TR

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
71812-87401

KM20..TR

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
71812-87401

KM20..TR

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
71812-87401

KM20..TR

 1
72110S - TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)
72710-87401

KM20..TR

 1
Common parts
90119-08079
90119-08250
90179-08039
90386-12067
90540-05005
90560-08019
90950-01126
91611-60825
91651-40616
93219-15012
93510-15020
93560-15016
94171-10800
94511-00800
96160-00900
