KM20-JDLTW (1979)

Toyota Lite/Townace Truck

Production Oct 1979 - Oct 1982
Engine 4KJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910- )TR

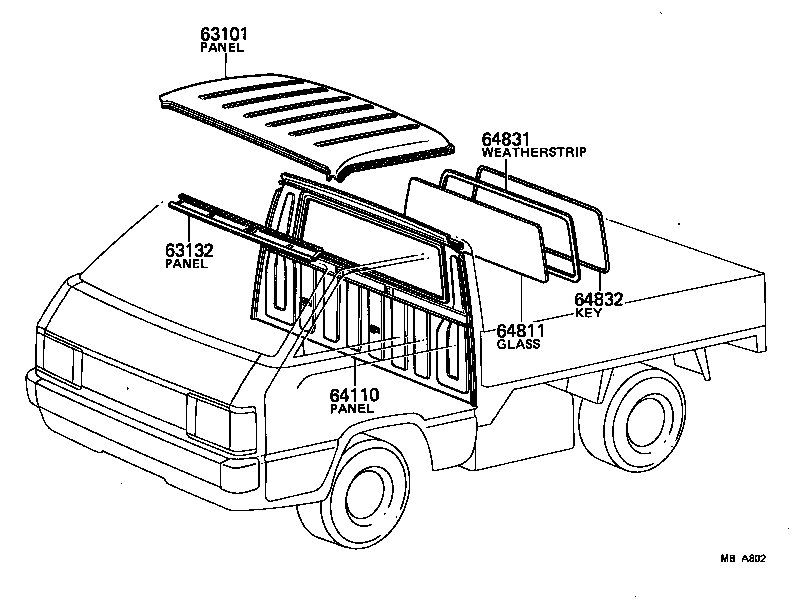

Click highlighted areas on diagram

diagram 63101 63132 64110 64811 64831 64832
Part # Description Qty Price
63101 - PANEL SUB-ASSY, ROOF
63111-87402

CM2#,KM2#,YM25..TR

 1
63132 - PANEL, WINDSHIELD HEADER, INNER
63103-95703

KM20,TM20..DLX,GXL,SUP,XL

 1
64110 - PANEL ASSY, FRONT BODY BACK
64101-87401

KM20..TR

 1
64811 - GLASS, BACK WINDOW
64811-87404

CM2#,KM2#,YM25..TR

*TEM,厚さ=4.0

 1
64831 - WEATHERSTRIP, BACK WINDOW GLASS
64812-87401

CM2#,KM2#,YM25..TR

 1
64832 - KEY, BACK WINDOW WEATHERSTRIP
64813-87401

CM2#,KM2#,YM25..TR

 1
