KM20-JDLTW (1979)

Toyota Lite/Townace Truck

Production Oct 1979 - Oct 1982
Engine 4KJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910-8210)4KJ

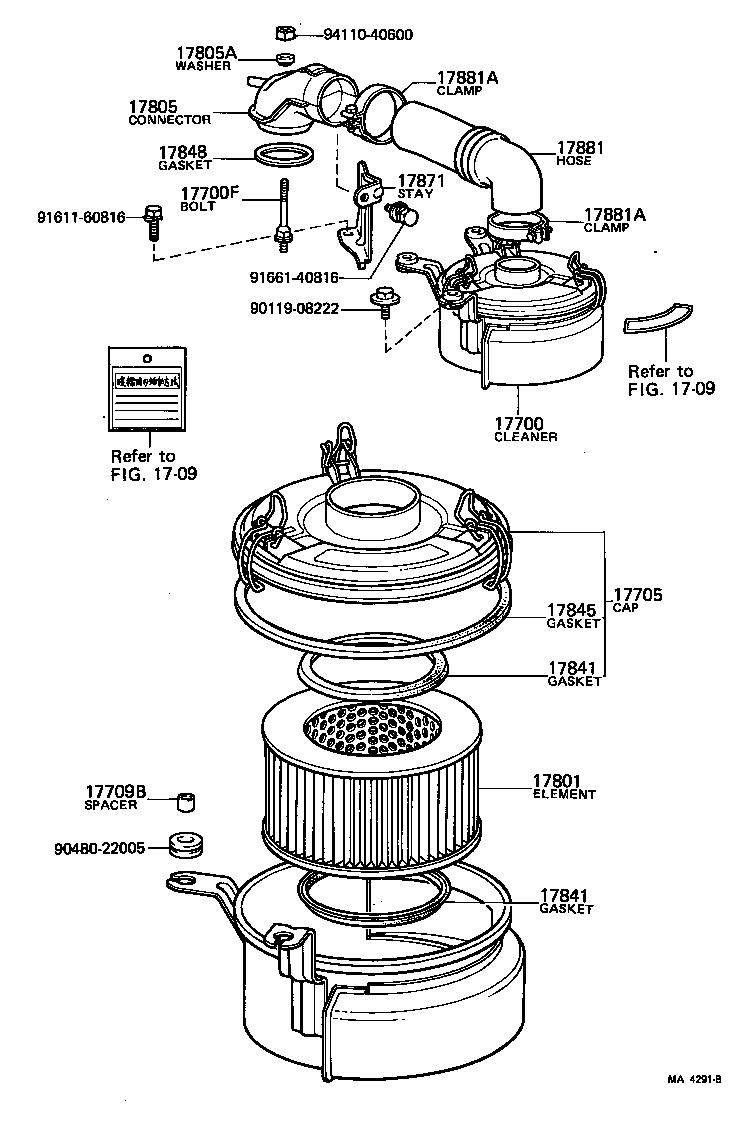

Click highlighted areas on diagram

diagram 1709 1709 17700 17700F 17705 17709B 17801 17805 17805A 17841 17841 17845 17848 17871 17881 17881A 17881A 9011908222 9048022005 9161160816 9166140816 9411040600
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-13100

4KJ..KM20

 1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06222

4KJ..KM2#

L=80,S=12&28

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-13020

4KJ..KM20

 1
17709B - SPACER, AIR CLEANER INLET
90560-08018

4KJ..KM20

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-23020

4KJ..KM20

 1
17805 - CONNECTOR SUB-ASSY, INTAKE AIR
17861-13020

4KJ..KM20

 1
17805A - GASKET & WASHER, SEAL
90210-06023

4KJ..KM20

 1
17841 - GASKET, FILTER ELEMENT
17841-24030

4KJ..KM20

 2
17841 - GASKET, FILTER ELEMENT
17841-24030

4KJ..KM20

 2
17845 - GASKET, AIR CLEANER CAP
17845-24030

4KJ..KM20

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
90430-63187

4KJ..KM20

 1
17871 - STAY, AIR CONNECTOR
17871-13010

4KJ..KM2#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-13040

4KJ..KM20

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-78001

4KJ..KM20

 2
90460-78002

4KJ..KM20

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-78001

4KJ..KM20

 2
90460-78002

4KJ..KM20

 2
Common parts
90119-08222
90480-22005
91611-60816
91661-40816
94110-40600
Linked diagrams
1709
