KM20-JDLTW (1979)

Toyota Lite/Townace Truck

Production Oct 1979 - Oct 1982
Engine 4KJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910- )4KJ

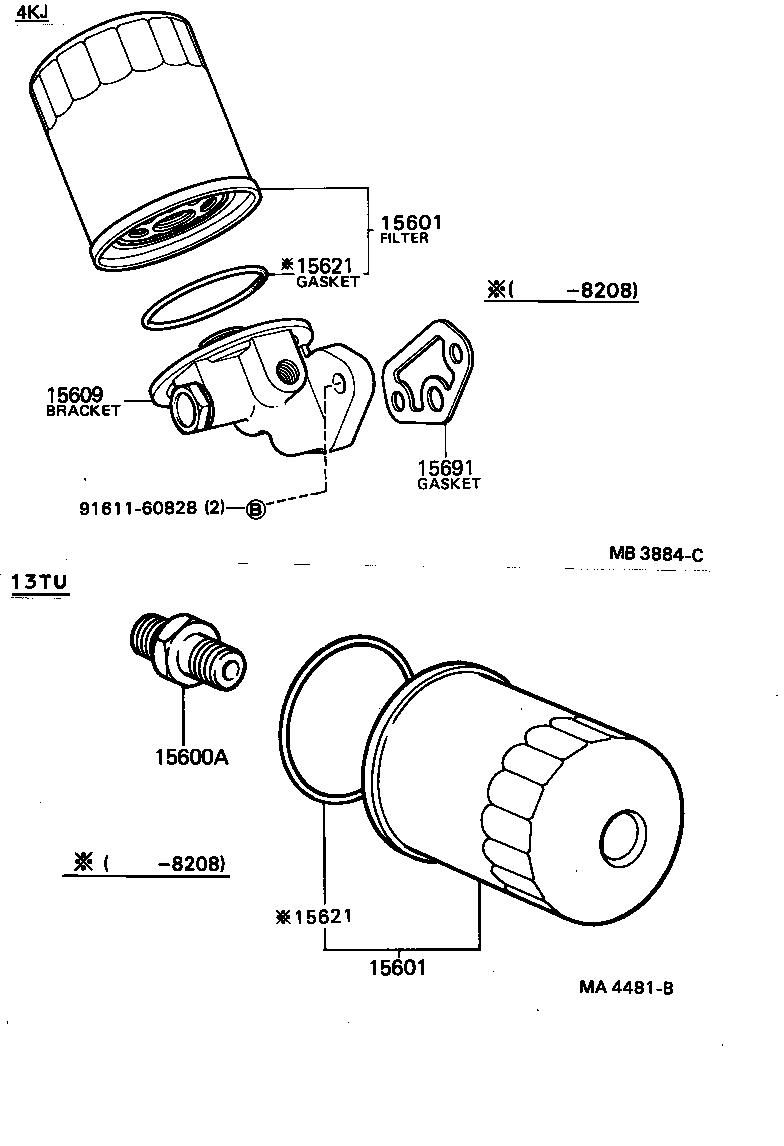

Click highlighted areas on diagram

MA3884C,MA4481B

diagram 15600A 15601 15601 15609 15621 15621 15691 9161160828
Part # Description Qty Price
15601 - FILTER SUB-ASSY, OIL
15601-13010

4KJ..KM2#

 1
15601-13010

4KJ..KM2#

 1
15601 - FILTER SUB-ASSY, OIL
15601-13010

4KJ..KM2#

 1
15601-13010

4KJ..KM2#

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15671-13040

4KJ..KM2#

 1
15671-13040

4KJ..KM2#

 1
15621 - GASKET, OIL FILTER BODY
15621-22010

4KJ..KM20

 1
15621-22010

4KJ..KM20

 1
15621 - GASKET, OIL FILTER BODY
15621-22010

4KJ..KM20

 1
15621-22010

4KJ..KM20

 1
15691 - GASKET, OIL FILTER
15691-22010

4KJ..KM20

 1
15691-22010

4KJ..KM20

 1
Common parts
91611-60828
