KM20-JDBW (1979)
Toyota Lite/Townace Truck

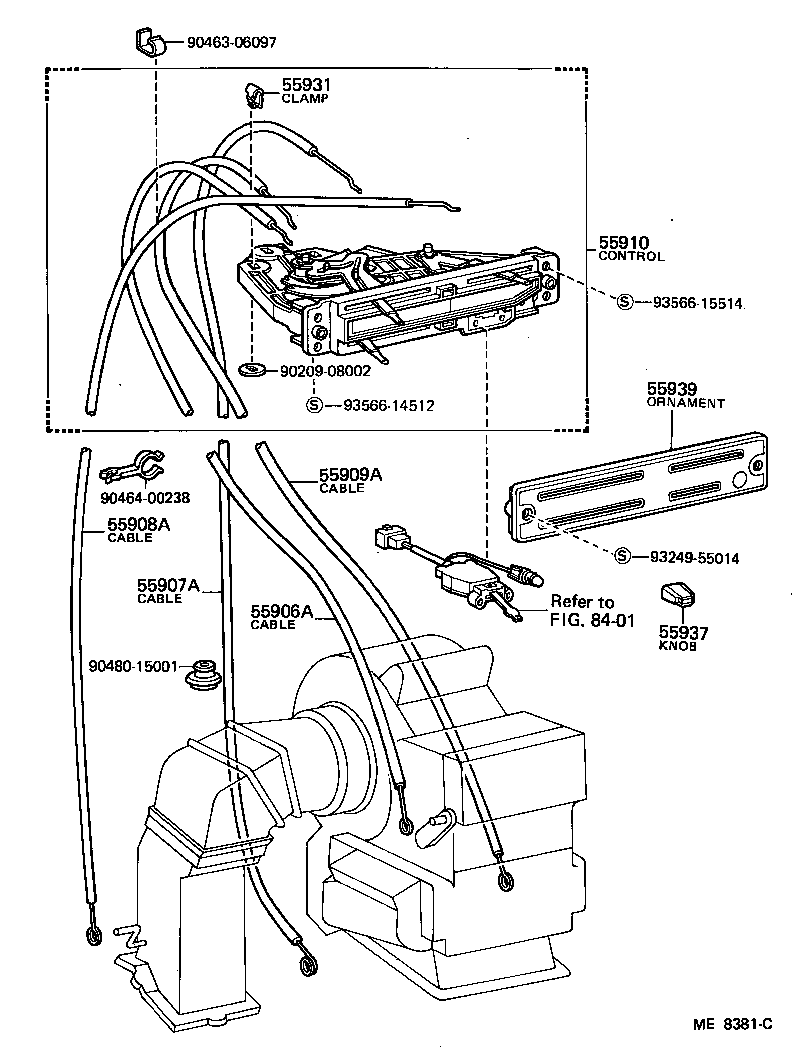

ILLUST NO. 1 OF 4(7910-8210)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-95704 |
KM20,TM20 L=570 |
1 | ||
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-95702 |
KM20,TM20 L=850,FR HEATER |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-95702 |
KM20,TM20 L= 890 |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-95701 |
KM20,TM20 L=610 |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-95706 |
KM20..DLX,STD |
1 | ||
| 55910-95704 |
KM20,TM20 |
1 | ||
| 55931 - CLAMP, HEATER CONTROL WIRE | ||||
| 55933-14020 |
KM20,TM20 |
4 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-95702 |
KM20,TM20 FR HEATER |
4 | ||
| 55939 - ORNAMENT, HEATER CONTROL | ||||
| 55519-95702 |
KM20..DLX,STD FR HEATER |
1 | ||
| 55519-95700 |
KM20,TM20 FR HEATER |
1 | ||
| Common parts | ||||
| 90209-08002 | ||||
| 90463-06097 | ||||
| 90464-00238 | ||||
| 90480-15001 | ||||
| 93249-55014 | ||||
| 93566-14512 | ||||
| 93566-15514 | ||||
| Linked diagrams | ||||
| 8401 | ||||

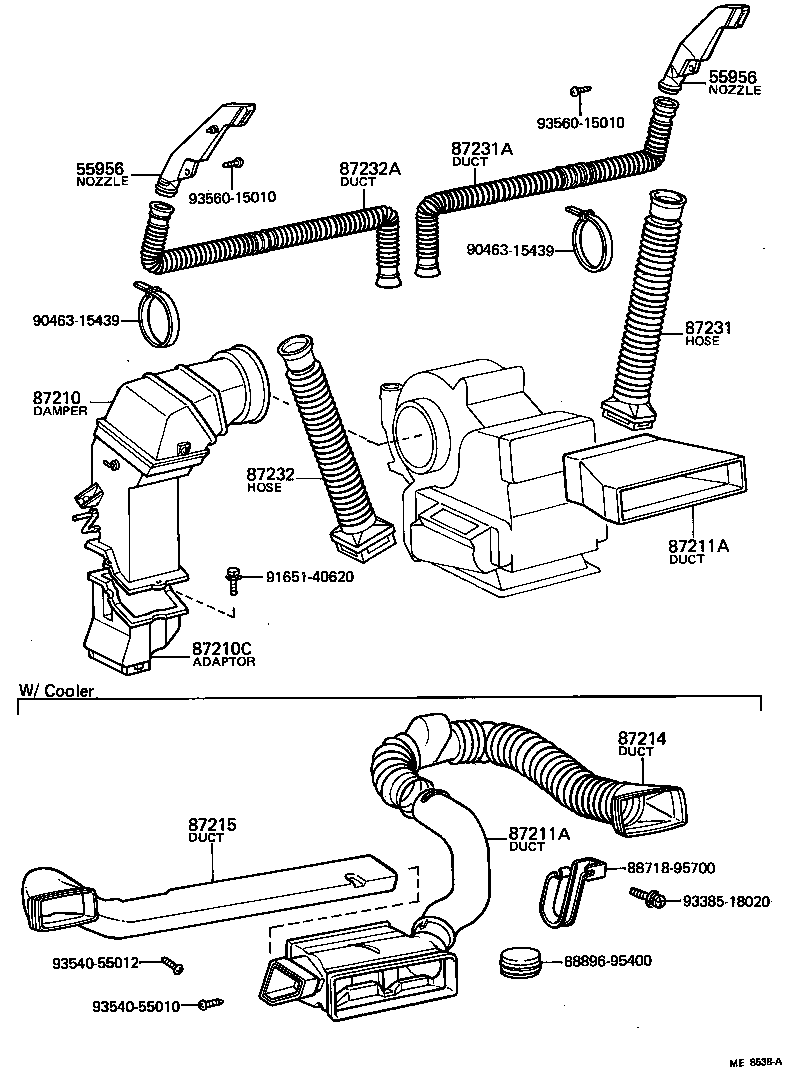

ILLUST NO. 3 OF 4(7910-8210)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55956 - NOZZLE, SIDE DEFROSTER | ||||
| 87206-9570006 |
KM20,TM20 LH,BROWN,BROWN |
1 | ||
| 87206-9570006 |
KM20,TM20 LH,BROWN,BROWN |
1 | ||
| 87206-9570001 |
KM20,TM20 LH,BLACK,BLACK |
1 | ||
| 87205-9570006 |
KM20,TM20 RH,BROWN,BROWN |
1 | ||
| 87205-9570006 |
KM20,TM20 RH,BROWN,BROWN |
1 | ||
| 87205-9570001 |
KM20,TM20 RH,BLACK,BLACK |
1 | ||
| 55956 - NOZZLE, SIDE DEFROSTER | ||||
| 87206-9570006 |
KM20,TM20 LH,BROWN,BROWN |
1 | ||
| 87206-9570006 |
KM20,TM20 LH,BROWN,BROWN |
1 | ||
| 87206-9570001 |
KM20,TM20 LH,BLACK,BLACK |
1 | ||
| 87205-9570006 |
KM20,TM20 RH,BROWN,BROWN |
1 | ||
| 87205-9570006 |
KM20,TM20 RH,BROWN,BROWN |
1 | ||
| 87205-9570001 |
KM20,TM20 RH,BLACK,BLACK |
1 | ||
| 87210 - DAMPER ASSY, AIR | ||||
| 87210-95700 |
KM20,TM20 |
1 | ||
| 87210C - ADAPTER, HEATER AIR DAMPER | ||||
| 87203-87401 |
KM20..TR |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87201-95700 |
KM20,TM20 |
1 | ||
| 88566-95700 |
KM20,TM20..DLX,GXL,SUP,XL W/COOLER |
1 | ||
| 88566-95700 |
KM20..DLX,SUP W/COOLER |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87201-95700 |
KM20,TM20 |
1 | ||
| 88566-95700 |
KM20,TM20..DLX,GXL,SUP,XL W/COOLER |
1 | ||
| 88566-95700 |
KM20..DLX,SUP W/COOLER |
1 | ||
| 87214 - DUCT, AIR, SIDE NO.1 RH | ||||
| 88566-95702 |
KM20,TM20..DLX,FXV,GXL,SUP,XL |
1 | ||
| 87215 - DUCT, AIR, SIDE NO.1 LH | ||||
| 88566-95701 |
KM20,TM20..DLX,FXV,GXL,SUP,XL |
1 | ||
| 87231 - HOSE, HEATER DEFROSTER, RH | ||||
| 87231-95401 |
KM20,TM20 |
1 | ||
| 87231A - DUCT, HEATER DEFROSTER, SIDE NO.1 RH | ||||
| 87202-95700 |
KM20,TM20 |
1 | ||
| 87232 - HOSE, HEATER DEFROSTER, LH | ||||
| 87231-95401 |
KM20,TM20 |
1 | ||
| 87232A - DUCT, HEATER DEFROSTER, SIDE NO.1 LH | ||||
| 87202-95700 |
KM20,TM20 |
1 | ||
| Common parts | ||||
| 88718-95700 | ||||
| 88896-95400 | ||||
| 90463-15439 | ||||
| 91651-40620 | ||||
| 93385-18020 | ||||
| 93540-55010 | ||||
| 93540-55012 | ||||
| 93560-15010 | ||||
