KM20-JDBW (1979)
Toyota Lite/Townace Truck
(7910- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

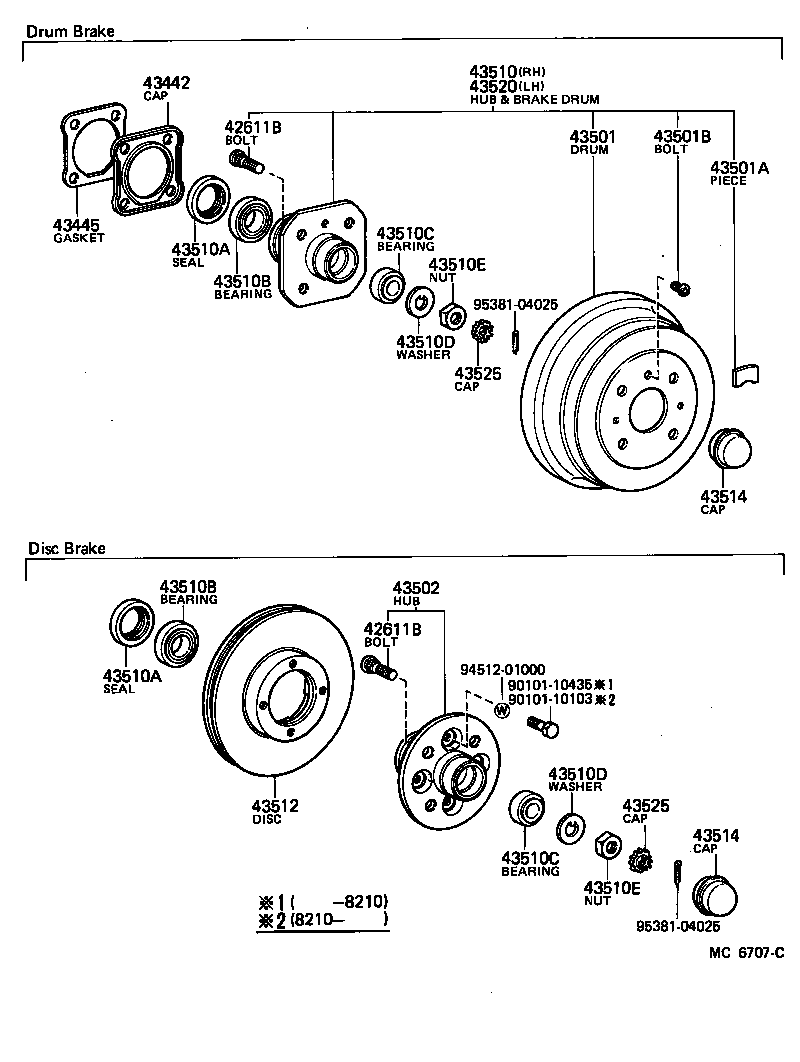

| 42611B - BOLT, HUB (FOR FRONT AXLE) | ||||
| 90942-02036 |
TM20;KM20..STD..WT;KM20..(DLX,SUP)..CBU DISC BRAKE |
8 | ||
| 90942-02035 |
KM20,TM20..DLX,GXL,STD,SUP,XL DRUM BRAKE |
8 | ||
| 42611B - BOLT, HUB (FOR FRONT AXLE) | ||||
| 90942-02036 |
TM20;KM20..STD..WT;KM20..(DLX,SUP)..CBU DISC BRAKE |
8 | ||
| 90942-02035 |
KM20,TM20..DLX,GXL,STD,SUP,XL DRUM BRAKE |
8 | ||
| 43442 - CAP, KNUCKLE GREASE RETAINER, INNER | ||||
| 43442-20030 |
KM20,TM20..DLX,GXL,STD,SUP,XL |
2 | ||
| 43445 - GASKET, KNUCKLE GREASE RETAINER CAP | ||||
| 43445-20030 |
KM20,TM20..DLX,GXL,STD,SUP,XL |
2 | ||
| 43501 - DRUM SUB-ASSY, FRONT BRAKE | ||||
| 43512-27010 |
KM20,TM20..DLX,GXL,STD,SUP,XL |
2 | ||
| 43501A - PIECE, BALANCE (FOR FRONT BRAKE DRUM) | ||||
| 90937-01119 |
KM20,TM20..DLX,GXL,STD,SUP,XL 30G,30G |
1 | ||
| 90937-01117 |
KM20,TM20..DLX,GXL,STD,SUP,XL 10G,10G |
1 | ||
| 90937-01118 |
KM20,TM20..DLX,GXL,STD,SUP,XL 20G,20G |
1 | ||
| 90937-01146 |
KM20,TM20..DLX,GXL,STD,SUP,XL 25G,50G |
1 | ||
| 90937-01215 |
KM20,TM20..DLX,GXL,STD,SUP,XL 40G,40G |
1 | ||
| 43501B - BOLT, SET (FOR FRONT BRAKE DRUM SETTING) | ||||
| 90113-10007 |
KM20,TM20..DLX,GXL,STD,SUP,XL |
2 | ||
| 43502 - HUB SUB-ASSY, FRONT AXLE | ||||
| 43502-20010 |
TM20;KM20..STD..WT;KM20..(DLX,SUP)..CBU |
2 | ||
| 43510 - HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH | ||||
| 43510-27020 |
KM20,TM20..DLX,GXL,STD,SUP,XL |
1 | ||
| 43510A - SEAL, OIL (FOR FRONT AXLE HUB) | ||||
| 90311-48122 |
CM2#,KM2#,TM20,YM2# |
2 | ||
| 43510A - SEAL, OIL (FOR FRONT AXLE HUB) | ||||
| 90311-48122 |
CM2#,KM2#,TM20,YM2# |
2 | ||
| 43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING) | ||||
| 90368-31067 |
CM2#,KM2#,TM20,YM2# |
2 | ||
| 43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING) | ||||
| 90368-31067 |
CM2#,KM2#,TM20,YM2# |
2 | ||
| 43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING) | ||||
| 90368-19037 |
CM2#,KM2#,TM20,YM2# |
2 | ||
| 43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING) | ||||
| 90368-19037 |
CM2#,KM2#,TM20,YM2# |
2 | ||
| 43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER) | ||||
| 90214-20005 |
CM2#,KM2#,TM20,YM2# |
2 | ||
| 43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER) | ||||
| 90214-20005 |
CM2#,KM2#,TM20,YM2# |
2 | ||
| 43510E - NUT (FOR STEERING KNUCKLE) | ||||
| 90170-19185 |
CM2#,KM2#,TM20,YM2# |
2 | ||
| 43510E - NUT (FOR STEERING KNUCKLE) | ||||
| 90170-19185 |
CM2#,KM2#,TM20,YM2# |
2 | ||
| 43512 - DISC, FRONT | ||||
| 43512-27020 |
TM20;KM20..STD..WT;KM20..(DLX,SUP)..CBU |
2 | ||
| 43514 - CAP, FRONT HUB GREASE | ||||
| 43514-27010 |
CM2#,KM2#,TM20,YM2# |
2 | ||
| 43514 - CAP, FRONT HUB GREASE | ||||
| 43514-27010 |
CM2#,KM2#,TM20,YM2# |
2 | ||
| 43520 - HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH | ||||
| 43510-27020 |
KM20,TM20..DLX,GXL,STD,SUP,XL |
1 | ||
| 43525 - CAP, FRONT WHEEL ADJUSTING LOCK | ||||
| 43525-22010 |
CM2#,KM2#,TM20,YM2# |
2 | ||
| 43525 - CAP, FRONT WHEEL ADJUSTING LOCK | ||||
| 43525-22010 |
CM2#,KM2#,TM20,YM2# |
2 | ||
| Common parts | ||||
| 90101-10103 | ||||
| 90101-10435 | ||||
| 94512-01000 | ||||
| 95381-04025 | ||||
