CM65-TKQDS (1988)

Toyota Lite/Townace Truck

Production Aug 1988 - Jun 1999
Engine 2C
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8610-9508)CM6#,YM6#

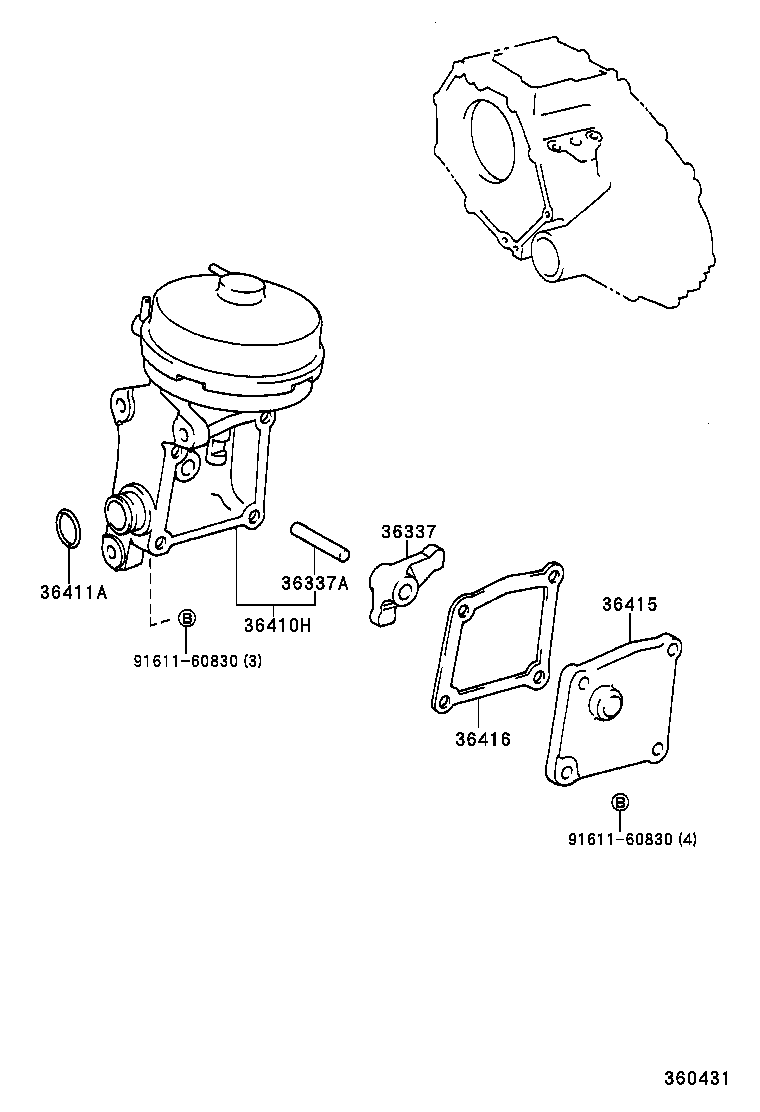

Click highlighted areas on diagram

diagram 36337 36337A 36410H 36411A 36415 36416 9161160830 9161160830
Part # Description Qty Price
36337 - LEVER, FRONT DRIVE SHIFT LINK
36337-28010

CM6#,YM6#

 1
36337A - PIN, STRAIGHT (FOR FRONT DRIVE SHIFT LINK LEVER)
90250-10018

CM6#,YM6#

 1
36410H - ACTUATOR ASSY, TRANSFER VACUUM
36410-28010

CM6#,YM6#

 1
36410-28011

CM6#,YM6#

 1
36410-25010

CM6#,YM6#

 1
36411A - RING, O (FOR DIAPHRAGM CYLINDER)
96721-24022

CM6#,YM6#

 1
36415 - COVER, DIAPHRAGM CYLINDER
36415-28010

CM6#,YM6#

 1
36416 - GASKET, DIAPHRAGM CYLINDER
36416-28010

CM6#,YM6#

 1
Common parts
91611-60830

(9508- )CM6#,YM6#

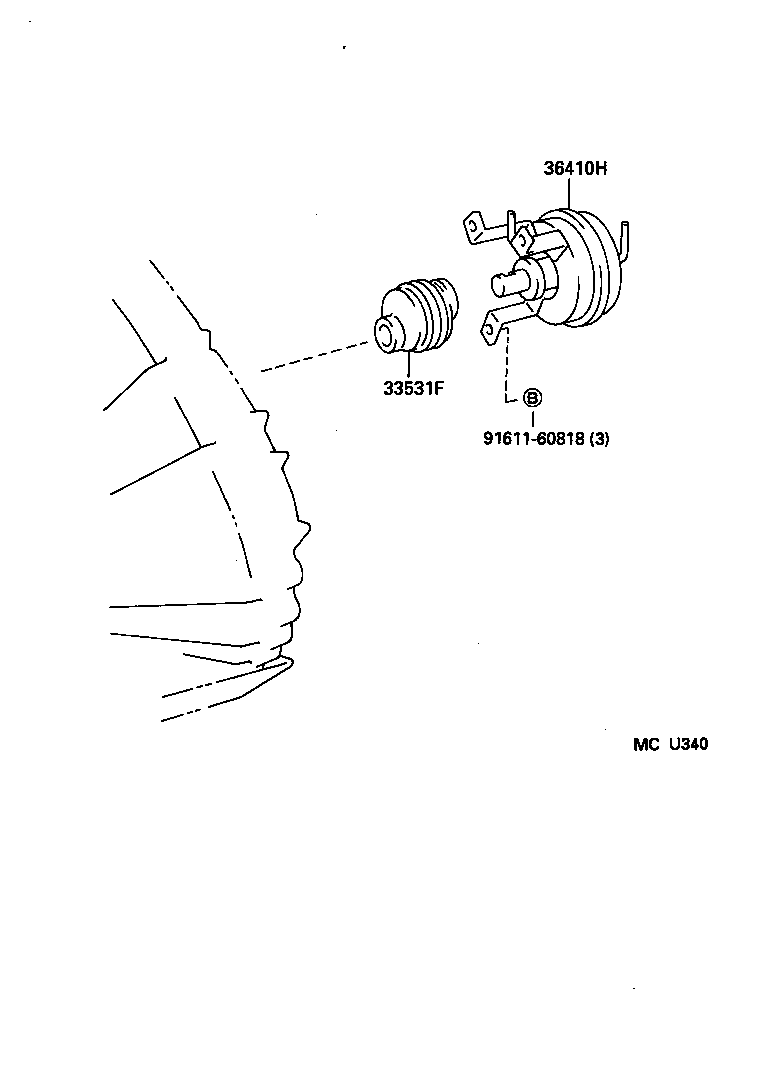

Click highlighted areas on diagram

diagram 33531F 36410H 9161160818
Part # Description Qty Price
33531F - BOOT, DUST (FOR TRANSFER VACUUM ACTUATOR)
33531-25030

CM6#,YM6#

 1
36410H - ACTUATOR ASSY, TRANSFER VACUUM
36410-28010

CM6#,YM6#

 1
36410-28011

CM6#,YM6#

 1
36410-25010

CM6#,YM6#

 1
Common parts
91611-60818
