CM65-TBQDS3 (1986)
Toyota Lite/Townace Truck

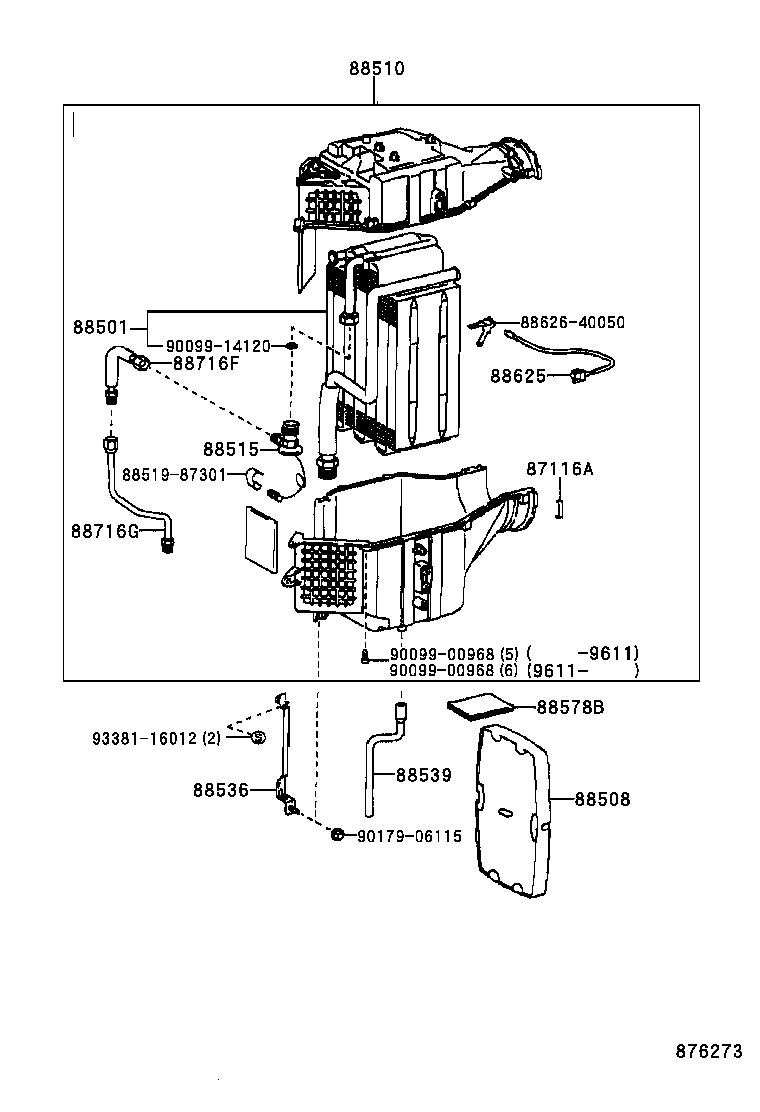

ILLUST NO. 1 OF 2(9310- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87116A - SPRING, HOLDING (FOR COOLER UNIT CASE) | ||||
| 87116-14010 |
CM65..TS;CM5#,60,61,KM51,YM55,6# |
5 | ||
| 87116-14010 |
CM5#,6#,KM51,YM55,6# |
5 | ||
| 87116-14010 |
CM5#,6#,KM5#,YM55,6# |
5 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-95712 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 88501-27010 |
CM65..TS;CM5#,60,61,KM51,YM55,6# |
1 | ||
| 88501-27010 |
CM5#,6#,KM51,YM55,6# |
1 | ||
| 88508 - FILTER SUB-ASSY, CLEAN AIR | ||||
| 88880-95701 |
CM51..IV;CM51..SJL..CBU;CM51..4HC..CBU;CM52,55,6#,KM51,YM55,6# |
1 | ||
| 88508-95700 |
CM5#,6#,KM5#,YM55,60 ｱﾘ(ｸ-ﾗ) |
1 | ||
| 88880-95701 |
CM65..TS;CM51..IV;CM51..SJL..CBU;CM51..4HC..CBU;CM52,55,60,61,KM51,YM55,6# ｱﾘ(ｸ-ﾗ ﾖｳ ﾎﾞｳｼﾞﾝ ﾌｲﾙﾀ) |
1 | ||
| 88508-95700 |
CM65..TB |
1 | ||
| 88880-95701 |
CM51..IV;YM55..5H;YM55..SJL..4H;CM51..SJL..CBU;CM51..4HC..CBU;CM50,52,55,6#,KM5#,YM6# ｱﾘ(ｸ-ﾗ ﾖｳ ﾎﾞｳｼﾞﾝ ﾌｲﾙﾀ) |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-27020 |
CM65..TS;CM5#,60,61,KM51,YM55,6# |
1 | ||
| 88510-27030 |
CM65..IV ｺｳｼﾖ ｻｷﾞﾖｳｼﾔ |
1 | ||
| 88510-95723 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 88510-27030 |
CM5#,6#,KM51,YM55,6# |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-87004 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 88515-28090 |
CM65..TS;CM5#,60,61,KM51,YM55,6# |
1 | ||
| 88515-28090 |
CM5#,6#,KM51,YM55,6# |
1 | ||
| 88536 - BRACKET, COOLING UNIT, NO.1 | ||||
| 88688-95747 |
CM5#,6#,KM51,YM55,6# |
1 | ||
| 88688-95747 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 88688-95747 |
CM65..TS;CM5#,60,61,KM51,YM55,6# |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-27010 |
CM65..TS;CM5#,60,61 |
1 | ||
| 88539-95709 |
KM51,YM55,6# |
1 | ||
| 88539-95709 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 88539-27010 |
CM5#,6#,YM55 |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88592-87002 |
CM5#,6#,KM51,YM55,6# |
2 | ||
| 88592-87002 |
CM5#,6#,KM5#,YM55,6# |
2 | ||
| 88592-87002 |
CM65..TS;CM5#,60,61,KM51,YM55,6# |
2 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-12070 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 88625-12070 |
CM5#,6#,KM51,YM55,6# |
1 | ||
| 88625-12070 |
CM65..TS;CM5#,60,61,KM51,YM55,6# |
1 | ||
| 88716F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88716-95752 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 88716-27130 |
CM65..TS;CM5#,60,61,KM51,YM55,6# |
1 | ||
| 88716-27130 |
CM5#,6#,KM51,YM55,6# |
1 | ||
| 88716G - PIPE, COOLER REFRIGERANT LIQUID, G | ||||
| 88716-95753 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 88716-27120 |
CM65..TS;CM5#,60,61,KM51,YM55,6# |
1 | ||
| 88716-27120 |
CM5#,6#,KM51,YM55,6# |
1 | ||
| Common parts | ||||
| 88519-87301 | ||||
| 88626-40050 | ||||
| 90099-00968 | ||||
| 90099-14120 | ||||
| 90179-06115 | ||||
| 93381-16012 | ||||

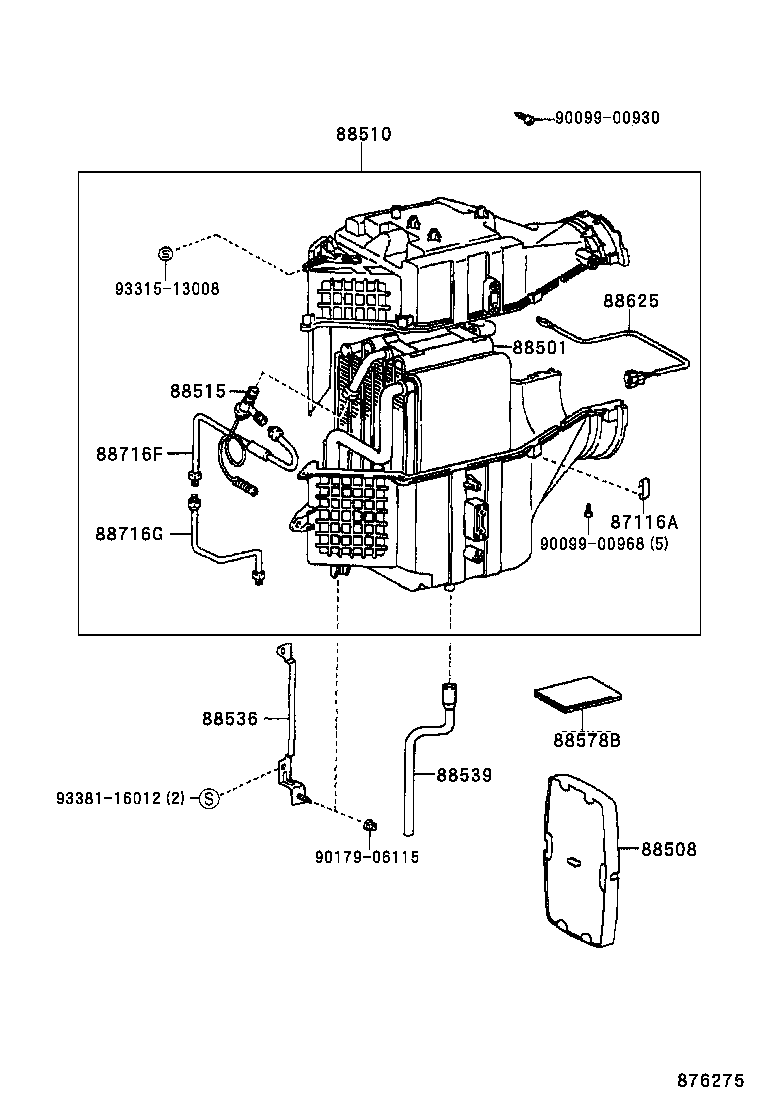

ILLUST NO. 1 OF 2(8610-9310)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87116A - SPRING, HOLDING (FOR COOLER UNIT CASE) | ||||
| 87116-14010 |
CM65..TS;CM5#,60,61,KM51,YM55,6# |
5 | ||
| 87116-14010 |
CM5#,6#,KM51,YM55,6# |
5 | ||
| 87116-14010 |
CM5#,6#,KM5#,YM55,6# |
5 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-95712 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 88501-27010 |
CM65..TS;CM5#,60,61,KM51,YM55,6# |
1 | ||
| 88501-27010 |
CM5#,6#,KM51,YM55,6# |
1 | ||
| 88508 - FILTER SUB-ASSY, CLEAN AIR | ||||
| 88880-95701 |
CM51..IV;CM51..SJL..CBU;CM51..4HC..CBU;CM52,55,6#,KM51,YM55,6# |
1 | ||
| 88508-95700 |
CM5#,6#,KM5#,YM55,60 ｱﾘ(ｸ-ﾗ) |
1 | ||
| 88880-95701 |
CM65..TS;CM51..IV;CM51..SJL..CBU;CM51..4HC..CBU;CM52,55,60,61,KM51,YM55,6# ｱﾘ(ｸ-ﾗ ﾖｳ ﾎﾞｳｼﾞﾝ ﾌｲﾙﾀ) |
1 | ||
| 88508-95700 |
CM65..TB |
1 | ||
| 88880-95701 |
CM51..IV;YM55..5H;YM55..SJL..4H;CM51..SJL..CBU;CM51..4HC..CBU;CM50,52,55,6#,KM5#,YM6# ｱﾘ(ｸ-ﾗ ﾖｳ ﾎﾞｳｼﾞﾝ ﾌｲﾙﾀ) |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-27020 |
CM65..TS;CM5#,60,61,KM51,YM55,6# |
1 | ||
| 88510-27030 |
CM65..IV ｺｳｼﾖ ｻｷﾞﾖｳｼﾔ |
1 | ||
| 88510-95723 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 88510-27030 |
CM5#,6#,KM51,YM55,6# |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-87004 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 88515-28090 |
CM65..TS;CM5#,60,61,KM51,YM55,6# |
1 | ||
| 88515-28090 |
CM5#,6#,KM51,YM55,6# |
1 | ||
| 88536 - BRACKET, COOLING UNIT, NO.1 | ||||
| 88688-95747 |
CM5#,6#,KM51,YM55,6# |
1 | ||
| 88688-95747 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 88688-95747 |
CM65..TS;CM5#,60,61,KM51,YM55,6# |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-27010 |
CM65..TS;CM5#,60,61 |
1 | ||
| 88539-95709 |
KM51,YM55,6# |
1 | ||
| 88539-95709 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 88539-27010 |
CM5#,6#,YM55 |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88592-87002 |
CM5#,6#,KM51,YM55,6# |
2 | ||
| 88592-87002 |
CM5#,6#,KM5#,YM55,6# |
2 | ||
| 88592-87002 |
CM65..TS;CM5#,60,61,KM51,YM55,6# |
2 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-12070 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 88625-12070 |
CM5#,6#,KM51,YM55,6# |
1 | ||
| 88625-12070 |
CM65..TS;CM5#,60,61,KM51,YM55,6# |
1 | ||
| 88716F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88716-95752 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 88716-27130 |
CM65..TS;CM5#,60,61,KM51,YM55,6# |
1 | ||
| 88716-27130 |
CM5#,6#,KM51,YM55,6# |
1 | ||
| 88716G - PIPE, COOLER REFRIGERANT LIQUID, G | ||||
| 88716-95753 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 88716-27120 |
CM65..TS;CM5#,60,61,KM51,YM55,6# |
1 | ||
| 88716-27120 |
CM5#,6#,KM51,YM55,6# |
1 | ||
| Common parts | ||||
| 90099-00930 | ||||
| 90099-00968 | ||||
| 90179-06115 | ||||
| 93315-13008 | ||||
| 93381-16012 | ||||

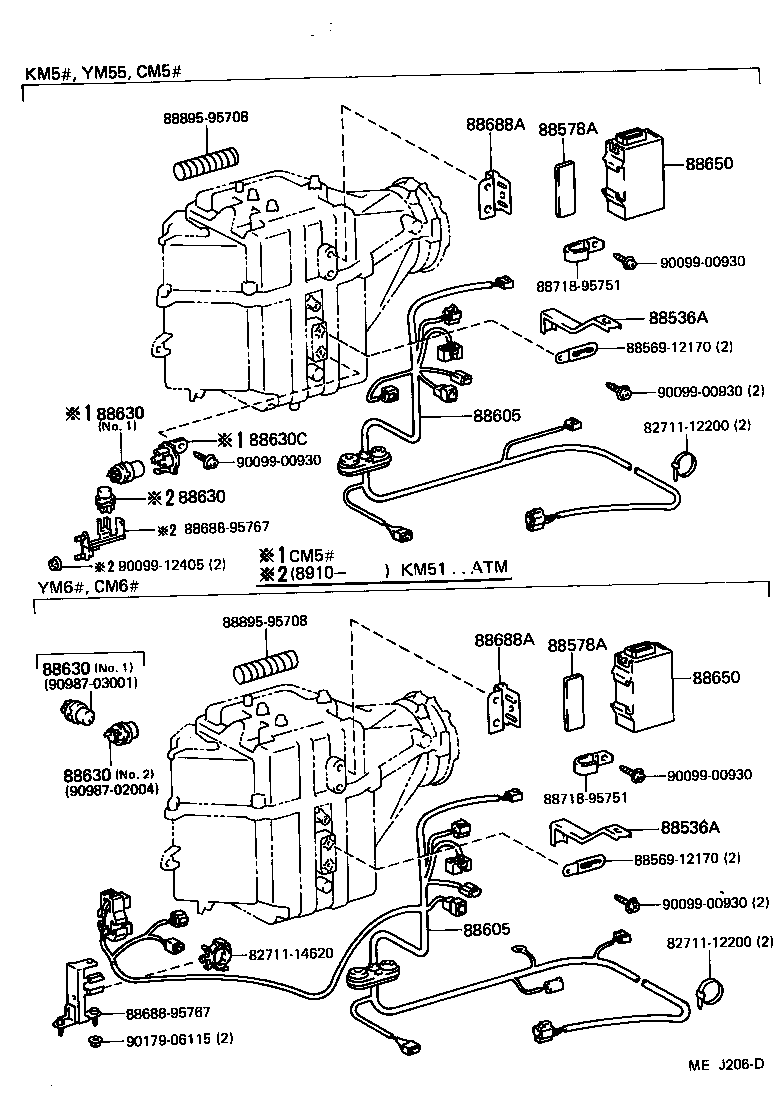

ILLUST NO. 2 OF 2(8610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88536A - BRACKET, COOLING UNIT, NO.2 | ||||
| 88688-95774 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 88688-95774 |
CM65..TS;CM5#,60,61,KM51,YM55,6# |
1 | ||
| 88688-27080 |
CM5#,6#,KM51,YM55,6# |
1 | ||
| 88536A - BRACKET, COOLING UNIT, NO.2 | ||||
| 88688-95774 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 88688-95774 |
CM65..TS;CM5#,60,61,KM51,YM55,6# |
1 | ||
| 88688-27080 |
CM5#,6#,KM51,YM55,6# |
1 | ||
| 88578A - PACKING, COOLER STABILIZER AMPLIFIER | ||||
| 88578-95703 |
CM65..TS;CM5#,60,61,KM51,YM55,6# |
2 | ||
| 88578-95703 |
CM5#,6#,KM5#,YM55,6# |
2 | ||
| 88578-95703 |
CM5#,6#,KM51,YM55,6# |
2 | ||
| 88578A - PACKING, COOLER STABILIZER AMPLIFIER | ||||
| 88578-95703 |
CM65..TS;CM5#,60,61,KM51,YM55,6# |
2 | ||
| 88578-95703 |
CM5#,6#,KM5#,YM55,6# |
2 | ||
| 88578-95703 |
CM5#,6#,KM51,YM55,6# |
2 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-95734 |
CM52,6# |
1 | ||
| 88605-27080 |
CM65..TS;CM52,60,61 |
1 | ||
| 88605-27150 |
CM65..IV ｺｳｼﾖ ｻｷﾞﾖｳｼﾔ |
1 | ||
| 88605-27150 |
CM52,6# |
1 | ||
| 88605-27160 |
CM65..IV ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-95734 |
CM52,6# |
1 | ||
| 88605-27080 |
CM65..TS;CM52,60,61 |
1 | ||
| 88605-27150 |
CM65..IV ｺｳｼﾖ ｻｷﾞﾖｳｼﾔ |
1 | ||
| 88605-27150 |
CM52,6# |
1 | ||
| 88605-27160 |
CM65..IV ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 90987-03001 |
CM5#,6# NO.1 |
1 | ||
| 90987-02004 |
YM60;CM6#,KM51..3FC,3HC,5H NO.2 |
1 | ||
| 90987-02004 |
CM6#,YM60 NO.2 |
1 | ||
| 90987-02004 |
CM65..TS;CM52,60,61 NO.2 |
1 | ||
| 90987-03001 |
CM52,6# NO.1 |
1 | ||
| 90987-02004 |
CM52,6# NO.2 |
1 | ||
| 90987-03001 |
CM65..TS;CM52,60,61 NO.1 |
1 | ||
| 90987-03001 |
CM5#,6# NO.1 |
1 | ||
| 90987-03001 |
CM52,6# NO.1 |
1 | ||
| 90987-03001 |
CM6#;CM5#..5H..IV NO.1 |
1 | ||
| 90987-02004 |
CM52,6#;KM51..ATM NO.2 |
1 | ||
| 90987-02004 |
CM6#,YM60 NO.2 |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 90987-03001 |
CM5#,6# NO.1 |
1 | ||
| 90987-02004 |
YM60;CM6#,KM51..3FC,3HC,5H NO.2 |
1 | ||
| 90987-02004 |
CM6#,YM60 NO.2 |
1 | ||
| 90987-02004 |
CM65..TS;CM52,60,61 NO.2 |
1 | ||
| 90987-03001 |
CM52,6# NO.1 |
1 | ||
| 90987-02004 |
CM52,6# NO.2 |
1 | ||
| 90987-03001 |
CM65..TS;CM52,60,61 NO.1 |
1 | ||
| 90987-03001 |
CM5#,6# NO.1 |
1 | ||
| 90987-03001 |
CM52,6# NO.1 |
1 | ||
| 90987-03001 |
CM6#;CM5#..5H..IV NO.1 |
1 | ||
| 90987-02004 |
CM52,6#;KM51..ATM NO.2 |
1 | ||
| 90987-02004 |
CM6#,YM60 NO.2 |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 90987-03001 |
CM5#,6# NO.1 |
1 | ||
| 90987-02004 |
YM60;CM6#,KM51..3FC,3HC,5H NO.2 |
1 | ||
| 90987-02004 |
CM6#,YM60 NO.2 |
1 | ||
| 90987-02004 |
CM65..TS;CM52,60,61 NO.2 |
1 | ||
| 90987-03001 |
CM52,6# NO.1 |
1 | ||
| 90987-02004 |
CM52,6# NO.2 |
1 | ||
| 90987-03001 |
CM65..TS;CM52,60,61 NO.1 |
1 | ||
| 90987-03001 |
CM5#,6# NO.1 |
1 | ||
| 90987-03001 |
CM52,6# NO.1 |
1 | ||
| 90987-03001 |
CM6#;CM5#..5H..IV NO.1 |
1 | ||
| 90987-02004 |
CM52,6#;KM51..ATM NO.2 |
1 | ||
| 90987-02004 |
CM6#,YM60 NO.2 |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 90987-03001 |
CM5#,6# NO.1 |
1 | ||
| 90987-02004 |
YM60;CM6#,KM51..3FC,3HC,5H NO.2 |
1 | ||
| 90987-02004 |
CM6#,YM60 NO.2 |
1 | ||
| 90987-02004 |
CM65..TS;CM52,60,61 NO.2 |
1 | ||
| 90987-03001 |
CM52,6# NO.1 |
1 | ||
| 90987-02004 |
CM52,6# NO.2 |
1 | ||
| 90987-03001 |
CM65..TS;CM52,60,61 NO.1 |
1 | ||
| 90987-03001 |
CM5#,6# NO.1 |
1 | ||
| 90987-03001 |
CM52,6# NO.1 |
1 | ||
| 90987-03001 |
CM6#;CM5#..5H..IV NO.1 |
1 | ||
| 90987-02004 |
CM52,6#;KM51..ATM NO.2 |
1 | ||
| 90987-02004 |
CM6#,YM60 NO.2 |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-14030 |
CM55..4HC;CM51,52,6#;CM55..5H..CBU |
1 | ||
| 88650-14030 |
CM65..TS;CM5#,60,61 |
1 | ||
| 88650-14030 |
CM5#,6# |
1 | ||
| 88650-87101 |
YM55,6# |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-14030 |
CM55..4HC;CM51,52,6#;CM55..5H..CBU |
1 | ||
| 88650-14030 |
CM65..TS;CM5#,60,61 |
1 | ||
| 88650-14030 |
CM5#,6# |
1 | ||
| 88650-87101 |
YM55,6# |
1 | ||
| 88688A - BRACKET, COOLER STABILIZER AMPLIFIER | ||||
| 88688-14080 |
CM65..TS;CM5#,60,61,YM55,6# |
1 | ||
| 88688-14080 |
CM5#,6#,KM5#,YM55,60 |
1 | ||
| 88688-14080 |
CM55..4HC;CM55..5H..CBU;CM51,52,6#,YM55,6# |
1 | ||
| 88688-14080 |
CM5#,6#,YM55,6# |
1 | ||
| 88688A - BRACKET, COOLER STABILIZER AMPLIFIER | ||||
| 88688-14080 |
CM65..TS;CM5#,60,61,YM55,6# |
1 | ||
| 88688-14080 |
CM5#,6#,KM5#,YM55,60 |
1 | ||
| 88688-14080 |
CM55..4HC;CM55..5H..CBU;CM51,52,6#,YM55,6# |
1 | ||
| 88688-14080 |
CM5#,6#,YM55,6# |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 82711-14620 | ||||
| 88569-12170 | ||||
| 88688-95767 | ||||
| 88718-95751 | ||||
| 88895-95708 | ||||
| 90099-00930 | ||||
| 90099-12405 | ||||
| 90179-06115 | ||||
| 90987-02004 | ||||
| 90987-03001 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
