CM65-TBQDS3 (1986)

Toyota Lite/Townace Truck

Production Oct 1986 - Jun 1999
Engine 2C
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8610- )YM55,6#

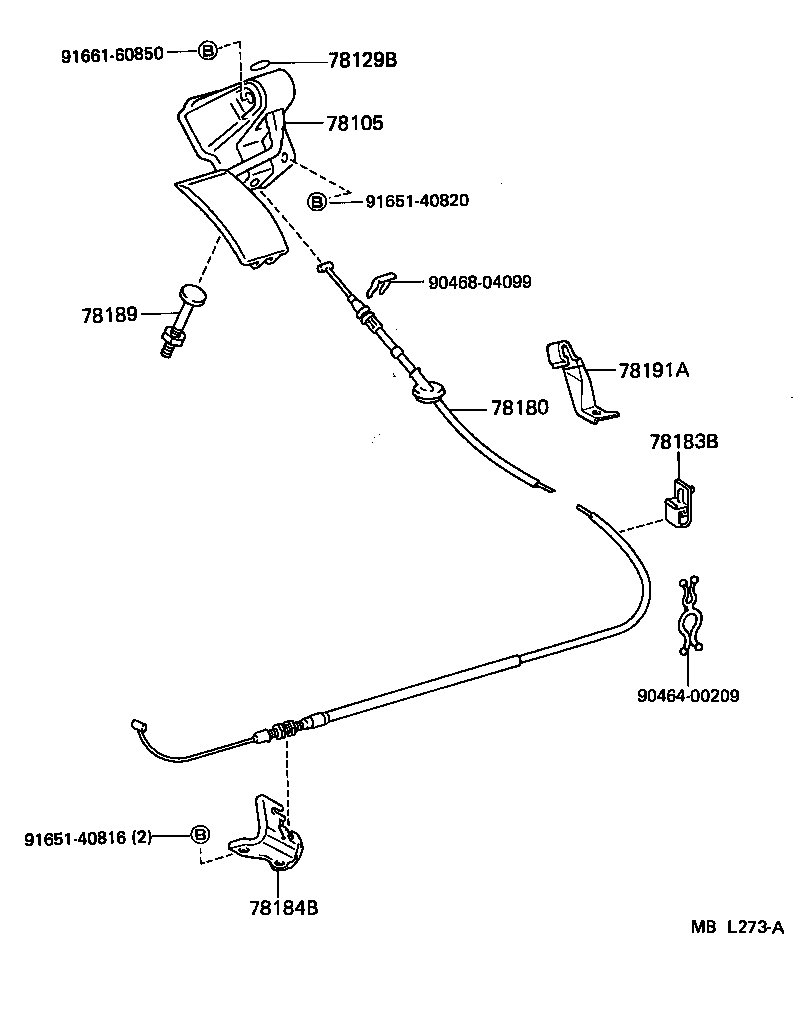

Click highlighted areas on diagram

diagram 78105 78129B 78180 78183B 78184B 78189 78191A 9046400209 9046804099 9165140816 9165140820 9166160850
Part # Description Qty Price
78105 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.3
78105-95710

CM65..TS;CM5#,60,61..5H

 1
78105-95709

KM51,YM55,6#;CM51,55,KM50..4H,4HC

 1
78105-95710

CM5#,6#..5H

 1
78105-95710

CM5#,6#..5H

 1
78129B - SEAL, ACCELERATOR PEDAL ARM
78129-95702

CM5#,6#..5H

 1
78129-95J00

KM51,YM55,6#;CM51,55,KM50..4H,4HC

 1
78129-95702

CM5#,6#..5H

 1
78129-95702

CM65..TS;CM5#,60,61..5H

 1
78180 - WIRE ASSY, ACCELERATOR
78150-27030

CM5#,6#

 1
78150-27040

CM65..TS;CM5#,60,61

 1
78150-95727

CM5#,6#

 1
78150-27020

YM55,6#

 1
78150-95726

YM55,6#

 1
78150-27040

CM5#,6#

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-95705

CM5#,6#,KM5#,YM55,60

 2
78183-95705

CM5#,6#

 1
78183-95705

KM5#,YM55,6#

 2
78183-95705

CM65..TS;CM5#,60,61

 1
78183-95705

CM5#,6#

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-95J00

YM55,6#..DX

 1
78184-95704

CM65..TS;CM5#,60,61

 1
78184-95J00

YM55,6#

 1
78184-95704

CM5#,6#

 1
78189 - BOLT, ACCELERATOR PEDAL STOPPER
78208-95701

CM65..TS;CM5#,60,61,KM51,YM55,6#

 1
78208-95701

CM5#,6#,KM51,YM55,6#

 1
78208-95701

CM5#,6#,KM5#,YM55,6#

 1
78191A - CLAMP (FOR ACCELERATOR WIRE SET)
78183-95A10

YM55,6#

 1
Common parts
90464-00209
90468-04099
91651-40816
91651-40820
91661-60850

(8610- )CM5#,6#

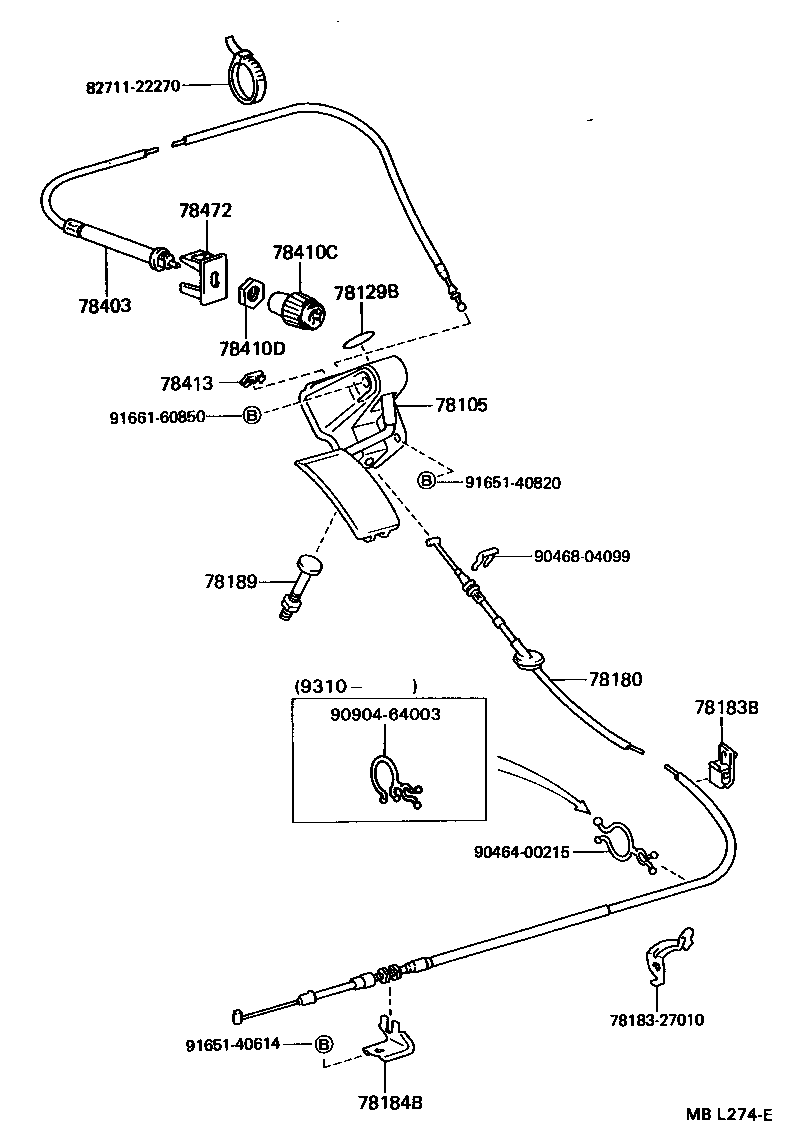

Click highlighted areas on diagram

diagram 78105 78129B 78180 7818327010 78183B 78184B 78189 78403 78410C 78410D 78413 78472 8271122270 9046400215 9046804099 9090464003 9165140614 9165140820 9166160850
Part # Description Qty Price
78105 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.3
78105-95710

CM65..TS;CM5#,60,61..5H

 1
78105-95709

KM51,YM55,6#;CM51,55,KM50..4H,4HC

 1
78105-95710

CM5#,6#..5H

 1
78105-95710

CM5#,6#..5H

 1
78129B - SEAL, ACCELERATOR PEDAL ARM
78129-95702

CM5#,6#..5H

 1
78129-95J00

KM51,YM55,6#;CM51,55,KM50..4H,4HC

 1
78129-95702

CM5#,6#..5H

 1
78129-95702

CM65..TS;CM5#,60,61..5H

 1
78180 - WIRE ASSY, ACCELERATOR
78150-27030

CM5#,6#

 1
78150-27040

CM65..TS;CM5#,60,61

 1
78150-95727

CM5#,6#

 1
78150-27020

YM55,6#

 1
78150-95726

YM55,6#

 1
78150-27040

CM5#,6#

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-95705

CM5#,6#,KM5#,YM55,60

 2
78183-95705

CM5#,6#

 1
78183-95705

KM5#,YM55,6#

 2
78183-95705

CM65..TS;CM5#,60,61

 1
78183-95705

CM5#,6#

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-95J00

YM55,6#..DX

 1
78184-95704

CM65..TS;CM5#,60,61

 1
78184-95J00

YM55,6#

 1
78184-95704

CM5#,6#

 1
78189 - BOLT, ACCELERATOR PEDAL STOPPER
78208-95701

CM65..TS;CM5#,60,61,KM51,YM55,6#

 1
78208-95701

CM5#,6#,KM51,YM55,6#

 1
78208-95701

CM5#,6#,KM5#,YM55,6#

 1
78403 - CABLE SUB-ASSY, THROTTLE CONTROL
78404-95700

CM5#,6#..5H

 1
78404-27010

CM5#,6#..5H

 1
78404-95700

CM65..TS;CM5#,60,61..5H

 1
78410C - KNOB, THROTTLE CABLE
78411-22010

CM65..TS;CM5#,60,61..5H

 1
78411-22010

CM5#,6#..5H

 1
78411-95J01

CM5#,6#..5H

 1
78410D - NUT, THROTTLE
78314-95010

CM5#,6#..5H

 1
78314-95010

CM5#,6#..5H

 1
78314-95010

CM65..TS;CM5#,60,61..5H

 1
78413 - COVER, THROTTLE CONTROL CABLE
78413-95701

CM65..TS;CM5#,60,61..5H

 1
78413-95701

CM5#,6#..5H

 1
78413-95701

CM5#,6#..5H

 1
78472 - SUPPORT, THROTTLE CONTROL CABLE
78472-9570003

CM65..TS;CM5#,60,61..5H

GRAY,TRIM1#

 1
78472-9570003

CM5#,6#..5H

GRAY,TRIM1#

 1
78472-95700B0

CM5#,6#..5H

BLUISH GRAY,TRIM1#

 1
78472-9570004

CM50,55,6#..3SO..5H

BLUE,BLUE

 1
78472-9570004

CM50,55,6#..5H

BLUE,TRIM8#

 1
Common parts
78183-27010
82711-22270
90464-00215
90468-04099
90904-64003
91651-40614
91651-40820
91661-60850
