CM65-TBQDS3 (1986)

Toyota Lite/Townace Truck

Production Oct 1986 - Jun 1999
Engine 2C
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

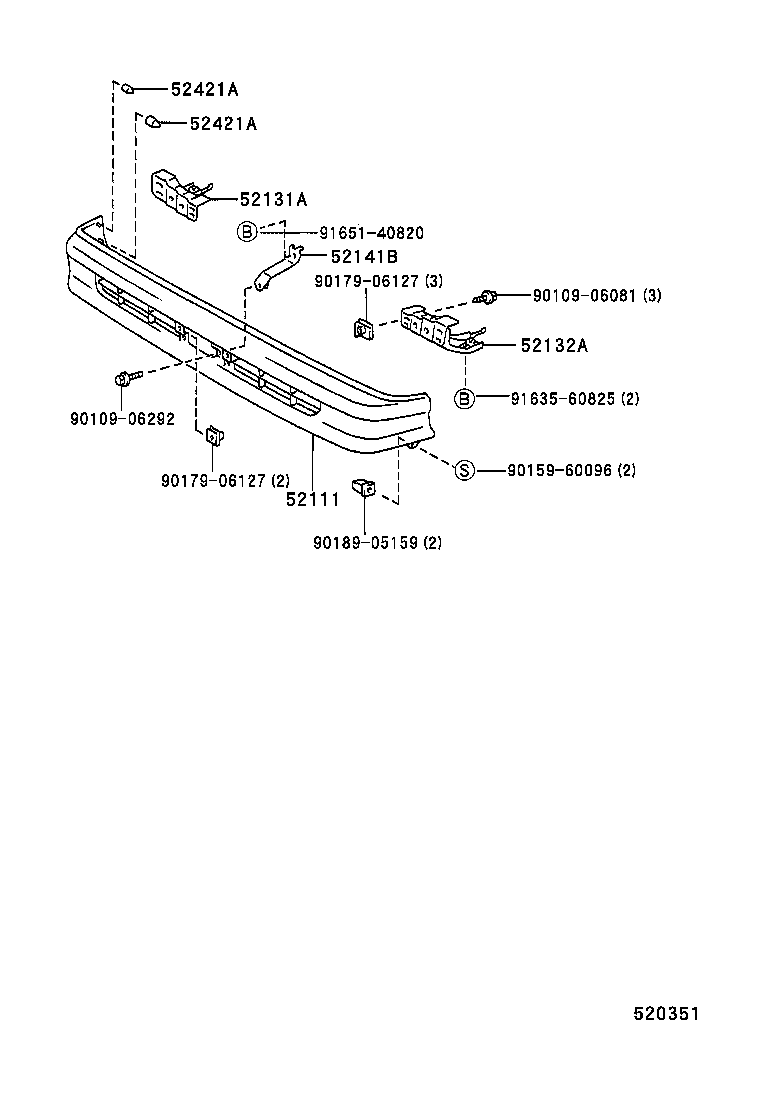

(9611- )

Click highlighted areas on diagram

diagram 52111 52131A 52132A 52141B 52421A 52421A 9010906081 9010906292 9015960096 9017906127 9017906127 9018905159 9163560825 9165140820
Part # Description Qty Price
52111 - BUMPER ASSY, FRONT
52111-95715

CM65..TS;CM5#,60,61,KM51,YM55,6#..DX

 1
52119-27030B3

CM5#,6#,KM51,YM55,6#..3SO

GRAY,048 ,8E5

 1
52111-95721

CM65..IV

TECS CAMPMATE

 1
52111-95715

CM5#,6#,KM5#,YM55,6#..DX

 1
52111-95715

CM5#,6#,KM5#,YM55,60

 1
52131A - REINFORCEMENT, FRONT BUMPER
52131-27010

CM5#,6#,KM51,YM55,6#

 1
52132A - REINFORCEMENT, FRONT BUMPER, NO.2
52132-27010

CM5#,6#,KM51,YM55,6#

 1
52141B - STAY, FRONT BUMPER
52141-27020

CM65..TS;CM5#,60,61,KM51,YM55,6#

 1
52141-27020

CM5#,6#,KM51,YM55,6#

 1
52141-27030

CM5#,6#,KM51,YM55,6#

 1
52421A - PAD, FRONT BUMPER
52421-27010

CM5#,6#,KM51,YM55,6#

 2
52421-27020

CM5#,6#,KM51,YM55,6#

UPPER

 2
52421-27010

CM5#,6#,KM51,YM55,6#

LOWER

 2
52421A - PAD, FRONT BUMPER
52421-27010

CM5#,6#,KM51,YM55,6#

 2
52421-27020

CM5#,6#,KM51,YM55,6#

UPPER

 2
52421-27010

CM5#,6#,KM51,YM55,6#

LOWER

 2
Common parts
90109-06081
90109-06292
90159-60096
90179-06127
90189-05159
91635-60825
91651-40820

(8610-9611)

Click highlighted areas on diagram

diagram 52011A 52012A 52111 52141B 9010908160 9010908160 9010908169 9017906127 9017908167 9017908167 9165140820 9166560825 9166560825
Part # Description Qty Price
52011A - ARM SUB-ASSY, FRONT BUMPER, RH
52011-95704

CM65..IV

TECS CAMPMATE

 1
52011-95702

CM65..TS;CM5#,60,61,KM51,YM55,6#

 1
52011-95702

CM5#,6#,KM5#,YM55,6#

 1
52012A - ARM SUB-ASSY, FRONT BUMPER, LH
52012-95702

CM5#,6#,KM5#,YM55,6#

 1
52012-95702

CM65..TS;CM5#,60,61,KM51,YM55,6#

 1
52012-95704

CM65..IV

TECS CAMPMATE

 1
52111 - BUMPER ASSY, FRONT
52111-95715

CM65..TS;CM5#,60,61,KM51,YM55,6#..DX

 1
52119-27030B3

CM5#,6#,KM51,YM55,6#..3SO

GRAY,048 ,8E5

 1
52111-95721

CM65..IV

TECS CAMPMATE

 1
52111-95715

CM5#,6#,KM5#,YM55,6#..DX

 1
52111-95715

CM5#,6#,KM5#,YM55,60

 1
52141B - STAY, FRONT BUMPER
52141-27020

CM65..TS;CM5#,60,61,KM51,YM55,6#

 1
52141-27020

CM5#,6#,KM51,YM55,6#

 1
52141-27030

CM5#,6#,KM51,YM55,6#

 1
Common parts
90109-08160
90109-08169
90179-06127
90179-08167
91651-40820
91665-60825

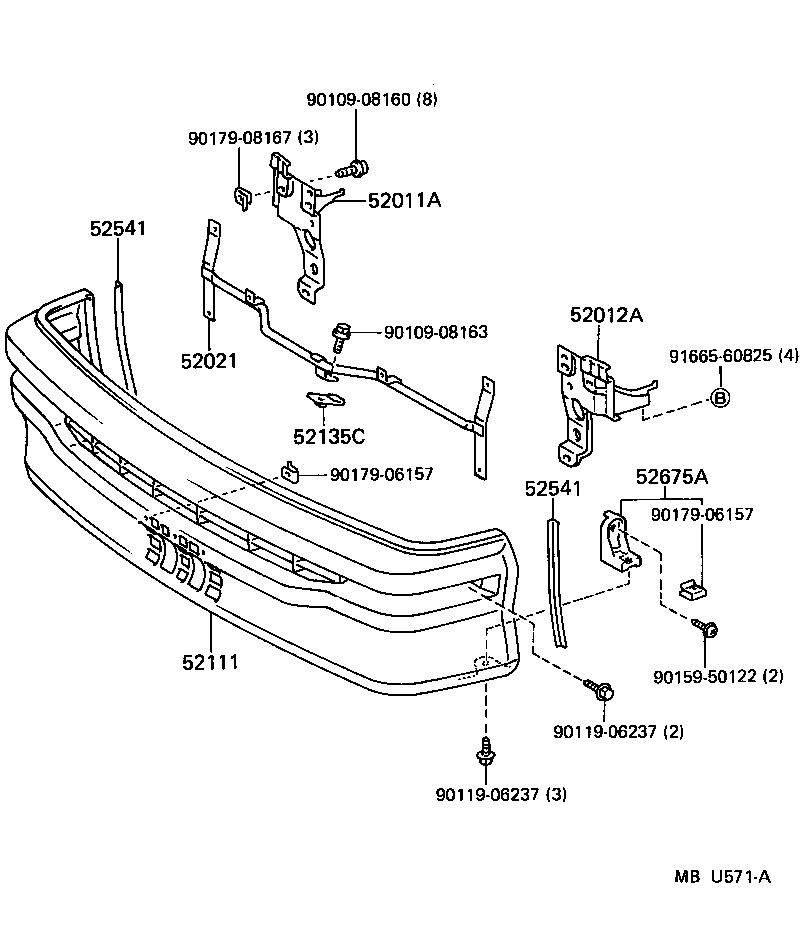

(8912-9310)CM65..IV

Click highlighted areas on diagram

TECS CAMPMATE

diagram 52011A 52012A 52021 52111 52135C 52541 52541 52675A 9010908160 9010908163 9011906237 9011906237 9015950122 9017906157 9017906157 9017908167 9166560825
Part # Description Qty Price
52011A - ARM SUB-ASSY, FRONT BUMPER, RH
52011-95704

CM65..IV

TECS CAMPMATE

 1
52011-95702

CM65..TS;CM5#,60,61,KM51,YM55,6#

 1
52011-95702

CM5#,6#,KM5#,YM55,6#

 1
52012A - ARM SUB-ASSY, FRONT BUMPER, LH
52012-95702

CM5#,6#,KM5#,YM55,6#

 1
52012-95702

CM65..TS;CM5#,60,61,KM51,YM55,6#

 1
52012-95704

CM65..IV

TECS CAMPMATE

 1
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-95701

CM65..IV

TECS CAMPMATE

 1
52111 - BUMPER ASSY, FRONT
52111-95715

CM65..TS;CM5#,60,61,KM51,YM55,6#..DX

 1
52119-27030B3

CM5#,6#,KM51,YM55,6#..3SO

GRAY,048 ,8E5

 1
52111-95721

CM65..IV

TECS CAMPMATE

 1
52111-95715

CM5#,6#,KM5#,YM55,6#..DX

 1
52111-95715

CM5#,6#,KM5#,YM55,60

 1
52135C - BRACKET, FRONT BUMPER ARM MOUNTING
52135-95701

CM65..IV

TECS CAMPMATE

 1
52541 - PROTECTOR, FRONT BUMPER
52541-95700

CM65..IV

TECS CAMPMATE

 2
52541 - PROTECTOR, FRONT BUMPER
52541-95700

CM65..IV

TECS CAMPMATE

 2
52675A - SUPPORT, FRONT BUMPER SIDE, NO.1
52675-95700

CM65..IV

TECS CAMPMATE

 2
Common parts
90109-08160
90109-08163
90119-06237
90159-50122
90179-06157
90179-08167
91665-60825
