CM65-TBQDS (1986)
Toyota Lite/Townace Truck

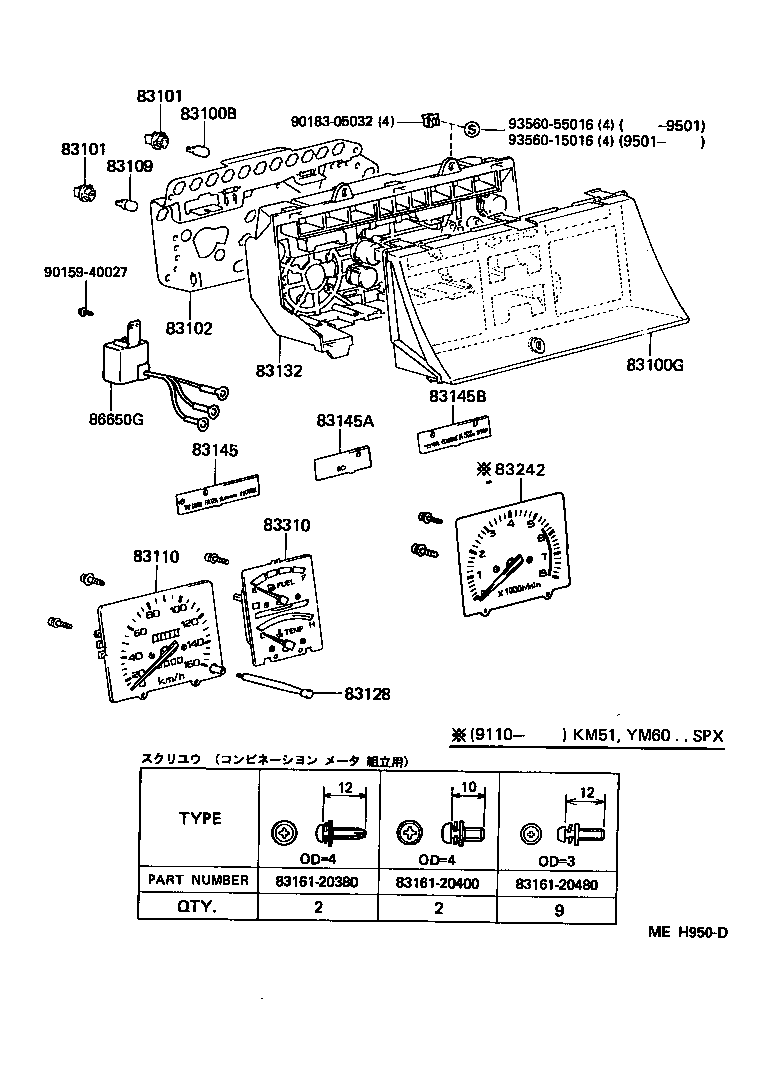

ILLUST NO. 1 OF 3(8610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
CM5#,6#,KM5#,YM55,60 12V 3.4W |
13 | ||
| 99132-12034 |
CM6#..3SO;CM51,55..4HC 12V 3.4W |
9 | ||
| 90010-06006 |
CM5#,6#,KM51,YM55,6# 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
4 | ||
| 99132-12034 |
CM65..TS;YM60..GUT;CM51,55..4HC;CM52,60..3SO 12V 3.4W |
10 | ||
| 99132-12034 |
YM60..GUT;CM51,55..4HC;CM52,60,65..3SO 12V 3.4W |
10 | ||
| 90010-06015 |
CM5#,6#,KM51,YM55,6# 12V 1.7W,ｿｹｯﾄ付き,ｼｰﾄﾍﾞﾙﾄ |
1 | ||
| 90010-06007 |
CM52,6# 12V 3.4W,ｿｹｯﾄ付き |
11 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83134-95707 |
CM5#,6#,KM5#,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 83134-95707 |
CM5#,6#,KM5#,YM55,60 ｱﾘ(ｸﾛﾂｸ) |
1 | ||
| 83134-95706 |
CM5#,6#,KM5#,YM55,6#..DX |
1 | ||
| 83134-95706 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX |
1 | ||
| 83821-27020 |
CM5#,6#,KM51,YM55,6#..DX |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
CM5#,6#,KM5#,YM55,60 BULB:12V 3.4W |
13 | ||
| 83101-20070 |
KM50;CM5#,6#,KM51,YM55,60..1SO,3SO BULB:GREEN CAP,12V 3.4W |
4 | ||
| 83101-20040 |
CM5#..4HC;CM6#..3SO;YM60..GUT BULB:12V 3.4W |
10 | ||
| 83101-20040 |
CM6#..3SO;CM51,55..4HC BULB:12V 3.4W |
9 | ||
| 83101-20070 |
CM5#,6#,KM5#,YM55,6# BULB:GREEN CAP,12V 3.4W |
4 | ||
| 83101-20070 |
CM5#,6#,KM51,YM55,6#..DX BULB:GREEN CAP,12V 3.4W |
4 | ||
| 83101-20040 |
CM65..TS;YM60..GUT;CM51,55..4HC;CM52,60..3SO BULB:12V 3.4W |
10 | ||
| 83101-20040 |
YM60..GUT;CM51,55..4HC;CM52,60,65..3SO BULB:12V 3.4W |
10 | ||
| 83101-20070 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX BULB:GREEN CAP,12V 3.4W |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
CM5#,6#,KM5#,YM55,60 BULB:12V 3.4W |
13 | ||
| 83101-20070 |
KM50;CM5#,6#,KM51,YM55,60..1SO,3SO BULB:GREEN CAP,12V 3.4W |
4 | ||
| 83101-20040 |
CM5#..4HC;CM6#..3SO;YM60..GUT BULB:12V 3.4W |
10 | ||
| 83101-20040 |
CM6#..3SO;CM51,55..4HC BULB:12V 3.4W |
9 | ||
| 83101-20070 |
CM5#,6#,KM5#,YM55,6# BULB:GREEN CAP,12V 3.4W |
4 | ||
| 83101-20070 |
CM5#,6#,KM51,YM55,6#..DX BULB:GREEN CAP,12V 3.4W |
4 | ||
| 83101-20040 |
CM65..TS;YM60..GUT;CM51,55..4HC;CM52,60..3SO BULB:12V 3.4W |
10 | ||
| 83101-20040 |
YM60..GUT;CM51,55..4HC;CM52,60,65..3SO BULB:12V 3.4W |
10 | ||
| 83101-20070 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX BULB:GREEN CAP,12V 3.4W |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
CM5#,6#,KM5#,YM55,60 BULB:12V 3.4W |
13 | ||
| 83101-20070 |
KM50;CM5#,6#,KM51,YM55,60..1SO,3SO BULB:GREEN CAP,12V 3.4W |
4 | ||
| 83101-20040 |
CM5#..4HC;CM6#..3SO;YM60..GUT BULB:12V 3.4W |
10 | ||
| 83101-20040 |
CM6#..3SO;CM51,55..4HC BULB:12V 3.4W |
9 | ||
| 83101-20070 |
CM5#,6#,KM5#,YM55,6# BULB:GREEN CAP,12V 3.4W |
4 | ||
| 83101-20070 |
CM5#,6#,KM51,YM55,6#..DX BULB:GREEN CAP,12V 3.4W |
4 | ||
| 83101-20040 |
CM65..TS;YM60..GUT;CM51,55..4HC;CM52,60..3SO BULB:12V 3.4W |
10 | ||
| 83101-20040 |
YM60..GUT;CM51,55..4HC;CM52,60,65..3SO BULB:12V 3.4W |
10 | ||
| 83101-20070 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX BULB:GREEN CAP,12V 3.4W |
4 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-95714 |
CM5#,6#,YM55,60..DX |
1 | ||
| 83247-95717 |
CM5#,6# ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 83247-95717 |
CM5#,6#,KM51,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 83247-95T04 |
CM51,55,60,65,KM51,YM55,6#..DX |
1 | ||
| 83247-95T04 |
CM5#,6#,YM55,60..DX |
1 | ||
| 83247-95717 |
CM5#,6# ｱﾘ(ｸﾛﾂｸ) |
1 | ||
| 83247-95717 |
YM55..SJL;CM5#,6#,YM60..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 83247-27090 |
CM65..TS;CM51,55,60,KM51,YM55,6#..DX |
1 | ||
| 83247-95T04 |
CM65..TS;CM51,55,60,KM51,YM55,6#..DX |
1 | ||
| 83861-27021 |
KM51,YM55,6#..DX |
1 | ||
| 83861-27040 |
CM52,6#..3SO |
1 | ||
| 83861-27020 |
KM51,YM55,6#..DX |
1 | ||
| 83109 - BULB, COMBINATION METER, NO.2 | ||||
| 83109-24030 |
CM5#,6#,KM5#,YM55,6# 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
4 | ||
| 83109-24030 |
CM5#,6#,KM51,YM55,6#..DX 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
4 | ||
| 83109-24030 |
KM50;CM5#,6#,KM51,YM55,60..1SO,3SO 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
4 | ||
| 83109-24030 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
4 | ||
| 83109-37020 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX 12V 1.7W |
1 | ||
| 83109-24030 |
KM50;CM5#,6#,KM51,YM55,60..1SO,3SO 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
4 | ||
| 83109 - BULB, COMBINATION METER, NO.2 | ||||
| 83109-24030 |
CM5#,6#,KM5#,YM55,6# 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
4 | ||
| 83109-24030 |
CM5#,6#,KM51,YM55,6#..DX 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
4 | ||
| 83109-24030 |
KM50;CM5#,6#,KM51,YM55,60..1SO,3SO 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
4 | ||
| 83109-24030 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
4 | ||
| 83109-37020 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX 12V 1.7W |
1 | ||
| 83109-24030 |
KM50;CM5#,6#,KM51,YM55,60..1SO,3SO 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
4 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-95731 |
CM5#,6# ｱﾘ(ｸﾛﾂｸ) |
1 | ||
| 83110-95728 |
KM5#,YM55,6#..DX |
1 | ||
| 83110-95729 |
KM5#,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 83110-95731 |
CM5#,6# ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 83110-95730 |
CM5#,6# |
1 | ||
| 83110-27050 |
KM51,YM55,6#..3HC,5H |
1 | ||
| 83220-27020 |
CM5#,6#,KM51,YM55,6#..DX |
1 | ||
| 83110-27060 |
CM5#,6# |
1 | ||
| 83110-27060 |
CM65..TS;YM55..4HC;CM5#,60,61 |
1 | ||
| 83116 - BRACKET, SPEEDOMETER | ||||
| 83116-95G00 |
CM5#,6#,KM51,YM55,6#..DX |
1 | ||
| 83116-95G00 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-95J00 |
CM5#,6#,KM51,YM55,6# |
1 | ||
| 83128-95J00 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 83128-95J00 |
CM65..TS;CM5#,60,61,KM51,YM55,6# |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-95J05 |
CM5#,6#,KM5#,YM55,60 ｱﾘ(ｸﾛﾂｸ) |
1 | ||
| 83132-95J05 |
CM5#,6#,KM5#,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 83841-27020 |
CM5#,6#,KM51,YM55,6#..DX |
1 | ||
| 83132-95J02 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX |
1 | ||
| 83132-95J02 |
CM5#,6#,KM5#,YM55,6#..DX |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-95T04 |
CM65..TS;CM5#,60,61 |
1 | ||
| 83145-95728 |
CM5#,6# |
1 | ||
| 83145-95735 |
CM5#,6# ｱﾘ(ｸﾛﾂｸ) |
1 | ||
| 83145-95735 |
CM5#,6# ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 83145-95T06 |
KM51,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 83145-95T04 |
CM5#,6# |
1 | ||
| 83145-95T07 |
CM5#,6# ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 83831-27020 |
KM51,YM55,6#..DX |
1 | ||
| 83831-27040 |
CM5#,6#,KM51,YM55,6#..DX |
1 | ||
| 83145-95T03 |
KM51,YM55,6#..DX |
1 | ||
| 83831-27040 |
CM5#,6# |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-95G04 |
CM5#,6#,KM5#,YM55,6#..DX |
1 | ||
| 83145-95G05 |
CM5#,6#,KM5#,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 83834-27020 |
CM5#,6#,KM51,YM55,6#..DX |
1 | ||
| 83145-95G05 |
CM5#,6#,KM5#,YM55,60 ｱﾘ(ｸﾛﾂｸ) |
1 | ||
| 83145-95G04 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-95G07 |
CM6#,YM60..TS ｴｷｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 83145-27180 |
CM60,65,YM6#..(1SO,3SO)..DX |
1 | ||
| 83145-95G07 |
CM6#,YM6#..(1SO,3SO)..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 83145-95G06 |
CM6#,YM6#..(1SO,3SO)..DX |
1 | ||
| 83145-27180 |
CM65..TS;CM60,YM6#..(1SO,3SO)..DX |
1 | ||
| 83832-27040 |
CM52,6#..3SO |
1 | ||
| 83145C - LENS, METER, NO.4 | ||||
| 83145-95724 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX |
1 | ||
| 83833-27020 |
CM5#,6#,KM51,YM55,6#..DX |
1 | ||
| 83145-95724 |
CM5#,6#,KM5#,YM55,6#..DX |
1 | ||
| 83147A - LAMP, METER NO.2 | ||||
| 83147-27020 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX |
1 | ||
| 83147-27020 |
CM5#,6#,KM51,YM55,6#..DX |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-95G01 |
CM5#,6#,KM5#,YM55,60 ｱﾘ(ｸﾛﾂｸ) |
1 | ||
| 83243-95G01 |
CM5#,6#,KM5#,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 83243-95G00 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX |
1 | ||
| 83882-27020 |
CM5#,6#,KM51,YM55,6#..DX |
1 | ||
| 83243-95G00 |
CM5#,6#,KM5#,YM55,6#..DX |
1 | ||
| 86650G - BUZZER ASSY | ||||
| 86650-12030 |
CM5#,6#,KM51,YM55,6# |
1 | ||
| Common parts | ||||
| 83161-20380 | ||||
| 83161-20440 | ||||
| 90159-40027 | ||||
| 90183-05032 | ||||
| 93540-14012 | ||||
| 93560-15016 | ||||
| 93560-55016 | ||||
ILLUST NO. 1 OF 3(8610- )
ｱﾘ(ﾀｺﾒｰﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
CM5#,6#,KM5#,YM55,60 12V 3.4W |
13 | ||
| 99132-12034 |
CM6#..3SO;CM51,55..4HC 12V 3.4W |
9 | ||
| 90010-06006 |
CM5#,6#,KM51,YM55,6# 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
4 | ||
| 99132-12034 |
CM65..TS;YM60..GUT;CM51,55..4HC;CM52,60..3SO 12V 3.4W |
10 | ||
| 99132-12034 |
YM60..GUT;CM51,55..4HC;CM52,60,65..3SO 12V 3.4W |
10 | ||
| 90010-06015 |
CM5#,6#,KM51,YM55,6# 12V 1.7W,ｿｹｯﾄ付き,ｼｰﾄﾍﾞﾙﾄ |
1 | ||
| 90010-06007 |
CM52,6# 12V 3.4W,ｿｹｯﾄ付き |
11 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83134-95707 |
CM5#,6#,KM5#,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 83134-95707 |
CM5#,6#,KM5#,YM55,60 ｱﾘ(ｸﾛﾂｸ) |
1 | ||
| 83134-95706 |
CM5#,6#,KM5#,YM55,6#..DX |
1 | ||
| 83134-95706 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX |
1 | ||
| 83821-27020 |
CM5#,6#,KM51,YM55,6#..DX |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
CM5#,6#,KM5#,YM55,60 BULB:12V 3.4W |
13 | ||
| 83101-20070 |
KM50;CM5#,6#,KM51,YM55,60..1SO,3SO BULB:GREEN CAP,12V 3.4W |
4 | ||
| 83101-20040 |
CM5#..4HC;CM6#..3SO;YM60..GUT BULB:12V 3.4W |
10 | ||
| 83101-20040 |
CM6#..3SO;CM51,55..4HC BULB:12V 3.4W |
9 | ||
| 83101-20070 |
CM5#,6#,KM5#,YM55,6# BULB:GREEN CAP,12V 3.4W |
4 | ||
| 83101-20070 |
CM5#,6#,KM51,YM55,6#..DX BULB:GREEN CAP,12V 3.4W |
4 | ||
| 83101-20040 |
CM65..TS;YM60..GUT;CM51,55..4HC;CM52,60..3SO BULB:12V 3.4W |
10 | ||
| 83101-20040 |
YM60..GUT;CM51,55..4HC;CM52,60,65..3SO BULB:12V 3.4W |
10 | ||
| 83101-20070 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX BULB:GREEN CAP,12V 3.4W |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
CM5#,6#,KM5#,YM55,60 BULB:12V 3.4W |
13 | ||
| 83101-20070 |
KM50;CM5#,6#,KM51,YM55,60..1SO,3SO BULB:GREEN CAP,12V 3.4W |
4 | ||
| 83101-20040 |
CM5#..4HC;CM6#..3SO;YM60..GUT BULB:12V 3.4W |
10 | ||
| 83101-20040 |
CM6#..3SO;CM51,55..4HC BULB:12V 3.4W |
9 | ||
| 83101-20070 |
CM5#,6#,KM5#,YM55,6# BULB:GREEN CAP,12V 3.4W |
4 | ||
| 83101-20070 |
CM5#,6#,KM51,YM55,6#..DX BULB:GREEN CAP,12V 3.4W |
4 | ||
| 83101-20040 |
CM65..TS;YM60..GUT;CM51,55..4HC;CM52,60..3SO BULB:12V 3.4W |
10 | ||
| 83101-20040 |
YM60..GUT;CM51,55..4HC;CM52,60,65..3SO BULB:12V 3.4W |
10 | ||
| 83101-20070 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX BULB:GREEN CAP,12V 3.4W |
4 | ||

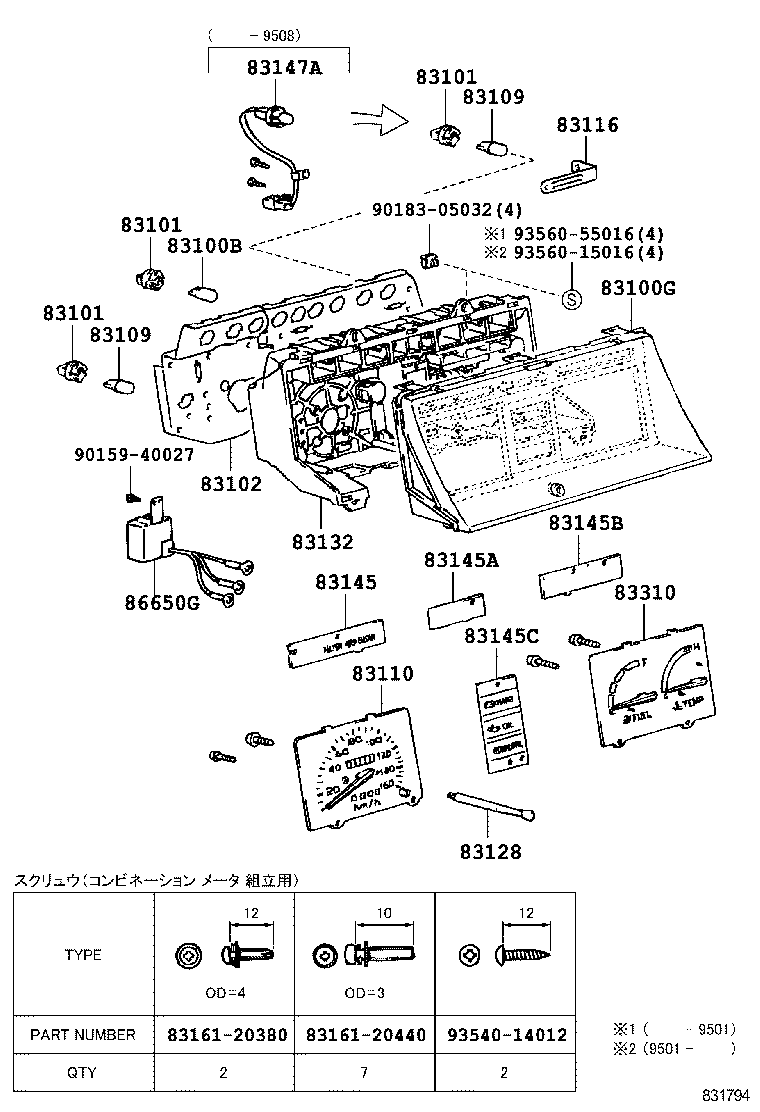

| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-95714 |
CM5#,6#,YM55,60..DX |
1 | ||
| 83247-95717 |
CM5#,6# ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 83247-95717 |
CM5#,6#,KM51,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 83247-95T04 |
CM51,55,60,65,KM51,YM55,6#..DX |
1 | ||
| 83247-95T04 |
CM5#,6#,YM55,60..DX |
1 | ||
| 83247-95717 |
CM5#,6# ｱﾘ(ｸﾛﾂｸ) |
1 | ||
| 83247-95717 |
YM55..SJL;CM5#,6#,YM60..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 83247-27090 |
CM65..TS;CM51,55,60,KM51,YM55,6#..DX |
1 | ||
| 83247-95T04 |
CM65..TS;CM51,55,60,KM51,YM55,6#..DX |
1 | ||
| 83861-27021 |
KM51,YM55,6#..DX |
1 | ||
| 83861-27040 |
CM52,6#..3SO |
1 | ||
| 83861-27020 |
KM51,YM55,6#..DX |
1 | ||
| 83109 - BULB, COMBINATION METER, NO.2 | ||||
| 83109-24030 |
CM5#,6#,KM5#,YM55,6# 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
4 | ||
| 83109-24030 |
CM5#,6#,KM51,YM55,6#..DX 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
4 | ||
| 83109-24030 |
KM50;CM5#,6#,KM51,YM55,60..1SO,3SO 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
4 | ||
| 83109-24030 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
4 | ||
| 83109-37020 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX 12V 1.7W |
1 | ||
| 83109-24030 |
KM50;CM5#,6#,KM51,YM55,60..1SO,3SO 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
4 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-95731 |
CM5#,6# ｱﾘ(ｸﾛﾂｸ) |
1 | ||
| 83110-95728 |
KM5#,YM55,6#..DX |
1 | ||
| 83110-95729 |
KM5#,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 83110-95731 |
CM5#,6# ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 83110-95730 |
CM5#,6# |
1 | ||
| 83110-27050 |
KM51,YM55,6#..3HC,5H |
1 | ||
| 83220-27020 |
CM5#,6#,KM51,YM55,6#..DX |
1 | ||
| 83110-27060 |
CM5#,6# |
1 | ||
| 83110-27060 |
CM65..TS;YM55..4HC;CM5#,60,61 |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-95J00 |
CM5#,6#,KM51,YM55,6# |
1 | ||
| 83128-95J00 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 83128-95J00 |
CM65..TS;CM5#,60,61,KM51,YM55,6# |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-95J05 |
CM5#,6#,KM5#,YM55,60 ｱﾘ(ｸﾛﾂｸ) |
1 | ||
| 83132-95J05 |
CM5#,6#,KM5#,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 83841-27020 |
CM5#,6#,KM51,YM55,6#..DX |
1 | ||
| 83132-95J02 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX |
1 | ||
| 83132-95J02 |
CM5#,6#,KM5#,YM55,6#..DX |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-95T04 |
CM65..TS;CM5#,60,61 |
1 | ||
| 83145-95728 |
CM5#,6# |
1 | ||
| 83145-95735 |
CM5#,6# ｱﾘ(ｸﾛﾂｸ) |
1 | ||
| 83145-95735 |
CM5#,6# ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 83145-95T06 |
KM51,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 83145-95T04 |
CM5#,6# |
1 | ||
| 83145-95T07 |
CM5#,6# ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 83831-27020 |
KM51,YM55,6#..DX |
1 | ||
| 83831-27040 |
CM5#,6#,KM51,YM55,6#..DX |
1 | ||
| 83145-95T03 |
KM51,YM55,6#..DX |
1 | ||
| 83831-27040 |
CM5#,6# |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-95G04 |
CM5#,6#,KM5#,YM55,6#..DX |
1 | ||
| 83145-95G05 |
CM5#,6#,KM5#,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 83834-27020 |
CM5#,6#,KM51,YM55,6#..DX |
1 | ||
| 83145-95G05 |
CM5#,6#,KM5#,YM55,60 ｱﾘ(ｸﾛﾂｸ) |
1 | ||
| 83145-95G04 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-95G07 |
CM6#,YM60..TS ｴｷｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 83145-27180 |
CM60,65,YM6#..(1SO,3SO)..DX |
1 | ||
| 83145-95G07 |
CM6#,YM6#..(1SO,3SO)..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 83145-95G06 |
CM6#,YM6#..(1SO,3SO)..DX |
1 | ||
| 83145-27180 |
CM65..TS;CM60,YM6#..(1SO,3SO)..DX |
1 | ||
| 83832-27040 |
CM52,6#..3SO |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-95G01 |
CM5#,6#,KM5#,YM55,60 ｱﾘ(ｸﾛﾂｸ) |
1 | ||
| 83243-95G01 |
CM5#,6#,KM5#,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 83243-95G00 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX |
1 | ||
| 83882-27020 |
CM5#,6#,KM51,YM55,6#..DX |
1 | ||
| 83243-95G00 |
CM5#,6#,KM5#,YM55,6#..DX |
1 | ||
| 86650G - BUZZER ASSY | ||||
| 86650-12030 |
CM5#,6#,KM51,YM55,6# |
1 | ||
| Common parts | ||||
| 83161-20380 | ||||
| 83161-20400 | ||||
| 83161-20480 | ||||
| 90159-40027 | ||||
| 90183-05032 | ||||
| 93560-15016 | ||||
| 93560-55016 | ||||

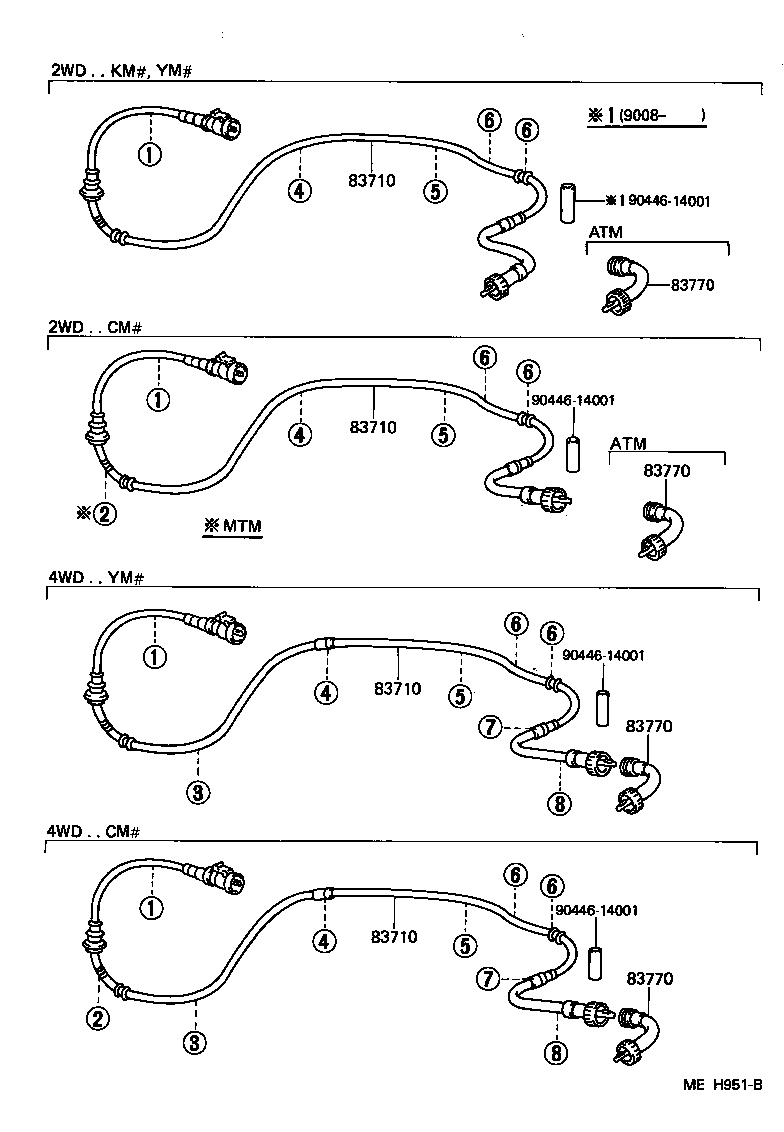

ILLUST NO. 3 OF 3(8610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-95733 |
CM6#,YM6# |
1 | ||
| 83710-95733 |
CM65..TS;CM60,61,YM6# |
1 | ||
| 83710-27060 |
CM6#,YM6# |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-95733 |
CM6#,YM6# |
1 | ||
| 83710-95733 |
CM65..TS;CM60,61,YM6# |
1 | ||
| 83710-27060 |
CM6#,YM6# |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-95733 |
CM6#,YM6# |
1 | ||
| 83710-95733 |
CM65..TS;CM60,61,YM6# |
1 | ||
| 83710-27060 |
CM6#,YM6# |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-95733 |
CM6#,YM6# |
1 | ||
| 83710-95733 |
CM65..TS;CM60,61,YM6# |
1 | ||
| 83710-27060 |
CM6#,YM6# |
1 | ||
| 83770 - ADAPTER ASSY, SPEEDOMETER CABLE | ||||
| 83770-22100 |
CM65..TS;CM60,61,YM6#;CM51,55,YM55..4HC |
1 | ||
| 83770-22100 |
CM6#,YM6#;CM51,55,YM55..4HC |
1 | ||
| 83770-22100 |
CM6#,YM6#;CM51,55..4HC |
1 | ||
| 83770 - ADAPTER ASSY, SPEEDOMETER CABLE | ||||
| 83770-22100 |
CM65..TS;CM60,61,YM6#;CM51,55,YM55..4HC |
1 | ||
| 83770-22100 |
CM6#,YM6#;CM51,55,YM55..4HC |
1 | ||
| 83770-22100 |
CM6#,YM6#;CM51,55..4HC |
1 | ||
| 83770 - ADAPTER ASSY, SPEEDOMETER CABLE | ||||
| 83770-22100 |
CM65..TS;CM60,61,YM6#;CM51,55,YM55..4HC |
1 | ||
| 83770-22100 |
CM6#,YM6#;CM51,55,YM55..4HC |
1 | ||
| 83770-22100 |
CM6#,YM6#;CM51,55..4HC |
1 | ||
| 83770 - ADAPTER ASSY, SPEEDOMETER CABLE | ||||
| 83770-22100 |
CM65..TS;CM60,61,YM6#;CM51,55,YM55..4HC |
1 | ||
| 83770-22100 |
CM6#,YM6#;CM51,55,YM55..4HC |
1 | ||
| 83770-22100 |
CM6#,YM6#;CM51,55..4HC |
1 | ||
| Common parts | ||||
| 90446-14001 | ||||

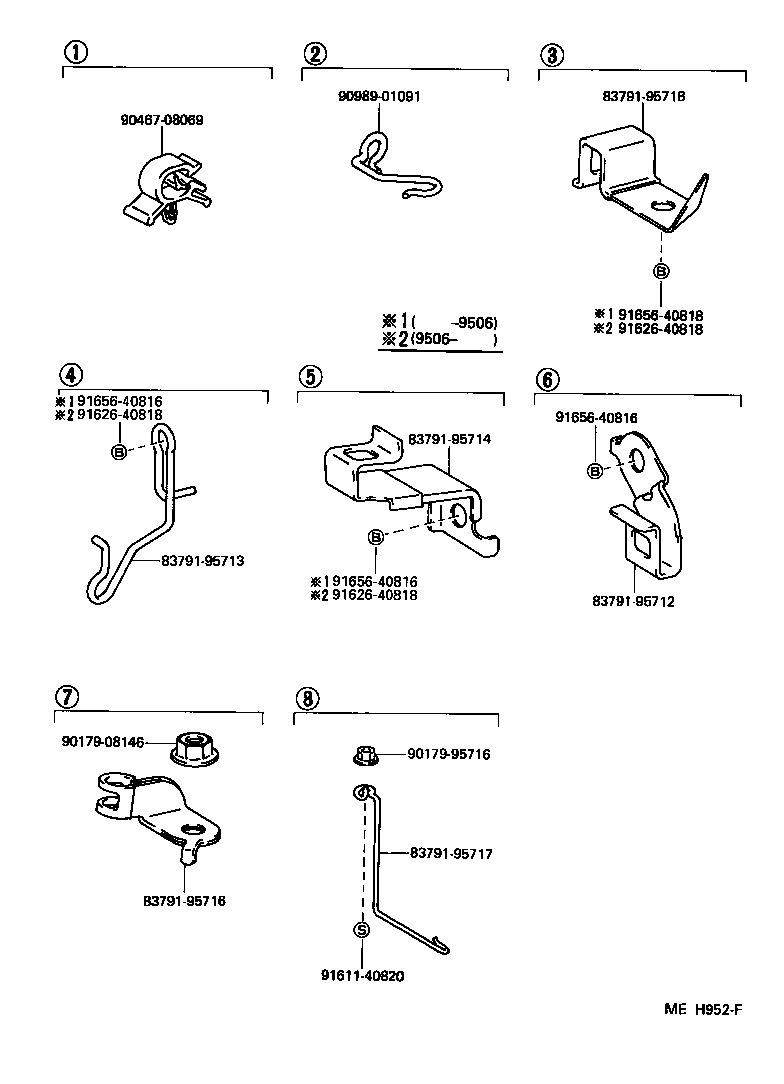

ILLUST NO. 3 OF 3(8610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 83791-95712 | ||||
| 83791-95713 | ||||
| 83791-95714 | ||||
| 83791-95716 | ||||
| 83791-95717 | ||||
| 83791-95718 | ||||
| 90179-08146 | ||||
| 90179-95716 | ||||
| 90467-08069 | ||||
| 90989-01091 | ||||
| 91611-40820 | ||||
| 91626-40818 | ||||
| 91656-40816 | ||||
| 91656-40818 | ||||

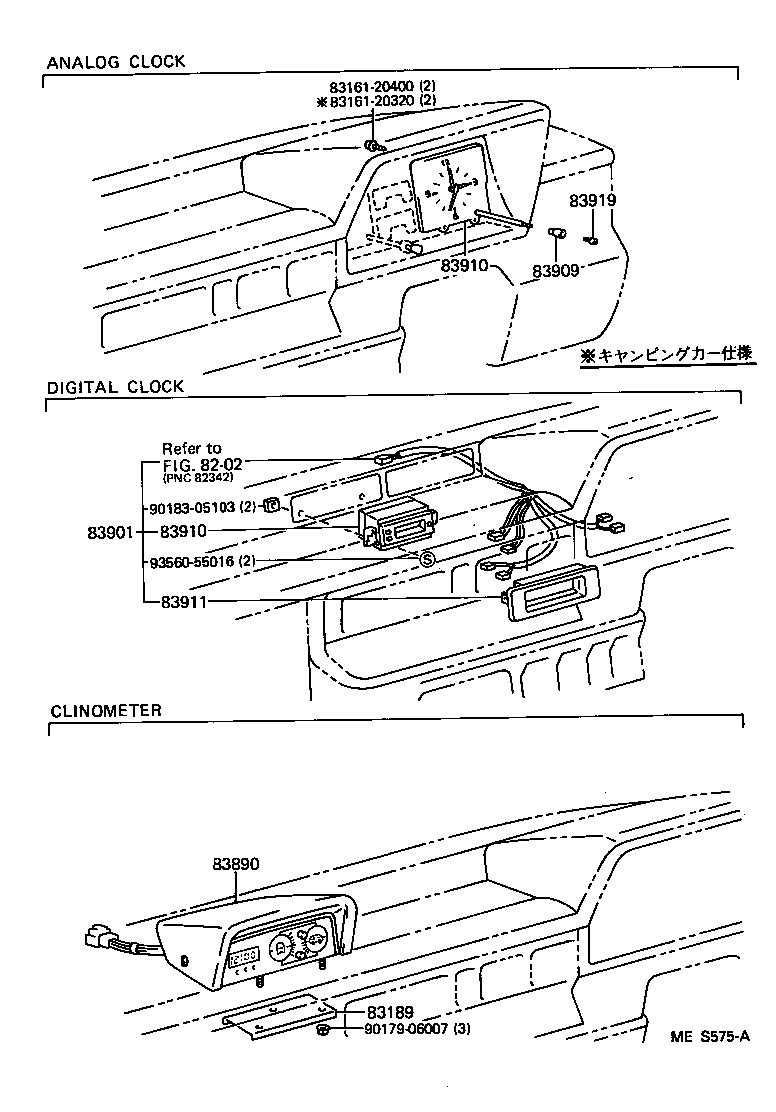

ILLUST NO. 2 OF 3(8610- )
CLOCK & CLINOMETER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83901 - CLOCK AND SETTING PARTS SET | ||||
| 83901-9570403 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX MEDIUM GRAY,TRIM1# |
1 | ||
| 83901-9570404 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX BLUE,TRIM8# |
1 | ||
| 83901-9570404 |
CM5#,6#,KM5#,YM55,60..DX BLUE,TRIM8# |
1 | ||
| 83901-9570413 |
CM65,YM60..GUT,TS;CM5#,60,61,KM51,YM55,65..DX GRAY,TRIM1# |
1 | ||
| 83901-9570413 |
YM60;CM5#,6#,KM5#,YM55,65..DX GRAY,TRIM1# |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-14012 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-95705 |
YM60;CM5#,6#,KM5#,YM55,65..DX ﾃﾞｼﾞﾀﾙ |
1 | ||
| 83910-95706 |
CM5#,6#,KM5#,YM55,60 ｱﾅﾛｸﾞ |
1 | ||
| 83910-95705 |
CM5#,6#,KM5#,YM55,60..DX ﾃﾞｼﾞﾀﾙ |
1 | ||
| 83910-95705 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX ﾃﾞｼﾞﾀﾙ;ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 83910-95705 |
CM5#,6#,KM51,YM55,6#..DX ﾃﾞｼﾞﾀﾙ;ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 83910-26020 |
CM5#,6#,KM51,YM55,6#..DX ﾃﾞｼﾞﾀﾙ;ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 83910-95706 |
CM5#,6#,KM5#,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-95705 |
YM60;CM5#,6#,KM5#,YM55,65..DX ﾃﾞｼﾞﾀﾙ |
1 | ||
| 83910-95706 |
CM5#,6#,KM5#,YM55,60 ｱﾅﾛｸﾞ |
1 | ||
| 83910-95705 |
CM5#,6#,KM5#,YM55,60..DX ﾃﾞｼﾞﾀﾙ |
1 | ||
| 83910-95705 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX ﾃﾞｼﾞﾀﾙ;ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 83910-95705 |
CM5#,6#,KM51,YM55,6#..DX ﾃﾞｼﾞﾀﾙ;ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 83910-26020 |
CM5#,6#,KM51,YM55,6#..DX ﾃﾞｼﾞﾀﾙ;ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 83910-95706 |
CM5#,6#,KM5#,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 83911 - COVER, CLOCK | ||||
| 55478-9570104 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX BLUE,TRIM8# |
1 | ||
| 55478-9570103 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX MEDIUM GRAY,TRIM1# |
1 | ||
| 55478-9570113 |
CM65,YM60..GUT,TS;CM5#,60,61,KM51,YM55,65..DX GRAY,TRIM1# |
1 | ||
| 55478-9570104 |
CM5#,6#,KM5#,YM55,60..DX BLUE,TRIM8# |
1 | ||
| 55478-9570113 |
YM60;CM5#,6#,KM5#,YM55,65..DX GRAY,TRIM1# |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-14012 |
KM51..1SO,3SO;CM5#,6#,KM50,YM55,6# |
1 | ||
| Common parts | ||||
| 83161-20320 | ||||
| 83161-20400 | ||||
| 90179-06007 | ||||
| 90183-05103 | ||||
| 93560-55016 | ||||
| Linked diagrams | ||||
| 8202 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
