CM60-TFQDS (1986)

Toyota Lite/Townace Truck

Production Oct 1986 - Jun 1999
Engine 2C
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 3(8610-9611)KM5#,YM55,6#

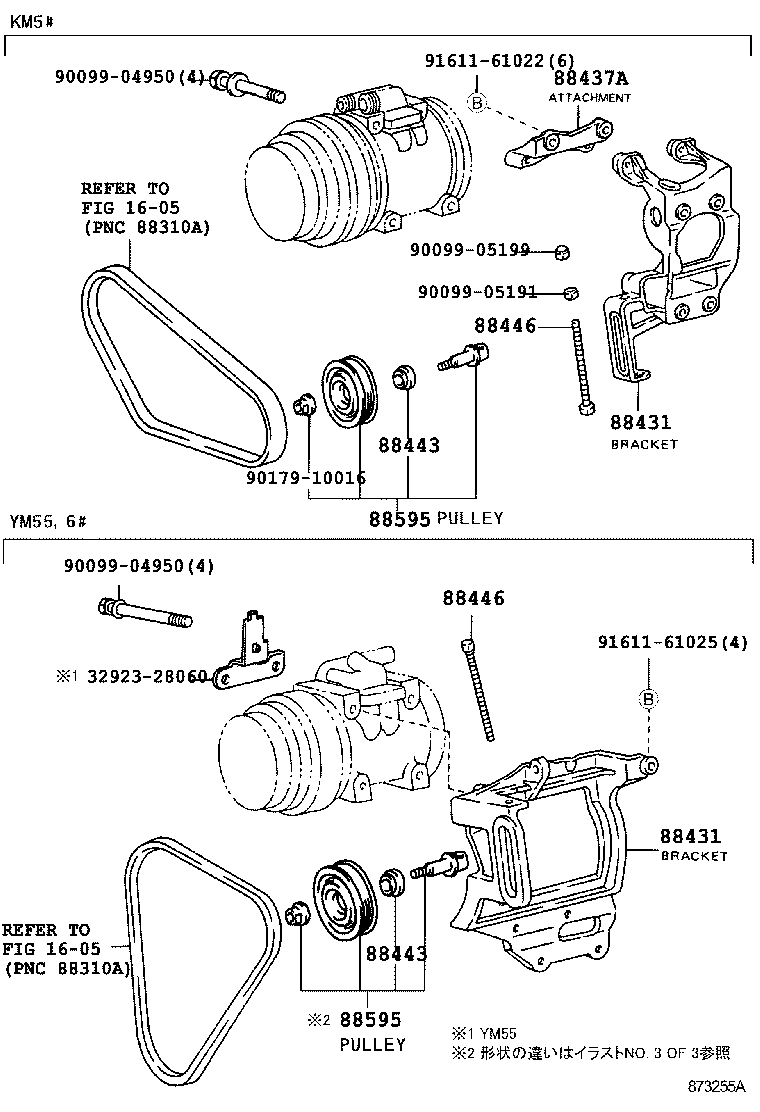

Click highlighted areas on diagram

diagram 1605 1605 3292328060 88431 88431 88437A 88446 88446 88595 88595 9009904950 9009904950 9009905191 9009905199 9161161022 9165161025
Part # Description Qty Price
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-28070

YM55,6#

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-28070

YM55,6#

 1
88446 - BOLT, IDLE PULLEY
90099-04306

CM5#,6#,YM55,6#

 1
90099-04306

CM65..TS;CM5#,60,61,YM55,6#

 1
90099-04306

CM5#,6#,YM55,6#

 1
88446 - BOLT, IDLE PULLEY
90099-04306

CM5#,6#,YM55,6#

 1
90099-04306

CM65..TS;CM5#,60,61,YM55,6#

 1
90099-04306

CM5#,6#,YM55,6#

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-35010

CM5#,60,61,KM51,YM55,6#

TYPE A:ｲﾗｽﾄ参照

 1
88440-35020

CM52,6#,YM55,6#

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ,TYPE B:ｲﾗｽﾄ参照

 1
88440-35010

CM65..IV;CM5#,60,61,KM51,YM55,6#

TYPE A:ｲﾗｽﾄ参照

 1
88440-35020

CM52,6#,YM55,6#

 1
88440-35020

CM65..TS;CM52,60,61,YM55,6#

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ,TYPE B:ｲﾗｽﾄ参照

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-35010

CM5#,60,61,KM51,YM55,6#

TYPE A:ｲﾗｽﾄ参照

 1
88440-35020

CM52,6#,YM55,6#

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ,TYPE B:ｲﾗｽﾄ参照

 1
88440-35010

CM65..IV;CM5#,60,61,KM51,YM55,6#

TYPE A:ｲﾗｽﾄ参照

 1
88440-35020

CM52,6#,YM55,6#

 1
88440-35020

CM65..TS;CM52,60,61,YM55,6#

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ,TYPE B:ｲﾗｽﾄ参照

 1
Common parts
32923-28060
90099-04950
90099-05191
90099-05199
91611-61022
91651-61025
Linked diagrams
1605

ILLUST NO. 2 OF 3(8610-9310)CM5#,6#

Click highlighted areas on diagram

diagram 1605 1605 88431 88431 88431 88444 88446 88446 88469C 88595 88595 8889920090 8889920090 9009904305 9009904341 9009904341 9009904406 9010508100 9010508100 9010508101 9010508101 9011908713 9161160835 9161160850
Part # Description Qty Price
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-28070

YM55,6#

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-28070

YM55,6#

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-28070

YM55,6#

 1
88444 - BRACKET, IDLE PULLEY
88444-20200

CM5#,6#

 1
88444-27011

CM65..TS;CM52,60,61

 1
88444-27011

CM52,6#

 1
88444-27010

CM6#

 1
88444-27011

CM52,6#

 1
88446 - BOLT, IDLE PULLEY
90099-04306

CM5#,6#,YM55,6#

 1
90099-04306

CM65..TS;CM5#,60,61,YM55,6#

 1
90099-04306

CM5#,6#,YM55,6#

 1
88446 - BOLT, IDLE PULLEY
90099-04306

CM5#,6#,YM55,6#

 1
90099-04306

CM65..TS;CM5#,60,61,YM55,6#

 1
90099-04306

CM5#,6#,YM55,6#

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-35010

CM5#,60,61,KM51,YM55,6#

TYPE A:ｲﾗｽﾄ参照

 1
88440-35020

CM52,6#,YM55,6#

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ,TYPE B:ｲﾗｽﾄ参照

 1
88440-35010

CM65..IV;CM5#,60,61,KM51,YM55,6#

TYPE A:ｲﾗｽﾄ参照

 1
88440-35020

CM52,6#,YM55,6#

 1
88440-35020

CM65..TS;CM52,60,61,YM55,6#

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ,TYPE B:ｲﾗｽﾄ参照

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-35010

CM5#,60,61,KM51,YM55,6#

TYPE A:ｲﾗｽﾄ参照

 1
88440-35020

CM52,6#,YM55,6#

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ,TYPE B:ｲﾗｽﾄ参照

 1
88440-35010

CM65..IV;CM5#,60,61,KM51,YM55,6#

TYPE A:ｲﾗｽﾄ参照

 1
88440-35020

CM52,6#,YM55,6#

 1
88440-35020

CM65..TS;CM52,60,61,YM55,6#

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ,TYPE B:ｲﾗｽﾄ参照

 1
Common parts
88899-20090
90099-04305
90099-04341
90099-04406
90105-08100
90105-08101
90119-08713
91611-60835
91611-60850
Linked diagrams
1605

ILLUST NO. 2 OF 3(9611- )KM51,YM55,6#

Click highlighted areas on diagram

diagram 1605 1605 3292328060 88431 88431 88437A 88443 88443 88446 88446 88595 88595 9009904950 9009904950 9009905191 9009905199 9017910016 9161161022 9161161025
Part # Description Qty Price
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-28070

YM55,6#

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-28070

YM55,6#

 1
88443 - COLLAR, IDLE PULLEY
88443-36010

CM5#,6#,KM51,YM6#

 1
88443 - COLLAR, IDLE PULLEY
88443-36010

CM5#,6#,KM51,YM6#

 1
88446 - BOLT, IDLE PULLEY
90099-04306

CM5#,6#,YM55,6#

 1
90099-04306

CM65..TS;CM5#,60,61,YM55,6#

 1
90099-04306

CM5#,6#,YM55,6#

 1
88446 - BOLT, IDLE PULLEY
90099-04306

CM5#,6#,YM55,6#

 1
90099-04306

CM65..TS;CM5#,60,61,YM55,6#

 1
90099-04306

CM5#,6#,YM55,6#

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-35010

CM5#,60,61,KM51,YM55,6#

TYPE A:ｲﾗｽﾄ参照

 1
88440-35020

CM52,6#,YM55,6#

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ,TYPE B:ｲﾗｽﾄ参照

 1
88440-35010

CM65..IV;CM5#,60,61,KM51,YM55,6#

TYPE A:ｲﾗｽﾄ参照

 1
88440-35020

CM52,6#,YM55,6#

 1
88440-35020

CM65..TS;CM52,60,61,YM55,6#

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ,TYPE B:ｲﾗｽﾄ参照

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-35010

CM5#,60,61,KM51,YM55,6#

TYPE A:ｲﾗｽﾄ参照

 1
88440-35020

CM52,6#,YM55,6#

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ,TYPE B:ｲﾗｽﾄ参照

 1
88440-35010

CM65..IV;CM5#,60,61,KM51,YM55,6#

TYPE A:ｲﾗｽﾄ参照

 1
88440-35020

CM52,6#,YM55,6#

 1
88440-35020

CM65..TS;CM52,60,61,YM55,6#

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ,TYPE B:ｲﾗｽﾄ参照

 1
Common parts
32923-28060
90099-04950
90099-05191
90099-05199
90179-10016
91611-61022
91611-61025
Linked diagrams
1605

ILLUST NO. 2 OF 3(9611- )CM5#,6#

Click highlighted areas on diagram

diagram 1605 1605 88431 88431 88431 88443 88444 88446 88446 88469C 88595 88595 8889920090 9009904305 9009904305 9009904406 9009904925 9010508101 9010508101 9010508101 9010508101 9011908713 9017910016 9161160835 9161160850
Part # Description Qty Price
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-28070

YM55,6#

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-28070

YM55,6#

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-28070

YM55,6#

 1
88443 - COLLAR, IDLE PULLEY
88443-36010

CM5#,6#,KM51,YM6#

 1
88444 - BRACKET, IDLE PULLEY
88444-20200

CM5#,6#

 1
88444-27011

CM65..TS;CM52,60,61

 1
88444-27011

CM52,6#

 1
88444-27010

CM6#

 1
88444-27011

CM52,6#

 1
88446 - BOLT, IDLE PULLEY
90099-04306

CM5#,6#,YM55,6#

 1
90099-04306

CM65..TS;CM5#,60,61,YM55,6#

 1
90099-04306

CM5#,6#,YM55,6#

 1
88446 - BOLT, IDLE PULLEY
90099-04306

CM5#,6#,YM55,6#

 1
90099-04306

CM65..TS;CM5#,60,61,YM55,6#

 1
90099-04306

CM5#,6#,YM55,6#

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-35010

CM5#,60,61,KM51,YM55,6#

TYPE A:ｲﾗｽﾄ参照

 1
88440-35020

CM52,6#,YM55,6#

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ,TYPE B:ｲﾗｽﾄ参照

 1
88440-35010

CM65..IV;CM5#,60,61,KM51,YM55,6#

TYPE A:ｲﾗｽﾄ参照

 1
88440-35020

CM52,6#,YM55,6#

 1
88440-35020

CM65..TS;CM52,60,61,YM55,6#

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ,TYPE B:ｲﾗｽﾄ参照

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-35010

CM5#,60,61,KM51,YM55,6#

TYPE A:ｲﾗｽﾄ参照

 1
88440-35020

CM52,6#,YM55,6#

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ,TYPE B:ｲﾗｽﾄ参照

 1
88440-35010

CM65..IV;CM5#,60,61,KM51,YM55,6#

TYPE A:ｲﾗｽﾄ参照

 1
88440-35020

CM52,6#,YM55,6#

 1
88440-35020

CM65..TS;CM52,60,61,YM55,6#

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ,TYPE B:ｲﾗｽﾄ参照

 1
Common parts
88899-20090
90099-04305
90099-04406
90099-04925
90105-08101
90119-08713
90179-10016
91611-60835
91611-60850
Linked diagrams
1605

ILLUST NO. 2 OF 3(9310-9611)CM5#,6#

Click highlighted areas on diagram

diagram 1605 1605 88431 88431 88431 88444 88446 88446 88469C 88595 88595 8889920090 9009904305 9009904305 9009904406 9009904925 9010508101 9010508101 9010508101 9010508101 9011908713 9161160835 9161160850
Part # Description Qty Price
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-28070

YM55,6#

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-28070

YM55,6#

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-28070

YM55,6#

 1
88444 - BRACKET, IDLE PULLEY
88444-20200

CM5#,6#

 1
88444-27011

CM65..TS;CM52,60,61

 1
88444-27011

CM52,6#

 1
88444-27010

CM6#

 1
88444-27011

CM52,6#

 1
88446 - BOLT, IDLE PULLEY
90099-04306

CM5#,6#,YM55,6#

 1
90099-04306

CM65..TS;CM5#,60,61,YM55,6#

 1
90099-04306

CM5#,6#,YM55,6#

 1
88446 - BOLT, IDLE PULLEY
90099-04306

CM5#,6#,YM55,6#

 1
90099-04306

CM65..TS;CM5#,60,61,YM55,6#

 1
90099-04306

CM5#,6#,YM55,6#

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-35010

CM5#,60,61,KM51,YM55,6#

TYPE A:ｲﾗｽﾄ参照

 1
88440-35020

CM52,6#,YM55,6#

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ,TYPE B:ｲﾗｽﾄ参照

 1
88440-35010

CM65..IV;CM5#,60,61,KM51,YM55,6#

TYPE A:ｲﾗｽﾄ参照

 1
88440-35020

CM52,6#,YM55,6#

 1
88440-35020

CM65..TS;CM52,60,61,YM55,6#

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ,TYPE B:ｲﾗｽﾄ参照

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-35010

CM5#,60,61,KM51,YM55,6#

TYPE A:ｲﾗｽﾄ参照

 1
88440-35020

CM52,6#,YM55,6#

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ,TYPE B:ｲﾗｽﾄ参照

 1
88440-35010

CM65..IV;CM5#,60,61,KM51,YM55,6#

TYPE A:ｲﾗｽﾄ参照

 1
88440-35020

CM52,6#,YM55,6#

 1
88440-35020

CM65..TS;CM52,60,61,YM55,6#

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ,TYPE B:ｲﾗｽﾄ参照

 1
Common parts
88899-20090
90099-04305
90099-04406
90099-04925
90105-08101
90119-08713
91611-60835
91611-60850
Linked diagrams
1605

ILLUST NO. 1 OF 3(8610- )

Click highlighted areas on diagram

diagram 88301 88301 88302 88302 88320 88320 88330 88330 88330A 88330A 88330B 88330B 88330C 88330C 88403 88403 9009800501 9009907087 9009907087 9009907114 9009907114 9009935012 9411040800 9411040800 9451100800 9541100800
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-20070

CM5#,6#

 1
88412-27050

CM65..TS;CM5#,60,61

 1
88412-27050

CM5#,6#

 1
88412-22030

KM5#,YM55,6#

 1
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-20070

CM5#,6#

 1
88412-27050

CM65..TS;CM5#,60,61

 1
88412-27050

CM5#,6#

 1
88412-22030

KM5#,YM55,6#

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-14050

CM5#,6#

 1
88411-60040

KM5#,YM55,6#

 1
88411-12160

CM5#,6#,KM51,YM6#

 1
88411-14050

CM5#,6#,KM5#,YM55,60

 1
88411-12160

CM65..TS;CM52,60,61

 2
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-14050

CM5#,6#

 1
88411-60040

KM5#,YM55,6#

 1
88411-12160

CM5#,6#,KM51,YM6#

 1
88411-14050

CM5#,6#,KM5#,YM55,60

 1
88411-12160

CM65..TS;CM52,60,61

 2
88320 - COMPRESSOR ASSY, COOLER
88320-27060

YM55,6#

 1
88320-27081

CM60,65

 1
88320-27080

CM6#

 1
88320-27170

YM55,6#

 1
88320-27190

CM65..TS;CM52,60,61

 1
88320-27190

CM52,6#

 1
88320 - COMPRESSOR ASSY, COOLER
88320-27060

YM55,6#

 1
88320-27081

CM60,65

 1
88320-27080

CM6#

 1
88320-27170

YM55,6#

 1
88320-27190

CM65..TS;CM52,60,61

 1
88320-27190

CM52,6#

 1
88330 - CLUTCH ASSY, MAGNET
88410-22080

KM5#,YM55,60

 1
88410-27030

CM5#,6#

 1
88410-14120

CM5#,6#

 1
88410-36390

KM51,YM55,6#

 1
88410-60140

KM5#,YM55,6#

 1
88410-27050

CM5#,6#

 1
88330 - CLUTCH ASSY, MAGNET
88410-22080

KM5#,YM55,60

 1
88410-27030

CM5#,6#

 1
88410-14120

CM5#,6#

 1
88410-36390

KM51,YM55,6#

 1
88410-60140

KM5#,YM55,6#

 1
88410-27050

CM5#,6#

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-12050

CM5#,6#,KM5#,YM55,60..4H,4HC,5F,5H

 1
88335-12050

CM52,61,KM51,YM55,6#

 1
88335-12050

CM5#,6#,KM5#,YM55,60

 1
88335-12050

KM51,YM55,6#..MTM

 1
88335-12050

CM65..CBU;CM52,60,61,KM51,YM55,6#

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-12050

CM5#,6#,KM5#,YM55,60..4H,4HC,5F,5H

 1
88335-12050

CM52,61,KM51,YM55,6#

 1
88335-12050

CM5#,6#,KM5#,YM55,60

 1
88335-12050

KM51,YM55,6#..MTM

 1
88335-12050

CM65..CBU;CM52,60,61,KM51,YM55,6#

 1
88330B - BEARING, MAGNET CLUTCH
90099-10133

CM5#,6#,KM5#,YM55,60..4H,4HC,5F,5H

 1
90099-10162

KM5#,YM55,60

 1
90099-10133

CM5#,6#,KM5#,YM55,60

 1
90099-10133

KM51,YM55,6#

 1
90099-10133

CM5#,6#

 1
88330B - BEARING, MAGNET CLUTCH
90099-10133

CM5#,6#,KM5#,YM55,60..4H,4HC,5F,5H

 1
90099-10162

KM5#,YM55,60

 1
90099-10133

CM5#,6#,KM5#,YM55,60

 1
90099-10133

KM51,YM55,6#

 1
90099-10133

CM5#,6#

 1
88330C - RING, SNAP (FOR MAGNET CLUTCH)
90099-07118

CM5#,6#

 1
90099-07094

KM5#,YM55,6#

 1
88330C - RING, SNAP (FOR MAGNET CLUTCH)
90099-07118

CM5#,6#

 1
90099-07094

KM5#,YM55,6#

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-12030

CM5#,6#,KM5#,YM55,60

 1
88403-12030

CM65..TS;CM5#,60,61

 1
88403-12030

KM51,YM55,6#

 1
88403-12030

CM5#,6#,KM51,YM6#

 1
88403-14030

CM5#,6#,KM5#,YM55,60

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-12030

CM5#,6#,KM5#,YM55,60

 1
88403-12030

CM65..TS;CM5#,60,61

 1
88403-12030

KM51,YM55,6#

 1
88403-12030

CM5#,6#,KM51,YM6#

 1
88403-14030

CM5#,6#,KM5#,YM55,60

 1
Common parts
90098-00501
90099-07087
90099-07114
90099-35012
94110-40800
94511-00800
95411-00800

ILLUST NO. 3 OF 3(9310- )CM5#,6#,YM55,6#

Click highlighted areas on diagram

diagram
Part # Description Qty Price
