CM60-TFQDS (1986)

Toyota Lite/Townace Truck

Production Oct 1986 - Jun 1999
Engine 2C
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

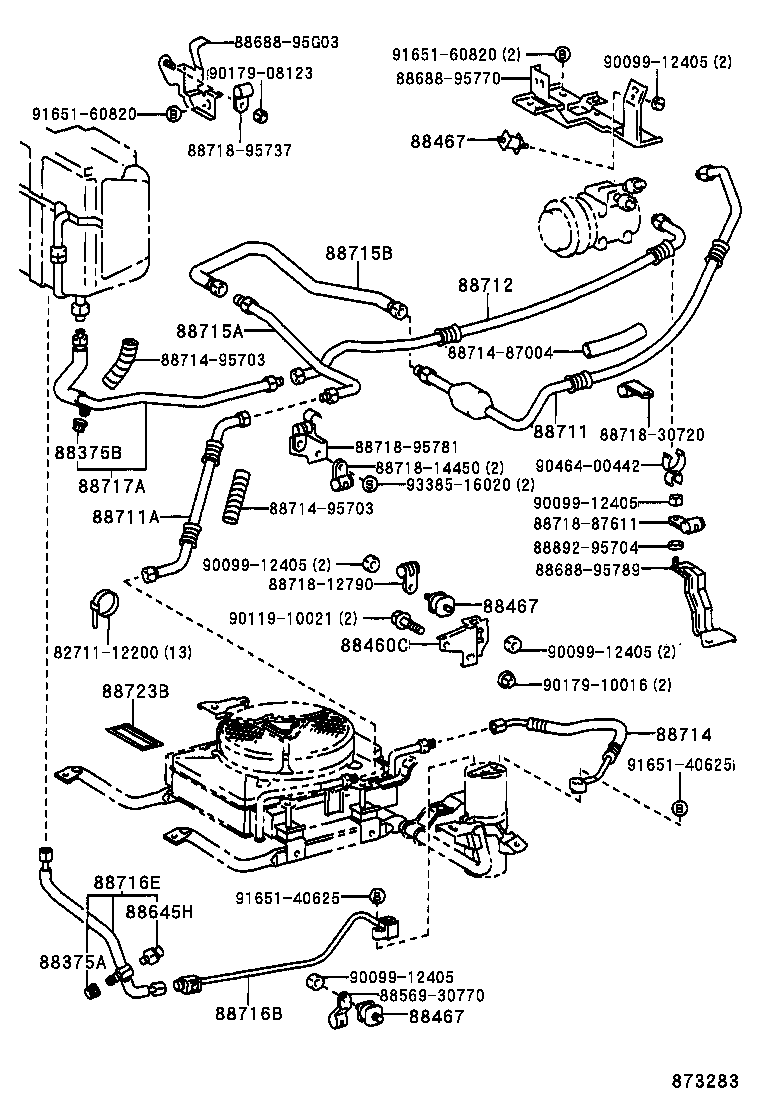

ILLUST NO. 2 OF 2(9310- )CM6#

Click highlighted areas on diagram

diagram 8271112200 88375A 88375B 88460C 88467 88467 88467 8856930770 88645H 8868895770 8868895789 8868895G03 88711 88711A 88712 88714 8871487004 8871495703 8871495703 88715A 88715B 88716B 88716E 88717A 8871812790 8871814450 8871830720 8871887611 8871895737 8871895781 88723B 8889295704 9009912405 9009912405 9009912405 9009912405 9009912405 9011910021 9017908123 9017910016 9046400442 9165140625 9165140625 9165160820 9165160820 9338516020
Part # Description Qty Price
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280

CM65..TS;CM5#,60,61,KM51,YM55,6#

 1
88375-30280

CM5#,6#,KM51,YM55,6#

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

CM65..TS;CM5#,60,61,KM51,YM55,6#

 1
88375-30290

CM5#,6#,KM51,YM55,6#

 1
88460C - BRACKET, COOLER CONDENSER, NO.2
88688-95788

CM5#,6#,KM5#,YM55,6#

 1
88688-95788

CM5#,6#,KM51,YM55,6#

 1
88688-95788

CM65..TS;CM5#,60,61,KM51,YM55,6#

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-14040

CM5#,6#,KM5#,YM55

 3
88467-14040

CM52,6#

 6
88467-14040

CM65..TS;CM52,60,61

 4
88467-14040

CM52,6#

 4
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-14040

CM5#,6#,KM5#,YM55

 3
88467-14040

CM52,6#

 6
88467-14040

CM65..TS;CM52,60,61

 4
88467-14040

CM52,6#

 4
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-14040

CM5#,6#,KM5#,YM55

 3
88467-14040

CM52,6#

 6
88467-14040

CM65..TS;CM52,60,61

 4
88467-14040

CM52,6#

 4
88645H - SWITCH, PRESSURE NO.1
88645-34010

CM65..TS;CM5#,60,61,KM51,YM55,6#

 1
88645-34010

CM5#,6#,KM51,YM55,6#

 1
88645-90D01

CM6#,YM60

 1
88645-10020

CM6#,YM60

 1
88645-10020

KM51..ATM;CM60,65,YM6#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-95728

CM52,6#

 1
88711-95735

CM6#

 1
88711-27050

CM65..TS;CM52,60,61

 1
88711-27050

CM52,6#

 1
88711A - HOSE, COOLER REFRIGERANT DISCHARGE, NO.2
88711-95742

CM6#,YM6#

 1
88711-27070

CM65..TS;CM60,61,YM6#

 1
88711-27070

CM6#,YM6#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-27080

CM65..TS;CM52,60,61

 1
88712-27080

CM52,6#

 1
88712-95735

CM52,6#

 1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88721-95714

CM52,6#,YM6#

 1
88721-27050

CM65..TS;CM52,60,61,YM6#

 1
88721-27050

CM52,6#,YM6#

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-95705

CM60,65,YM6#

 1
88715-27060

CM65..TS;CM60,YM6#

 1
88715-95703

CM6#

ｱﾘ(ｸ-ﾗ)

 1
88715-27060

CM60,65,YM6#

 1
88715B - PIPE, COOLER REFRIGERANT DISCHARGE, B
88715-95703

CM6#

 1
88715-27050

CM60;CM65..TS

 1
88715-27050

CM60;CM65..TS..CBU

 1
88715-95707

CM6#

 1
88715-27050

CM60;CM65..CBU

 1
88715-95710

CM60,65

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-27110

CM65..TS;CM52,60,61,YM6#

 1
88716-27110

CM52,6#,YM6#

 1
88716-95761

CM60,65,YM6#

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-95762

CM6#,YM60

 1
88716-27090

CM52,6#,YM6#

 1
88716-27090

CM65..TS;CM52,60,61,YM6#

 1
88716-95762

KM51..ATM;CM52,6#,YM6#

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-95748

CM5#,6#

 1
88717-27030

CM65..TS;CM5#,60,61

 1
88717-27030

CM5#,6#

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20010

KM51..ATM;CM52,6#,YM6#

 1
88723-20030

CM65..TS;CM5#,60,61,KM51,YM55,6#

 1
88723-20030

CM5#,6#,KM51,YM55,6#

 1
Common parts
82711-12200
88569-30770
88688-95770
88688-95789
88688-95G03
88714-87004
88714-95703
88718-12790
88718-14450
88718-30720
88718-87611
88718-95737
88718-95781
88892-95704
90099-12405
90119-10021
90179-08123
90179-10016
90464-00442
91651-40625
91651-60820
93385-16020

ILLUST NO. 1 OF 2(8610-9310)CM52,6#,YM6#

Click highlighted areas on diagram

diagram 88453 88460 88463 88470 88472 88479 88550 88635A 8871814450 88891A 88891B 88891C 88891D 88891E 88891F 8889295705 8889795703 9009120612 9017906032 9017908123 9046400165 9165160820 9165160820 9165160820 9338516012 9338516020
Part # Description Qty Price
88453 - FAN, COOLING (FOR CONDENSER)
88453-28010

CM52,6#,YM6#

 1
88460 - CONDENSER ASSY, COOLER
88460-95722

CM52,6#,YM6#

 1
88460-27040

CM65..TS;CM52,60,61,YM6#

 1
88460-27040

CM52,6#,YM6#

 1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-95700

CM6#,YM6#

 1
88463-95700

CM52,6#,YM6#

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-95700

CM6#,YM60

 1
88471-95700

KM51..ATM;CM60,65,YM6#

 1
88471-20050

CM5#,6#,KM51,YM55,6#

 1
88471-20050

CM65..TS;CM5#,60,61,KM51,YM55,6#

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-27050

CM65..TS;CM52,60,61,YM6#

 1
88472-95709

CM60,65,YM6#

 1
88472-27050

CM52,6#,YM6#

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

CM6#,YM60

400G

 1
90986-02001

CM5#,6#,KM5#,YM55,60

400G

 2
90986-02007

CM65..TS;CM5#,60,61,KM51,YM55,6#

250G

 1
90986-02004

CM60,65;KM51..ATM

250G

 1
90986-02004

YM60;CM6#,KM51..3FC,3HC,5H

250G

 3
90986-02001

YM60;CM6#,KM51..3FC,3HC,5H

400G

 1
90986-02008

CM5#,6#,KM51,YM55,6#

200G

 2
90986-02007

CM5#,6#,KM51,YM55,6#

250G

 1
90986-02008

CM65..TS;CM5#,60,61,KM51,YM55,6#

200G

 2
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-87002

CM52,6#,YM6#

 1
88635A - RESISTOR, BLOWER (FOR COOLER CONDENSER MOTOR)
88635-95704

CM52,6#,YM6#

 1
88891A - PACKING A (FOR COOLER)
53735-95701

CM52,6#,YM6#

 1
53735-95701

CM65..TS;CM52,60,61,YM6#

 1
53735-95701

CM52,6#,YM6#

 1
88891B - PACKING B (FOR COOLER)
88578-95713

CM52,6#,YM6#

 1
88578-95713

CM65..TS;CM52,60,61,YM6#

 1
88578-95713

CM52,6#,YM6#

 1
88891C - PACKING C (FOR COOLER)
88578-95714

CM65..TS;CM52,60,61,YM6#

 1
88578-95714

CM52,6#,YM6#

 1
88578-95714

CM52,6#,YM6#

 1
88891D - PACKING D (FOR COOLER)
53733-95700

CM65..TS;CM52,60,61,YM6#

 1
53733-95700

CM52,6#,YM6#

 1
53733-95700

CM52,6#,YM6#

 1
88891E - PACKING E (FOR COOLER)
53737-95702

CM52,6#,YM6#

 1
53737-95702

CM52,6#,YM6#

 1
53737-95702

CM65..TS;CM52,60,61,YM6#

 1
88891F - PACKING F (FOR COOLER)
53734-95700

CM65..TS;CM52,60,61,YM6#

 1
53734-95700

CM52,6#,YM6#

 1
53734-95700

CM52,6#,YM6#

 1
Common parts
88718-14450
88892-95705
88897-95703
90091-20612
90179-06032
90179-08123
90464-00165
91651-60820
93385-16012
93385-16020

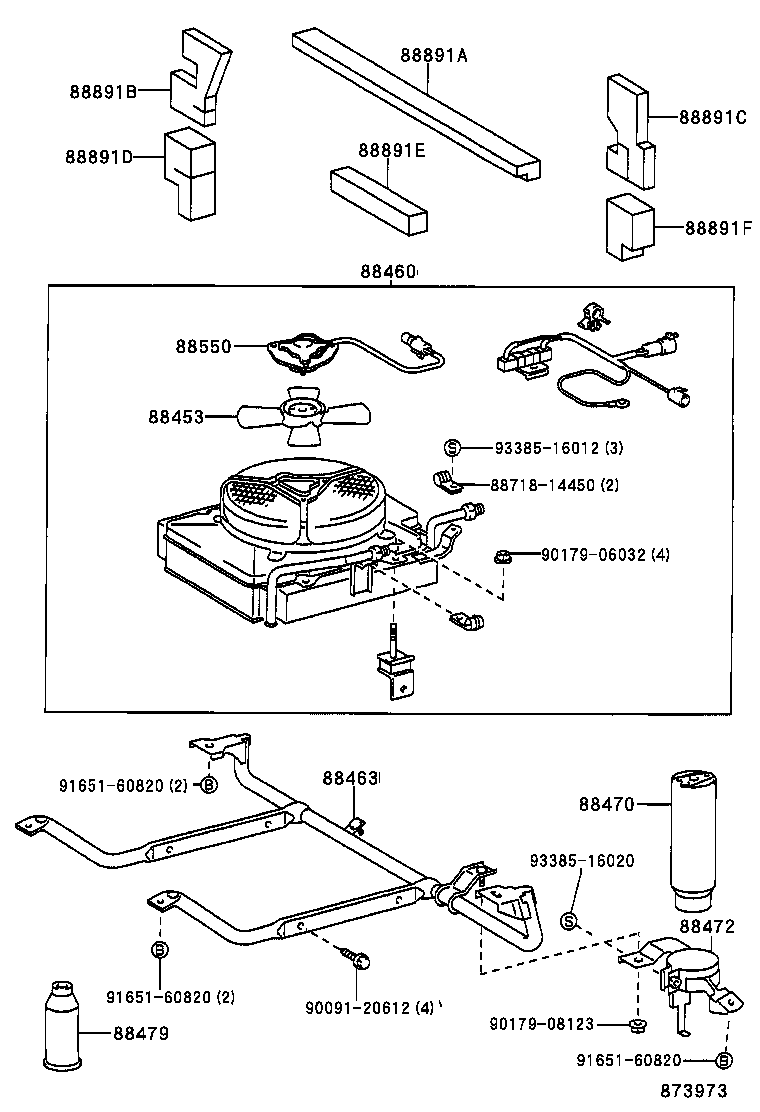

ILLUST NO. 1 OF 2(9310- )CM6#,YM6#

Click highlighted areas on diagram

diagram 88453 88460 88463 88470 88472 88479 88550 8871814450 88891A 88891B 88891C 88891D 88891E 88891F 9009120612 9017906032 9017908123 9165160820 9165160820 9165160820 9338516012 9338516020
Part # Description Qty Price
88453 - FAN, COOLING (FOR CONDENSER)
88453-28010

CM52,6#,YM6#

 1
88460 - CONDENSER ASSY, COOLER
88460-95722

CM52,6#,YM6#

 1
88460-27040

CM65..TS;CM52,60,61,YM6#

 1
88460-27040

CM52,6#,YM6#

 1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-95700

CM6#,YM6#

 1
88463-95700

CM52,6#,YM6#

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-95700

CM6#,YM60

 1
88471-95700

KM51..ATM;CM60,65,YM6#

 1
88471-20050

CM5#,6#,KM51,YM55,6#

 1
88471-20050

CM65..TS;CM5#,60,61,KM51,YM55,6#

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-27050

CM65..TS;CM52,60,61,YM6#

 1
88472-95709

CM60,65,YM6#

 1
88472-27050

CM52,6#,YM6#

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

CM6#,YM60

400G

 1
90986-02001

CM5#,6#,KM5#,YM55,60

400G

 2
90986-02007

CM65..TS;CM5#,60,61,KM51,YM55,6#

250G

 1
90986-02004

CM60,65;KM51..ATM

250G

 1
90986-02004

YM60;CM6#,KM51..3FC,3HC,5H

250G

 3
90986-02001

YM60;CM6#,KM51..3FC,3HC,5H

400G

 1
90986-02008

CM5#,6#,KM51,YM55,6#

200G

 2
90986-02007

CM5#,6#,KM51,YM55,6#

250G

 1
90986-02008

CM65..TS;CM5#,60,61,KM51,YM55,6#

200G

 2
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-87002

CM52,6#,YM6#

 1
88891A - PACKING A (FOR COOLER)
53735-95701

CM52,6#,YM6#

 1
53735-95701

CM65..TS;CM52,60,61,YM6#

 1
53735-95701

CM52,6#,YM6#

 1
88891B - PACKING B (FOR COOLER)
88578-95713

CM52,6#,YM6#

 1
88578-95713

CM65..TS;CM52,60,61,YM6#

 1
88578-95713

CM52,6#,YM6#

 1
88891C - PACKING C (FOR COOLER)
88578-95714

CM65..TS;CM52,60,61,YM6#

 1
88578-95714

CM52,6#,YM6#

 1
88578-95714

CM52,6#,YM6#

 1
88891D - PACKING D (FOR COOLER)
53733-95700

CM65..TS;CM52,60,61,YM6#

 1
53733-95700

CM52,6#,YM6#

 1
53733-95700

CM52,6#,YM6#

 1
88891E - PACKING E (FOR COOLER)
53737-95702

CM52,6#,YM6#

 1
53737-95702

CM52,6#,YM6#

 1
53737-95702

CM65..TS;CM52,60,61,YM6#

 1
88891F - PACKING F (FOR COOLER)
53734-95700

CM65..TS;CM52,60,61,YM6#

 1
53734-95700

CM52,6#,YM6#

 1
53734-95700

CM52,6#,YM6#

 1
Common parts
88718-14450
90091-20612
90179-06032
90179-08123
91651-60820
93385-16012
93385-16020

ILLUST NO. 2 OF 2(8610-9310)CM52,6#

Click highlighted areas on diagram

diagram 88344 88460C 88467 88467 88471A 88645H 8868895765 8868895770 8868895789 8868895G02 8868895G03 88710 88711 88711A 88712 88714 8871487004 8871487004 8871495703 8871495703 88715A 88715B 88716B 88716E 88717A 8871812790 8871814450 8871830720 8871887611 8871895737 8871895770 8871895781 88723B 8889295704 9009912405 9009912405 9009912405 9009912405 9009912405 9009912405 9011910021 9017908123 9017910016 9046400442 9165160820 9338516020 9338516020 9338518020 9338518020 9338518020
Part # Description Qty Price
88344 - GLASS SUB-ASSY, SIGHT
88481-87002

CM5#,6#,KM5#,YM55,6#

 1
88460C - BRACKET, COOLER CONDENSER, NO.2
88688-95788

CM5#,6#,KM5#,YM55,6#

 1
88688-95788

CM5#,6#,KM51,YM55,6#

 1
88688-95788

CM65..TS;CM5#,60,61,KM51,YM55,6#

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-14040

CM5#,6#,KM5#,YM55

 3
88467-14040

CM52,6#

 6
88467-14040

CM65..TS;CM52,60,61

 4
88467-14040

CM52,6#

 4
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-14040

CM5#,6#,KM5#,YM55

 3
88467-14040

CM52,6#

 6
88467-14040

CM65..TS;CM52,60,61

 4
88467-14040

CM52,6#

 4
88471A - TANK, RECEIVER
88471-95702

CM52,6#

 1
88645H - SWITCH, PRESSURE NO.1
88645-34010

CM65..TS;CM5#,60,61,KM51,YM55,6#

 1
88645-34010

CM5#,6#,KM51,YM55,6#

 1
88645-90D01

CM6#,YM60

 1
88645-10020

CM6#,YM60

 1
88645-10020

KM51..ATM;CM60,65,YM6#

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-95701

CM60,65,YM6#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-95728

CM52,6#

 1
88711-95735

CM6#

 1
88711-27050

CM65..TS;CM52,60,61

 1
88711-27050

CM52,6#

 1
88711A - HOSE, COOLER REFRIGERANT DISCHARGE, NO.2
88711-95742

CM6#,YM6#

 1
88711-27070

CM65..TS;CM60,61,YM6#

 1
88711-27070

CM6#,YM6#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-27080

CM65..TS;CM52,60,61

 1
88712-27080

CM52,6#

 1
88712-95735

CM52,6#

 1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88721-95714

CM52,6#,YM6#

 1
88721-27050

CM65..TS;CM52,60,61,YM6#

 1
88721-27050

CM52,6#,YM6#

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-95705

CM60,65,YM6#

 1
88715-27060

CM65..TS;CM60,YM6#

 1
88715-95703

CM6#

ｱﾘ(ｸ-ﾗ)

 1
88715-27060

CM60,65,YM6#

 1
88715B - PIPE, COOLER REFRIGERANT DISCHARGE, B
88715-95703

CM6#

 1
88715-27050

CM60;CM65..TS

 1
88715-27050

CM60;CM65..TS..CBU

 1
88715-95707

CM6#

 1
88715-27050

CM60;CM65..CBU

 1
88715-95710

CM60,65

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-27110

CM65..TS;CM52,60,61,YM6#

 1
88716-27110

CM52,6#,YM6#

 1
88716-95761

CM60,65,YM6#

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-95762

CM6#,YM60

 1
88716-27090

CM52,6#,YM6#

 1
88716-27090

CM65..TS;CM52,60,61,YM6#

 1
88716-95762

KM51..ATM;CM52,6#,YM6#

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-95748

CM5#,6#

 1
88717-27030

CM65..TS;CM5#,60,61

 1
88717-27030

CM5#,6#

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20010

KM51..ATM;CM52,6#,YM6#

 1
88723-20030

CM65..TS;CM5#,60,61,KM51,YM55,6#

 1
88723-20030

CM5#,6#,KM51,YM55,6#

 1
Common parts
88688-95765
88688-95770
88688-95789
88688-95G02
88688-95G03
88714-87004
88714-95703
88718-12790
88718-14450
88718-30720
88718-87611
88718-95737
88718-95770
88718-95781
88892-95704
90099-12405
90119-10021
90179-08123
90179-10016
90464-00442
91651-60820
93385-16020
93385-18020
