CM60-TFQDS (1986)

Toyota Lite/Townace Truck

Production Oct 1986 - Jun 1999
Engine 2C
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8610- )GUT

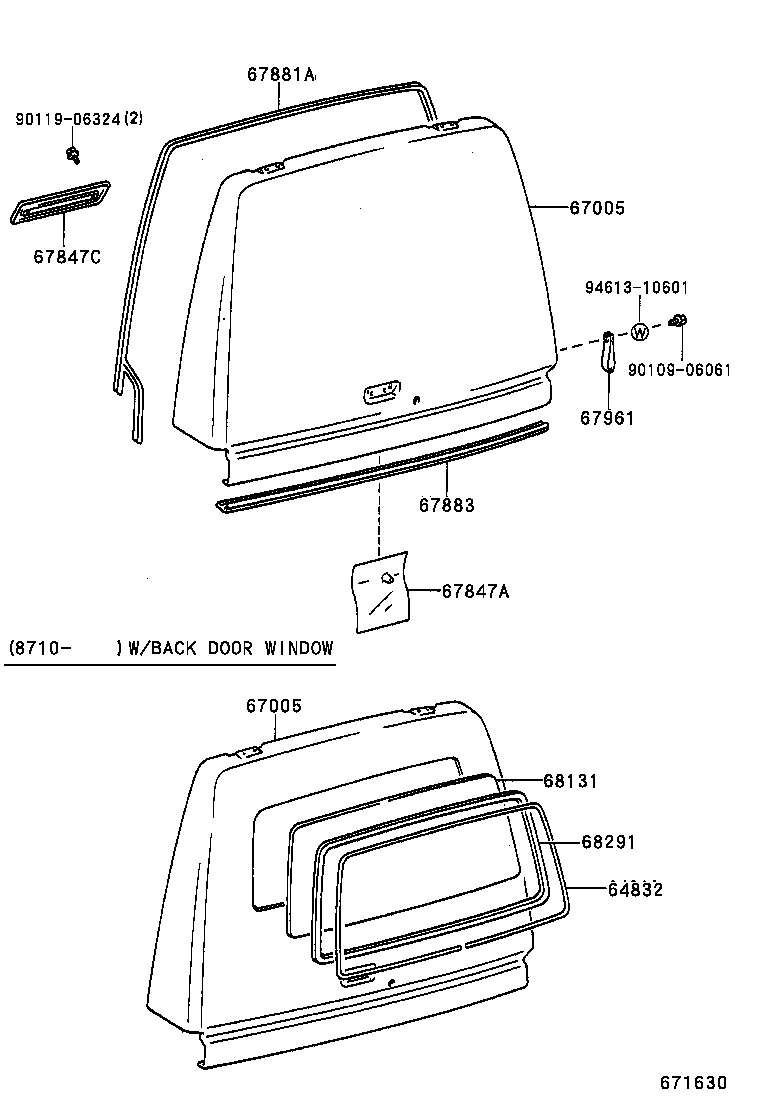

Click highlighted areas on diagram

diagram 64832 67005 67005 67847A 67847C 67881A 67883 67961 68131 68291 9010906061 9011906324 9461310601
Part # Description Qty Price
64832 - KEY, BACK WINDOW WEATHERSTRIP
64832-95701

CM60,KM5#,YM60..GUT

 1
67005 - PANEL SUB-ASSY, BACK DOOR
67005-95G27

CM60,KM5#,YM60..GUT

ｱﾘ(ﾊﾞﾂｸ ﾄﾞｱ ｳｲﾝﾄﾞｳ)

 1
67005-95G23

CM60,KM50,YM60..GUT

 1
67005-95G27

CM60,KM50,YM60..GUT

W/BACK DOOR WINDOW

 1
67005-95G26

CM60,KM5#,YM60..GUT

 1
67005 - PANEL SUB-ASSY, BACK DOOR
67005-95G27

CM60,KM5#,YM60..GUT

ｱﾘ(ﾊﾞﾂｸ ﾄﾞｱ ｳｲﾝﾄﾞｳ)

 1
67005-95G23

CM60,KM50,YM60..GUT

 1
67005-95G27

CM60,KM50,YM60..GUT

W/BACK DOOR WINDOW

 1
67005-95G26

CM60,KM5#,YM60..GUT

 1
67847A - COVER, BACK DOOR SERVICE HOLE
67831-95705

CM60,KM5#,YM60..GUT

 1
67847C - COVER, BACK DOOR SERVICE HOLE, NO.1
67847-95702

CM60,KM50,YM60..GUT

 1
67847-95703

CM60,KM50,YM60..GUT

 1
65759-95700

CM60,KM51,YM60..GUT

 1
67881A - WEATHERSTRIP, BACK DOOR
67881-95706

CM60,KM5#,YM60..GUT

 1
67883 - WEATHERSTRIP, BACK DOOR, CENTER
67884-95700

CM60,KM5#,YM60..GUT

 1
67961 - STRAP, BACK DOOR PULL
67961-95700

CM60,KM50,YM60..GUT

 1
67961-95701

CM60,KM5#,YM60..GUT

 1
68131 - GLASS, BACK DOOR
68131-95723

CM60,KM5#,YM60..GUT

*TEM

 1
68291 - WEATHERSTRIP, BACK DOOR GLASS
68291-95712

CM60,KM5#,YM60..GUT

 1
Common parts
90109-06061
90119-06324
94613-10601
