CM60-TFQDS (1986)
Toyota Lite/Townace Truck
Production
Oct 1986
-
Jun 1999
Engine
2C
Transmission
5H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8610- )KM5#..1SO ; (8610- )KM5#..GUT ; (8610- )CM60,YM60..T1

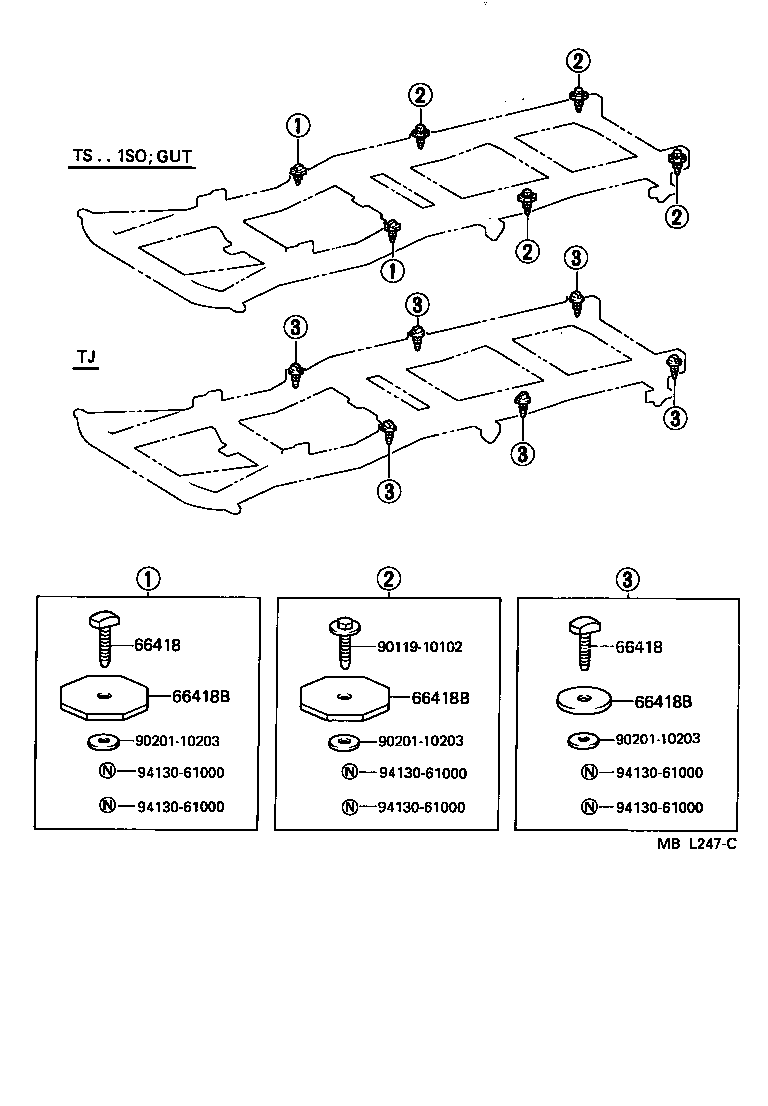

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 66418 - BOLT, MOUNTING | ||||
| 66418-95400 |
KM5#..1SO;KM50..GUT;CM60,YM60..T1 |
6 | ||
| 66418-95400 |
KM5#..GUT;KM5#..TS..1SO;CM60,YM60..T1 |
2 | ||
| 66418 - BOLT, MOUNTING | ||||
| 66418-95400 |
KM5#..1SO;KM50..GUT;CM60,YM60..T1 |
6 | ||
| 66418-95400 |
KM5#..GUT;KM5#..TS..1SO;CM60,YM60..T1 |
2 | ||
| 66418B - SHIM, MOUNTING | ||||
| 66441-95A01 |
CM50,51,52,60,61,KM5#,YM60..(GUT,TB,TS)..CBU |
6 | ||
| 66441-95A01 |
CM50,51,60,KM5#,YM60..GUT,TB,TS |
6 | ||
| 66441-27010 |
KM51..GUT;KM51..TS..1SO;CM60,YM60..T1 |
6 | ||
| 66418B - SHIM, MOUNTING | ||||
| 66441-95A01 |
CM50,51,52,60,61,KM5#,YM60..(GUT,TB,TS)..CBU |
6 | ||
| 66441-95A01 |
CM50,51,60,KM5#,YM60..GUT,TB,TS |
6 | ||
| 66441-27010 |
KM51..GUT;KM51..TS..1SO;CM60,YM60..T1 |
6 | ||
| 66418B - SHIM, MOUNTING | ||||
| 66441-95A01 |
CM50,51,52,60,61,KM5#,YM60..(GUT,TB,TS)..CBU |
6 | ||
| 66441-95A01 |
CM50,51,60,KM5#,YM60..GUT,TB,TS |
6 | ||
| 66441-27010 |
KM51..GUT;KM51..TS..1SO;CM60,YM60..T1 |
6 | ||
| Common parts | ||||
| 90119-10102 | ||||
| 90201-10203 | ||||
| 94130-61000 | ||||
