CM60-TFQDS (1986)

Toyota Lite/Townace Truck

Production Oct 1986 - Jun 1999
Engine 2C
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8610- )GUT

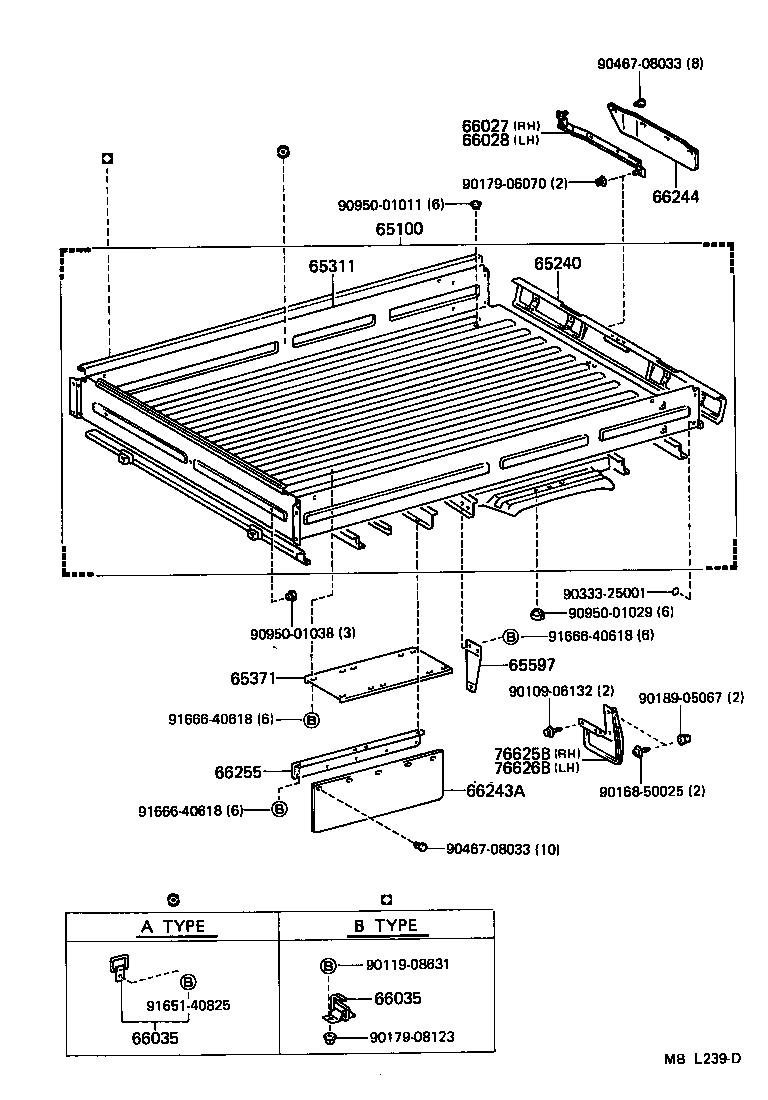

Click highlighted areas on diagram

diagram 65100 65240 65311 65371 65597 66027 66028 66035 66035 66243A 66244 66255 76625B 76626B 9010906132 9011908631 9016850025 9017906070 9017908123 9018905067 9033325001 9046708033 9046708033 9095001011 9095001029 9095001038 9165140825 9166640618 9166640618 9166640618
Part # Description Qty Price
65100 - FLOOR ASSY, REAR BODY
65100-95724

CM60,YM60..GUT

 1
65240 - CROSSMEMBER, REAR BODY FLOOR, TAIL
65240-95704

CM60,KM5#,YM60..GUT

 1
65311 - PANEL, FLOOR, CENTER
65311-95708

CM60,YM60..GUT

 1
65371 - INSULATOR, REAR FLOOR
65371-95700

YM55,60..SJL,T1

 1
65371-95700

YM55,60..(SJL,T1)..CBU

 1
65597 - BRACE, SIDE PANEL FRAME
65597-95701

KM5#..GUT;KM5#..TS..1SO;CM60,YM60..T1

 2
65597-95701

KM50..GUT;KM5#..TS..1SO;CM60,YM60..T1

 1
66027 - BRACKET SUB-ASSY, REAR BODY PROTECTOR, RH
66027-95700

KM5#..GUT;KM5#..TS..1SO;CM60,YM60..T1

 1
66028 - BRACKET SUB-ASSY, REAR BODY PROTECTOR, LH
66028-95700

KM5#..GUT;KM5#..TS..1SO;CM60,YM60..T1

 1
66035 - ROPE HOOK SET
66035-95701

CM60,KM5#,YM60..GUT

NO.2(TYPE A)

 4
66035 - ROPE HOOK SET
66035-95701

CM60,KM5#,YM60..GUT

NO.2(TYPE A)

 4
66243A - PROTECTOR, REAR BODY, NO.1
66243-95700

KM50..GUT;KM5#..TS..1SO;CM60,YM60..T1

 1
66243-95700

CM60,KM5#,YM60..T1

 2
66244 - PROTECTOR, REAR BODY, NO.2
66244-95700

KM5#..1SO;KM5#..GUT;CM60,YM60..T1

 2
66255 - BRACKET, REAR BODY PROTECTOR
66255-95700

KM50..GUT;KM5#..TS..1SO;CM60,YM60..T1

 1
66255-95700

CM60,KM5#,YM60..T1

 2
76625B - MUDGUARD, REAR BODY, RH
76625-95708

KM5#..1SO;KM50..GUT;CM60,YM60..T1

TOWN ACE

 1
76625-95707

KM5#..1SO;KM50..GUT;CM60,YM60..T1

LITE ACE

 1
76625-95708

KM5#..1SO;KM5#..GUT;CM60,YM60..T1

ﾀｳﾝｴ-ｽ

 1
76625-27010

KM51..1SO;KM51..GUT;CM60,YM60..T1

 1
76625-95707

KM5#..1SO;KM5#..GUT;CM60,YM60..T1

 1
76626B - MUDGUARD, REAR BODY, LH
76626-95708

KM5#..1SO;KM50..GUT;CM60,YM60..T1

TOWN ACE

 1
76626-95707

KM5#..1SO;KM5#..GUT;CM60,YM60..T1

 1
76626-27010

KM51..1SO;KM51..GUT;CM60,YM60..T1

 1
76626-95708

KM5#..1SO;KM5#..GUT;CM60,YM60..T1

ﾀｳﾝｴ-ｽ

 1
76626-95707

KM5#..1SO;KM50..GUT;CM60,YM60..T1

LITE ACE

 1
Common parts
90109-06132
90119-08631
90168-50025
90179-06070
90179-08123
90189-05067
90333-25001
90467-08033
90950-01011
90950-01029
90950-01038
91651-40825
91666-40618
