CM60-TFQDS (1986)
Toyota Lite/Townace Truck
ILLUST NO. 1 OF 3(8610- )YM55,60..MTM ; (8610- )CM5#,6#,KM51,YM65..5F,5H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-27150 |
YM55,60;CM50,55,6#,KM51..5F,5H |
1 | ||
| 31301-27151 |
YM55,60;CM5#,6#,KM51,YM65..5F,5H |
1 | ||
| 31301-27151 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..MTM |
1 | ||
| 31301-27151 |
CM5#,6#,KM51,YM55,6#..MTM |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90508-32002 |
YM55,60;CM5#,6#,KM51,YM65..5F,5H |
1 | ||
| 90508-32002 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..MTM |
1 | ||
| 90508-32002 |
CM5#,6#,KM51,YM55,6#..MTM |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 47131-10020 |
CM5#,6#,KM5#,YM55,6#..MTM |
1 | ||
| 47131-10020 |
CM5#,6#,KM51,YM55,6#..MTM |
1 | ||
| 47131-10020 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..MTM |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
CM5#,6#,KM5#,YM55,6#..MTM |
2 | ||
| 90386-13007 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..MTM |
2 | ||
| 90386-13007 |
CM5#,6#,KM51,YM55,6#..MTM |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
CM5#,6#,KM5#,YM55,6#..MTM |
2 | ||
| 90386-13007 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..MTM |
2 | ||
| 90386-13007 |
CM5#,6#,KM51,YM55,6#..MTM |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-08052 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..MTM |
1 | ||
| 90101-08052 |
CM5#,6#,KM51,YM55,6#..MTM |
1 | ||
| 90101-08052 |
CM5#,6#,KM5#,YM55,6#..MTM |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-14020 |
CM5#,6#,KM51,YM55,6#..MTM |
1 | ||
| 31321-14020 |
CM5#,6#,KM5#,YM55,6#..MTM |
1 | ||
| 31321-14020 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..MTM |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 91121-51060 |
CM5#,6#,KM5#,YM55,6#..MTM |
1 | ||
| 91121-51060 |
CM5#,6#,KM51,YM55,6#..MTM |
1 | ||
| 91121-51060 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..MTM |
1 | ||
| 91121-51060 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..MTM |
1 | ||
| 91112-61060 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..MTM |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10003 |
CM5#,6#,KM51,YM55,6#..MTM |
1 | ||
| 90387-10003 |
CM5#,6#,KM5#,YM55,6#..MTM |
1 | ||
| 90387-10003 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..MTM |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90240-08006 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..MTM 長さ=23.5 |
1 | ||
| 90240-08006 |
YM55,60;CM5#,6#,KM51,YM65..5F,5H 長さ=23.5 |
1 | ||
| 90240-08006 |
CM5#,6#,KM51,YM55,6#..MTM 長さ=23.5 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08002 |
YM55,60;CM5#,6#,KM51,YM65..5F,5H |
1 | ||
| 90386-08002 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..MTM |
1 | ||
| 90386-08002 |
CM5#,6#,KM51,YM55,6#..MTM |
1 | ||
| Common parts | ||||
| 90468-14004 | ||||
| 94130-60800 | ||||
| 94130-61000 | ||||
| 94531-01000 | ||||

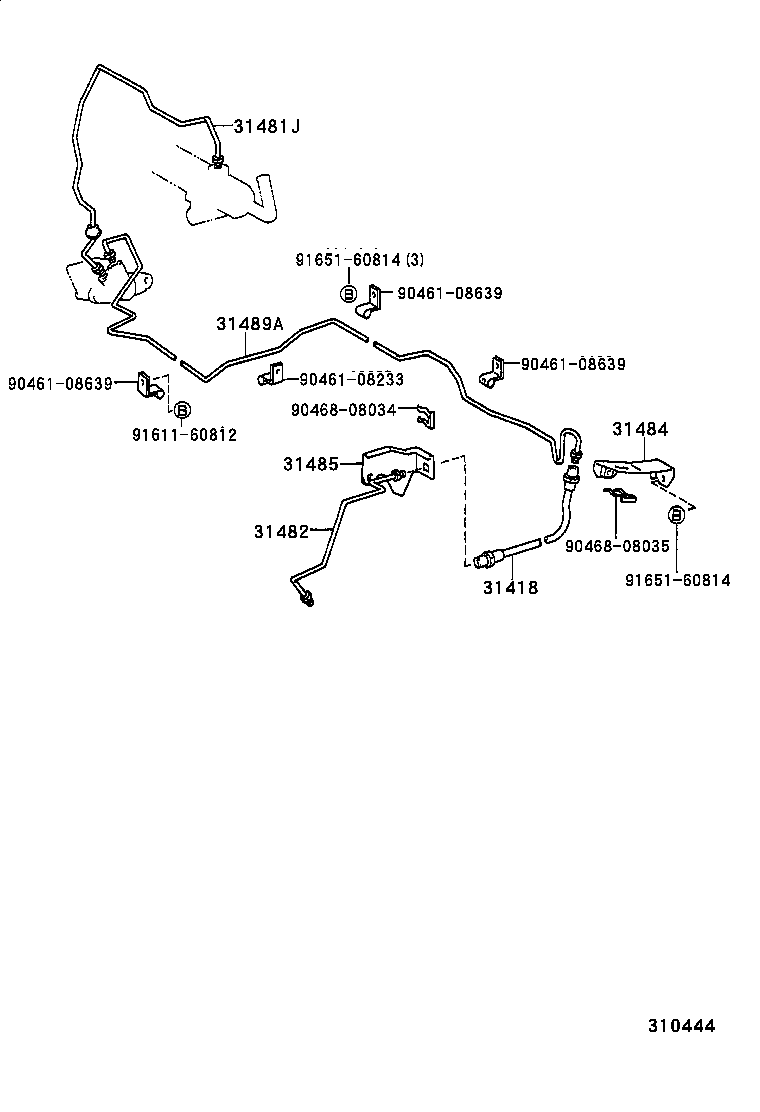

ILLUST NO. 2 OF 2(8610- )KM5#,YM55,6#..MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31418 - HOSE, CLUTCH | ||||
| 90931-01037 |
CM65..TS;YM60..SPX;CM5#,60,61..5H |
1 | ||
| 90931-01036 |
YM55,6#..MTM..DX |
1 | ||
| 90931-01037 |
YM60..SPX;CM5#,6#..5H |
1 | ||
| 90931-01037 |
YM60..SPX;CM5#,6#..5H |
1 | ||
| 31481B - WAY(FOR CLUTCH TUBE) | ||||
| 90412-12023 |
YM55,60..MTM;KM51,YM65..5F,5H |
1 | ||
| 31481J - TUBE, CLUTCH MASTER CYLINDER TO 2 WAY | ||||
| 31481-27090 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..MTM |
1 | ||
| 31481-27090 |
CM5#,6#,KM51,YM55,6#..MTM |
1 | ||
| 31481-27090 |
YM55,60;CM5#,6#,KM51,YM65..5F,5H |
1 | ||
| 31481-27090 |
YM60;CM50,55,6#,KM51..5F,5H |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-27120 |
CM5#,6#..5H |
1 | ||
| 31482-27120 |
CM5#,6#..5H |
1 | ||
| 31482-27110 |
YM55,6#..MTM..DX |
1 | ||
| 31482-27120 |
CM65..TS;CM5#,60,61..5H |
1 | ||
| 31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH) | ||||
| 31484-27060 |
YM55,60;CM5#,6#,KM51,YM65..5F,5H |
1 | ||
| 31484-27060 |
CM5#,6#,KM51,YM55,6#..MTM |
1 | ||
| 31484-27060 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..MTM |
1 | ||
| 31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH) | ||||
| 31484-27070 |
CM5#,6#..5H |
1 | ||
| 31484-27070 |
CM5#,6#..5H |
1 | ||
| 31484-27070 |
CM65..TS;CM5#,60,61..5H |
1 | ||
| 31489A - TUBE, 2 WAY TO FLEXIBLE HOSE | ||||
| 31489-27140 |
CM5#,6#..5H |
1 | ||
| 31489-27150 |
CM65..TS;CM5#,60,61..5H |
1 | ||
| 31489-27130 |
YM55,60..MTM;KM51,YM65..5F,5H |
1 | ||
| 31489-27150 |
CM5#,6#..5H |
1 | ||
| Common parts | ||||
| 90461-08233 | ||||
| 90461-08639 | ||||
| 90468-08034 | ||||
| 90468-08035 | ||||
| 91611-60812 | ||||
| 91651-60814 | ||||
ILLUST NO. 2 OF 3(8610- )CM5#,6#..5H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31418 - HOSE, CLUTCH | ||||
| 90931-01037 |
CM65..TS;YM60..SPX;CM5#,60,61..5H |
1 | ||
| 90931-01036 |
YM55,6#..MTM..DX |
1 | ||
| 90931-01037 |
YM60..SPX;CM5#,6#..5H |
1 | ||
| 90931-01037 |
YM60..SPX;CM5#,6#..5H |
1 | ||
| 31481J - TUBE, CLUTCH MASTER CYLINDER TO 2 WAY | ||||
| 31481-27090 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..MTM |
1 | ||
| 31481-27090 |
CM5#,6#,KM51,YM55,6#..MTM |
1 | ||
| 31481-27090 |
YM55,60;CM5#,6#,KM51,YM65..5F,5H |
1 | ||
| 31481-27090 |
YM60;CM50,55,6#,KM51..5F,5H |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-27120 |
CM5#,6#..5H |
1 | ||
| 31482-27120 |
CM5#,6#..5H |
1 | ||
| 31482-27110 |
YM55,6#..MTM..DX |
1 | ||
| 31482-27120 |
CM65..TS;CM5#,60,61..5H |
1 | ||
| 31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH) | ||||
| 31484-27060 |
YM55,60;CM5#,6#,KM51,YM65..5F,5H |
1 | ||
| 31484-27060 |
CM5#,6#,KM51,YM55,6#..MTM |
1 | ||
| 31484-27060 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..MTM |
1 | ||
| 31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH) | ||||
| 31484-27070 |
CM5#,6#..5H |
1 | ||
| 31484-27070 |
CM5#,6#..5H |
1 | ||
| 31484-27070 |
CM65..TS;CM5#,60,61..5H |
1 | ||
| 31489A - TUBE, 2 WAY TO FLEXIBLE HOSE | ||||
| 31489-27140 |
CM5#,6#..5H |
1 | ||
| 31489-27150 |
CM65..TS;CM5#,60,61..5H |
1 | ||
| 31489-27130 |
YM55,60..MTM;KM51,YM65..5F,5H |
1 | ||
| 31489-27150 |
CM5#,6#..5H |
1 | ||
| Common parts | ||||
| 90461-08233 | ||||
| 90461-08639 | ||||
| 90468-08034 | ||||
| 90468-08035 | ||||
| 91611-60812 | ||||
| 91651-60814 | ||||
ILLUST NO. 3 OF 3(8610- )CM5#,6#..5H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04319 - CUP KIT, CLUTCH ACCUMULATOR | ||||
| 04319-27020 |
CM5#,6#..5H |
1 | ||
| 04319-27020 |
CM5#,6#..5H |
1 | ||
| 04319-27020 |
CM65..TS;CM5#,60,61..5H |
1 | ||
| 04319-27010 |
CM5#,6#..5H |
1 | ||
| 31490 - ACCUMULATOR ASSY, CLUTCH | ||||
| 31490-27041 |
CM65..TS;CM5#,60,61..5H |
1 | ||
| 31490-27041 |
CM5#,6#..5H |
1 | ||
| 31490-27040 |
CM5#,6#..5H |
1 | ||
| 31490-27041 |
CM5#,6#..5H |
1 | ||
| 31493 - BRACKET, CLUTCH ACCUMULATOR | ||||
| 31493-27030 |
CM65..TS;CM5#,60,61..5H |
1 | ||
| 31493-27030 |
CM5#,6#..5H |
1 | ||
| 31493-27030 |
CM5#,6#..5H |
1 | ||
| Common parts | ||||
| 91611-60612 | ||||
| 91611-60816 | ||||
