CM60-TFQDS (1986)
Toyota Lite/Townace Truck

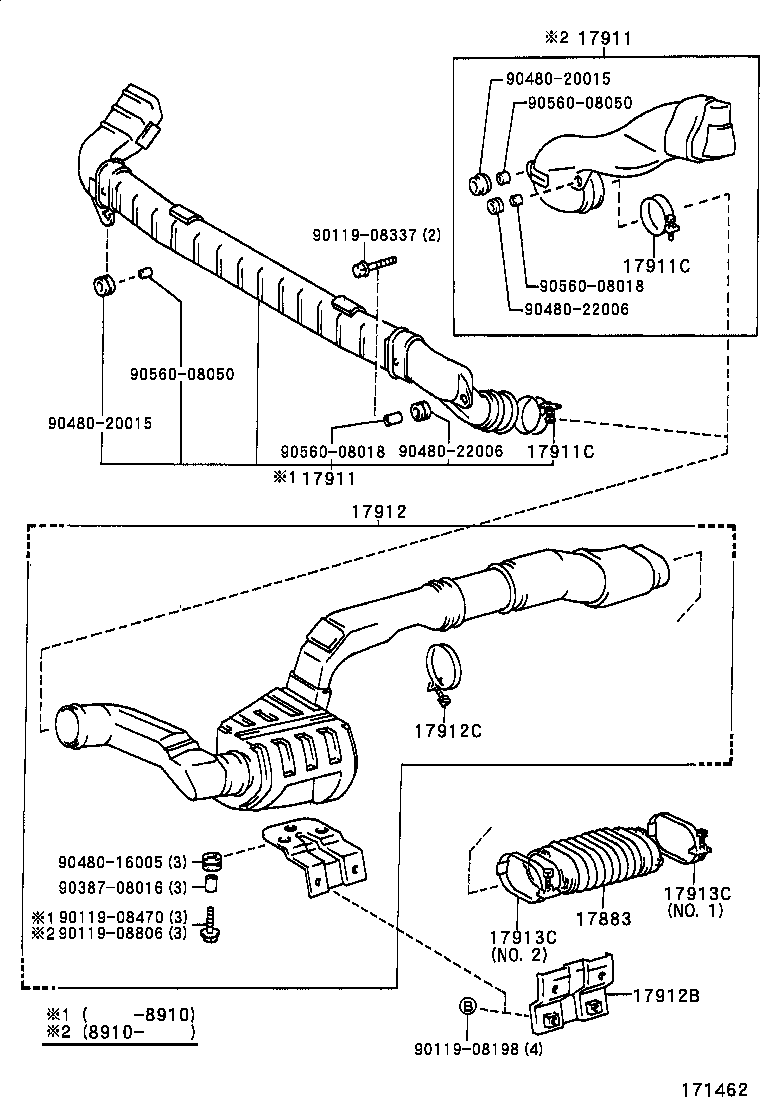

ILLUST NO. 2 OF 2(8610- )1C,2C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-95700 |
2C..CM5#,6# |
1 | ||
| 17883-95700 |
1C,2C..CM5#,6# |
1 | ||
| 17883-95700 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 17911 - DUCT, COOL AIR INTAKE, NO.1 | ||||
| 52810-95706 |
2C..CM5#,6# |
1 | ||
| 52810-95706 |
2C..CM5#,6# |
1 | ||
| 52810-95706 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 52810-95704 |
1C,2C..CM5#,6# |
1 | ||
| 17911 - DUCT, COOL AIR INTAKE, NO.1 | ||||
| 52810-95706 |
2C..CM5#,6# |
1 | ||
| 52810-95706 |
2C..CM5#,6# |
1 | ||
| 52810-95706 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 52810-95704 |
1C,2C..CM5#,6# |
1 | ||
| 17911C - CLAMP, COOL AIR INTAKE DUCT, NO.1 | ||||
| 96111-10750 |
2C..CM5#,6# |
1 | ||
| 96111-10750 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 96111-10750 |
1C,2C..CM5#,6# |
2 | ||
| 96111-10750 |
2C..CM5#,6# |
1 | ||
| 17911C - CLAMP, COOL AIR INTAKE DUCT, NO.1 | ||||
| 96111-10750 |
2C..CM5#,6# |
1 | ||
| 96111-10750 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 96111-10750 |
1C,2C..CM5#,6# |
2 | ||
| 96111-10750 |
2C..CM5#,6# |
1 | ||
| 17912 - DUCT, COOL AIR INTAKE, NO.2 | ||||
| 52820-95708 |
2C..CM5#,6#..5H |
1 | ||
| 52820-27010 |
2C..CM5#,6# |
1 | ||
| 52820-95703 |
2C..CM55,6#..5H |
1 | ||
| 52820-27010 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 17912B - BRACKET, COOL AIR INTAKE DUCT, NO.2 | ||||
| 52854-95702 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 52854-95702 |
2C..CM5#,6# |
1 | ||
| 52854-95701 |
1C,2C..CM5#,6# |
1 | ||
| 52854-95702 |
2C..CM5#,6# |
1 | ||
| 17912C - CLAMP, COOL AIR INTAKE DUCT, NO.2 | ||||
| 96111-10750 |
2C..CM51,52,55,6#..5H |
1 | ||
| 17913C - CLAMP, COOL AIR INTAKE DUCT, NO.3 | ||||
| 90460-01041 |
1C,2C..CM5#,6# NO.1 |
1 | ||
| 90460-01049 |
1C,2C..CM5#,6# NO.1 |
1 | ||
| 90460-01049 |
2C..CM65..TS;2C..CM5#,60,61 NO.1 |
1 | ||
| 90460-01044 |
2C..CM65..TS;2C..CM5#,60,61 NO.2 |
1 | ||
| 90460-01044 |
1C,2C..CM5#,6# NO.2 |
1 | ||
| 90460-01049 |
2C..CM5#,6# NO.1 |
1 | ||
| 90460-01044 |
2C..CM5#,6# NO.2 |
1 | ||
| 17913C - CLAMP, COOL AIR INTAKE DUCT, NO.3 | ||||
| 90460-01041 |
1C,2C..CM5#,6# NO.1 |
1 | ||
| 90460-01049 |
1C,2C..CM5#,6# NO.1 |
1 | ||
| 90460-01049 |
2C..CM65..TS;2C..CM5#,60,61 NO.1 |
1 | ||
| 90460-01044 |
2C..CM65..TS;2C..CM5#,60,61 NO.2 |
1 | ||
| 90460-01044 |
1C,2C..CM5#,6# NO.2 |
1 | ||
| 90460-01049 |
2C..CM5#,6# NO.1 |
1 | ||
| 90460-01044 |
2C..CM5#,6# NO.2 |
1 | ||
| Common parts | ||||
| 90119-08198 | ||||
| 90119-08337 | ||||
| 90119-08470 | ||||
| 90119-08806 | ||||
| 90387-08016 | ||||
| 90480-16005 | ||||
| 90480-20015 | ||||
| 90480-22006 | ||||
| 90560-08018 | ||||
| 90560-08050 | ||||

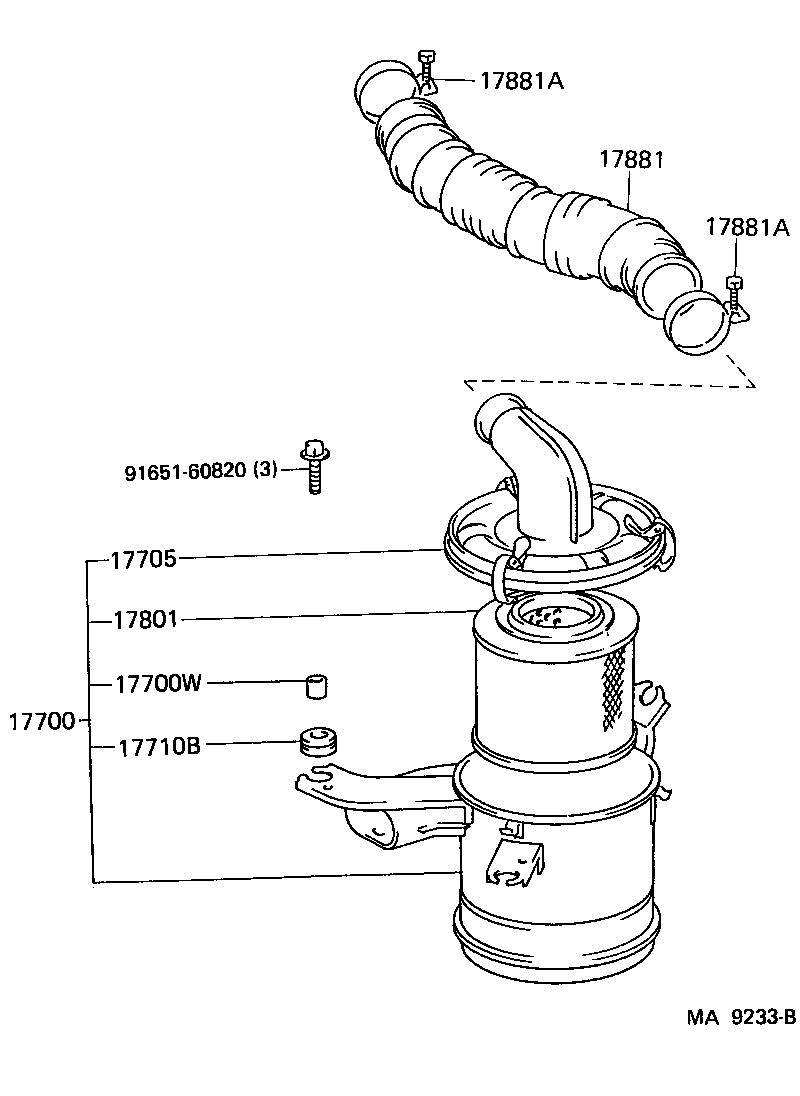

ILLUST NO. 1 OF 2(8610- )1C,2C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-64210 |
1C,2C..CM5#,6# |
1 | ||
| 17700W - SPACER(FOR AIR CLEANER) | ||||
| 90560-08038 |
1C,2C..CM5#,6# |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-64100 |
1C,2C..CM5#,6# |
1 | ||
| 17710B - GROMMET | ||||
| 90480-16014 |
1C,2C..CM5#,6# |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-54050 |
1C,2C..CM5#,6# |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-64110 |
1C,2C..CM5#,6# |
1 | ||
| 17880-64160 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 17880-64160 |
1C,2C..CM5#,6# |
1 | ||
| 17880-64110 |
1C,2C..CM5#,6# |
1 | ||
| 17880-64160 |
2C..CM5#,6# |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-73006 |
1C,2C..CM5#,6# MANIFOLD SIDE |
1 | ||
| 90460-77004 |
1C,2C..CM5#,6# AIR CLEANER SIDE |
1 | ||
| 96111-10690 |
1C,2C..CM5#,6# |
2 | ||
| 90460-77003 |
1C,2C..CM5#,6# AIR CLEANER SIDE |
1 | ||
| 90460-77004 |
2C..CM5#,6# AIR CLEANER SIDE |
1 | ||
| 90460-77004 |
2C..CM65..TS;2C..CM5#,60,61 AIR CLEANER SIDE |
1 | ||
| 90460-73003 |
1C,2C..CM5#,6# MANIFOLD SIDE |
1 | ||
| 90460-73006 |
2C..CM5#,6# MANIFOLD SIDE |
1 | ||
| 90460-73006 |
2C..CM65..TS;2C..CM5#,60,61 MANIFOLD SIDE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-73006 |
1C,2C..CM5#,6# MANIFOLD SIDE |
1 | ||
| 90460-77004 |
1C,2C..CM5#,6# AIR CLEANER SIDE |
1 | ||
| 96111-10690 |
1C,2C..CM5#,6# |
2 | ||
| 90460-77003 |
1C,2C..CM5#,6# AIR CLEANER SIDE |
1 | ||
| 90460-77004 |
2C..CM5#,6# AIR CLEANER SIDE |
1 | ||
| 90460-77004 |
2C..CM65..TS;2C..CM5#,60,61 AIR CLEANER SIDE |
1 | ||
| 90460-73003 |
1C,2C..CM5#,6# MANIFOLD SIDE |
1 | ||
| 90460-73006 |
2C..CM5#,6# MANIFOLD SIDE |
1 | ||
| 90460-73006 |
2C..CM65..TS;2C..CM5#,60,61 MANIFOLD SIDE |
1 | ||
| Common parts | ||||
| 91651-60820 | ||||
