CM60-TFQDS (1986)

Toyota Lite/Townace Truck

Production Oct 1986 - Jun 1999
Engine 2C
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8610- )2C..CM60,65

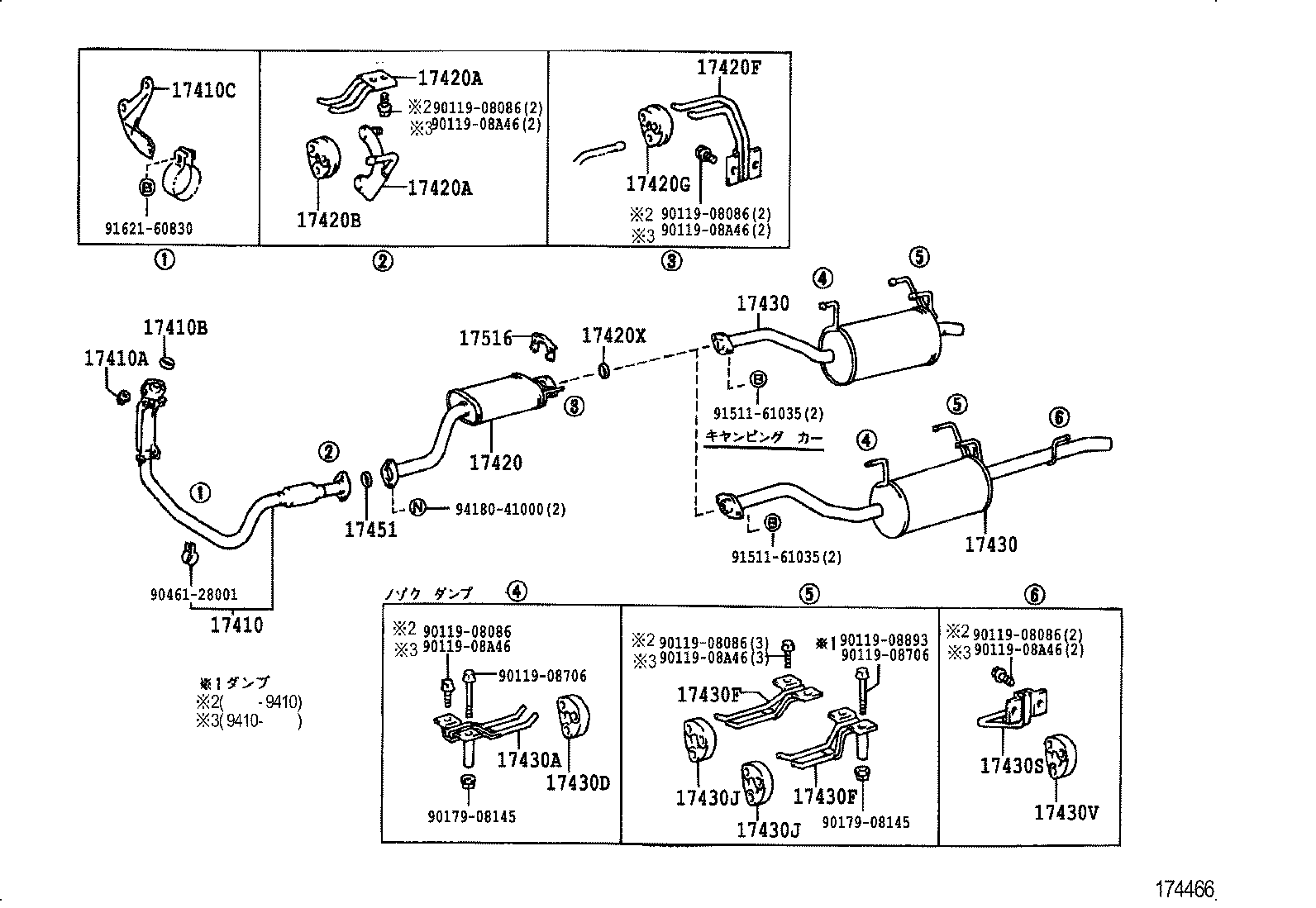

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410C 17420 17420A 17420A 17420B 17420F 17420G 17420X 17430 17430 17430A 17430D 17430F 17430F 17430J 17430J 17430S 17430V 17451 17516 9011908086 9011908086 9011908086 9011908086 9011908086 9011908706 9011908706 9011908893 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9017908145 9017908145 9046128001 9151161035 9151161035 9162160830 9418041000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-64250

2C..CM6#

 1
17410-64251

2C..CM60,65

 1
17410-64251

2C..CM60;2C..CM65..TS

 1
17410-64251

2C..CM60,65

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

2C..CM5#,6#

 2
90179-10070

1C,2C,4K,5K..CM5#,6#,KM5#

 2
90179-10070

2C..CM5#,6#

 2
90179-10070

2C..CM65..TS;2C..CM5#,60,61

 2
17410B - GASKET, EXHAUST PIPE
90917-06061

2C..CM5#,6#

 1
90917-06039

2C..CM5#,6#

 1
90917-06061

2C..CM5#,6#

 1
90917-06004

1C,2C,4K,5K..CM5#,6#,KM5#

 1
90917-06004

2C..CM5#,6#

 1
90917-06061

2C..CM65..TS;2C..CM5#,60,61

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-64150

2C..CM60;2C..CM65..TS

 1
17571-64150

2C..CM60,65

 1
17571-64150

2C..CM60,65

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17403-64010

2C..CM60

 1
17420A - BRACKET, EXHAUST PIPE CENTER, FRONT
17572-64100

2C..CM6#

PIPE SIDE

 1
17562-64170

2C..CM6#

BODY SIDE

 1
17572-64100

2C..CM60,65

PIPE SIDE

 1
17562-64170

2C..CM60;2C..CM65..TS

BODY SIDE

 1
17562-64170

2C..CM60,65

BODY SIDE

 1
17562-64170

2C..CM60,65

BODY SIDE

 1
17572-64100

2C..CM60;2C..CM65..TS

PIPE SIDE

 1
17572-64100

2C..CM60,65

PIPE SIDE

 1
17420A - BRACKET, EXHAUST PIPE CENTER, FRONT
17572-64100

2C..CM6#

PIPE SIDE

 1
17562-64170

2C..CM6#

BODY SIDE

 1
17572-64100

2C..CM60,65

PIPE SIDE

 1
17562-64170

2C..CM60;2C..CM65..TS

BODY SIDE

 1
17562-64170

2C..CM60,65

BODY SIDE

 1
17562-64170

2C..CM60,65

BODY SIDE

 1
17572-64100

2C..CM60;2C..CM65..TS

PIPE SIDE

 1
17572-64100

2C..CM60,65

PIPE SIDE

 1
17420B - CUSHION, EXHAUST PIPE CENTER, FRONT
17566-64010

2C..CM60;2C..CM65..TS

 1
17566-64010

2C..CM60,65

 1
17566-64010

2C..CM60,65

 1
17420F - BRACKET, EXHAUST PIPE, CENTER
17565-64040

1C,2C..CM50,51,55,60,65

 1
17565-64040

2C..CM51,55,60,65

 1
17565-64040

2C..CM65..TS;2C..CM51,55,60

 1
17420G - CUSHION, EXHAUST PIPE CENTER, CENTER
17566-64010

2C..CM65..TS;2C,2Y..CM51,55,60,YM6#

 1
17566-64010

1C,2C,2Y..CM50,51,55,60,65,YM6#

 1
17566-64010

2C,2Y..CM51,55,60,65,YM6#

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06004

1C,2C..CM5#,6#

 1
90917-06039

2C..CM51,55,60,65

 1
90917-06039

2C..CM51,55,60,65

 1
90917-06039

2C..CM65..TS;2C..CM51,55,60

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-72051

2C,2Y..CM60,65,YM60

 1
17430-64830

2C..CM60;2C..CM65..TS

 1
17430-64830

2C..CM60,65

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-72051

2C,2Y..CM60,65,YM60

 1
17430-64830

2C..CM60;2C..CM65..TS

 1
17430-64830

2C..CM60,65

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17574-72031

1C,2C,2Y..CM5#,6#,YM55,60

 1
17574-72031

2C,5K,2Y..CM51,55,60,65,KM51,YM55,6#

 1
17574-72031

2C..CM65..TS;2C,5K,2Y..CM51,55,60,KM51,YM55,6#

 1
17573-64040

1C,2C,2Y..CM5#,6#,YM55,60

OUTER

 1
17574-72031

2C,5K,2Y..CM51,55,60,65,KM51,YM55,6#

 1
17575-64020

1C,2C,2Y..CM5#,6#,YM55,60

INNER

 1
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17566-64010

1C,2C,4K,5K,2Y..CM50,51,55,60,65,KM5#,YM55,6#

 1
17566-64010

2C,5K,2Y..CM51,55,60,65,KM51,YM55,6#

 1
17566-64010

2C..CM65..TS;2C,5K,2Y..CM51,55,60,KM51,YM55,6#

 1
17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER)
17575-64020

1C,2C,2Y..CM5#,6#,YM55,60

右側

 1
17573-64040

2C,5K,2Y..CM51,55,60,65,KM51,YM55,6#

左側

 1
17573-64040

2C,5K,2Y..CM51,55,60,65,KM51,YM55,6#

左側

 1
17575-64020

2C,5K,2Y..CM51,55,60,65,KM51,YM55,6#

右側

 1
17573-64040

2C..CM65..TS;2C,5K,2Y..CM51,55,60,KM51,YM55,6#

左側

 1
17573-64040

1C,2C,2Y..CM5#,6#,YM55,60

左側

 1
17575-64020

2C..CM65..TS;2C,5K,2Y..CM51,55,60,KM51,YM55,6#

右側

 1
17575-64020

2C,5K,2Y..CM51,55,60,65,KM51,YM55,6#

右側

 1
17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER)
17575-64020

1C,2C,2Y..CM5#,6#,YM55,60

右側

 1
17573-64040

2C,5K,2Y..CM51,55,60,65,KM51,YM55,6#

左側

 1
17573-64040

2C,5K,2Y..CM51,55,60,65,KM51,YM55,6#

左側

 1
17575-64020

2C,5K,2Y..CM51,55,60,65,KM51,YM55,6#

右側

 1
17573-64040

2C..CM65..TS;2C,5K,2Y..CM51,55,60,KM51,YM55,6#

左側

 1
17573-64040

1C,2C,2Y..CM5#,6#,YM55,60

左側

 1
17575-64020

2C..CM65..TS;2C,5K,2Y..CM51,55,60,KM51,YM55,6#

右側

 1
17575-64020

2C,5K,2Y..CM51,55,60,65,KM51,YM55,6#

右側

 1
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
17566-64010

1C,2C,2Y..CM5#,6#,YM55,60

 2
17566-64010

2C..CM65..TS;2C,5K,2Y..CM51,55,60,KM51,YM55,6#

 2
17566-64010

2C,5K,2Y..CM51,55,60,65,KM51,YM55,6#

 2
17566-64010

2C,5K,2Y..CM51,55,60,65,KM51,YM55,6#

 2
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
17566-64010

1C,2C,2Y..CM5#,6#,YM55,60

 2
17566-64010

2C..CM65..TS;2C,5K,2Y..CM51,55,60,KM51,YM55,6#

 2
17566-64010

2C,5K,2Y..CM51,55,60,65,KM51,YM55,6#

 2
17566-64010

2C,5K,2Y..CM51,55,60,65,KM51,YM55,6#

 2
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17574-72031

2C..CM6#

 1
17451 - GASKET, EXHAUST PIPE
90917-06004

2C..CM5#,6#

 1
90917-06004

1C,2C,4K,5K..CM5#,6#,KM5#

 1
90917-06039

2C..CM51,55,60,65

 1
17516 - RETAINER, EXHAUST PIPE, NO.2
18495-71010

2C..CM52,6#

 1
18495-38020

2C..CM52,6#

 1
18495-71010

2C..CM65..TS;2C..CM52,60,61

 1
18495-38020

2C..CM65..TS;2C..CM52,60,61

 1
Common parts
90119-08086
90119-08706
90119-08893
90119-08A46
90179-08145
90461-28001
91511-61035
91621-60830
94180-41000
