CM60-TFQDS (1986)

Toyota Lite/Townace Truck

Production Oct 1986 - Jun 1999
Engine 2C
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8610- )1C,2C

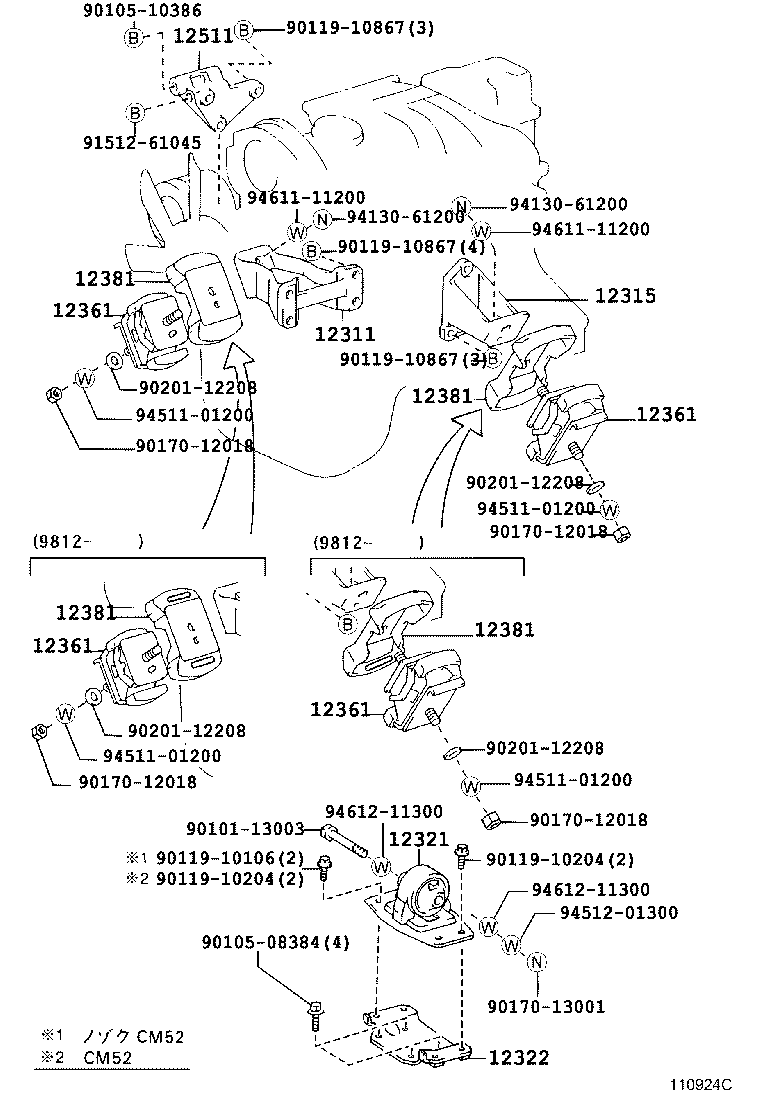

Click highlighted areas on diagram

diagram 12311 12315 12321 12322 12361 12361 12361 12361 12381 12381 12381 12381 12511 9010113003 9010508384 9010510386 9011910106 9011910204 9011910204 9011910867 9011910867 9011910867 9017012018 9017012018 9017012018 9017012018 9017013001 9020112208 9020112208 9020112208 9020112208 9151261045 9413061200 9413061200 9451101200 9451101200 9451101200 9451101200 9451201300 9461111200 9461111200 9461211300 9461211300
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-64060

2C..CM5#,6#

 1
12311-64060

2C..CM65..TS;2C..CM5#,60,61

 1
12311-64060

1C,2C..CM5#,6#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-64120

2C..CM5#,6#

 1
12315-64020

2C..CM65..TS;2C..CM5#,60,61

 1
12315-64120

2C..CM65..TS;2C..CM5#,60,61

 1
12315-64020

1C,2C..CM5#,6#

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12303-64070

2C..CM6#

 1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-64030

2C..CM6#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-64023

2C..CM65..TS;2C..CM5#,60,61

 2
12361-64023

2C..CM5#,6#

 2
12361-64023

2C..CM5#,6#

 2
12361-64022

1C,2C..CM5#,6#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-64023

2C..CM65..TS;2C..CM5#,60,61

 2
12361-64023

2C..CM5#,6#

 2
12361-64023

2C..CM5#,6#

 2
12361-64022

1C,2C..CM5#,6#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-64023

2C..CM65..TS;2C..CM5#,60,61

 2
12361-64023

2C..CM5#,6#

 2
12361-64023

2C..CM5#,6#

 2
12361-64022

1C,2C..CM5#,6#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-64023

2C..CM65..TS;2C..CM5#,60,61

 2
12361-64023

2C..CM5#,6#

 2
12361-64023

2C..CM5#,6#

 2
12361-64022

1C,2C..CM5#,6#

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-64110

2C..CM5#,6#

 2
12381-64011

2C..CM65..TS;2C..CM5#,60,61

 2
12381-64011

2C..CM5#,6#

 2
12381-64010

1C,2C..CM5#,6#

 2
12381-64011

2C..CM5#,6#

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-64110

2C..CM5#,6#

 2
12381-64011

2C..CM65..TS;2C..CM5#,60,61

 2
12381-64011

2C..CM5#,6#

 2
12381-64010

1C,2C..CM5#,6#

 2
12381-64011

2C..CM5#,6#

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-64110

2C..CM5#,6#

 2
12381-64011

2C..CM65..TS;2C..CM5#,60,61

 2
12381-64011

2C..CM5#,6#

 2
12381-64010

1C,2C..CM5#,6#

 2
12381-64011

2C..CM5#,6#

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-64110

2C..CM5#,6#

 2
12381-64011

2C..CM65..TS;2C..CM5#,60,61

 2
12381-64011

2C..CM5#,6#

 2
12381-64010

1C,2C..CM5#,6#

 2
12381-64011

2C..CM5#,6#

 2
12511 - BRACKET, ALTERNATOR, NO.1
12511-64080

2C..CM5#,6#

 1
12511-64030

1C,2C..CM5#,6#

 1
12511-64080

2C..CM65..TS;2C..CM5#,60,61

 1
Common parts
90101-13003
90105-08384
90105-10386
90119-10106
90119-10204
90119-10867
90170-12018
90170-13001
90201-12208
91512-61045
94130-61200
94511-01200
94512-01300
94611-11200
94612-11300
