CM60-TFQDS (1986)

Toyota Lite/Townace Truck

Production Oct 1986 - Jun 1999
Engine 2C
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8610- )1C,2C

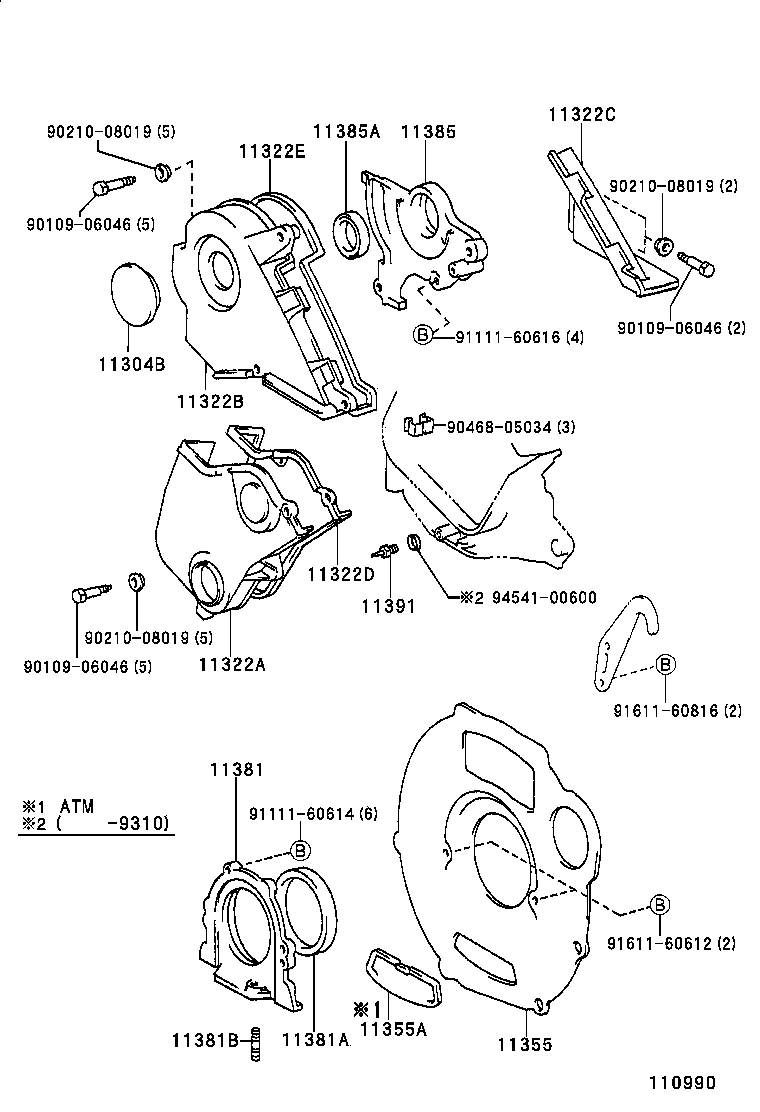

Click highlighted areas on diagram

diagram 11304B 11322A 11322B 11322C 11322D 11322E 11355 11355A 11381 11381A 11381B 11385 11385A 11391 9010906046 9010906046 9010906046 9021008019 9021008019 9021008019 9046805034 9111160614 9111160616 9161160612 9161160816 9454100600
Part # Description Qty Price
11304B - PLUG, SEMI CIRCULAR(FOR CHAIN COVER NO.2)
90950-01357

2C..CM5#,6#

外径=64

 1
90950-01357

1C,2C..CM5#,6#

外径=64

 1
90950-01357

2C..CM65..TS;2C..CM5#,60,61

外径=64

 1
11322A - COVER, TIMING BELT, NO.1
11321-64010

1C,2C..CM5#,6#

 1
11321-64010

2C..CM5#,6#

 1
11321-64010

2C..CM65..TS;2C..CM5#,60,61

 1
11321-64011

2C..CM5#,6#

 1
11321-64080

2C..CM5#,6#

 1
11322B - COVER, TIMING BELT, NO.2
11322-64010

2C..CM5#,6#

 1
11322-64010

1C,2C..CM5#,6#

 1
11322-64010

2C..CM65..TS;2C..CM5#,60,61

 1
11322C - COVER, TIMING BELT, NO.3
11323-64011

1C,2C..CM5#,6#

 1
11323-64011

2C..CM5#,6#

 1
11323-64011

2C..CM65..TS;2C..CM5#,60,61

 1
11322D - GASKET, TIMING BELT COVER, NO.1
11328-64020

1C,2C..CM5#,6#

 1
11328-64020

2C..CM65..TS;2C..CM5#,60,61

 1
11328-64070

2C..CM5#,6#

 1
11328-64020

2C..CM5#,6#

 1
11322E - GASKET, TIMING BELT COVER, NO.2
11329-64020

2C..CM65..TS;2C..CM5#,60,61

 1
11329-64020

2C..CM5#,6#

 1
11329-64020

1C,2C..CM5#,6#

 1
11355 - PLATE, REAR END
11355-64011

1C,2C..CM5#,6#..5H

 1
11355-64011

2C..CM65..TS;2C..CM5#,60,61..5H

 1
11355-64011

2C..CM5#,6#..5H

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-64012

2C..CM65..TS;2C..CM5#,60,61

 1
11381-64012

1C,2C..CM5#,6#

 1
11381-64012

2C..CM5#,6#

 1
11381-64020

2C..CM5#,6#

 1
11381A - SEAL, ENGINE REAR OIL
90311-90003

1C,2C..CM5#,6#

ARAI

 1
90311-90005

2C..CM5#,6#

 1
90311-90008

2C..CM65..TS;2C..CM5#,60,61

 1
90311-90008

2C..CM5#,6#

 1
90311-90005

1C,2C..CM5#,6#

NOK

 1
90311-90008

2C..CM5#,6#

 1
11381B - BOLT, STUD(FOR ENGINE REAR OIL SEAL RETAINER)
90116-06134

2C..CM5#,6#

 2
90116-06134

2C..CM5#,6#

 2
90116-06033

1C,2C..CM5#,6#

 2
90116-06134

2C..CM65..TS;2C..CM5#,60,61

 2
11385 - RETAINER, CAMSHAFT OIL SEAL
11382-64011

2C..CM65..TS;2C..CM5#,60,61

 1
11382-64011

1C,2C..CM5#,6#

 1
11382-64011

2C..CM5#,6#

 1
11385A - SEAL, OIL(FOR CAMSHAFT)
90311-38025

1C,2C..CM5#,6#

 1
90311-38044

2C..CM65..TS;2C..CM5#,60,61

 1
90311-38044

2C..CM5#,6#

 1
90311-38061

2C..CM5#,6#

 1
11391 - POINTER, TIMING
11391-64020

2C..CM65..TS;2C..CM5#,60,61

 1
11391-64020

2C..CM5#,6#

 1
11391-64010

1C,2C..CM5#,6#

 1
11391-64020

2C..CM5#,6#

 1
Common parts
90109-06046
90210-08019
90468-05034
91111-60614
91111-60616
91611-60612
91611-60816
94541-00600
