CM60-TBQDS3 (1986)
Toyota Lite/Townace Truck

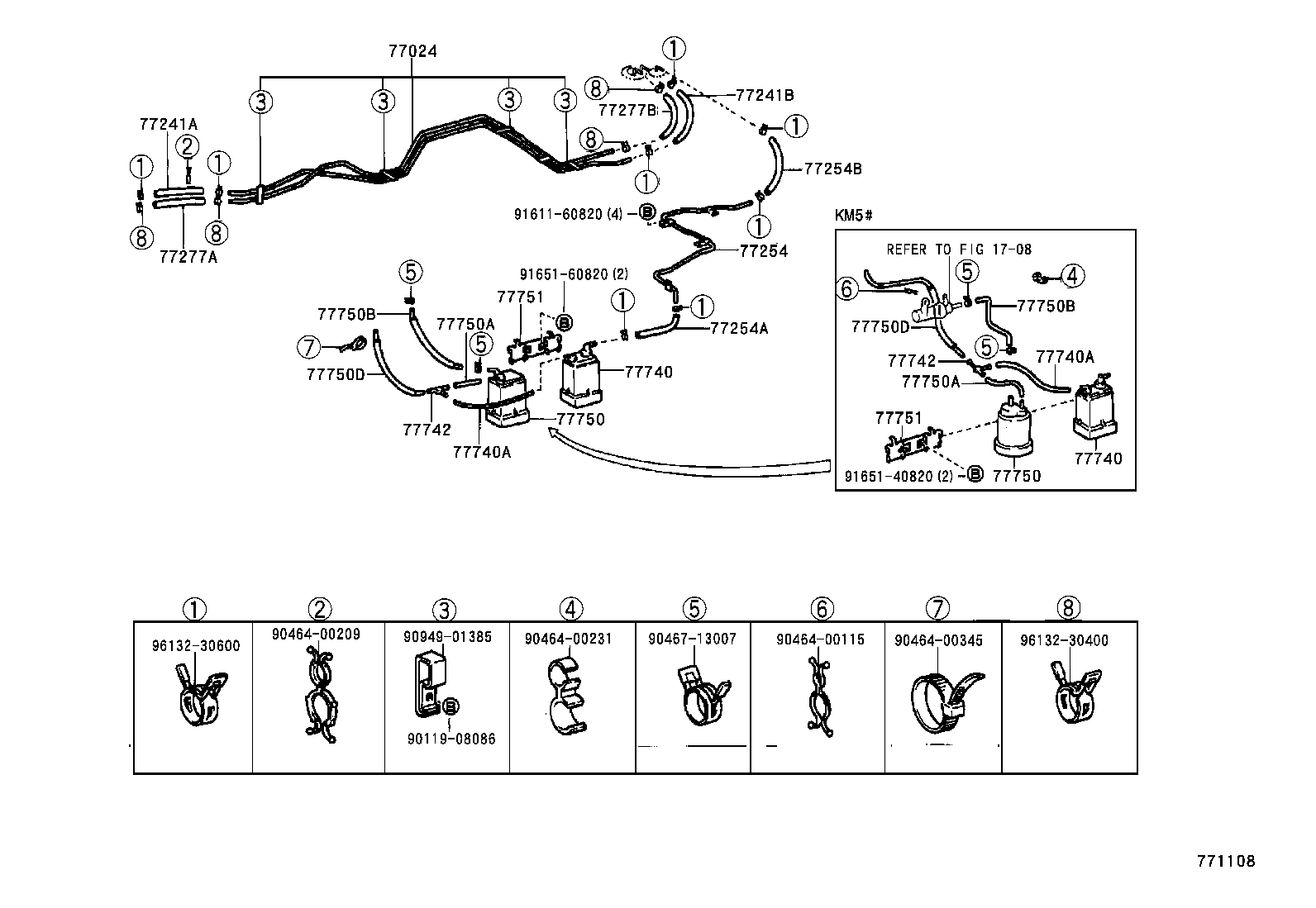

ILLUST NO. 2 OF 2(8610- )KM5#,YM55,6#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77024 - TUBE SUB-ASSY, FUEL MAIN & RETURN, FRONT | ||||
| 77024-27030 |
CM5#,6# |
1 | ||
| 77024-27031 |
CM51,55,60,65 |
1 | ||
| 77024-27020 |
KM5#,YM55,6# |
1 | ||
| 77024-27031 |
CM51,55,60,65 |
1 | ||
| 77024-27031 |
CM65..TS;CM51,55,60 |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08040 |
CM5#,6# *H,L=320,内径=7.6 |
1 | ||
| 95333-06030 |
KM5#,YM55,6# *H,L=280 |
1 | ||
| 95332-06030 |
KM5#,YM55,60 *H,L=280 |
1 | ||
| 95333-08032 |
CM5#,6# *H,L=320 |
1 | ||
| 95333-08040 |
CM5#,6# *H,L=320 |
1 | ||
| 95333-06028 |
KM5#,YM55,60 *H,L=280 |
1 | ||
| 95333-08030 |
CM5#,6# *H,L=240,内径=7.6 |
1 | ||
| 95333-08030 |
CM65..TS;CM5#,60,61 *H,L=240,内径=7.6 |
1 | ||
| 95333-08030 |
CM5#,6# *H,L=240,内径=7.6 |
1 | ||
| 95333-08040 |
CM5#,6# *H,L=320 |
1 | ||
| 95333-06030 |
KM5#,YM55,60 *H,L=280 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95333-08020 |
CM5#,6# 長さ=200,内径=8 |
1 | ||
| 95333-06020 |
KM5#,YM55,6# *H,L=180 |
1 | ||
| 95332-08020 |
CM5#,6# *H,L=200,内径=7.6 |
1 | ||
| 95333-08020 |
CM50,51,55,60,65 長さ=200,内径=8 |
1 | ||
| 95333-06018 |
KM5#,YM55,60 *H,L=180 |
1 | ||
| 95333-08020 |
CM51,55,60,65 長さ=200,内径=8 |
1 | ||
| 95333-08020 |
CM65..TS;CM51,55,60 長さ=200,内径=8 |
1 | ||
| 95333-06020 |
KM5#,YM55,60 *H,L=180 |
1 | ||
| 95332-06020 |
KM5#,YM55,60 *H,L=180 |
1 | ||
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77027-27030 |
CM65..TS;CM51,55,60 |
1 | ||
| 77027-27020 |
KM5#,YM55,60 |
1 | ||
| 77027-27021 |
KM5#,YM55,6# |
1 | ||
| 77027-27030 |
CM50,51,55,60,65 |
1 | ||
| 77027-27030 |
CM51,55,60,65 |
1 | ||
| 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) | ||||
| 95332-06030 |
KM5#,YM55,60 *H,L=240 |
1 | ||
| 95332-06020 |
CM5#,6# *H,L=130 |
1 | ||
| 95333-06030 |
KM5#,YM55,60 *H,L=240 |
1 | ||
| 95333-06020 |
CM5#,6# *H,L=130 |
1 | ||
| 95333-06020 |
CM51,55,60,65,KM51,YM55,6# *H,L=130 |
1 | ||
| 95333-06020 |
CM5#,6# *H,L=130 |
1 | ||
| 95333-06030 |
KM5#,YM55,60 *H,L=240 |
1 | ||
| 95333-06020 |
CM51,55,60,65,KM5#,YM55,6# *H,L=130 |
1 | ||
| 95333-06020 |
CM65..TS;CM51,55,60,KM51,YM55,6# *H,L=130 |
1 | ||
| 77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1) | ||||
| 95333-06020 |
CM5#,6#,KM5#,YM55,60 *H,L=180 |
1 | ||
| 95333-06020 |
CM50,51,55,60,65,KM5#,YM55,6# *H,L=180 |
1 | ||
| 95333-06020 |
CM65..TS;CM51,55,60,KM51,YM55,6# *H,L=180 |
1 | ||
| 95332-06020 |
CM5#,6#,KM5#,YM55,60 *H,L=180 |
1 | ||
| 95333-06018 |
CM5#,6#,KM5#,YM55,60 *H,L=180 |
1 | ||
| 95333-06020 |
CM51,55,60,65,KM51,YM55,6# *H,L=180 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 90447-11012 |
YM55,6# 長さ=460 |
1 | ||
| 90447-12073 |
CM5#,6# 長さ=480 |
1 | ||
| 90447-12073 |
CM5#,60,61;CM65..JL..TS 長さ=480 |
1 | ||
| 90447-12073 |
CM5#,6# 長さ=480 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95332-04020 |
KM5#,YM55,60 *H,L=180 |
1 | ||
| 95333-06020 |
CM51,55,60,65 *H,L=180 |
1 | ||
| 95333-06020 |
CM50,51,55,60,65 *H,L=180 |
1 | ||
| 95333-04018 |
KM5#,YM55,60 *H,L=180 |
1 | ||
| 95333-06020 |
CM5#,6# *H,L=180 |
1 | ||
| 95333-06018 |
CM5#,6# *H,L=180 |
1 | ||
| 95332-06020 |
CM5#,6# *H,L=180 |
1 | ||
| 95333-04020 |
KM5#,YM55,6# *H,L=180 |
1 | ||
| 95333-04020 |
KM5#,YM55,60 *H,L=180 |
1 | ||
| 95333-06020 |
CM65..TS;CM51,55,60 *H,L=180 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-27190 |
YM55,6#;KM51..SJL..5F;KM51..3FC,3HC,5H |
1 | ||
| 77740-27190 |
KM5#,YM55,6# |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-27190 |
YM55,6#;KM51..SJL..5F;KM51..3FC,3HC,5H |
1 | ||
| 77740-27190 |
KM5#,YM55,6# |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 95411-10630 |
YM55,60 *H,L=180,ﾏｰｸ=#6 |
1 | ||
| 90999-92002 |
YM55,6# *H,L=180,ﾏｰｸ=#6 |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 95411-10630 |
YM55,60 *H,L=180,ﾏｰｸ=#6 |
1 | ||
| 90999-92002 |
YM55,6# *H,L=180,ﾏｰｸ=#6 |
1 | ||
| 77742 - WAY, 3(FOR CANISTER) | ||||
| 90413-04005 |
KM51,YM55,6# |
1 | ||
| 90413-04005 |
YM55,6#;KM51..SJL..5F;KM51..3FC,3HC,5H |
1 | ||
| 90413-04005 |
YM55,60 |
1 | ||
| 77742 - WAY, 3(FOR CANISTER) | ||||
| 90413-04005 |
KM51,YM55,6# |
1 | ||
| 90413-04005 |
YM55,6#;KM51..SJL..5F;KM51..3FC,3HC,5H |
1 | ||
| 90413-04005 |
YM55,60 |
1 | ||
| 77750 - CANISTER ASSY, CHARCOAL | ||||
| 77740-27200 |
YM55,6# |
1 | ||
| 77750 - CANISTER ASSY, CHARCOAL | ||||
| 77740-27200 |
YM55,6# |
1 | ||
| 77750A - HOSE, FUEL, NO.1 (FOR CHARCOAL CANISTER) | ||||
| 95411-10630 |
YM55,60 *H,L=40,ﾏｰｸ=#6 |
1 | ||
| 90999-92002 |
YM55,6# *H,L=40,ﾏｰｸ=#6 |
1 | ||
| 77750A - HOSE, FUEL, NO.1 (FOR CHARCOAL CANISTER) | ||||
| 95411-10630 |
YM55,60 *H,L=40,ﾏｰｸ=#6 |
1 | ||
| 90999-92002 |
YM55,6# *H,L=40,ﾏｰｸ=#6 |
1 | ||
| 77750B - HOSE, FUEL, NO.2 (FOR CHARCOAL CANISTER) | ||||
| 23829-72020 |
YM55,60 |
1 | ||
| 23829-72050 |
YM55,6# |
1 | ||
| 77750B - HOSE, FUEL, NO.2 (FOR CHARCOAL CANISTER) | ||||
| 23829-72020 |
YM55,60 |
1 | ||
| 23829-72050 |
YM55,6# |
1 | ||
| 77750D - HOSE, FUEL, NO.4 (FOR CHARCOAL CANISTER) | ||||
| 90447-08011 |
YM55,6# 長さ=360 |
1 | ||
| 77750D - HOSE, FUEL, NO.4 (FOR CHARCOAL CANISTER) | ||||
| 90447-08011 |
YM55,6# 長さ=360 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-27020 |
KM5#,YM55,6# |
1 | ||
| 77751-27020 |
YM55,6#;KM51..SJL..5F;KM51..3FC,3HC,5H |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-27020 |
KM5#,YM55,6# |
1 | ||
| 77751-27020 |
YM55,6#;KM51..SJL..5F;KM51..3FC,3HC,5H |
1 | ||
| Common parts | ||||
| 90119-08086 | ||||
| 90464-00115 | ||||
| 90464-00209 | ||||
| 90464-00231 | ||||
| 90464-00345 | ||||
| 90467-13007 | ||||
| 90949-01385 | ||||
| 91611-60820 | ||||
| 91651-40820 | ||||
| 91651-60820 | ||||
| 96132-30400 | ||||
| 96132-30600 | ||||
| Linked diagrams | ||||
| 1708 | ||||

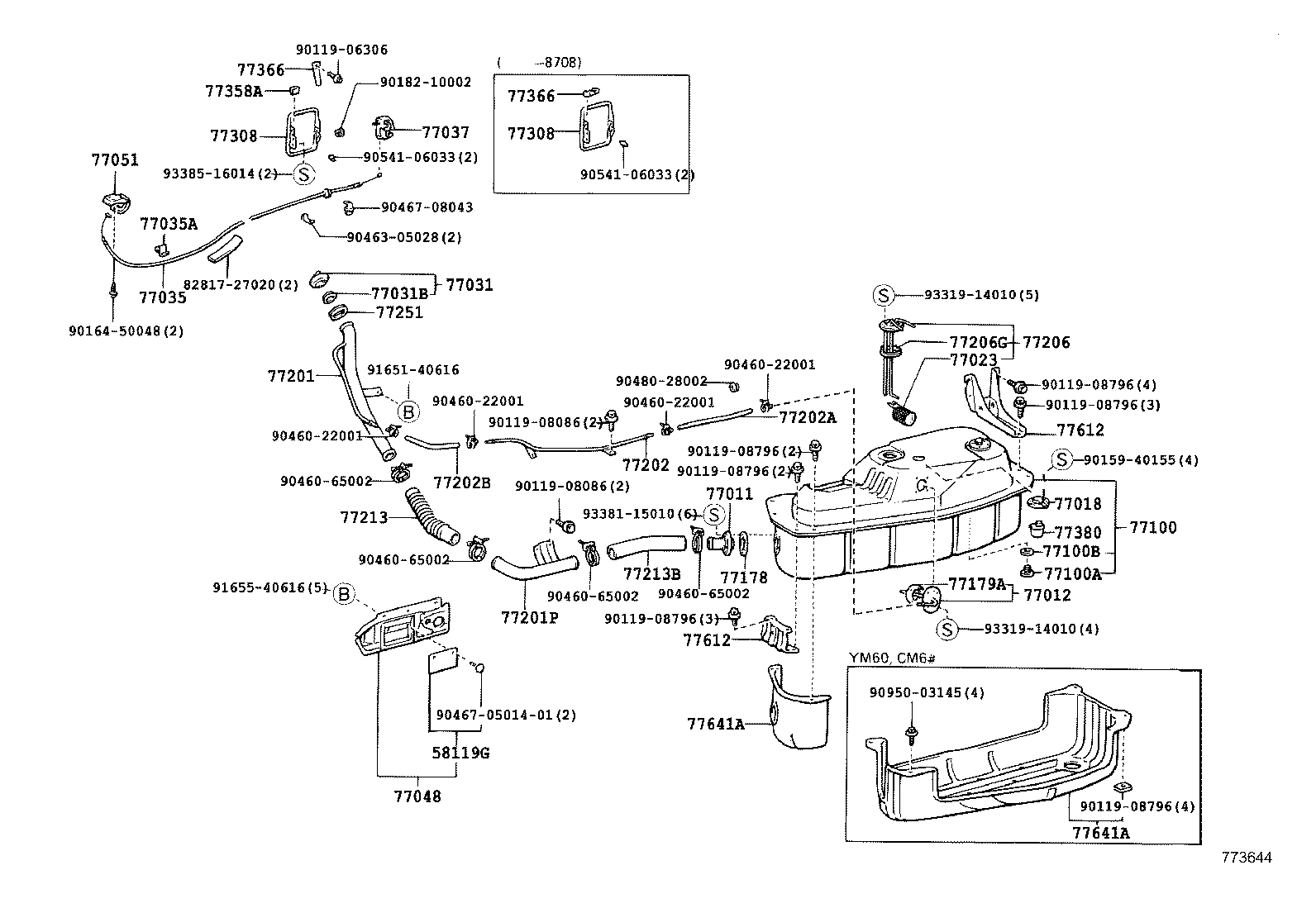

ILLUST NO. 1 OF 2(8610- )CM50,51,55,60,65,KM5#,YM55,6#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58119G - COVER, REAR FLOOR SIDE, FRONT | ||||
| 58119-95700 |
CM5#,6#,KM51,YM55,6# |
1 | ||
| 58119-95700 |
CM65..TS;CM5#,60,61,KM51,YM55,6# |
1 | ||
| 58119-95700 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-13010 |
CM50,51,55,60,65,KM5#,YM55,6# |
1 | ||
| 77011-27020 |
CM51,55,60,65,KM51,YM55,6# |
1 | ||
| 77011-27020 |
CM65..TS;CM51,55,60,KM51,YM55,6# |
1 | ||
| 77012 - TUBE SUB-ASSY, FUEL TANK BREATHER | ||||
| 77012-27090 |
CM50,51,55,60,65,KM5#,YM55,6# |
1 | ||
| 77012-27090 |
CM65..TS;CM51,55,60,KM51,YM55,6# |
1 | ||
| 77012-27090 |
CM51,55,60,65,KM51,YM55,6# |
1 | ||
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-27100 |
CM65..TS;CM51,55,60,KM51,YM55,6# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 77018-27090 |
CM65..TS;CM51,55,60,KM51,YM55,6# |
1 | ||
| 77018-27100 |
CM51,55,60,65,KM51,YM55,6# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 77018-27090 |
CM51,55,60,65,KM51,YM55,6# |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-14030 |
KM5#,YM55,6# |
1 | ||
| 77023-32010 |
CM50,51,55,60,65 |
1 | ||
| 77023-32010 |
CM51,55,60,65 |
1 | ||
| 77023-32010 |
CM65..TS;CM51,55,60 |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-35061 |
CM50,51,55,60,65 |
1 | ||
| 77310-12100 |
KM5#,YM55,6# |
1 | ||
| 77310-35061 |
CM65..TS;CM51,55,60 |
1 | ||
| 77310-35061 |
CM51,55,60,65 |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
CM65..TS;CM51,55,60,KM51,YM55,6# |
1 | ||
| 77316-12050 |
CM50,51,55,60,65,KM5#,YM55,6# |
1 | ||
| 77316-12050 |
CM51,55,60,65,KM51,YM55,6# |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-27020 |
CM51,55,60,65,KM51,YM55,6# |
1 | ||
| 77035-95701 |
CM51,55,60,65,KM51,YM55,6# |
1 | ||
| 77035-95701 |
CM50,51,55,60,65,KM5#,YM55,6# |
1 | ||
| 77035-95701 |
CM65..TS;CM51,55,60,KM51,YM55,6# |
1 | ||
| 77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE) | ||||
| 90469-04001 |
CM51,55,60,65,KM51,YM55,6# |
1 | ||
| 69749-12010 |
CM5#,6#,KM5#,YM55,60 |
1 | ||
| 90469-04001 |
CM65..TS;CM51,55,60,KM51,YM55,6# |
1 | ||
| 90469-04001 |
CM51,55,60,65,KM51,YM55,6# |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-95700 |
CM65..TS;CM5#,60,61,KM51,YM55,6# |
1 | ||
| 77037-95700 |
CM5#,6#,KM51,YM55,6# |
1 | ||
| 77037-95700 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 77048 - SEAL SUB-ASSY, FUEL INLET PIPE, UPPER | ||||
| 77048-95701 |
CM51,55,60,65,KM51,YM55,6# |
1 | ||
| 77048-95701 |
CM65..TS;CM51,55,60,KM51,YM55,6# |
1 | ||
| 77048-95701 |
CM50,51,55,60,65,KM5#,YM55,6# |
1 | ||
| 77051 - LEVER SUB-ASSY, FUEL LID OPEN | ||||
| 77051-9570001 |
CM51,55,60,65,KM51,YM55,6# BLACK,TRIM1# |
1 | ||
| 77051-9570001 |
CM51,55,60,65,KM51,YM55,6# BLACK,TRIM1# |
1 | ||
| 77051-9570001 |
CM65..TS;CM51,55,60,KM51,YM55,6# BLACK,TRIM1# |
1 | ||
| 77051-95700 |
CM5#,6#,KM5#,YM55,60 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-27260 |
CM60,65 |
1 | ||
| 77001-27440 |
CM60;CM65..TS |
1 | ||
| 77001-27420 |
CM65..TS;CM51,55,60 |
1 | ||
| 77001-27411 |
KM51,YM55,6# |
1 | ||
| 77001-27421 |
CM65..TS;CM51,55,60 |
1 | ||
| 77001-27421 |
CM51,55,60,65 |
1 | ||
| 77001-27410 |
KM51,YM55,6# |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20004 |
CM5#,6#,KM51,YM55,6# |
1 | ||
| 90341-20004 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 90341-20004 |
CM65..TS;CM5#,60,61,KM51,YM55,6# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20007 |
CM5#,6#,KM51,YM55,6# |
1 | ||
| 90430-20007 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 90430-20007 |
CM65..TS;CM5#,60,61,KM51,YM55,6# |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-13020 |
CM50,51,55,60,65,KM5#,YM55,6# |
1 | ||
| 77178-20010 |
CM51,55,60,65,KM51,YM55,6# |
1 | ||
| 77178-20010 |
CM65..TS;CM51,55,60,KM51,YM55,6# |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-14030 |
CM50,51,55,60,65,KM5#,YM55,6# |
1 | ||
| 77179-14030 |
CM65..TS;CM51,55,60,KM51,YM55,6# |
1 | ||
| 77179-14030 |
CM51,55,60,65,KM51,YM55,6# |
1 | ||
| 77179-14030 |
CM65..TS;CM51,55,60,KM51,YM55,6# |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-27170 |
CM50,51,55,60,65,KM5#,YM55,6# |
1 | ||
| 77201-27170 |
CM65..TS;CM51,55,60,KM51,YM55,6# |
1 | ||
| 77201-27170 |
CM51,55,60,65,KM51,YM55,6# |
1 | ||
| 77201P - PIPE SUB-ASSY, FUEL TANK INLET, NO.2 | ||||
| 77201-27180 |
CM51,55,60,65,KM51,YM55,6# |
1 | ||
| 77201-27180 |
CM50,51,55,60,65,KM5#,YM55,6# |
1 | ||
| 77201-27180 |
CM65..TS;CM51,55,60,KM51,YM55,6# |
1 | ||
| 77202 - TUBE SUB-ASSY, BREATHER | ||||
| 77203-27181 |
CM65..TS;CM51,55,60,KM51,YM55,6# |
1 | ||
| 77203-27181 |
CM51,55,60,65,KM51,YM55,6# |
1 | ||
| 77203-27180 |
CM5#,6#,KM5#,YM55,60 |
1 | ||
| 77203-27181 |
CM51,55,60,65,KM5#,YM55,6# |
1 | ||
| 77202A - HOSE, FUEL, NO.1 (FOR BREATHER TUBE) | ||||
| 77259-27220 |
CM65..TS;CM51,55,60,KM51,YM55,6# |
1 | ||
| 77259-27220 |
CM50,51,55,60,65,KM5#,YM55,6# |
1 | ||
| 77259-27220 |
CM51,55,60,65,KM51,YM55,6# |
1 | ||
| 77202B - HOSE, FUEL, NO.2 (FOR BREATHER TUBE) | ||||
| 90445-22011 |
CM5#,6#,KM5#,YM55,60 長さ=220 |
1 | ||
| 90445-22002 |
CM51,55,60,65,KM51,YM55,6# 長さ=200 |
1 | ||
| 90445-22002 |
CM65..TS;CM51,55,60,KM51,YM55,6# 長さ=200 |
1 | ||
| 90445-22002 |
CM51,55,60,65,KM5#,YM55,6# 長さ=200 |
1 | ||
| 90445-22021 |
CM5#,6#,KM5#,YM55,60 長さ=230 |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77017-27150 |
KM5#,YM55,6# |
1 | ||
| 77017-27160 |
CM50,51,55,60,65 |
1 | ||
| 77017-27160 |
CM65..TS;CM51,55,60 |
1 | ||
| 77017-27160 |
CM51,55,60,65 |
1 | ||
| 77206G - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14020 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 77169-14020 |
CM65..TS;CM5#,60,61,KM51,YM55,6# |
1 | ||
| 77169-14020 |
CM5#,6#,KM51,YM55,6# |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-12131 |
CM51,55,60,65,KM51,YM55,6# 長さ=227 |
1 | ||
| 77213-12131 |
CM65..TS;CM51,55,60,KM51,YM55,6# 長さ=227 |
1 | ||
| 77213-12131 |
CM50,51,55,60,65,KM5#,YM55,6# 長さ=227 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-27050 |
CM50,51,55,60,65,KM5#,YM55,6# |
1 | ||
| 77213-27050 |
CM65..TS;CM51,55,60,KM51,YM55,6# |
1 | ||
| 77213-27050 |
CM51,55,60,65,KM51,YM55,6# |
1 | ||
| 77251 - SHIELD, FUEL TANK, INLET, NO.1 | ||||
| 77251-10010 |
CM65..TS;CM51,55,60,KM51,YM55,6# |
1 | ||
| 77251-10010 |
CM50,51,55,60,65,KM5#,YM55,6# |
1 | ||
| 77251-10010 |
CM51,55,60,65,KM51,YM55,6# |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77305-95701 |
CM65..TS;CM5#,60,61,KM51,YM55,6# |
1 | ||
| 77305-95701 |
CM5#,6#,KM51,YM55,6# |
1 | ||
| 77305-95701 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 77305-95700 |
CM5#,6#,KM5#,YM55,60 |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77305-95701 |
CM65..TS;CM5#,60,61,KM51,YM55,6# |
1 | ||
| 77305-95701 |
CM5#,6#,KM51,YM55,6# |
1 | ||
| 77305-95701 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 77305-95700 |
CM5#,6#,KM5#,YM55,60 |
1 | ||
| 77358A - STOPPER, FUEL FILLER OPENING LID | ||||
| 77358-87001 |
CM51,55,60,65,KM51,YM55,6# |
1 | ||
| 77358-87001 |
CM50,51,55,60,65,KM5#,YM55,6# |
1 | ||
| 77358-87001 |
CM65..TS;CM51,55,60,KM51,YM55,6# |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-95700 |
CM5#,6#,KM5#,YM55,60 |
1 | ||
| 77366-95702 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 77360-95701 |
CM5#,6#,KM5#,YM55,60 |
1 | ||
| 77366-95702 |
CM5#,6#,KM51,YM55,6# |
1 | ||
| 77366-95702 |
CM65..TS;CM5#,60,61,KM51,YM55,6# |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-95700 |
CM5#,6#,KM5#,YM55,60 |
1 | ||
| 77366-95702 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 77360-95701 |
CM5#,6#,KM5#,YM55,60 |
1 | ||
| 77366-95702 |
CM5#,6#,KM51,YM55,6# |
1 | ||
| 77366-95702 |
CM65..TS;CM5#,60,61,KM51,YM55,6# |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
CM51,55,60,65,KM51,YM55,6# |
1 | ||
| 77380-26010 |
CM65..TS;CM51,55,60,KM51,YM55,6# |
1 | ||
| 77612 - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77511-27050 |
CM50,51,55,60,65,KM5#,YM55,6# FRONT |
1 | ||
| 77512-27020 |
CM5#,6#,KM5#,YM55,60 RR |
1 | ||
| 77511-27050 |
CM65..TS;CM51,55,60,KM51,YM55,6# FRONT |
1 | ||
| 77512-27020 |
CM50,51,55,60,65,KM5#,YM55,6# REAR |
1 | ||
| 77511-27050 |
CM51,55,60,65,KM51,YM55,6# FRONT |
1 | ||
| 77512-27020 |
CM51,55,60,65,KM51,YM55,6# REAR |
1 | ||
| 77511-27050 |
CM5#,6#,KM5#,YM55,60 FR |
1 | ||
| 77512-27020 |
CM65..TS;CM51,55,60,KM51,YM55,6# REAR |
1 | ||
| 77612 - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77511-27050 |
CM50,51,55,60,65,KM5#,YM55,6# FRONT |
1 | ||
| 77512-27020 |
CM5#,6#,KM5#,YM55,60 RR |
1 | ||
| 77511-27050 |
CM65..TS;CM51,55,60,KM51,YM55,6# FRONT |
1 | ||
| 77512-27020 |
CM50,51,55,60,65,KM5#,YM55,6# REAR |
1 | ||
| 77511-27050 |
CM51,55,60,65,KM51,YM55,6# FRONT |
1 | ||
| 77512-27020 |
CM51,55,60,65,KM51,YM55,6# REAR |
1 | ||
| 77511-27050 |
CM5#,6#,KM5#,YM55,60 FR |
1 | ||
| 77512-27020 |
CM65..TS;CM51,55,60,KM51,YM55,6# REAR |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-27040 |
CM60,65,YM6# |
1 | ||
| 77641-27030 |
CM65..TS;CM51,55,60,KM51,YM55,6# |
1 | ||
| 77641-27040 |
CM65..TS;CM60,YM6# |
1 | ||
| 77641-27030 |
CM51,55,60,65,KM51,YM55,6# |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-27040 |
CM60,65,YM6# |
1 | ||
| 77641-27030 |
CM65..TS;CM51,55,60,KM51,YM55,6# |
1 | ||
| 77641-27040 |
CM65..TS;CM60,YM6# |
1 | ||
| 77641-27030 |
CM51,55,60,65,KM51,YM55,6# |
1 | ||
| Common parts | ||||
| 82817-27020 | ||||
| 90119-06306 | ||||
| 90119-08086 | ||||
| 90119-08796 | ||||
| 90159-40155 | ||||
| 90164-50048 | ||||
| 90182-10002 | ||||
| 90460-22001 | ||||
| 90460-65002 | ||||
| 90463-05028 | ||||
| 90467-0501401 | ||||
| 90467-08043 | ||||
| 90480-28002 | ||||
| 90541-06033 | ||||
| 90950-03145 | ||||
| 91651-40616 | ||||
| 91655-40616 | ||||
| 93319-14010 | ||||
| 93381-15010 | ||||
| 93385-16014 | ||||

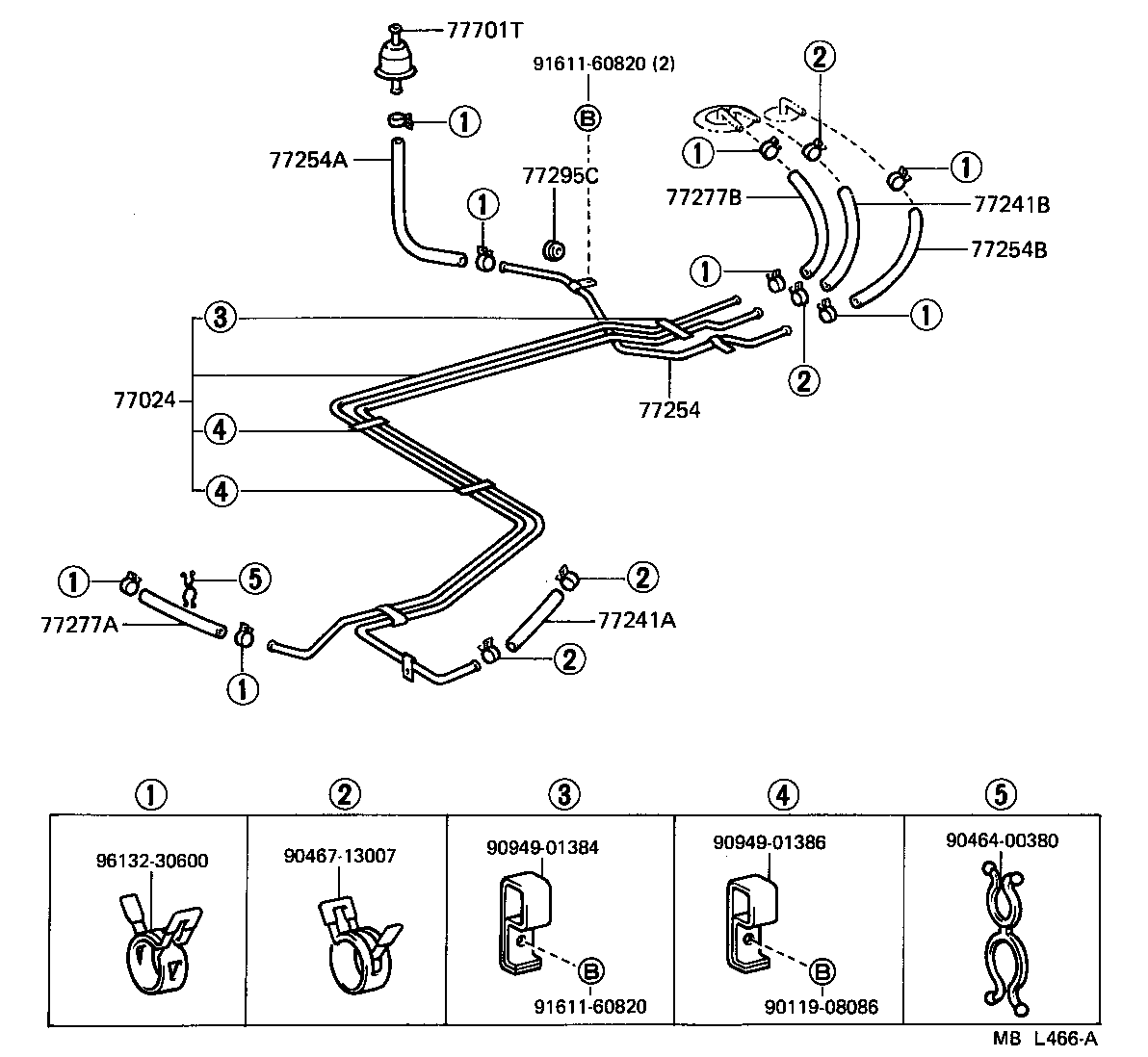

ILLUST NO. 2 OF 2(8610- )CM50,51,55,60,65
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77024 - TUBE SUB-ASSY, FUEL MAIN & RETURN, FRONT | ||||
| 77024-27030 |
CM5#,6# |
1 | ||
| 77024-27031 |
CM51,55,60,65 |
1 | ||
| 77024-27020 |
KM5#,YM55,6# |
1 | ||
| 77024-27031 |
CM51,55,60,65 |
1 | ||
| 77024-27031 |
CM65..TS;CM51,55,60 |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08040 |
CM5#,6# *H,L=320,内径=7.6 |
1 | ||
| 95333-06030 |
KM5#,YM55,6# *H,L=280 |
1 | ||
| 95332-06030 |
KM5#,YM55,60 *H,L=280 |
1 | ||
| 95333-08032 |
CM5#,6# *H,L=320 |
1 | ||
| 95333-08040 |
CM5#,6# *H,L=320 |
1 | ||
| 95333-06028 |
KM5#,YM55,60 *H,L=280 |
1 | ||
| 95333-08030 |
CM5#,6# *H,L=240,内径=7.6 |
1 | ||
| 95333-08030 |
CM65..TS;CM5#,60,61 *H,L=240,内径=7.6 |
1 | ||
| 95333-08030 |
CM5#,6# *H,L=240,内径=7.6 |
1 | ||
| 95333-08040 |
CM5#,6# *H,L=320 |
1 | ||
| 95333-06030 |
KM5#,YM55,60 *H,L=280 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95333-08020 |
CM5#,6# 長さ=200,内径=8 |
1 | ||
| 95333-06020 |
KM5#,YM55,6# *H,L=180 |
1 | ||
| 95332-08020 |
CM5#,6# *H,L=200,内径=7.6 |
1 | ||
| 95333-08020 |
CM50,51,55,60,65 長さ=200,内径=8 |
1 | ||
| 95333-06018 |
KM5#,YM55,60 *H,L=180 |
1 | ||
| 95333-08020 |
CM51,55,60,65 長さ=200,内径=8 |
1 | ||
| 95333-08020 |
CM65..TS;CM51,55,60 長さ=200,内径=8 |
1 | ||
| 95333-06020 |
KM5#,YM55,60 *H,L=180 |
1 | ||
| 95332-06020 |
KM5#,YM55,60 *H,L=180 |
1 | ||
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77027-27030 |
CM65..TS;CM51,55,60 |
1 | ||
| 77027-27020 |
KM5#,YM55,60 |
1 | ||
| 77027-27021 |
KM5#,YM55,6# |
1 | ||
| 77027-27030 |
CM50,51,55,60,65 |
1 | ||
| 77027-27030 |
CM51,55,60,65 |
1 | ||
| 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) | ||||
| 95332-06030 |
KM5#,YM55,60 *H,L=240 |
1 | ||
| 95332-06020 |
CM5#,6# *H,L=130 |
1 | ||
| 95333-06030 |
KM5#,YM55,60 *H,L=240 |
1 | ||
| 95333-06020 |
CM5#,6# *H,L=130 |
1 | ||
| 95333-06020 |
CM51,55,60,65,KM51,YM55,6# *H,L=130 |
1 | ||
| 95333-06020 |
CM5#,6# *H,L=130 |
1 | ||
| 95333-06030 |
KM5#,YM55,60 *H,L=240 |
1 | ||
| 95333-06020 |
CM51,55,60,65,KM5#,YM55,6# *H,L=130 |
1 | ||
| 95333-06020 |
CM65..TS;CM51,55,60,KM51,YM55,6# *H,L=130 |
1 | ||
| 77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1) | ||||
| 95333-06020 |
CM5#,6#,KM5#,YM55,60 *H,L=180 |
1 | ||
| 95333-06020 |
CM50,51,55,60,65,KM5#,YM55,6# *H,L=180 |
1 | ||
| 95333-06020 |
CM65..TS;CM51,55,60,KM51,YM55,6# *H,L=180 |
1 | ||
| 95332-06020 |
CM5#,6#,KM5#,YM55,60 *H,L=180 |
1 | ||
| 95333-06018 |
CM5#,6#,KM5#,YM55,60 *H,L=180 |
1 | ||
| 95333-06020 |
CM51,55,60,65,KM51,YM55,6# *H,L=180 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 90447-11012 |
YM55,6# 長さ=460 |
1 | ||
| 90447-12073 |
CM5#,6# 長さ=480 |
1 | ||
| 90447-12073 |
CM5#,60,61;CM65..JL..TS 長さ=480 |
1 | ||
| 90447-12073 |
CM5#,6# 長さ=480 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95332-04020 |
KM5#,YM55,60 *H,L=180 |
1 | ||
| 95333-06020 |
CM51,55,60,65 *H,L=180 |
1 | ||
| 95333-06020 |
CM50,51,55,60,65 *H,L=180 |
1 | ||
| 95333-04018 |
KM5#,YM55,60 *H,L=180 |
1 | ||
| 95333-06020 |
CM5#,6# *H,L=180 |
1 | ||
| 95333-06018 |
CM5#,6# *H,L=180 |
1 | ||
| 95332-06020 |
CM5#,6# *H,L=180 |
1 | ||
| 95333-04020 |
KM5#,YM55,6# *H,L=180 |
1 | ||
| 95333-04020 |
KM5#,YM55,60 *H,L=180 |
1 | ||
| 95333-06020 |
CM65..TS;CM51,55,60 *H,L=180 |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-27010 |
CM51,55,60,65 |
1 | ||
| 77295-27010 |
CM50,51,55,60,65 |
1 | ||
| 77295-27010 |
CM65..TS;CM51,55,60 |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10067 |
CM65..TS;CM51,55,60 |
1 | ||
| 90917-10067 |
CM51,55,60,65 |
1 | ||
| 90917-10067 |
CM50,51,55,60,65 |
1 | ||
| Common parts | ||||
| 90119-08086 | ||||
| 90464-00380 | ||||
| 90467-13007 | ||||
| 90949-01384 | ||||
| 90949-01386 | ||||
| 91611-60820 | ||||
| 96132-30600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
