Toyota Lite/townace truck CM60 BATTERY & BATTERY CABLE

CM60-TBQDS (1986)

Toyota Lite/Townace Truck

Production Oct 1986 - Jun 1999

Engine 2C

Transmission 5H MTM

Displacement 2500cc

Power 168 HP (125 kW)

(8610- )

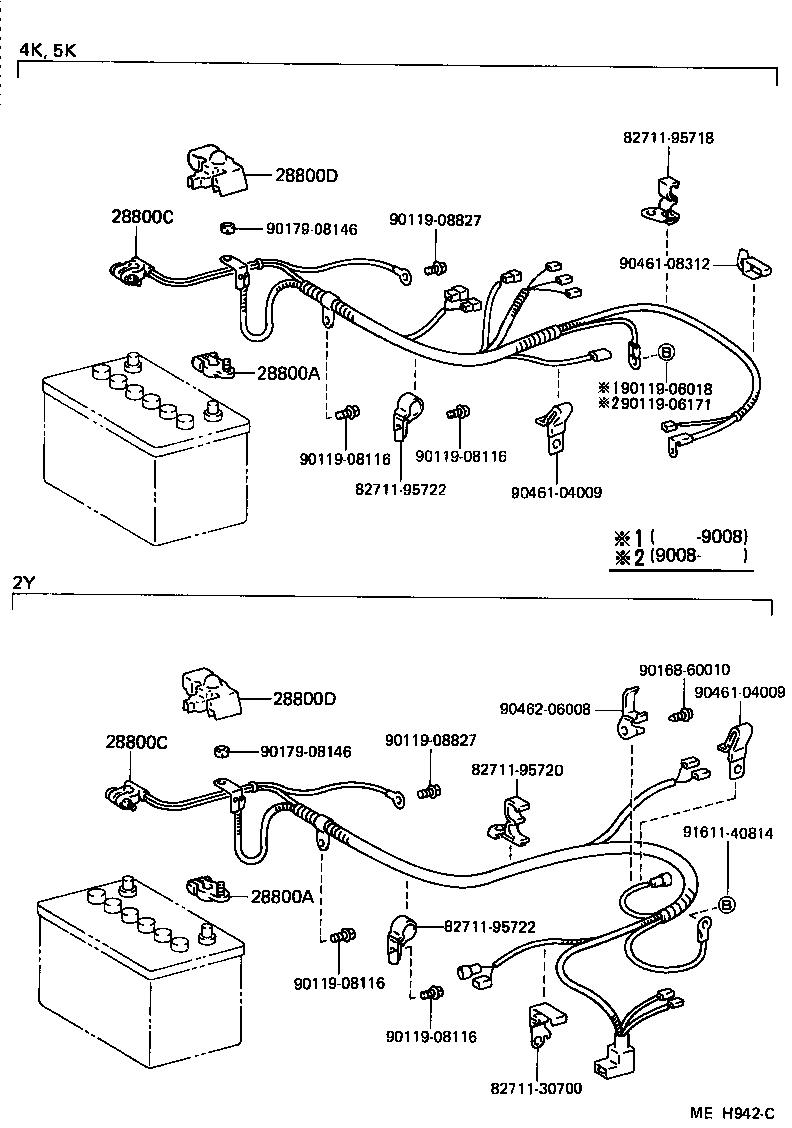

Click highlighted areas on diagram

Part #	Description	Period	Qty
28800A - TERMINAL, BATTERY POSITIVE
90982-05030	2C..CM65..TS;2C..CM5#,60,61	10/1993 - 08/1995	1
90982-05030	1C,2C..CM5#,6#	10/1986 - 10/1993	1
90982-05035	2C..CM65..TS;2C..CM5#,60,61	08/1995 - 11/1996	1
90982-05035	2C..CM5#,6#	11/1996 - 12/2999	1
28800A - TERMINAL, BATTERY POSITIVE
90982-05030	2C..CM65..TS;2C..CM5#,60,61	10/1993 - 08/1995	1
90982-05030	1C,2C..CM5#,6#	10/1986 - 10/1993	1
90982-05035	2C..CM65..TS;2C..CM5#,60,61	08/1995 - 11/1996	1
90982-05035	2C..CM5#,6#	11/1996 - 12/2999	1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82122-95722	1C,2C..CM50,55,6#..5H	10/1986 - 08/1987	1
82122-95758	1C,2C..CM50,55,6#..5H	08/1987 - 08/1988	1
82122-95778	1C,2C..CM50,55,6#..5H	08/1988 - 10/1989	1
82122-95G02	2C..CM5#,6#..5H	10/1989 - 10/1991	1
82122-27080	2C..CM5#,6#..5H ｶﾝﾚｲﾁｼﾖｳ & ﾕｷｸﾞﾆｼﾖｳ	10/1991 - 10/1993	1
82122-95G04	2C..CM5#,6#..5H ｶﾝﾚｲﾁｼﾖｳ & ﾕｷｸﾞﾆｼﾖｳ	10/1989 - 10/1991	1
82122-27060	2C..CM5#,6#..5H	10/1991 - 10/1993	1
82122-27061	2C..CM65..TS;2C..CM5#,60,61..5H	10/1993 - 08/1995	1
82122-27081	2C..CM65..TS;2C..CM5#,60,61..5H ｶﾝﾚｲﾁｼﾖｳ & ﾕｷｸﾞﾆｼﾖｳ	10/1993 - 08/1995	1
82122-27082	2C..CM65..TS;2C..CM5#,60,61..5H ｶﾝﾚｲﾁｼﾖｳ & ﾕｷｸﾞﾆｼﾖｳ	08/1995 - 11/1996	1
82122-27062	2C..CM65..TS;2C..CM5#,60,61..5H	08/1995 - 11/1996	1
82122-27062	2C..CM5#,6#..5H	11/1996 - 12/2999	1
82122-27082	2C..CM5#,6#..5H ｶﾝﾚｲﾁｼﾖｳ & ﾕｷｸﾞﾆｼﾖｳ	11/1996 - 12/2999	1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82122-95722	1C,2C..CM50,55,6#..5H	10/1986 - 08/1987	1
82122-95758	1C,2C..CM50,55,6#..5H	08/1987 - 08/1988	1
82122-95778	1C,2C..CM50,55,6#..5H	08/1988 - 10/1989	1
82122-95G02	2C..CM5#,6#..5H	10/1989 - 10/1991	1
82122-27080	2C..CM5#,6#..5H ｶﾝﾚｲﾁｼﾖｳ & ﾕｷｸﾞﾆｼﾖｳ	10/1991 - 10/1993	1
82122-95G04	2C..CM5#,6#..5H ｶﾝﾚｲﾁｼﾖｳ & ﾕｷｸﾞﾆｼﾖｳ	10/1989 - 10/1991	1
82122-27060	2C..CM5#,6#..5H	10/1991 - 10/1993	1
82122-27061	2C..CM65..TS;2C..CM5#,60,61..5H	10/1993 - 08/1995	1
82122-27081	2C..CM65..TS;2C..CM5#,60,61..5H ｶﾝﾚｲﾁｼﾖｳ & ﾕｷｸﾞﾆｼﾖｳ	10/1993 - 08/1995	1
82122-27082	2C..CM65..TS;2C..CM5#,60,61..5H ｶﾝﾚｲﾁｼﾖｳ & ﾕｷｸﾞﾆｼﾖｳ	08/1995 - 11/1996	1
82122-27062	2C..CM65..TS;2C..CM5#,60,61..5H	08/1995 - 11/1996	1
82122-27062	2C..CM5#,6#..5H	11/1996 - 12/2999	1
82122-27082	2C..CM5#,6#..5H ｶﾝﾚｲﾁｼﾖｳ & ﾕｷｸﾞﾆｼﾖｳ	11/1996 - 12/2999	1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-95702	2C,5K,2Y..CM5#,6#,KM51,YM55,6#	11/1996 - 12/2999	1
82821-95702	2C..CM65..TS;2C,5K,2Y..CM5#,60,61,KM51,YM55,6#	10/1993 - 11/1996	1
82821-95702	1C,2C,4K,5K,2Y..CM5#,6#,KM5#,YM55,6#	10/1986 - 10/1993	1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-95702	2C,5K,2Y..CM5#,6#,KM51,YM55,6#	11/1996 - 12/2999	1
82821-95702	2C..CM65..TS;2C,5K,2Y..CM5#,60,61,KM51,YM55,6#	10/1993 - 11/1996	1
82821-95702	1C,2C,4K,5K,2Y..CM5#,6#,KM5#,YM55,6#	10/1986 - 10/1993	1
Common parts
82711-30700
82711-95718
82711-95720
82711-95722
90119-06018
90119-06171
90119-08116
90119-08827
90168-60010
90179-08146
90461-04009
90461-08312
90462-06008
91611-40814

(8610- )

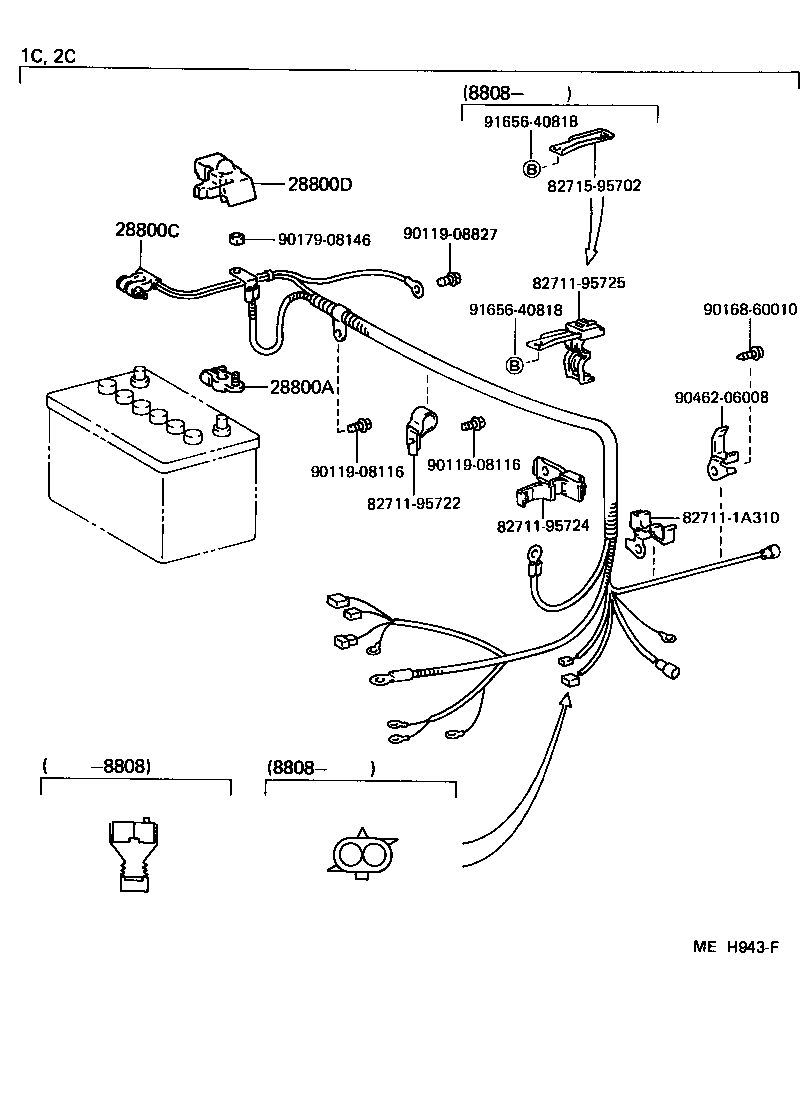

Click highlighted areas on diagram

Part #	Description	Period	Qty
28800A - TERMINAL, BATTERY POSITIVE
90982-05030	2C..CM65..TS;2C..CM5#,60,61	10/1993 - 08/1995	1
90982-05030	1C,2C..CM5#,6#	10/1986 - 10/1993	1
90982-05035	2C..CM65..TS;2C..CM5#,60,61	08/1995 - 11/1996	1
90982-05035	2C..CM5#,6#	11/1996 - 12/2999	1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82122-95722	1C,2C..CM50,55,6#..5H	10/1986 - 08/1987	1
82122-95758	1C,2C..CM50,55,6#..5H	08/1987 - 08/1988	1
82122-95778	1C,2C..CM50,55,6#..5H	08/1988 - 10/1989	1
82122-95G02	2C..CM5#,6#..5H	10/1989 - 10/1991	1
82122-27080	2C..CM5#,6#..5H ｶﾝﾚｲﾁｼﾖｳ & ﾕｷｸﾞﾆｼﾖｳ	10/1991 - 10/1993	1
82122-95G04	2C..CM5#,6#..5H ｶﾝﾚｲﾁｼﾖｳ & ﾕｷｸﾞﾆｼﾖｳ	10/1989 - 10/1991	1
82122-27060	2C..CM5#,6#..5H	10/1991 - 10/1993	1
82122-27061	2C..CM65..TS;2C..CM5#,60,61..5H	10/1993 - 08/1995	1
82122-27081	2C..CM65..TS;2C..CM5#,60,61..5H ｶﾝﾚｲﾁｼﾖｳ & ﾕｷｸﾞﾆｼﾖｳ	10/1993 - 08/1995	1
82122-27082	2C..CM65..TS;2C..CM5#,60,61..5H ｶﾝﾚｲﾁｼﾖｳ & ﾕｷｸﾞﾆｼﾖｳ	08/1995 - 11/1996	1
82122-27062	2C..CM65..TS;2C..CM5#,60,61..5H	08/1995 - 11/1996	1
82122-27062	2C..CM5#,6#..5H	11/1996 - 12/2999	1
82122-27082	2C..CM5#,6#..5H ｶﾝﾚｲﾁｼﾖｳ & ﾕｷｸﾞﾆｼﾖｳ	11/1996 - 12/2999	1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-95702	2C,5K,2Y..CM5#,6#,KM51,YM55,6#	11/1996 - 12/2999	1
82821-95702	2C..CM65..TS;2C,5K,2Y..CM5#,60,61,KM51,YM55,6#	10/1993 - 11/1996	1
82821-95702	1C,2C,4K,5K,2Y..CM5#,6#,KM5#,YM55,6#	10/1986 - 10/1993	1
Common parts
82711-1A310
82711-95722
82711-95724
82711-95725
82715-95702
90119-08116
90119-08827
90168-60010
90179-08146
90462-06008
91656-40818

CM60-TBQDS (1986)

(8610- )

(8610- )
