CM60-TBQDS (1986)

Toyota Lite/Townace Truck

Production Oct 1986 - Jun 1999
Engine 2C
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8610- )CM50,51,55,60,65,KM5#,YM55,6#

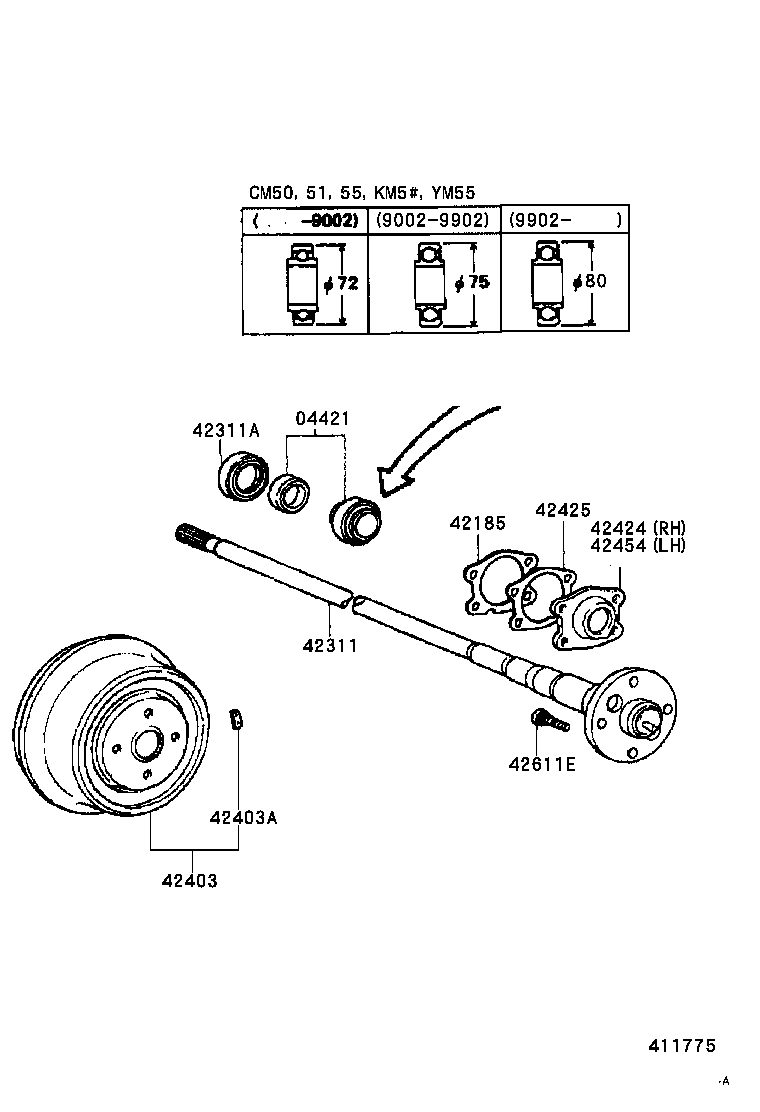

Click highlighted areas on diagram

diagram 04421 42185 42311 42311A 42403 42403A 42424 42425 42454 42611E
Part # Description Qty Price
04421 - BEARING KIT, REAR AXLE SHAFT
04421-30030

CM60,65,YM6#

 2
04421-30030

CM65..TS;CM60,YM6#

 2
04421-30031

CM60,65,YM6#

 2
04421-30030

CM60,65,YM6#

 2
42185 - GASKET, REAR AXLE HOUSING END
42185-30061

CM60,65,YM6#

 2
42185-30061

CM60,65,YM6#

 2
42185-30061

CM65..TS;CM60,YM6#

 2
42185-30061

CM51,55,60,65,KM51,YM55,6#

 2
42311 - SHAFT, REAR AXLE
42311-28031

CM60,65,YM6#

 2
42311-28030

CM6#,YM6#

 2
42311-28031

CM65..TS;CM60,YM6#

 2
42311-28031

CM60,65,YM6#

 2
42311A - SEAL, OIL (FOR REAR AXLE SHAFT)
90311-52059

CM51,55,60,65,KM51,YM55,6#

 2
90311-52059

CM50,51,55,60,65,KM5#,YM55,6#

 2
90311-52059

CM65..TS;CM51,55,60,KM51,YM55,6#

 2
42403 - DRUM SUB-ASSY, REAR BRAKE
42431-28030

CM60,65,YM6#

 2
42431-28030

CM65..TS;CM60,YM6#

 2
42431-28030

CM60,65,YM6#

 2
42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM)
90937-01118

CM6#,YM60

20G,20G

 1
90937-01119

CM6#,YM60

30G,30G

 1
90937-01117

CM6#,YM60

10G,10G

 1
90937-01118

CM52,6#,YM6#

20G

 2
90937-01117

CM52,6#,YM6#

10G

 2
90937-01119

CM65..TS;CM52,60,61,YM6#

30G

 2
90937-01118

CM65..TS;CM52,60,61,YM6#

20G

 2
90937-01119

CM52,6#,YM6#

30G

 2
90937-01117

CM52,6#,YM6#

10G

 2
90937-01118

CM52,6#,YM6#

20G

 2
90937-01117

CM65..TS;CM52,60,61,YM6#

10G

 2
90937-01119

CM52,6#,YM6#

30G

 2
42424 - RETAINER, REAR AXLE BEARING, OUTER, RH
42424-30040

CM65..TS;CM60,YM6#

 1
42424-30040

CM51,55,60,65,KM51,YM55,6#

 1
42424-30040

CM60,65,YM6#

 1
42424-30040

CM60,65,YM6#

 1
42425 - GASKET, REAR AXLE BEARING RETAINER
42425-30031

CM65..TS;CM60,YM6#

 2
42425-30031

CM60,65,YM6#

 2
42425-30031

CM60,65,YM6#

 2
42425-30031

CM51,55,60,65,KM51,YM55,6#

 2
42454 - RETAINER, REAR AXLE BEARING, OUTER, LH
42424-30040

CM65..TS;CM60,YM6#

 1
42424-30040

CM60,65,YM6#

 1
42424-30040

CM51,55,60,65,KM51,YM55,6#

 1
42424-30040

CM60,65,YM6#

 1
42611E - BOLT, HUB (FOR REAR AXLE)
90942-02047

CM60,65,YM6#

 10
90942-02047

CM65..TS;CM60,YM6#

 10
90942-02047

CM60,65,YM6#

 10
90942-02047

CM5#,6#,KM5#,YM55,60

 10
