CM55-TWQDS (1989)

Toyota Lite/Townace Truck

Production Oct 1989 - Jun 1999
Engine 2C
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

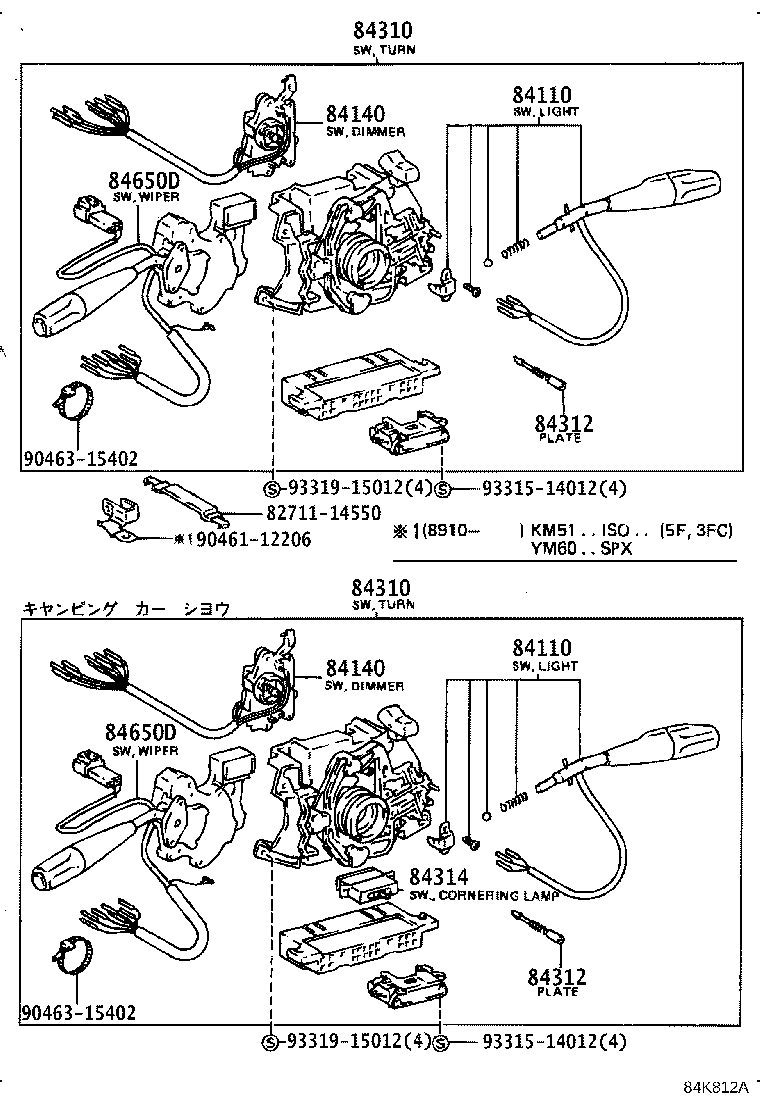

ILLUST NO. 4 OF 8(8610-9611)

Click highlighted areas on diagram

diagram 8271114550 84110 84110 84140 84140 84310 84310 84312 84312 84314 84650D 84650D 9046112206 9046315402 9046315402 9331514012 9331514012 9331915012 9331915012
Part # Description Qty Price
84110 - SWITCH ASSY, LIGHT CONTROL, NO.1
84112-29585

CM65..TS;CM5#,60,61,KM51,YM55,6#..DX

 1
84112-29585

CM5#,6#,KM5#,YM55,60

 1
84112-29585

CM5#,6#,KM5#,YM55,6#..DX

 1
84110 - SWITCH ASSY, LIGHT CONTROL, NO.1
84112-29585

CM65..TS;CM5#,60,61,KM51,YM55,6#..DX

 1
84112-29585

CM5#,6#,KM5#,YM55,60

 1
84112-29585

CM5#,6#,KM5#,YM55,6#..DX

 1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-27020

CM65..TS;CM5#,60,61,KM51,YM55,6#..DX

 1
84140-27020

CM5#,6#,KM5#,YM55,6#..DX

 1
84140-27020

CM5#,6#,KM5#,YM55,60

 1
84140-12380

CM5#,6#,KM51,YM55,6#

 1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-27020

CM65..TS;CM5#,60,61,KM51,YM55,6#..DX

 1
84140-27020

CM5#,6#,KM5#,YM55,6#..DX

 1
84140-27020

CM5#,6#,KM5#,YM55,60

 1
84140-12380

CM5#,6#,KM51,YM55,6#

 1
84310 - SWITCH ASSY, TURN SIGNAL
84310-1E050

CM5#,6#,KM51,YM55,6#

 1
84310-27100

CM5#,6#,KM5#,YM55,60

 1
84310-27100

CM5#,6#,KM5#,YM55,6#..DX

 1
84310-27100

CM65..TS;CM5#,60,61,KM51,YM55,6#..DX

 1
84310 - SWITCH ASSY, TURN SIGNAL
84310-1E050

CM5#,6#,KM51,YM55,6#

 1
84310-27100

CM5#,6#,KM5#,YM55,60

 1
84310-27100

CM5#,6#,KM5#,YM55,6#..DX

 1
84310-27100

CM65..TS;CM5#,60,61,KM51,YM55,6#..DX

 1
84312 - PLATE, HORN CONTACT
84312-12050

CM5#,6#,KM51,YM55,6#

 1
84312-20011

CM5#,6#,KM5#,YM55,6#

 1
84312-20011

CM65..TS;CM5#,60,61,KM51,YM55,6#

 1
84312 - PLATE, HORN CONTACT
84312-12050

CM5#,6#,KM51,YM55,6#

 1
84312-20011

CM5#,6#,KM5#,YM55,6#

 1
84312-20011

CM65..TS;CM5#,60,61,KM51,YM55,6#

 1
84650D - SWITCH ASSY, WINDSHIELD WIPER (W/RELAY, WIPER CONTROL)
84652-27080

CM5#,6#,KM5#,YM55,6#..DX

 1
84652-27080

CM5#,6#,KM5#,YM55,60

 1
84652-1A560

CM5#,6#,KM51,YM55,6#

 1
84652-27080

CM65..TS;CM5#,60,61,KM51,YM55,6#..DX

 1
84650D - SWITCH ASSY, WINDSHIELD WIPER (W/RELAY, WIPER CONTROL)
84652-27080

CM5#,6#,KM5#,YM55,6#..DX

 1
84652-27080

CM5#,6#,KM5#,YM55,60

 1
84652-1A560

CM5#,6#,KM51,YM55,6#

 1
84652-27080

CM65..TS;CM5#,60,61,KM51,YM55,6#..DX

 1
Common parts
82711-14550
90461-12206
90463-15402
93315-14012
93319-15012

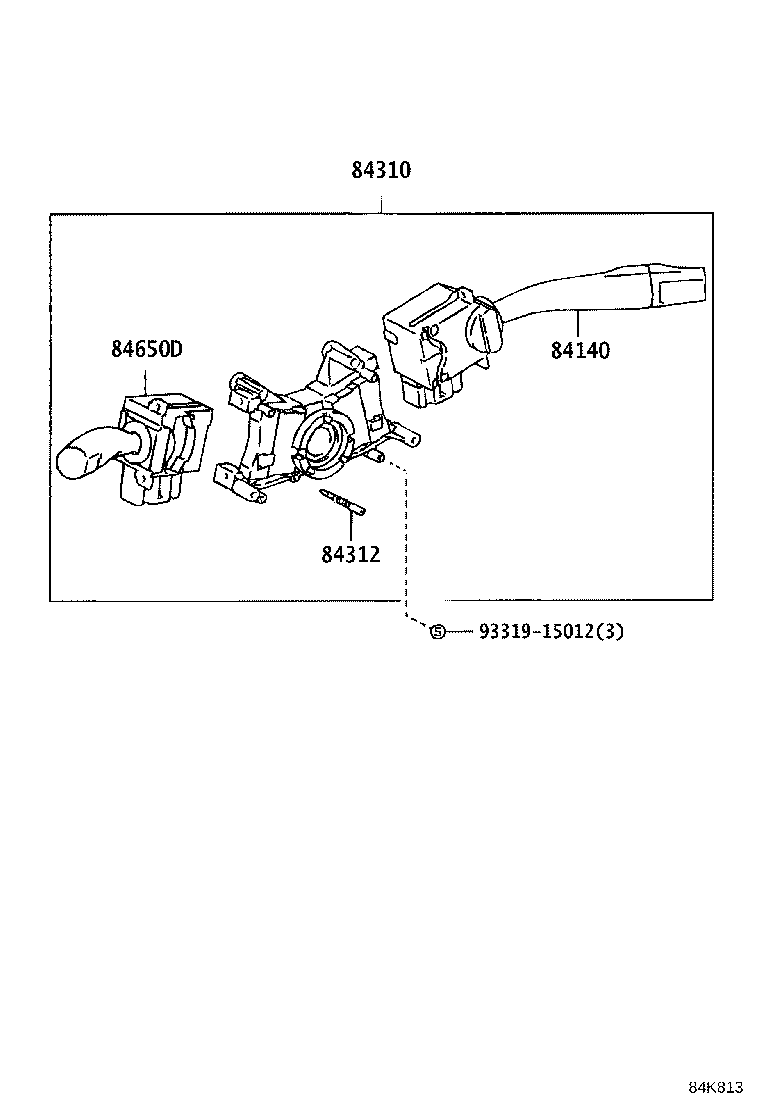

ILLUST NO. 4 OF 8(9611- )

Click highlighted areas on diagram

diagram 84140 84310 84312 84650D 9331915012
Part # Description Qty Price
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-27020

CM65..TS;CM5#,60,61,KM51,YM55,6#..DX

 1
84140-27020

CM5#,6#,KM5#,YM55,6#..DX

 1
84140-27020

CM5#,6#,KM5#,YM55,60

 1
84140-12380

CM5#,6#,KM51,YM55,6#

 1
84310 - SWITCH ASSY, TURN SIGNAL
84310-1E050

CM5#,6#,KM51,YM55,6#

 1
84310-27100

CM5#,6#,KM5#,YM55,60

 1
84310-27100

CM5#,6#,KM5#,YM55,6#..DX

 1
84310-27100

CM65..TS;CM5#,60,61,KM51,YM55,6#..DX

 1
84312 - PLATE, HORN CONTACT
84312-12050

CM5#,6#,KM51,YM55,6#

 1
84312-20011

CM5#,6#,KM5#,YM55,6#

 1
84312-20011

CM65..TS;CM5#,60,61,KM51,YM55,6#

 1
84650D - SWITCH ASSY, WINDSHIELD WIPER (W/RELAY, WIPER CONTROL)
84652-27080

CM5#,6#,KM5#,YM55,6#..DX

 1
84652-27080

CM5#,6#,KM5#,YM55,60

 1
84652-1A560

CM5#,6#,KM51,YM55,6#

 1
84652-27080

CM65..TS;CM5#,60,61,KM51,YM55,6#..DX

 1
Common parts
93319-15012
