CM55-TWQDS (1989)
Toyota Lite/Townace Truck
(8610-9611)
POLYPROPYRENE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-1027003 |
CM65..TS;CM51,55,60,KM51,YM55,6#..DX 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,GRAY,TRIM1# |
1 | ||
| 45100-1027014 |
CM5#,6#,KM5#,YM55,60..DX 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,BLUE,TRIM8# |
1 | ||
| 45100-1027003 |
CM51,55,60,65,KM5#,YM55,6#..DX 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,GRAY,TRIM1# |
1 | ||
| 45100-12720B1 |
CM51,55,60,65,KM51,YM55,6#..DX 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,GRAY,TRIM1# |
1 | ||
| 45100-12760B1 |
CM5#,6#,KM51,YM55,6# 3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,GRAY,TRIM1# |
1 | ||
| 45100-1025014 |
CM5#,6#,KM5#,YM55,60..DX 2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLUE,TRIM8# |
1 | ||
| 45100-1025023 |
CM65..TS;CM5#,60,61,KM51,YM55,6# 2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,GRAY,TRIM1# |
1 | ||
| 45100-1025023 |
CM5#,6#,KM5#,YM55,6# 2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,GRAY,TRIM1# |
1 | ||
| 45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1 | ||||
| 45105-10020 |
CM5#,6#,KM5#,YM55,6# ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ |
1 | ||
| 45105-12200 |
CM51,55,60,65,KM51,YM55,6#..DX ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ |
1 | ||
| 45105-12230 |
CM51,55,60,65,KM51,YM55,6#..DX ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ |
1 | ||
| 45105-10010 |
CM5#,6#,KM5#,YM55,6#..DX ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-2702004 |
CM5#,6#,KM5#,YM55,60..DX ﾗｲﾄ ｴｰｽ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ,BLUE,TRIM8# |
1 | ||
| 45130-2703004 |
CM5#,6#,KM5#,YM55,60..DX ﾗｲﾄ ｴｰｽ,ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ,BLUE,TRIM8# |
1 | ||
| 45130-2707004 |
CM5#,6#,KM5#,YM55,60..DX ﾀｳﾝ ｴｰｽ,ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ,BLUE,TRIM8# |
1 | ||
| 45130-2706004 |
CM5#,6#,KM5#,YM55,60..DX ﾀｳﾝ ｴｰｽ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ,DEEP BLUE,TRIM8# |
1 | ||
| 45130-2703013 |
CM65..TS;CM51,55,60,KM51,YM55,6#..DX ﾗｲﾄ ｴｰｽ,ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ,GRAY,TRIM1# |
1 | ||
| 45130-2702003 |
CM65..TS;CM51,55,60,KM51,YM55,6#..DX ﾗｲﾄ ｴｰｽ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ,GRAY,TRIM1# |
1 | ||
| 45130-2702003 |
CM51,55,60,65,KM5#,YM55,6#..DX ﾗｲﾄ ｴｰｽ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ,GRAY,TRIM1# |
1 | ||
| 45130-12810B1 |
CM51,55,60,65,KM51,YM55,6#..DX ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ,GRAY,TRIM1# |
1 | ||
| 45130-2703013 |
CM51,55,60,65,KM5#,YM55,6#..DX ﾗｲﾄ ｴｰｽ,ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ,GRAY,TRIM1# |
1 | ||
| 45130-2706003 |
CM51,55,60,65,KM5#,YM55,6#..DX ﾀｳﾝ ｴｰｽ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ,GRAY,TRIM1# |
1 | ||
| 45130-2707013 |
CM51,55,60,65,KM5#,YM55,6#..DX ﾀｳﾝ ｴｰｽ,ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ,GRAY,TRIM1# |
1 | ||
| 45130-2707013 |
CM65..TS;CM51,55,60,KM51,YM55,6#..DX ﾀｳﾝ ｴｰｽ,ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ,GRAY,TRIM1# |
1 | ||
| 45130-2706003 |
CM65..TS;CM51,55,60,KM51,YM55,6#..DX ﾀｳﾝ ｴｰｽ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ,GRAY,TRIM1# |
1 | ||
| 45130-12730B1 |
CM51,55,60,65,KM51,YM55,6#..DX ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ,GRAY,TRIM1# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12086 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 90179-12071 |
CM5#,6#,KM51,YM55,6# |
1 | ||
| 90179-12071 |
CM65..TS;CM5#,60,61,KM51,YM55,6# |
1 | ||
| 90179-12071 |
CM5#,6#,KM51,YM55,6# |
1 | ||
| 45207 - RING, HORN CONTACT | ||||
| 45176-35020 |
CM65..TS;CM51,55,60,KM51,YM55,6#..DX |
1 | ||
| 45176-35020 |
CM50,51,55,60,65,KM5#,YM55,6#..DX |
1 | ||
| Common parts | ||||
| 93510-15014 | ||||
(8610-9611)
URETHANE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-1027003 |
CM65..TS;CM51,55,60,KM51,YM55,6#..DX 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,GRAY,TRIM1# |
1 | ||
| 45100-1027014 |
CM5#,6#,KM5#,YM55,60..DX 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,BLUE,TRIM8# |
1 | ||
| 45100-1027003 |
CM51,55,60,65,KM5#,YM55,6#..DX 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,GRAY,TRIM1# |
1 | ||
| 45100-12720B1 |
CM51,55,60,65,KM51,YM55,6#..DX 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,GRAY,TRIM1# |
1 | ||
| 45100-12760B1 |
CM5#,6#,KM51,YM55,6# 3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,GRAY,TRIM1# |
1 | ||
| 45100-1025014 |
CM5#,6#,KM5#,YM55,60..DX 2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLUE,TRIM8# |
1 | ||
| 45100-1025023 |
CM65..TS;CM5#,60,61,KM51,YM55,6# 2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,GRAY,TRIM1# |
1 | ||
| 45100-1025023 |
CM5#,6#,KM5#,YM55,6# 2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,GRAY,TRIM1# |
1 | ||
| 45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1 | ||||
| 45105-10020 |
CM5#,6#,KM5#,YM55,6# ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ |
1 | ||
| 45105-12200 |
CM51,55,60,65,KM51,YM55,6#..DX ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ |
1 | ||
| 45105-12230 |
CM51,55,60,65,KM51,YM55,6#..DX ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ |
1 | ||
| 45105-10010 |
CM5#,6#,KM5#,YM55,6#..DX ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-2702004 |
CM5#,6#,KM5#,YM55,60..DX ﾗｲﾄ ｴｰｽ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ,BLUE,TRIM8# |
1 | ||
| 45130-2703004 |
CM5#,6#,KM5#,YM55,60..DX ﾗｲﾄ ｴｰｽ,ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ,BLUE,TRIM8# |
1 | ||
| 45130-2707004 |
CM5#,6#,KM5#,YM55,60..DX ﾀｳﾝ ｴｰｽ,ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ,BLUE,TRIM8# |
1 | ||
| 45130-2706004 |
CM5#,6#,KM5#,YM55,60..DX ﾀｳﾝ ｴｰｽ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ,DEEP BLUE,TRIM8# |
1 | ||
| 45130-2703013 |
CM65..TS;CM51,55,60,KM51,YM55,6#..DX ﾗｲﾄ ｴｰｽ,ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ,GRAY,TRIM1# |
1 | ||
| 45130-2702003 |
CM65..TS;CM51,55,60,KM51,YM55,6#..DX ﾗｲﾄ ｴｰｽ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ,GRAY,TRIM1# |
1 | ||
| 45130-2702003 |
CM51,55,60,65,KM5#,YM55,6#..DX ﾗｲﾄ ｴｰｽ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ,GRAY,TRIM1# |
1 | ||
| 45130-12810B1 |
CM51,55,60,65,KM51,YM55,6#..DX ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ,GRAY,TRIM1# |
1 | ||
| 45130-2703013 |
CM51,55,60,65,KM5#,YM55,6#..DX ﾗｲﾄ ｴｰｽ,ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ,GRAY,TRIM1# |
1 | ||
| 45130-2706003 |
CM51,55,60,65,KM5#,YM55,6#..DX ﾀｳﾝ ｴｰｽ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ,GRAY,TRIM1# |
1 | ||
| 45130-2707013 |
CM51,55,60,65,KM5#,YM55,6#..DX ﾀｳﾝ ｴｰｽ,ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ,GRAY,TRIM1# |
1 | ||
| 45130-2707013 |
CM65..TS;CM51,55,60,KM51,YM55,6#..DX ﾀｳﾝ ｴｰｽ,ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ,GRAY,TRIM1# |
1 | ||
| 45130-2706003 |
CM65..TS;CM51,55,60,KM51,YM55,6#..DX ﾀｳﾝ ｴｰｽ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ,GRAY,TRIM1# |
1 | ||
| 45130-12730B1 |
CM51,55,60,65,KM51,YM55,6#..DX ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ,GRAY,TRIM1# |
1 | ||
| 45180 - COVER SUB-ASSY, STEERING WHEEL | ||||
| 45180-1601023 |
CM5#,6#,KM5#,YM55,6# ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ,GRAY,TRIM1# |
1 | ||
| 45180-1601014 |
CM5#,6#,KM5#,YM55,60..DX ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ,BLUE,TRIM8# |
1 | ||
| 45180-12170B1 |
CM51,55,60,65,KM51,YM55,6#..DX ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ,GRAY,TRIM1# |
1 | ||
| 45180-12160B1 |
CM51,55,60,65,KM51,YM55,6#..DX ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ,GRAY,TRIM1# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12086 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 90179-12071 |
CM5#,6#,KM51,YM55,6# |
1 | ||
| 90179-12071 |
CM65..TS;CM5#,60,61,KM51,YM55,6# |
1 | ||
| 90179-12071 |
CM5#,6#,KM51,YM55,6# |
1 | ||
| Common parts | ||||
| 93319-14010 | ||||
| 93510-15014 | ||||
| 93540-44016 | ||||

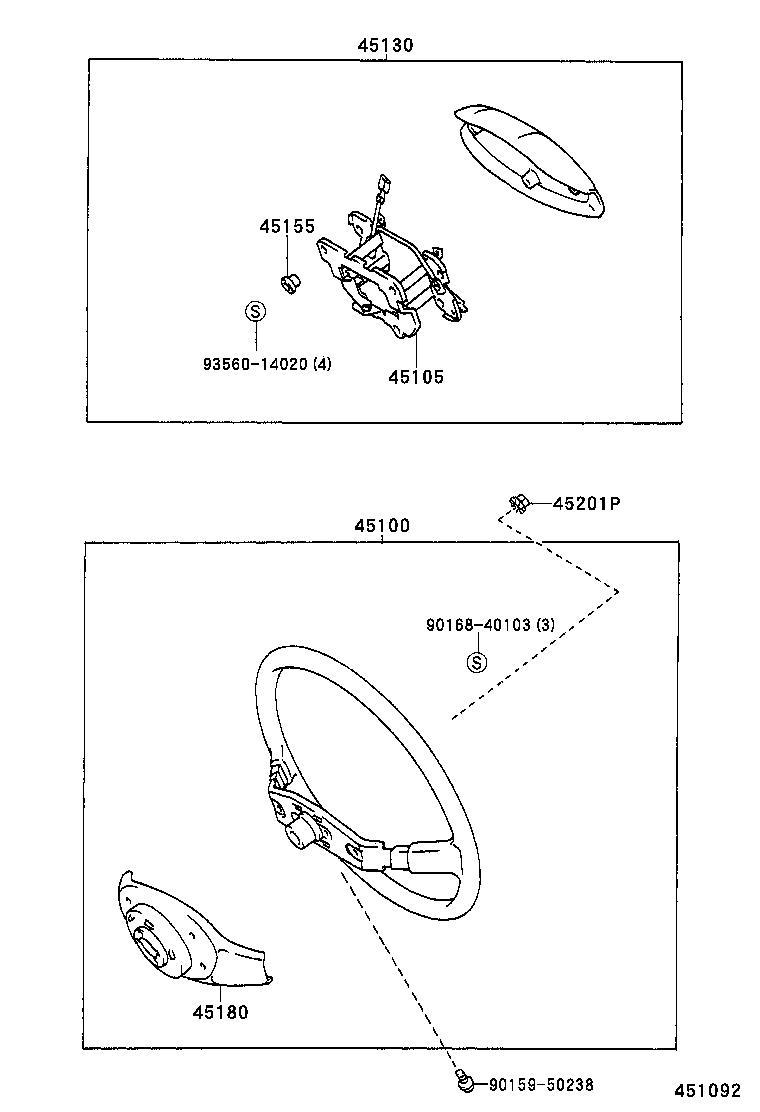

(9611- )
POLYPROPYLENE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-1027003 |
CM65..TS;CM51,55,60,KM51,YM55,6#..DX 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,GRAY,TRIM1# |
1 | ||
| 45100-1027014 |
CM5#,6#,KM5#,YM55,60..DX 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,BLUE,TRIM8# |
1 | ||
| 45100-1027003 |
CM51,55,60,65,KM5#,YM55,6#..DX 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,GRAY,TRIM1# |
1 | ||
| 45100-12720B1 |
CM51,55,60,65,KM51,YM55,6#..DX 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,GRAY,TRIM1# |
1 | ||
| 45100-12760B1 |
CM5#,6#,KM51,YM55,6# 3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,GRAY,TRIM1# |
1 | ||
| 45100-1025014 |
CM5#,6#,KM5#,YM55,60..DX 2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLUE,TRIM8# |
1 | ||
| 45100-1025023 |
CM65..TS;CM5#,60,61,KM51,YM55,6# 2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,GRAY,TRIM1# |
1 | ||
| 45100-1025023 |
CM5#,6#,KM5#,YM55,6# 2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,GRAY,TRIM1# |
1 | ||
| 45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1 | ||||
| 45105-10020 |
CM5#,6#,KM5#,YM55,6# ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ |
1 | ||
| 45105-12200 |
CM51,55,60,65,KM51,YM55,6#..DX ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ |
1 | ||
| 45105-12230 |
CM51,55,60,65,KM51,YM55,6#..DX ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ |
1 | ||
| 45105-10010 |
CM5#,6#,KM5#,YM55,6#..DX ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-2702004 |
CM5#,6#,KM5#,YM55,60..DX ﾗｲﾄ ｴｰｽ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ,BLUE,TRIM8# |
1 | ||
| 45130-2703004 |
CM5#,6#,KM5#,YM55,60..DX ﾗｲﾄ ｴｰｽ,ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ,BLUE,TRIM8# |
1 | ||
| 45130-2707004 |
CM5#,6#,KM5#,YM55,60..DX ﾀｳﾝ ｴｰｽ,ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ,BLUE,TRIM8# |
1 | ||
| 45130-2706004 |
CM5#,6#,KM5#,YM55,60..DX ﾀｳﾝ ｴｰｽ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ,DEEP BLUE,TRIM8# |
1 | ||
| 45130-2703013 |
CM65..TS;CM51,55,60,KM51,YM55,6#..DX ﾗｲﾄ ｴｰｽ,ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ,GRAY,TRIM1# |
1 | ||
| 45130-2702003 |
CM65..TS;CM51,55,60,KM51,YM55,6#..DX ﾗｲﾄ ｴｰｽ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ,GRAY,TRIM1# |
1 | ||
| 45130-2702003 |
CM51,55,60,65,KM5#,YM55,6#..DX ﾗｲﾄ ｴｰｽ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ,GRAY,TRIM1# |
1 | ||
| 45130-12810B1 |
CM51,55,60,65,KM51,YM55,6#..DX ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ,GRAY,TRIM1# |
1 | ||
| 45130-2703013 |
CM51,55,60,65,KM5#,YM55,6#..DX ﾗｲﾄ ｴｰｽ,ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ,GRAY,TRIM1# |
1 | ||
| 45130-2706003 |
CM51,55,60,65,KM5#,YM55,6#..DX ﾀｳﾝ ｴｰｽ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ,GRAY,TRIM1# |
1 | ||
| 45130-2707013 |
CM51,55,60,65,KM5#,YM55,6#..DX ﾀｳﾝ ｴｰｽ,ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ,GRAY,TRIM1# |
1 | ||
| 45130-2707013 |
CM65..TS;CM51,55,60,KM51,YM55,6#..DX ﾀｳﾝ ｴｰｽ,ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ,GRAY,TRIM1# |
1 | ||
| 45130-2706003 |
CM65..TS;CM51,55,60,KM51,YM55,6#..DX ﾀｳﾝ ｴｰｽ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ,GRAY,TRIM1# |
1 | ||
| 45130-12730B1 |
CM51,55,60,65,KM51,YM55,6#..DX ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ,GRAY,TRIM1# |
1 | ||
| 45155 - SPACER, HORN BUTTON CONTACT PLATE | ||||
| 45155-12050 |
CM51,55,60,65,KM51,YM55,6#..DX |
4 | ||
| 45180 - COVER SUB-ASSY, STEERING WHEEL | ||||
| 45180-1601023 |
CM5#,6#,KM5#,YM55,6# ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ,GRAY,TRIM1# |
1 | ||
| 45180-1601014 |
CM5#,6#,KM5#,YM55,60..DX ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ,BLUE,TRIM8# |
1 | ||
| 45180-12170B1 |
CM51,55,60,65,KM51,YM55,6#..DX ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ,GRAY,TRIM1# |
1 | ||
| 45180-12160B1 |
CM51,55,60,65,KM51,YM55,6#..DX ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ,GRAY,TRIM1# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12086 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 90179-12071 |
CM5#,6#,KM51,YM55,6# |
1 | ||
| 90179-12071 |
CM65..TS;CM5#,60,61,KM51,YM55,6# |
1 | ||
| 90179-12071 |
CM5#,6#,KM51,YM55,6# |
1 | ||
| Common parts | ||||
| 90159-50238 | ||||
| 90168-40103 | ||||
| 93560-14020 | ||||

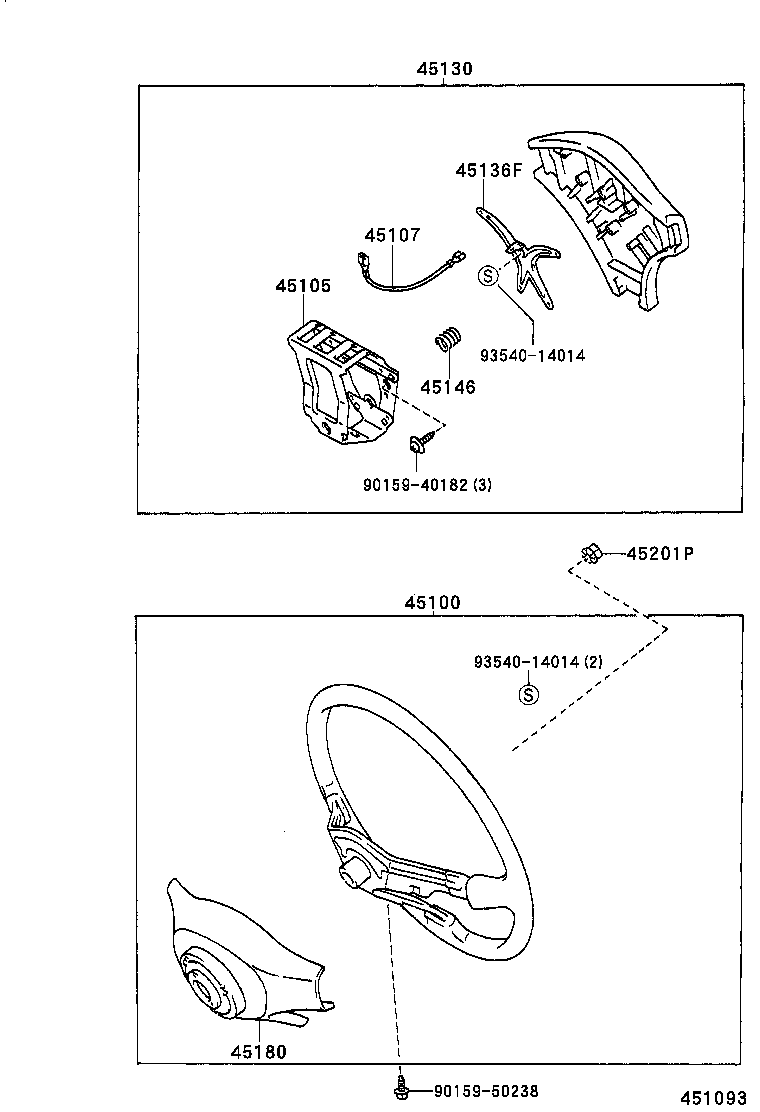

(9611- )
URETHANE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-1027003 |
CM65..TS;CM51,55,60,KM51,YM55,6#..DX 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,GRAY,TRIM1# |
1 | ||
| 45100-1027014 |
CM5#,6#,KM5#,YM55,60..DX 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,BLUE,TRIM8# |
1 | ||
| 45100-1027003 |
CM51,55,60,65,KM5#,YM55,6#..DX 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,GRAY,TRIM1# |
1 | ||
| 45100-12720B1 |
CM51,55,60,65,KM51,YM55,6#..DX 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,GRAY,TRIM1# |
1 | ||
| 45100-12760B1 |
CM5#,6#,KM51,YM55,6# 3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,GRAY,TRIM1# |
1 | ||
| 45100-1025014 |
CM5#,6#,KM5#,YM55,60..DX 2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLUE,TRIM8# |
1 | ||
| 45100-1025023 |
CM65..TS;CM5#,60,61,KM51,YM55,6# 2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,GRAY,TRIM1# |
1 | ||
| 45100-1025023 |
CM5#,6#,KM5#,YM55,6# 2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,GRAY,TRIM1# |
1 | ||
| 45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1 | ||||
| 45105-10020 |
CM5#,6#,KM5#,YM55,6# ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ |
1 | ||
| 45105-12200 |
CM51,55,60,65,KM51,YM55,6#..DX ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ |
1 | ||
| 45105-12230 |
CM51,55,60,65,KM51,YM55,6#..DX ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ |
1 | ||
| 45105-10010 |
CM5#,6#,KM5#,YM55,6#..DX ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ |
1 | ||
| 45107 - WIRE SUB-ASSY, HORN BUTTON | ||||
| 45107-12010 |
CM51,55,60,65,KM51,YM55,6#..DX ｴｷｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-2702004 |
CM5#,6#,KM5#,YM55,60..DX ﾗｲﾄ ｴｰｽ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ,BLUE,TRIM8# |
1 | ||
| 45130-2703004 |
CM5#,6#,KM5#,YM55,60..DX ﾗｲﾄ ｴｰｽ,ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ,BLUE,TRIM8# |
1 | ||
| 45130-2707004 |
CM5#,6#,KM5#,YM55,60..DX ﾀｳﾝ ｴｰｽ,ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ,BLUE,TRIM8# |
1 | ||
| 45130-2706004 |
CM5#,6#,KM5#,YM55,60..DX ﾀｳﾝ ｴｰｽ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ,DEEP BLUE,TRIM8# |
1 | ||
| 45130-2703013 |
CM65..TS;CM51,55,60,KM51,YM55,6#..DX ﾗｲﾄ ｴｰｽ,ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ,GRAY,TRIM1# |
1 | ||
| 45130-2702003 |
CM65..TS;CM51,55,60,KM51,YM55,6#..DX ﾗｲﾄ ｴｰｽ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ,GRAY,TRIM1# |
1 | ||
| 45130-2702003 |
CM51,55,60,65,KM5#,YM55,6#..DX ﾗｲﾄ ｴｰｽ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ,GRAY,TRIM1# |
1 | ||
| 45130-12810B1 |
CM51,55,60,65,KM51,YM55,6#..DX ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ,GRAY,TRIM1# |
1 | ||
| 45130-2703013 |
CM51,55,60,65,KM5#,YM55,6#..DX ﾗｲﾄ ｴｰｽ,ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ,GRAY,TRIM1# |
1 | ||
| 45130-2706003 |
CM51,55,60,65,KM5#,YM55,6#..DX ﾀｳﾝ ｴｰｽ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ,GRAY,TRIM1# |
1 | ||
| 45130-2707013 |
CM51,55,60,65,KM5#,YM55,6#..DX ﾀｳﾝ ｴｰｽ,ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ,GRAY,TRIM1# |
1 | ||
| 45130-2707013 |
CM65..TS;CM51,55,60,KM51,YM55,6#..DX ﾀｳﾝ ｴｰｽ,ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ,GRAY,TRIM1# |
1 | ||
| 45130-2706003 |
CM65..TS;CM51,55,60,KM51,YM55,6#..DX ﾀｳﾝ ｴｰｽ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ,GRAY,TRIM1# |
1 | ||
| 45130-12730B1 |
CM51,55,60,65,KM51,YM55,6#..DX ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ,GRAY,TRIM1# |
1 | ||
| 45136F - PLATE, HORN BUTTON CONTACT, NO.1 | ||||
| 45136-32130 |
CM51,55,60,65,KM51,YM55,6#..DX ｴｷｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 45146 - SPRING, HORN BUTTON CONTACT | ||||
| 45146-32080 |
CM51,55,60,65,KM51,YM55,6#..DX ｴｷｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
3 | ||
| 45180 - COVER SUB-ASSY, STEERING WHEEL | ||||
| 45180-1601023 |
CM5#,6#,KM5#,YM55,6# ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ,GRAY,TRIM1# |
1 | ||
| 45180-1601014 |
CM5#,6#,KM5#,YM55,60..DX ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ,BLUE,TRIM8# |
1 | ||
| 45180-12170B1 |
CM51,55,60,65,KM51,YM55,6#..DX ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ,GRAY,TRIM1# |
1 | ||
| 45180-12160B1 |
CM51,55,60,65,KM51,YM55,6#..DX ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ,GRAY,TRIM1# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12086 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 90179-12071 |
CM5#,6#,KM51,YM55,6# |
1 | ||
| 90179-12071 |
CM65..TS;CM5#,60,61,KM51,YM55,6# |
1 | ||
| 90179-12071 |
CM5#,6#,KM51,YM55,6# |
1 | ||
| Common parts | ||||
| 90159-40182 | ||||
| 90159-50238 | ||||
| 93540-14014 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
