CM52-TBQDS3 (1991)

Toyota Lite/Townace Truck

Production Oct 1991 - Jun 1999
Engine 2C
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

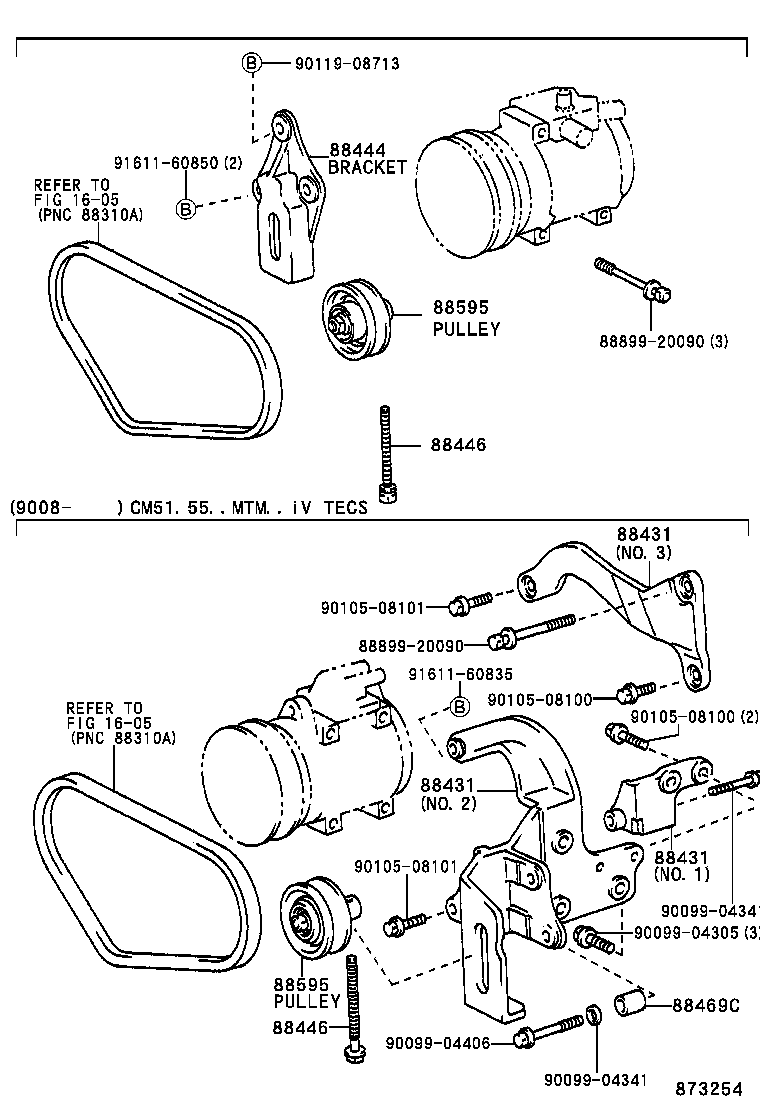

ILLUST NO. 2 OF 3(8610-9310)CM5#,6#

Click highlighted areas on diagram

diagram 1605 1605 88431 88431 88431 88444 88446 88446 88469C 88595 88595 8889920090 8889920090 9009904305 9009904341 9009904341 9009904406 9010508100 9010508100 9010508101 9010508101 9011908713 9161160835 9161160850
Part # Description Qty Price
88444 - BRACKET, IDLE PULLEY
88444-20200

CM5#,6#

 1
88444-27011

CM65..TS;CM52,60,61

 1
88444-27011

CM52,6#

 1
88446 - BOLT, IDLE PULLEY
90099-04306

CM5#,6#,YM55,6#

 1
90099-04306

CM65..TS;CM5#,60,61,YM55,6#

 1
90099-04306

CM5#,6#,YM55,6#

 1
88446 - BOLT, IDLE PULLEY
90099-04306

CM5#,6#,YM55,6#

 1
90099-04306

CM65..TS;CM5#,60,61,YM55,6#

 1
90099-04306

CM5#,6#,YM55,6#

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-35010

CM5#,60,61,KM51,YM55,6#

TYPE A:ｲﾗｽﾄ参照

 1
88440-35020

CM52,6#,YM55,6#

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ,TYPE B:ｲﾗｽﾄ参照

 1
88440-35010

CM65..IV;CM5#,60,61,KM51,YM55,6#

TYPE A:ｲﾗｽﾄ参照

 1
88440-35020

CM52,6#,YM55,6#

 1
88440-35020

CM65..TS;CM52,60,61,YM55,6#

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ,TYPE B:ｲﾗｽﾄ参照

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-35010

CM5#,60,61,KM51,YM55,6#

TYPE A:ｲﾗｽﾄ参照

 1
88440-35020

CM52,6#,YM55,6#

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ,TYPE B:ｲﾗｽﾄ参照

 1
88440-35010

CM65..IV;CM5#,60,61,KM51,YM55,6#

TYPE A:ｲﾗｽﾄ参照

 1
88440-35020

CM52,6#,YM55,6#

 1
88440-35020

CM65..TS;CM52,60,61,YM55,6#

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ,TYPE B:ｲﾗｽﾄ参照

 1
Common parts
88899-20090
90099-04305
90099-04341
90099-04406
90105-08100
90105-08101
90119-08713
91611-60835
91611-60850
Linked diagrams
1605

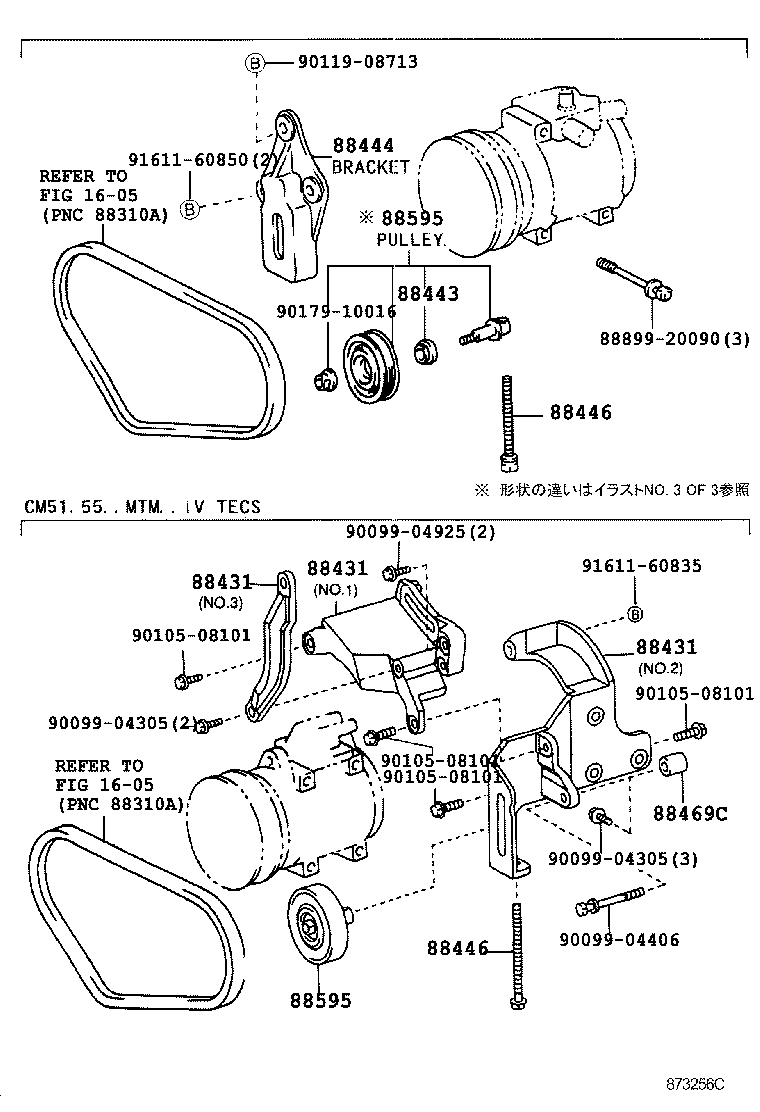

ILLUST NO. 2 OF 3(9611- )CM5#,6#

Click highlighted areas on diagram

diagram 1605 1605 88431 88431 88431 88443 88444 88446 88446 88469C 88595 88595 8889920090 9009904305 9009904305 9009904406 9009904925 9010508101 9010508101 9010508101 9010508101 9011908713 9017910016 9161160835 9161160850
Part # Description Qty Price
88443 - COLLAR, IDLE PULLEY
88443-36010

CM5#,6#,KM51,YM6#

 1
88444 - BRACKET, IDLE PULLEY
88444-20200

CM5#,6#

 1
88444-27011

CM65..TS;CM52,60,61

 1
88444-27011

CM52,6#

 1
88446 - BOLT, IDLE PULLEY
90099-04306

CM5#,6#,YM55,6#

 1
90099-04306

CM65..TS;CM5#,60,61,YM55,6#

 1
90099-04306

CM5#,6#,YM55,6#

 1
88446 - BOLT, IDLE PULLEY
90099-04306

CM5#,6#,YM55,6#

 1
90099-04306

CM65..TS;CM5#,60,61,YM55,6#

 1
90099-04306

CM5#,6#,YM55,6#

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-35010

CM5#,60,61,KM51,YM55,6#

TYPE A:ｲﾗｽﾄ参照

 1
88440-35020

CM52,6#,YM55,6#

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ,TYPE B:ｲﾗｽﾄ参照

 1
88440-35010

CM65..IV;CM5#,60,61,KM51,YM55,6#

TYPE A:ｲﾗｽﾄ参照

 1
88440-35020

CM52,6#,YM55,6#

 1
88440-35020

CM65..TS;CM52,60,61,YM55,6#

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ,TYPE B:ｲﾗｽﾄ参照

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-35010

CM5#,60,61,KM51,YM55,6#

TYPE A:ｲﾗｽﾄ参照

 1
88440-35020

CM52,6#,YM55,6#

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ,TYPE B:ｲﾗｽﾄ参照

 1
88440-35010

CM65..IV;CM5#,60,61,KM51,YM55,6#

TYPE A:ｲﾗｽﾄ参照

 1
88440-35020

CM52,6#,YM55,6#

 1
88440-35020

CM65..TS;CM52,60,61,YM55,6#

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ,TYPE B:ｲﾗｽﾄ参照

 1
Common parts
88899-20090
90099-04305
90099-04406
90099-04925
90105-08101
90119-08713
90179-10016
91611-60835
91611-60850
Linked diagrams
1605

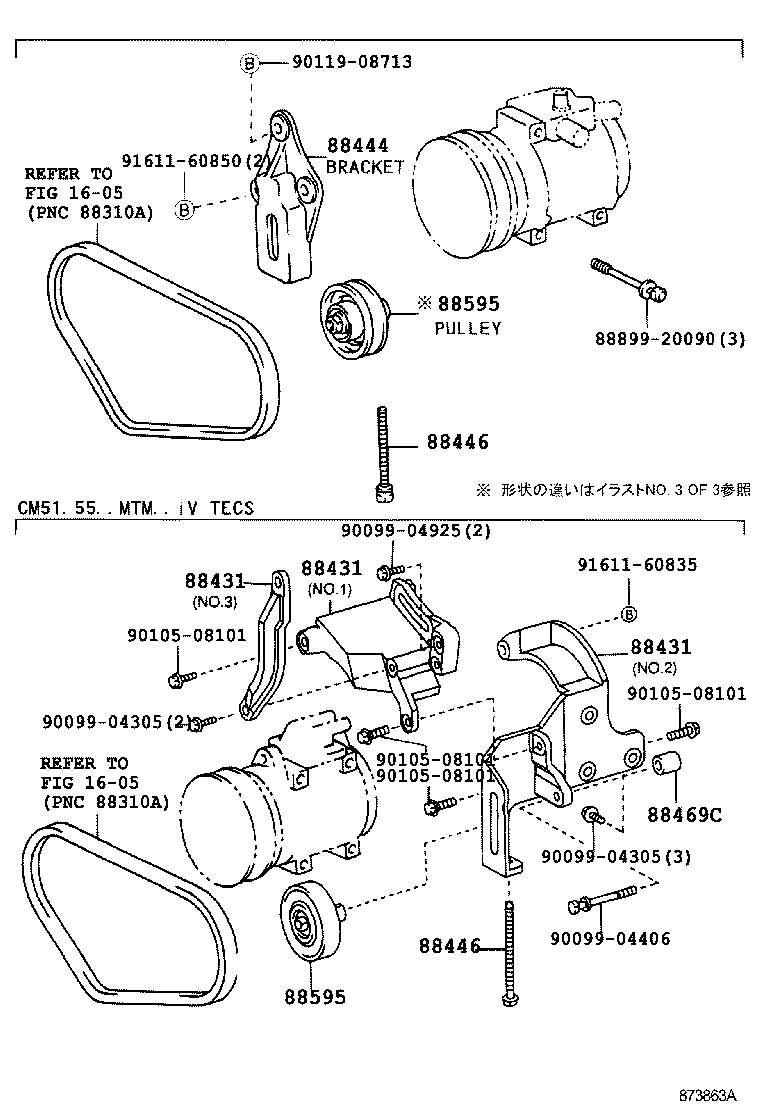

ILLUST NO. 2 OF 3(9310-9611)CM5#,6#

Click highlighted areas on diagram

diagram 1605 1605 88431 88431 88431 88444 88446 88446 88469C 88595 88595 8889920090 9009904305 9009904305 9009904406 9009904925 9010508101 9010508101 9010508101 9010508101 9011908713 9161160835 9161160850
Part # Description Qty Price
88444 - BRACKET, IDLE PULLEY
88444-20200

CM5#,6#

 1
88444-27011

CM65..TS;CM52,60,61

 1
88444-27011

CM52,6#

 1
88446 - BOLT, IDLE PULLEY
90099-04306

CM5#,6#,YM55,6#

 1
90099-04306

CM65..TS;CM5#,60,61,YM55,6#

 1
90099-04306

CM5#,6#,YM55,6#

 1
88446 - BOLT, IDLE PULLEY
90099-04306

CM5#,6#,YM55,6#

 1
90099-04306

CM65..TS;CM5#,60,61,YM55,6#

 1
90099-04306

CM5#,6#,YM55,6#

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-35010

CM5#,60,61,KM51,YM55,6#

TYPE A:ｲﾗｽﾄ参照

 1
88440-35020

CM52,6#,YM55,6#

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ,TYPE B:ｲﾗｽﾄ参照

 1
88440-35010

CM65..IV;CM5#,60,61,KM51,YM55,6#

TYPE A:ｲﾗｽﾄ参照

 1
88440-35020

CM52,6#,YM55,6#

 1
88440-35020

CM65..TS;CM52,60,61,YM55,6#

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ,TYPE B:ｲﾗｽﾄ参照

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-35010

CM5#,60,61,KM51,YM55,6#

TYPE A:ｲﾗｽﾄ参照

 1
88440-35020

CM52,6#,YM55,6#

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ,TYPE B:ｲﾗｽﾄ参照

 1
88440-35010

CM65..IV;CM5#,60,61,KM51,YM55,6#

TYPE A:ｲﾗｽﾄ参照

 1
88440-35020

CM52,6#,YM55,6#

 1
88440-35020

CM65..TS;CM52,60,61,YM55,6#

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ,TYPE B:ｲﾗｽﾄ参照

 1
Common parts
88899-20090
90099-04305
90099-04406
90099-04925
90105-08101
90119-08713
91611-60835
91611-60850
Linked diagrams
1605

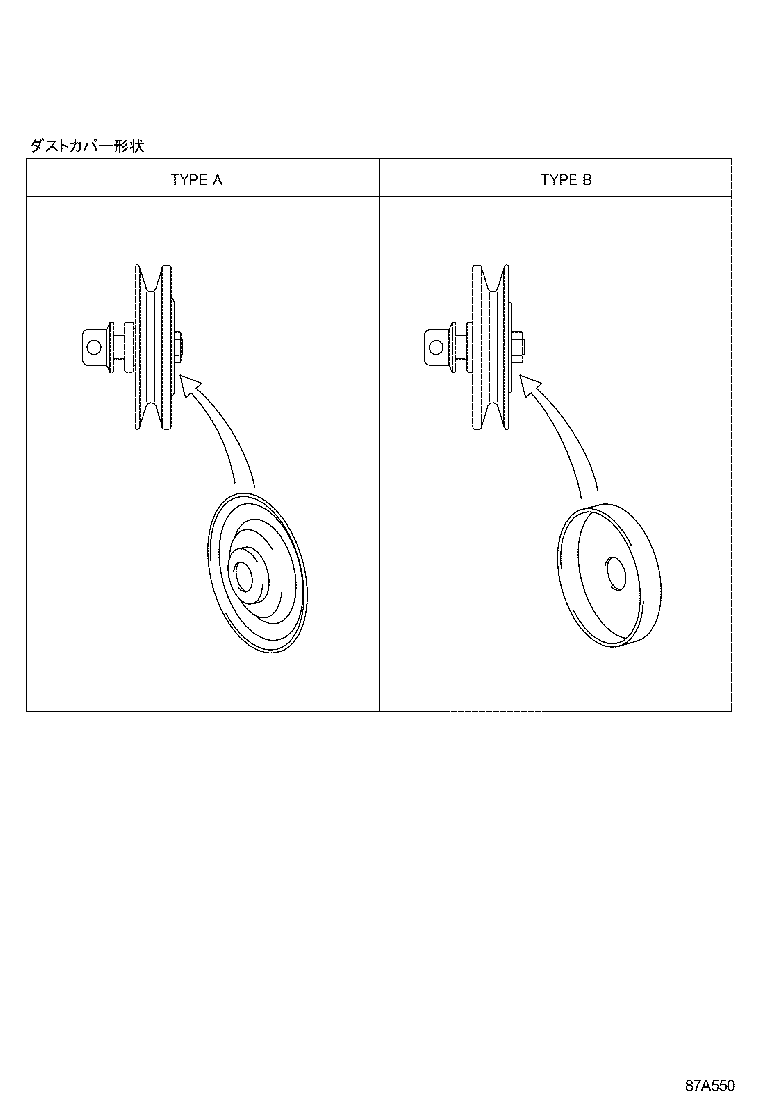

ILLUST NO. 3 OF 3(9310- )CM5#,6#,YM55,6#

Click highlighted areas on diagram

diagram
Part # Description Qty Price
