CM52-TBQDS3 (1991)

Toyota Lite/Townace Truck

Production Oct 1991 - Jun 1999
Engine 2C
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9310- )CM5#,KM51,YM55..4HC,5F,5H

Click highlighted areas on diagram

diagram 88460 88460B 88467 88467B 88467B 88470 88472 88479 8871812790 8871895755 8871895787 88891A 88891B 88891C 88891D 88891E 88891F 8889295705 8889422180 8889422180 9009120604 9009120803 9009912405 9009912405 9017906032 9017908123 9017908123 9165160820 9338516016
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-95722

CM52,6#,YM6#

 1
88460-27040

CM65..TS;CM52,60,61,YM6#

 1
88460-27040

CM52,6#,YM6#

 1
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-95746

CM5#,KM5#,YM55..4H,4HC,5F,5H

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-14040

CM5#,6#,KM5#,YM55

 3
88467-14040

CM65..TS;CM52,60,61

 4
88467-14040

CM52,6#

 4
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-95702

CM5#,KM5#,YM55

NO.1

 1
88467-95703

CM5#,KM5#,YM55

NO.2

 1
88467-95702

CM5#,KM5#,YM55

NO.1

 1
88467-95703

CM5#,KM5#,YM55

NO.2

 1
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-95702

CM5#,KM5#,YM55

NO.1

 1
88467-95703

CM5#,KM5#,YM55

NO.2

 1
88467-95702

CM5#,KM5#,YM55

NO.1

 1
88467-95703

CM5#,KM5#,YM55

NO.2

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-16010

CM5#,KM5#,YM55

 1
88471-20050

CM5#,6#,KM51,YM55,6#

 1
88471-20050

CM65..TS;CM5#,60,61,KM51,YM55,6#

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-27050

CM65..TS;CM52,60,61,YM6#

 1
88472-95707

CM5#,KM5#,YM55

 1
88472-27020

CM52,61

 1
88472-27050

CM52,6#,YM6#

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

CM5#,6#,KM5#,YM55,60

400G

 2
90986-02007

CM65..TS;CM5#,60,61,KM51,YM55,6#

250G

 1
90986-02008

CM5#,6#,KM51,YM55,6#

200G

 2
90986-02007

CM5#,6#,KM51,YM55,6#

250G

 1
90986-02008

CM65..TS;CM5#,60,61,KM51,YM55,6#

200G

 2
88891A - PACKING A (FOR COOLER)
53735-95701

CM52,6#,YM6#

 1
53735-95701

CM65..TS;CM52,60,61,YM6#

 1
53735-95701

CM52,6#,YM6#

 1
88891B - PACKING B (FOR COOLER)
88578-95713

CM52,6#,YM6#

 1
88578-95713

CM65..TS;CM52,60,61,YM6#

 1
88578-95713

CM52,6#,YM6#

 1
88891C - PACKING C (FOR COOLER)
88578-95714

CM65..TS;CM52,60,61,YM6#

 1
88578-95714

CM52,6#,YM6#

 1
88578-95714

CM52,6#,YM6#

 1
88891D - PACKING D (FOR COOLER)
53733-95700

CM65..TS;CM52,60,61,YM6#

 1
53733-95700

CM52,6#,YM6#

 1
53733-95700

CM52,6#,YM6#

 1
88891E - PACKING E (FOR COOLER)
53737-95702

CM52,6#,YM6#

 1
53737-95702

CM52,6#,YM6#

 1
53737-95702

CM65..TS;CM52,60,61,YM6#

 1
88891F - PACKING F (FOR COOLER)
53734-95700

CM65..TS;CM52,60,61,YM6#

 1
53734-95700

CM52,6#,YM6#

 1
Common parts
88718-12790
88718-95755
88718-95787
88892-95705
88894-22180
90091-20604
90091-20803
90099-12405
90179-06032
90179-08123
91651-60820
93385-16016

ILLUST NO. 2 OF 2(9310- )CM5#

Click highlighted areas on diagram

diagram 8271112200 88375A 88375B 88460C 88467 88467 88645H 8868895753 88711 88712 88714 8871487004 8871487004 8871495703 88716B 88716E 88717A 8871812280 8871812790 8871895759 8871895786 88723B 9009912405 9009912405 9009912405 9009912405 9011910021 9017910016 9046400442 9165140625 9165160820 9165160820 9338516025
Part # Description Qty Price
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280

CM65..TS;CM5#,60,61,KM51,YM55,6#

 1
88375-30280

CM5#,6#,KM51,YM55,6#

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

CM65..TS;CM5#,60,61,KM51,YM55,6#

 1
88375-30290

CM5#,6#,KM51,YM55,6#

 1
88460C - BRACKET, COOLER CONDENSER, NO.2
88688-95788

CM5#,6#,KM5#,YM55,6#

 1
88688-95788

CM5#,6#,KM51,YM55,6#

 1
88688-95788

CM65..TS;CM5#,60,61,KM51,YM55,6#

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-14040

CM5#,6#,KM5#,YM55

 3
88467-14040

CM65..TS;CM52,60,61

 4
88467-14040

CM52,6#

 4
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-14040

CM5#,6#,KM5#,YM55

 3
88467-14040

CM65..TS;CM52,60,61

 4
88467-14040

CM52,6#

 4
88645H - SWITCH, PRESSURE NO.1
88645-34010

CM65..TS;CM5#,60,61,KM51,YM55,6#

 1
88645-10020

CM52,61..IV

 1
88645-34010

CM5#,6#,KM51,YM55,6#

 1
88645-12020

CM5#,KM5#,YM55

 2
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-27050

CM65..TS;CM52,60,61

 1
88711-27050

CM52,6#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-27080

CM65..TS;CM52,60,61

 1
88712-27080

CM52,6#

 1
88712-95735

CM52,6#

 1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88721-95709

CM5#,KM5#,YM55

 1
88721-95714

CM52,6#,YM6#

 1
88721-27050

CM65..TS;CM52,60,61,YM6#

 1
88721-27050

CM52,6#,YM6#

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-95760

CM5#,KM5#,YM55

 1
88716-27110

CM65..TS;CM52,60,61,YM6#

 1
88716-27110

CM52,6#,YM6#

 1
88716-27060

CM52,61..IV

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-27090

CM52,6#,YM6#

 1
88716-95759

CM5#,KM5#,YM55

 1
88716-27090

CM65..TS;CM52,60,61,YM6#

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-95748

CM5#,6#

 1
88717-27030

CM65..TS;CM5#,60,61

 1
88717-27030

CM5#,6#

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20030

CM65..TS;CM5#,60,61,KM51,YM55,6#

 1
88723-20030

CM5#,6#,KM51,YM55,6#

 1
Common parts
82711-12200
88688-95753
88714-87004
88714-95703
88718-12280
88718-12790
88718-95759
88718-95786
90099-12405
90119-10021
90179-10016
90464-00442
91651-40625
91651-60820
93385-16025

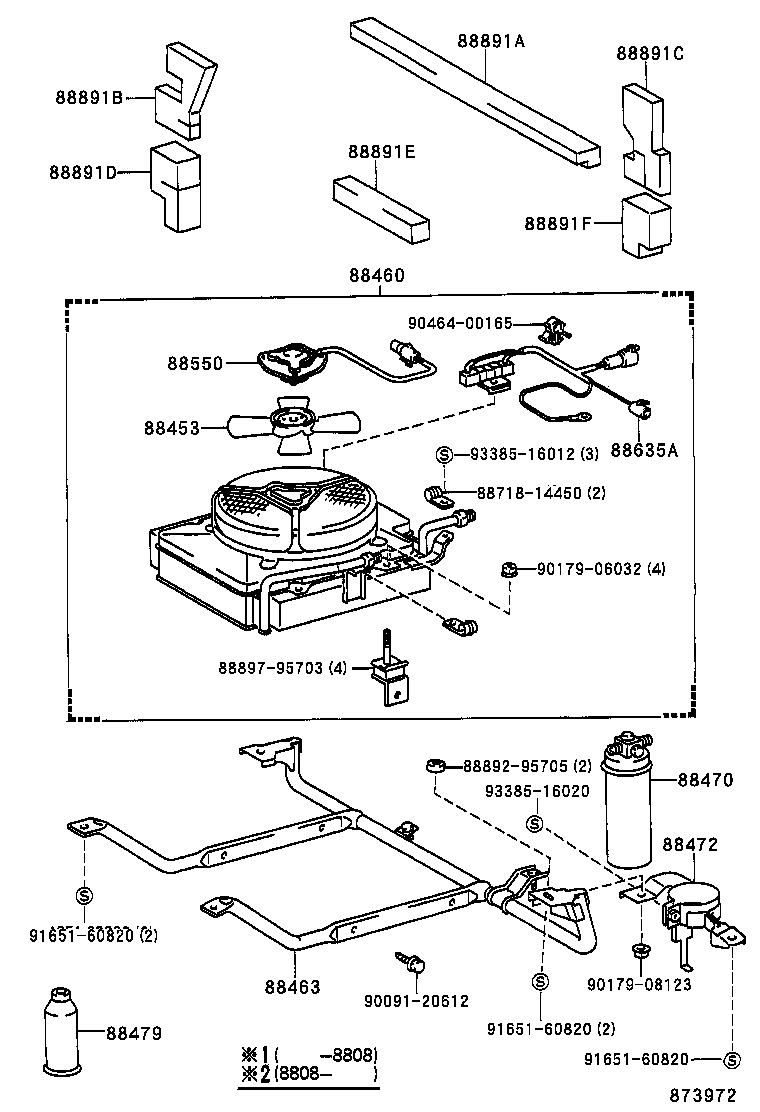

ILLUST NO. 1 OF 2(8610-9310)CM52,6#,YM6#

Click highlighted areas on diagram

diagram 88453 88460 88463 88470 88472 88479 88550 88635A 8871814450 88891A 88891B 88891C 88891D 88891E 88891F 8889295705 8889795703 9009120612 9017906032 9017908123 9046400165 9165160820 9165160820 9165160820 9338516012 9338516020
Part # Description Qty Price
88453 - FAN, COOLING (FOR CONDENSER)
88453-28010

CM52,6#,YM6#

 1
88460 - CONDENSER ASSY, COOLER
88460-95722

CM52,6#,YM6#

 1
88460-27040

CM65..TS;CM52,60,61,YM6#

 1
88460-27040

CM52,6#,YM6#

 1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-95700

CM52,6#,YM6#

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-16010

CM5#,KM5#,YM55

 1
88471-20050

CM5#,6#,KM51,YM55,6#

 1
88471-20050

CM65..TS;CM5#,60,61,KM51,YM55,6#

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-27050

CM65..TS;CM52,60,61,YM6#

 1
88472-95707

CM5#,KM5#,YM55

 1
88472-27020

CM52,61

 1
88472-27050

CM52,6#,YM6#

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

CM5#,6#,KM5#,YM55,60

400G

 2
90986-02007

CM65..TS;CM5#,60,61,KM51,YM55,6#

250G

 1
90986-02008

CM5#,6#,KM51,YM55,6#

200G

 2
90986-02007

CM5#,6#,KM51,YM55,6#

250G

 1
90986-02008

CM65..TS;CM5#,60,61,KM51,YM55,6#

200G

 2
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-87002

CM52,6#,YM6#

 1
88635A - RESISTOR, BLOWER (FOR COOLER CONDENSER MOTOR)
88635-95704

CM52,6#,YM6#

 1
88891A - PACKING A (FOR COOLER)
53735-95701

CM52,6#,YM6#

 1
53735-95701

CM65..TS;CM52,60,61,YM6#

 1
53735-95701

CM52,6#,YM6#

 1
88891B - PACKING B (FOR COOLER)
88578-95713

CM52,6#,YM6#

 1
88578-95713

CM65..TS;CM52,60,61,YM6#

 1
88578-95713

CM52,6#,YM6#

 1
88891C - PACKING C (FOR COOLER)
88578-95714

CM65..TS;CM52,60,61,YM6#

 1
88578-95714

CM52,6#,YM6#

 1
88578-95714

CM52,6#,YM6#

 1
88891D - PACKING D (FOR COOLER)
53733-95700

CM65..TS;CM52,60,61,YM6#

 1
53733-95700

CM52,6#,YM6#

 1
53733-95700

CM52,6#,YM6#

 1
88891E - PACKING E (FOR COOLER)
53737-95702

CM52,6#,YM6#

 1
53737-95702

CM52,6#,YM6#

 1
53737-95702

CM65..TS;CM52,60,61,YM6#

 1
88891F - PACKING F (FOR COOLER)
53734-95700

CM65..TS;CM52,60,61,YM6#

 1
53734-95700

CM52,6#,YM6#

 1
Common parts
88718-14450
88892-95705
88897-95703
90091-20612
90179-06032
90179-08123
90464-00165
91651-60820
93385-16012
93385-16020

ILLUST NO. 2 OF 2(8610-9310)CM5#

Click highlighted areas on diagram

diagram 8271112200 88344 88460C 88467 88645H 8868895753 88710 88711 88712 88714 8871487004 8871487004 8871495703 88716B 88716E 88717A 8871812790 8871895786 88723B 9009912405 9009912405 9011910021 9017906115 9017906115 9017910016 9046400442 9165160820 9165160820
Part # Description Qty Price
88344 - GLASS SUB-ASSY, SIGHT
88481-87002

CM5#,6#,KM5#,YM55,6#

 1
88460C - BRACKET, COOLER CONDENSER, NO.2
88688-95788

CM5#,6#,KM5#,YM55,6#

 1
88688-95788

CM5#,6#,KM51,YM55,6#

 1
88688-95788

CM65..TS;CM5#,60,61,KM51,YM55,6#

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-14040

CM5#,6#,KM5#,YM55

 3
88467-14040

CM65..TS;CM52,60,61

 4
88467-14040

CM52,6#

 4
88645H - SWITCH, PRESSURE NO.1
88645-34010

CM65..TS;CM5#,60,61,KM51,YM55,6#

 1
88645-10020

CM52,61..IV

 1
88645-34010

CM5#,6#,KM51,YM55,6#

 1
88645-12020

CM5#,KM5#,YM55

 2
88710 - TUBE ASSY, AIR CONDITIONER
88710-95700

CM5#,KM5#,YM55

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-27050

CM65..TS;CM52,60,61

 1
88711-27050

CM52,6#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-27080

CM65..TS;CM52,60,61

 1
88712-27080

CM52,6#

 1
88712-95735

CM52,6#

 1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88721-95709

CM5#,KM5#,YM55

 1
88721-95714

CM52,6#,YM6#

 1
88721-27050

CM65..TS;CM52,60,61,YM6#

 1
88721-27050

CM52,6#,YM6#

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-95760

CM5#,KM5#,YM55

 1
88716-27110

CM65..TS;CM52,60,61,YM6#

 1
88716-27110

CM52,6#,YM6#

 1
88716-27060

CM52,61..IV

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-27090

CM52,6#,YM6#

 1
88716-95759

CM5#,KM5#,YM55

 1
88716-27090

CM65..TS;CM52,60,61,YM6#

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-95748

CM5#,6#

 1
88717-27030

CM65..TS;CM5#,60,61

 1
88717-27030

CM5#,6#

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20030

CM65..TS;CM5#,60,61,KM51,YM55,6#

 1
88723-20030

CM5#,6#,KM51,YM55,6#

 1
Common parts
82711-12200
88688-95753
88714-87004
88714-95703
88718-12790
88718-95786
90099-12405
90119-10021
90179-06115
90179-10016
90464-00442
91651-60820

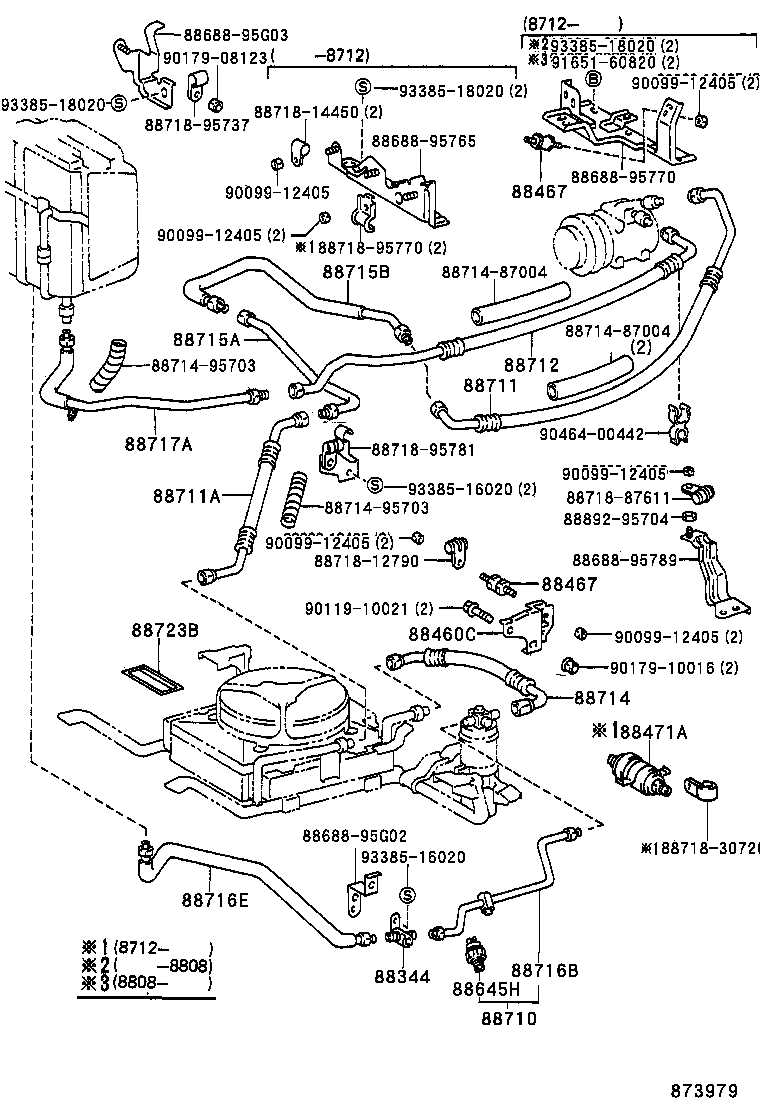

ILLUST NO. 2 OF 2(8610-9310)CM52,6#

Click highlighted areas on diagram

diagram 88344 88460C 88467 88467 88471A 88645H 8868895765 8868895770 8868895789 8868895G02 8868895G03 88710 88711 88711A 88712 88714 8871487004 8871487004 8871495703 8871495703 88715A 88715B 88716B 88716E 88717A 8871812790 8871814450 8871830720 8871887611 8871895737 8871895770 8871895781 88723B 8889295704 9009912405 9009912405 9009912405 9009912405 9009912405 9009912405 9011910021 9017908123 9017910016 9046400442 9165160820 9338516020 9338516020 9338518020 9338518020 9338518020
Part # Description Qty Price
88344 - GLASS SUB-ASSY, SIGHT
88481-87002

CM5#,6#,KM5#,YM55,6#

 1
88460C - BRACKET, COOLER CONDENSER, NO.2
88688-95788

CM5#,6#,KM5#,YM55,6#

 1
88688-95788

CM5#,6#,KM51,YM55,6#

 1
88688-95788

CM65..TS;CM5#,60,61,KM51,YM55,6#

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-14040

CM5#,6#,KM5#,YM55

 3
88467-14040

CM65..TS;CM52,60,61

 4
88467-14040

CM52,6#

 4
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-14040

CM5#,6#,KM5#,YM55

 3
88467-14040

CM65..TS;CM52,60,61

 4
88467-14040

CM52,6#

 4
88645H - SWITCH, PRESSURE NO.1
88645-34010

CM65..TS;CM5#,60,61,KM51,YM55,6#

 1
88645-10020

CM52,61..IV

 1
88645-34010

CM5#,6#,KM51,YM55,6#

 1
88645-12020

CM5#,KM5#,YM55

 2
88710 - TUBE ASSY, AIR CONDITIONER
88710-95700

CM5#,KM5#,YM55

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-27050

CM65..TS;CM52,60,61

 1
88711-27050

CM52,6#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-27080

CM65..TS;CM52,60,61

 1
88712-27080

CM52,6#

 1
88712-95735

CM52,6#

 1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88721-95709

CM5#,KM5#,YM55

 1
88721-95714

CM52,6#,YM6#

 1
88721-27050

CM65..TS;CM52,60,61,YM6#

 1
88721-27050

CM52,6#,YM6#

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-27040

CM52,61

 1
88715-27080

CM52,61

 1
88715B - PIPE, COOLER REFRIGERANT DISCHARGE, B
88715-27030

CM52,61

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-95760

CM5#,KM5#,YM55

 1
88716-27110

CM65..TS;CM52,60,61,YM6#

 1
88716-27110

CM52,6#,YM6#

 1
88716-27060

CM52,61..IV

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-27090

CM52,6#,YM6#

 1
88716-95759

CM5#,KM5#,YM55

 1
88716-27090

CM65..TS;CM52,60,61,YM6#

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-95748

CM5#,6#

 1
88717-27030

CM65..TS;CM5#,60,61

 1
88717-27030

CM5#,6#

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20030

CM65..TS;CM5#,60,61,KM51,YM55,6#

 1
88723-20030

CM5#,6#,KM51,YM55,6#

 1
Common parts
88688-95765
88688-95770
88688-95789
88688-95G02
88688-95G03
88714-87004
88714-95703
88718-12790
88718-14450
88718-30720
88718-87611
88718-95737
88718-95770
88718-95781
88892-95704
90099-12405
90119-10021
90179-08123
90179-10016
90464-00442
91651-60820
93385-16020
93385-18020
