CM52-TBQDS3 (1991)

Toyota Lite/Townace Truck

Production Oct 1991 - Jun 1999
Engine 2C
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )CM52

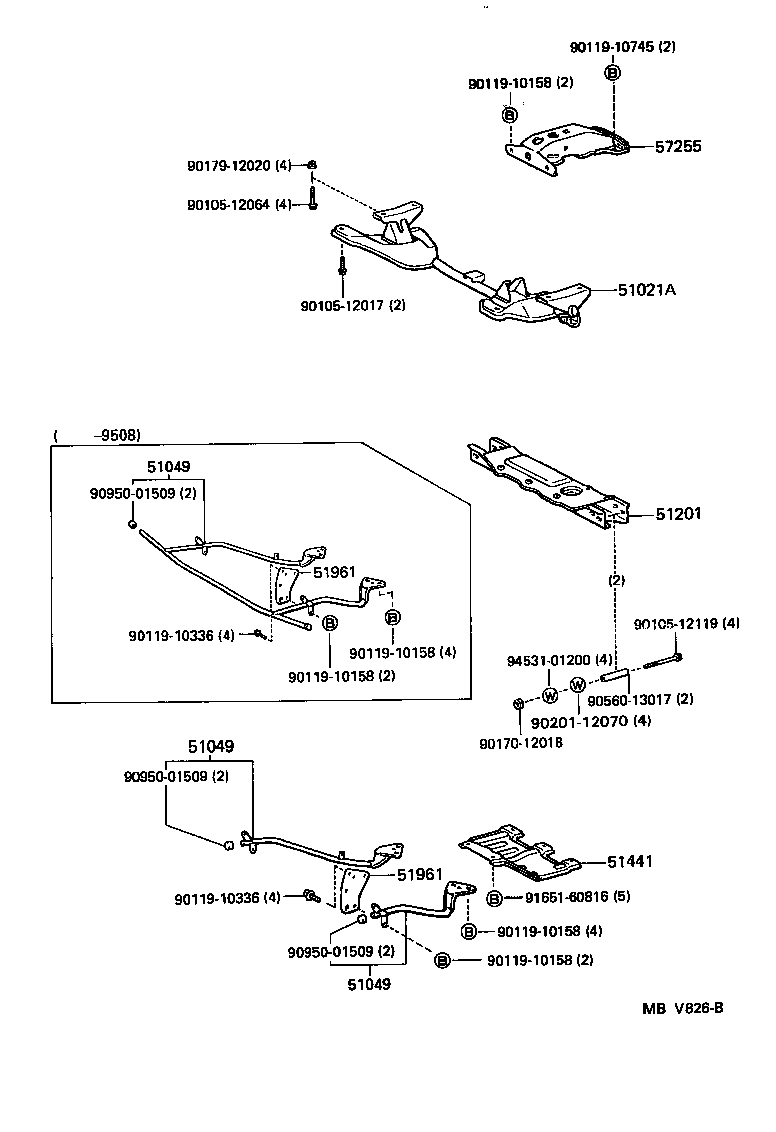

Click highlighted areas on diagram

diagram 51021A 51049 51049 51049 51201 51441 51961 51961 57255 9010512017 9010512064 9010512119 9011910158 9011910158 9011910158 9011910158 9011910158 9011910336 9011910336 9011910745 9017012018 9017912020 9020112070 9056013017 9095001509 9095001509 9095001509 9165160816 9453101200
Part # Description Qty Price
51021A - MEMBER SUB-ASSY, ENGINE FRONT SUPPORT
51021-27060

CM52

 1
51049 - BAR SUB-ASSY, UNDER GUARD, FRONT
51040-27010

CM52,6#,YM6#

右側

 1
51040-27020

CM52,6#,YM6#

左側

 1
51040-95700

CM52,6#,YM6#

 1
51040-27020

CM65..TS;CM52,60,61,YM6#

左側

 1
51040-27010

CM65..TS;CM52,60,61,YM6#

右側

 1
51040-95700

CM65..TS;CM52,60,61,YM6#

 1
51049 - BAR SUB-ASSY, UNDER GUARD, FRONT
51040-27010

CM52,6#,YM6#

右側

 1
51040-27020

CM52,6#,YM6#

左側

 1
51040-95700

CM52,6#,YM6#

 1
51040-27020

CM65..TS;CM52,60,61,YM6#

左側

 1
51040-27010

CM65..TS;CM52,60,61,YM6#

右側

 1
51040-95700

CM65..TS;CM52,60,61,YM6#

 1
51049 - BAR SUB-ASSY, UNDER GUARD, FRONT
51040-27010

CM52,6#,YM6#

右側

 1
51040-27020

CM52,6#,YM6#

左側

 1
51040-95700

CM52,6#,YM6#

 1
51040-27020

CM65..TS;CM52,60,61,YM6#

左側

 1
51040-27010

CM65..TS;CM52,60,61,YM6#

右側

 1
51040-95700

CM65..TS;CM52,60,61,YM6#

 1
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51203-95D01

CM65..TS;CM52,60,61,YM6#

 1
51203-95D01

CM52,6#,YM6#

 1
51441 - COVER, ENGINE UNDER, NO.1
51441-95D00

CM65..TS;CM52,60,61,YM6#

 1
51441-95D00

CM52,6#,YM6#

 1
51441-95D00

CM52,6#,YM6#

 1
51961 - HOOK, NO.1
51961-95701

CM65..TS;CM52,60,61,YM6#

右側

 1
51962-95700

CM52,6#,YM6#

左側

 1
51962-95700

CM52,6#,YM6#

左側

 1
51961-95701

CM52,6#,YM6#

右側

 1
51961-95701

CM52,6#,YM6#

右側

 1
51962-95700

CM65..TS;CM52,60,61,YM6#

左側

 1
51961 - HOOK, NO.1
51961-95701

CM65..TS;CM52,60,61,YM6#

右側

 1
51962-95700

CM52,6#,YM6#

左側

 1
51962-95700

CM52,6#,YM6#

左側

 1
51961-95701

CM52,6#,YM6#

右側

 1
51961-95701

CM52,6#,YM6#

右側

 1
51962-95700

CM65..TS;CM52,60,61,YM6#

左側

 1
57255 - MEMBER, ENGINE REAR MOUNTING
57255-27010

CM5#..5H

 1
Common parts
90105-12017
90105-12064
90105-12119
90119-10158
90119-10336
90119-10745
90170-12018
90179-12020
90201-12070
90560-13017
90950-01509
91651-60816
94531-01200
