CM52-TBQDS3 (1991)

Toyota Lite/Townace Truck

Production Oct 1991 - Jun 1999
Engine 2C
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

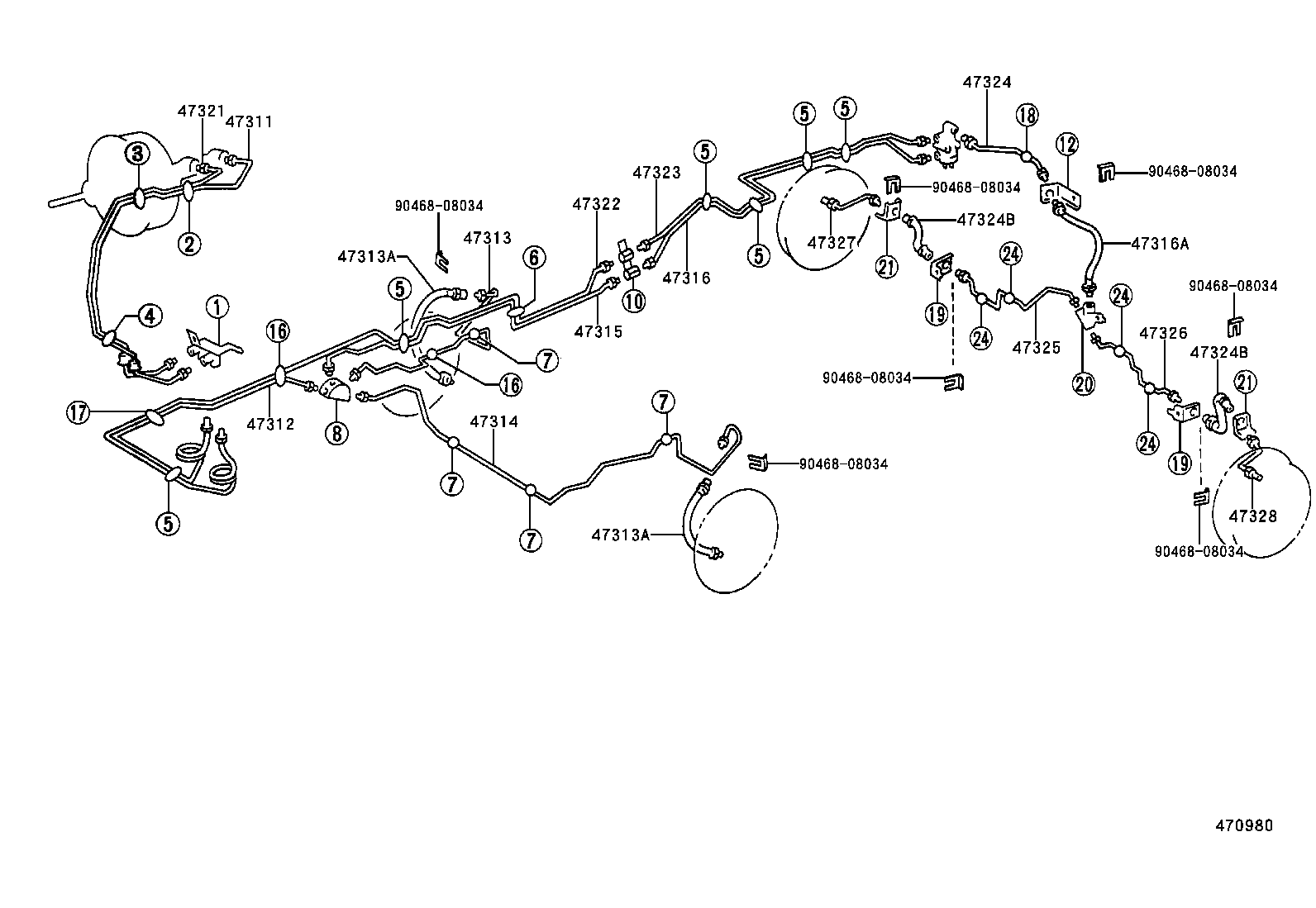

ILLUST NO. 1 OF 3(9110- )CM52,61

Click highlighted areas on diagram

diagram 47311 47312 47313 47313A 47313A 47314 47315 47316 47316A 47321 47322 47323 47324 47324B 47324B 47325 47326 47327 47328 9046808034 9046808034 9046808034 9046808034 9046808034 9046808034 9046808034
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-27240

CM5#,6#,KM5#,YM55,6#

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-27150

CM5#,6#,KM5#,YM55,6#

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-27110

CM52,6#,YM6#

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02505

CM5#,KM5#,YM55

 2
96940-33055

CM52,6#,YM6#

 2
96940-33056

CM52,6#,YM6#

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02505

CM5#,KM5#,YM55

 2
96940-33055

CM52,6#,YM6#

 2
96940-33056

CM52,6#,YM6#

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-27100

CM52,6#,YM6#

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-27040

CM5#,6#,KM5#,YM55,6#

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-27160

CM52,61

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02861

CM52,61

 1
96940-33605

CM5#,6#,KM5#,YM55,6#

 1
90947-02624

CM52,61

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-27170

CM5#,6#,KM5#,YM55,6#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-27190

CM5#,6#,KM5#,YM55,6#

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-27430

CM52,61

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-27220

CM52,61

 1
47324B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE, NO.2)
96950-39955

CM52,61

 2
47324B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE, NO.2)
96950-39955

CM52,61

 2
47325 - TUBE, REAR BRAKE, NO.5
47325-27170

CM52,61

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-27170

CM52,61

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-27060

CM52,61

 1
47328 - TUBE, REAR BRAKE, NO.8
47328-27030

CM52,61

 1
Common parts
90468-08034
