CM52-TBQDS3 (1991)

Toyota Lite/Townace Truck

Production Oct 1991 - Jun 1999
Engine 2C
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )CM52,61

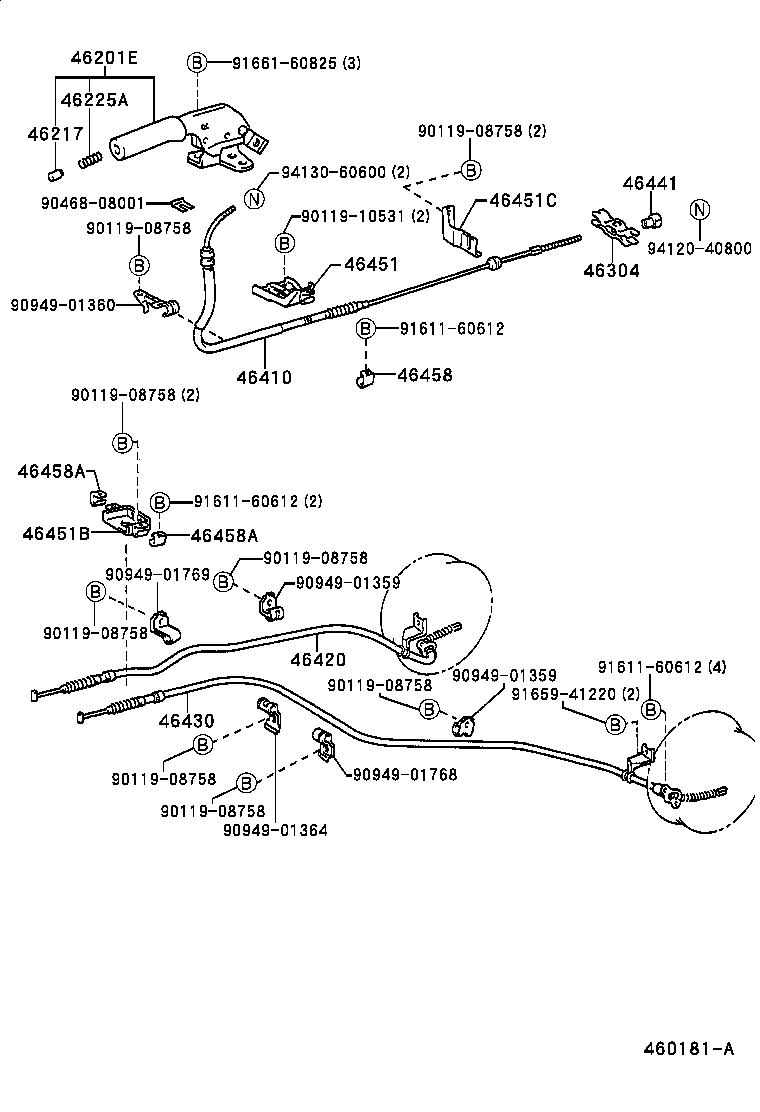

Click highlighted areas on diagram

diagram 46201E 46217 46225A 46304 46410 46420 46430 46441 46451 46451B 46451C 46458 46458A 46458A 9011908758 9011908758 9011908758 9011908758 9011908758 9011908758 9011908758 9011908758 9011910531 9046808001 9094901359 9094901359 9094901360 9094901364 9094901768 9094901769 9161160612 9161160612 9161160612 9165941220 9166160825 9412040800 9413060600
Part # Description Qty Price
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-27021B0

CM5#,6#,KM51,YM55,6#

GRAY,TRIM1#

 1
46201-2702004

CM5#,6#,KM5#,YM55,60..DX

BLUE,TRIM8#

 1
46217 - KNOB, PARKING BRAKE RELEASE ROD
46217-16030B1

CM5#,6#,KM51,YM55,6#

BLUISH GRAY,TRIM1#

 1
46217-12020B3

CM5#,6#,KM51,YM55,6#

BLUISH GRAY,TRIM1#

 1
46217-2002024

CM5#,6#,KM5#,YM55,60..DX

BLUE,TRIM8#

 1
46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)
90501-10745

CM5#,6#,KM5#,YM55,60

 1
46304 - EQUALIZER SUB-ASSY, PARKING BRAKE
46304-22020

CM5#,6#,KM5#,YM55,6#

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-27180

CM5#,6#

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-27310

CM52,61

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-27310

CM52,61

 1
46441 - NUT, WIRE ADJUSTING, NO.1
46441-35010

CM5#,6#,KM5#,YM55,6#

 1
46451 - BRACKET, CABLE SUPPORT
46451-27080

CM5#,6#,KM5#,YM55,6#

 1
46451B - BRACKET, PARKING BRAKE CABLE SUPPORT
46451-27090

CM5#,6#,KM5#,YM55,6#

 1
46451C - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.1
46451-27100

CM5#,6#,KM5#,YM55,6#

 1
46458 - RETAINER, CABLE
46458-28010

CM5#,6#,KM5#,YM55,6#

 1
46458A - RETAINER, CABLE
46458-28010

CM5#,6#,KM5#,YM55,6#

 2
46458A - RETAINER, CABLE
46458-28010

CM5#,6#,KM5#,YM55,6#

 2
Common parts
90119-08758
90119-10531
90468-08001
90949-01359
90949-01360
90949-01364
90949-01768
90949-01769
91611-60612
91659-41220
91661-60825
94120-40800
94130-60600
