CM52-TBQDS3 (1991)

Toyota Lite/Townace Truck

Production Oct 1991 - Jun 1999
Engine 2C
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

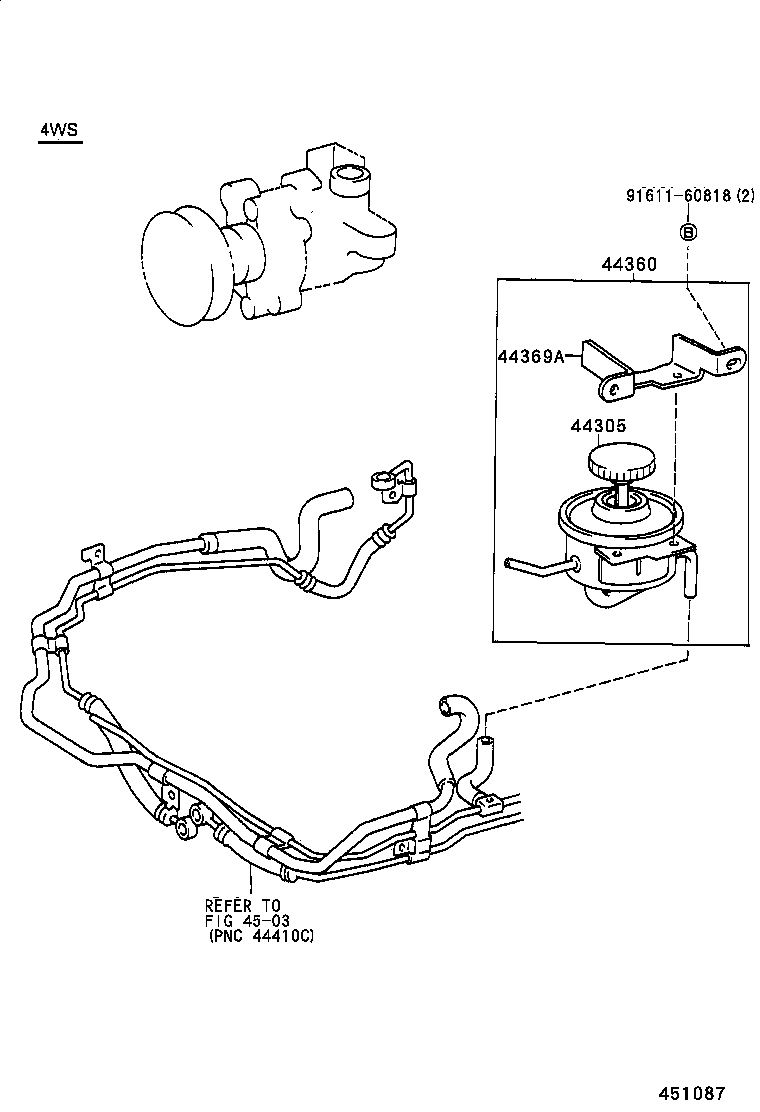

ILLUST NO. 2 OF 2(9110- )CM52,61

Click highlighted areas on diagram

diagram 44305 44360 44369A 4503 9161160818
Part # Description Qty Price
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-35010

CM52,61

 1
44360 - RESERVOIR ASSY, VANE PUMP OIL
44360-27030

CM5#

 1
44360-27030

CM5#

ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ

 1
44360-27090

CM52,61

 1
44369A - BRACKET, OIL RESERVOIR, NO.1
44369-27100

CM52

 1
Common parts
91611-60818
Linked diagrams
4503
