CM52-TBQDS3 (1991)
Toyota Lite/Townace Truck
(8610-9310)1C,2C
12V 55A,70A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

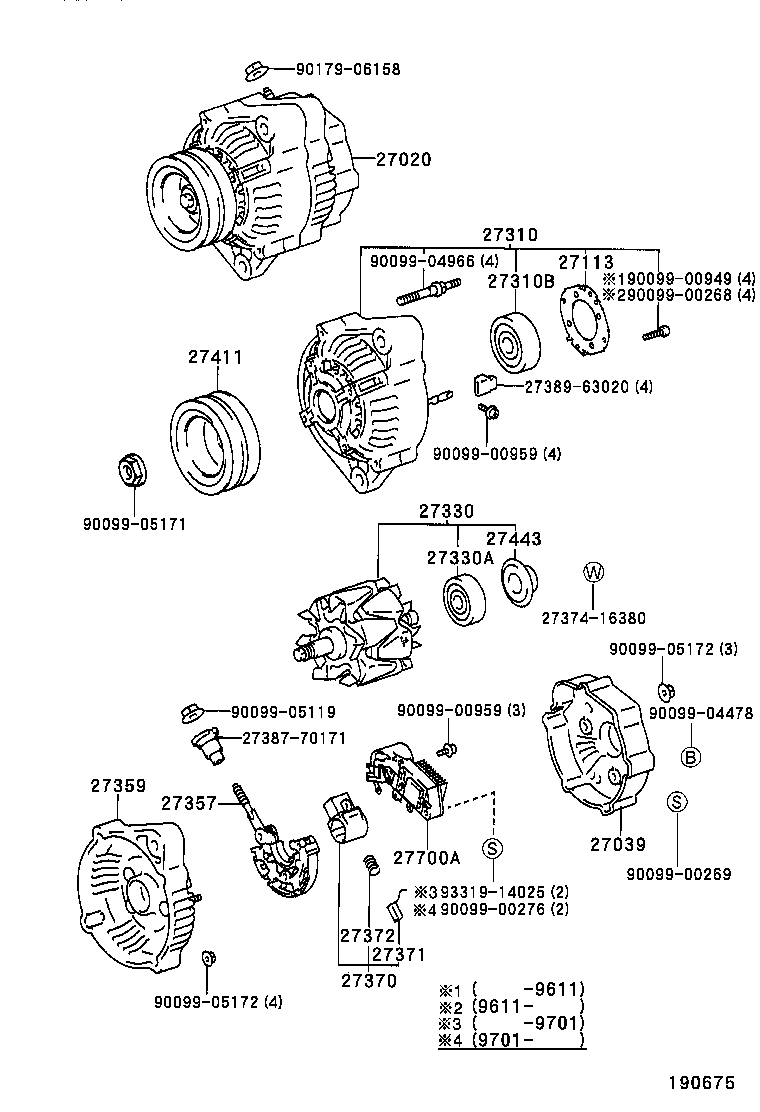

| 27020 - ALTERNATOR ASSY | ||||
| 27060-64021 |
1C,2C..CM5#,6# 12V 55A |
1 | ||
| 27060-64011 |
1C,2C..CM5#,65..5H..IV 12V 70A |
1 | ||
| 27060-64210 |
2C..CM5#,6# 12V 55A |
1 | ||
| 27060-64220 |
2C..CM51..5H..IV;2C..CM52,55,65..(JL,SJL)..TS..5H 12V 70A |
1 | ||
| 27060-64140 |
2C..CM65..TS;2C..CM5#,60,61 12V 55A |
1 | ||
| 27060-64180 |
2C..CM51,52..5H..IV;2C..CM55,65..(JL,SJL)..TS..5H..CBU 12V 70A,ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 27060-64140 |
2C..CM5#,6# 12V 55A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-72110 |
1C,2C..CM5#,6# 12V 55A |
1 | ||
| 27039-72010 |
1C,2C..CM5#,65..5H..IV ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 27039-72110 |
1C,2C..CM5#,6# |
1 | ||
| 27039-64190 |
2C..CM5#,6# ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 27039-73020 |
2C..CM5#,6# |
1 | ||
| 27039-55080 |
2C..CM51,52..IV;2C..CM55,65..(JL,SJL)..TS ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 27039-16380 |
2C..CM5#,6# |
1 | ||
| 27039-55080 |
2C..CM5#..IV;2C..CM65..TS;2C..CM55..SJL..TS..5H..CBU ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 27039-73020 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 27064 - SEAL, ALTERNATOR PLATE | ||||
| 27064-42010 |
2C..CM51,52..5H..IV;2C..CM55,65..(JL,SJL)..TS..5H |
1 | ||
| 27064-42010 |
2C..CM51,52..IV;2C..CM55,65..(JL,SJL)..TS |
1 | ||
| 27064-42010 |
2C..CM5#..IV;2C..CM65..TS;2C..CM55..SJL..TS..5H..CBU |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-70200 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 27312-64130 |
1C,2C..CM5#,6# |
1 | ||
| 27312-64130 |
1C,2C..CM5#,6# 12V 55A,70A |
1 | ||
| 27312-42010 |
2C..CM51,52..IV;2C..CM55,65..(JL,SJL)..TS ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 27312-70200 |
2C..CM5#,6# |
1 | ||
| 27312-42010 |
2C..CM5#..IV;2C..CM65..TS;2C..CM55..SJL..TS..5H..CBU ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-64140 |
1C,2C..CM5#,6# |
1 | ||
| 27310-64190 |
2C..CM51..5H..IV;2C..CM52,65..JL..TS;2C..CM55..SJL..TS..5H..CBU ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 27310-64140 |
1C,2C..CM5#,6# 12V 55A |
1 | ||
| 27310-64500 |
2C..CM51,52..5H..IV;2C..CM55,65..(JL,SJL)..TS..5H ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 27310-64460 |
2C..CM5#,6# |
1 | ||
| 27310-64460 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10178 |
2C..CM5#,6# |
1 | ||
| 90099-10165 |
1C,2C..CM5#,6# 12V 55A,70A |
1 | ||
| 90099-10165 |
1C,2C..CM5#,6# |
1 | ||
| 90099-10178 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 90099-10192 |
2C..CM5#,65..5H..IV ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-72101 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 27330-64140 |
1C,2C..CM5#,6# 12V 55A |
1 | ||
| 27330-64140 |
1C,2C..CM5#,6# ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 27330-64190 |
2C..CM52,55,65..(JL,SJL)..TS..5H |
1 | ||
| 27330-72101 |
2C..CM5#,6# |
1 | ||
| 27330-76030 |
2C..CM5#,65..5H..IV ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 27330-11250 |
2C..CM5#,6# |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 90099-10140 |
1C,2C..CM5#,6# 12V 55A,70A |
1 | ||
| 90099-10140 |
1C,2C..CM5#,6# |
1 | ||
| 90099-10140 |
2C..CM5#,6# |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-63040 |
1C,2C..CM5#,6# 12V 55A |
1 | ||
| 27357-55080 |
2C..CM52;2C..CM51,55..5H..IV ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 27357-63040 |
1C,2C..CM5#,6# |
1 | ||
| 27357-13360 |
2C..CM5#,6# |
1 | ||
| 27357-63060 |
2C..CM5#,6# |
1 | ||
| 27357-63020 |
1C,2C..CM5#,65..5H..IV ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 27357-63060 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 27357-55080 |
2C..CM51,52..IV;2C..CM55..5H..IV ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 27357-55080 |
2C..CM5#..IV;2C..CM55..4HC ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-64140 |
1C,2C..CM5#,6# 12V 55A |
1 | ||
| 27359-64140 |
1C,2C..CM5#,6# |
1 | ||
| 27359-64130 |
1C,2C..CM5#,65..5H..IV ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 27359-64500 |
2C..CM51,52..IV;2C..CM55,65..(JL,SJL)..TS ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 27359-64461 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 27359-64460 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 27359-64462 |
2C..CM5#,6# |
1 | ||
| 27359-64461 |
2C..CM5#,6# |
1 | ||
| 27359-64500 |
2C..CM5#..IV;2C..CM65..TS;2C..CM55..SJL..TS..5H..CBU ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-75060 |
2C..CM55..4HC;2C..CM5#,65..5H..IV ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 27370-16011 |
1C,2C..CM5#,6# 12V 55A,70A |
1 | ||
| 27370-16011 |
1C,2C..CM5#,6# |
1 | ||
| 27370-58320 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 27370-54450 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 27370-75060 |
2C..CM51,52..IV;2C..CM55..5H..IV ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 27370-75060 |
2C..CM5#,65..IV ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 27370-58320 |
2C..CM5#,6# |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-63020 |
1C,2C,2Y..CM5#,6#,YM55,60 12V 45A,55A,70A |
2 | ||
| 27371-70300 |
2C..CM65..TS;2C,2Y..CM5#,60,61,YM55,6# |
2 | ||
| 27371-70300 |
2C,2Y..CM5#,6#,YM55,6# |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-63020 |
2C..CM65..TS;2C,2Y..CM5#,60,61,YM55,6# |
2 | ||
| 27372-63020 |
2C,2Y..CM5#,6#,YM55,6# |
2 | ||
| 27372-72100 |
1C,2C,2Y..CM5#,6#,YM55,60 12V 45A,55A,70A |
2 | ||
| 27384 - WASHER | ||||
| 27384-50030 |
2C..CM51,52..IV;2C..CM55,65..(JL,SJL)..TS |
1 | ||
| 27384-50030 |
2C..CM5#..IV;2C..CM65..TS;2C..CM55..SJL..TS..5H..CBU |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
1C,2C,2Y..CM5#,6#,YM55,60 12V 45A,55A,70A |
1 | ||
| 27443-63020 |
1C,2C,2Y..CM5#,6#,YM55,6# |
1 | ||
| 27443-63020 |
2C,2Y..CM5#,6#,YM55,6# |
1 | ||
| 27443-63020 |
2C..CM65..TS;2C,2Y..CM5#,60,61,YM55,6# |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-65010 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 27700-63021 |
1C,2C..CM5#,6# 12V 55A,70A |
1 | ||
| 27700-35040 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 27700-35040 |
2C..CM5#,6# |
1 | ||
| 27700-63021 |
1C,2C..CM5#,6# |
1 | ||
| 27700-54050 |
2C..CM5#,6# |
1 | ||
| 29342A - PACKING, VACUUM PUMP | ||||
| 29341-64130 |
1C,2C..CM5#,6# 12V 55A,70A |
1 | ||
| Common parts | ||||
| 27387-42020 | ||||
| 27387-70171 | ||||
| 27388-42010 | ||||
| 27389-42010 | ||||
| 27389-63020 | ||||
| 90099-00167 | ||||
| 90099-00197 | ||||
| 90099-00959 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05172 | ||||
| 90099-05232 | ||||
| 90105-10133 | ||||
| 90119-08365 | ||||
| 90179-06158 | ||||
| 93319-14025 | ||||
(9310- )2C
12V 55A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

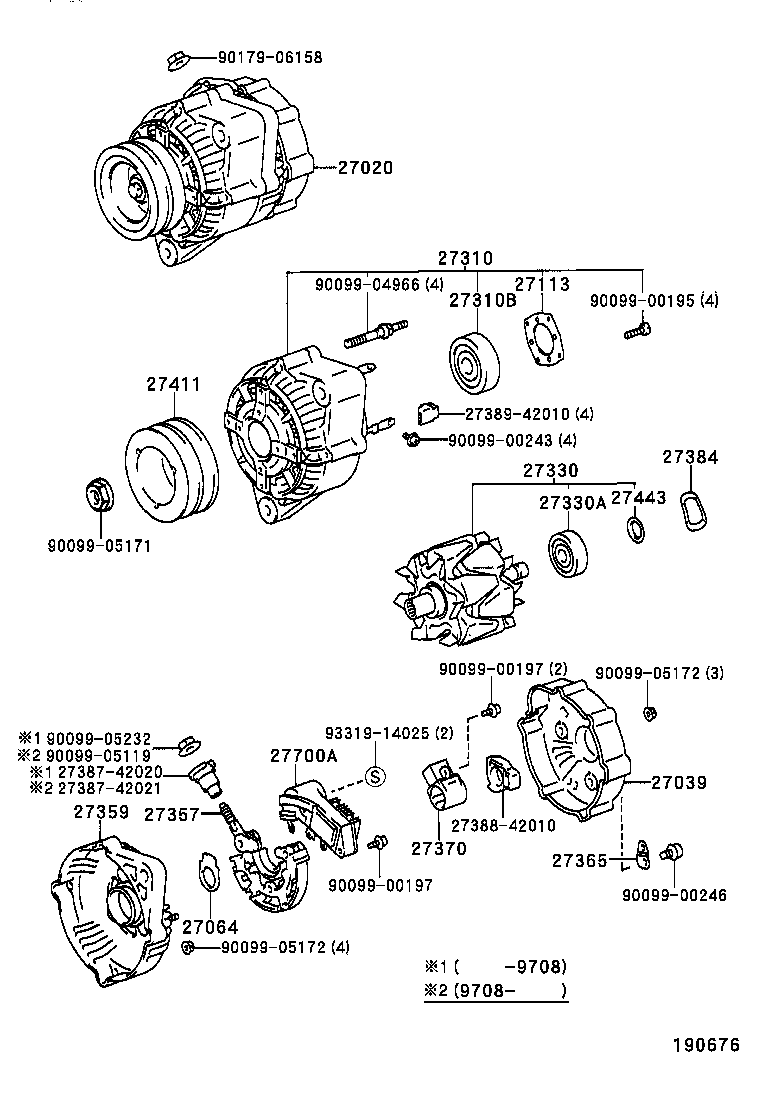

| 27020 - ALTERNATOR ASSY | ||||
| 27060-64021 |
1C,2C..CM5#,6# 12V 55A |
1 | ||
| 27060-64011 |
1C,2C..CM5#,65..5H..IV 12V 70A |
1 | ||
| 27060-64210 |
2C..CM5#,6# 12V 55A |
1 | ||
| 27060-64220 |
2C..CM51..5H..IV;2C..CM52,55,65..(JL,SJL)..TS..5H 12V 70A |
1 | ||
| 27060-64140 |
2C..CM65..TS;2C..CM5#,60,61 12V 55A |
1 | ||
| 27060-64180 |
2C..CM51,52..5H..IV;2C..CM55,65..(JL,SJL)..TS..5H..CBU 12V 70A,ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 27060-64140 |
2C..CM5#,6# 12V 55A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-72110 |
1C,2C..CM5#,6# 12V 55A |
1 | ||
| 27039-72010 |
1C,2C..CM5#,65..5H..IV ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 27039-72110 |
1C,2C..CM5#,6# |
1 | ||
| 27039-64190 |
2C..CM5#,6# ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 27039-73020 |
2C..CM5#,6# |
1 | ||
| 27039-55080 |
2C..CM51,52..IV;2C..CM55,65..(JL,SJL)..TS ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 27039-16380 |
2C..CM5#,6# |
1 | ||
| 27039-55080 |
2C..CM5#..IV;2C..CM65..TS;2C..CM55..SJL..TS..5H..CBU ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 27039-73020 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-70200 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 27312-64130 |
1C,2C..CM5#,6# |
1 | ||
| 27312-64130 |
1C,2C..CM5#,6# 12V 55A,70A |
1 | ||
| 27312-42010 |
2C..CM51,52..IV;2C..CM55,65..(JL,SJL)..TS ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 27312-70200 |
2C..CM5#,6# |
1 | ||
| 27312-42010 |
2C..CM5#..IV;2C..CM65..TS;2C..CM55..SJL..TS..5H..CBU ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-64140 |
1C,2C..CM5#,6# |
1 | ||
| 27310-64190 |
2C..CM51..5H..IV;2C..CM52,65..JL..TS;2C..CM55..SJL..TS..5H..CBU ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 27310-64140 |
1C,2C..CM5#,6# 12V 55A |
1 | ||
| 27310-64500 |
2C..CM51,52..5H..IV;2C..CM55,65..(JL,SJL)..TS..5H ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 27310-64460 |
2C..CM5#,6# |
1 | ||
| 27310-64460 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10178 |
2C..CM5#,6# |
1 | ||
| 90099-10165 |
1C,2C..CM5#,6# 12V 55A,70A |
1 | ||
| 90099-10165 |
1C,2C..CM5#,6# |
1 | ||
| 90099-10178 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 90099-10192 |
2C..CM5#,65..5H..IV ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-72101 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 27330-64140 |
1C,2C..CM5#,6# 12V 55A |
1 | ||
| 27330-64140 |
1C,2C..CM5#,6# ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 27330-64190 |
2C..CM52,55,65..(JL,SJL)..TS..5H |
1 | ||
| 27330-72101 |
2C..CM5#,6# |
1 | ||
| 27330-76030 |
2C..CM5#,65..5H..IV ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 27330-11250 |
2C..CM5#,6# |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 90099-10140 |
1C,2C..CM5#,6# 12V 55A,70A |
1 | ||
| 90099-10140 |
1C,2C..CM5#,6# |
1 | ||
| 90099-10140 |
2C..CM5#,6# |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-63040 |
1C,2C..CM5#,6# 12V 55A |
1 | ||
| 27357-55080 |
2C..CM52;2C..CM51,55..5H..IV ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 27357-63040 |
1C,2C..CM5#,6# |
1 | ||
| 27357-13360 |
2C..CM5#,6# |
1 | ||
| 27357-63060 |
2C..CM5#,6# |
1 | ||
| 27357-63020 |
1C,2C..CM5#,65..5H..IV ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 27357-63060 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 27357-55080 |
2C..CM51,52..IV;2C..CM55..5H..IV ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 27357-55080 |
2C..CM5#..IV;2C..CM55..4HC ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-64140 |
1C,2C..CM5#,6# 12V 55A |
1 | ||
| 27359-64140 |
1C,2C..CM5#,6# |
1 | ||
| 27359-64130 |
1C,2C..CM5#,65..5H..IV ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 27359-64500 |
2C..CM51,52..IV;2C..CM55,65..(JL,SJL)..TS ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 27359-64461 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 27359-64460 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 27359-64462 |
2C..CM5#,6# |
1 | ||
| 27359-64461 |
2C..CM5#,6# |
1 | ||
| 27359-64500 |
2C..CM5#..IV;2C..CM65..TS;2C..CM55..SJL..TS..5H..CBU ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-75060 |
2C..CM55..4HC;2C..CM5#,65..5H..IV ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 27370-16011 |
1C,2C..CM5#,6# 12V 55A,70A |
1 | ||
| 27370-16011 |
1C,2C..CM5#,6# |
1 | ||
| 27370-58320 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 27370-54450 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 27370-75060 |
2C..CM51,52..IV;2C..CM55..5H..IV ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 27370-75060 |
2C..CM5#,65..IV ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 27370-58320 |
2C..CM5#,6# |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-63020 |
1C,2C,2Y..CM5#,6#,YM55,60 12V 45A,55A,70A |
2 | ||
| 27371-70300 |
2C..CM65..TS;2C,2Y..CM5#,60,61,YM55,6# |
2 | ||
| 27371-70300 |
2C,2Y..CM5#,6#,YM55,6# |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-63020 |
2C..CM65..TS;2C,2Y..CM5#,60,61,YM55,6# |
2 | ||
| 27372-63020 |
2C,2Y..CM5#,6#,YM55,6# |
2 | ||
| 27372-72100 |
1C,2C,2Y..CM5#,6#,YM55,60 12V 45A,55A,70A |
2 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-64460 |
2C..CM65..TS;2C..CM5#,60,61 12V 50A |
1 | ||
| 27411-64500 |
2C..CM52..IV;2C..CM55,65..(JL,SJL)..TS..5H..CBU |
1 | ||
| 27411-64460 |
2C..CM5#,6# 12V 50A |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
1C,2C,2Y..CM5#,6#,YM55,60 12V 45A,55A,70A |
1 | ||
| 27443-63020 |
1C,2C,2Y..CM5#,6#,YM55,6# |
1 | ||
| 27443-63020 |
2C,2Y..CM5#,6#,YM55,6# |
1 | ||
| 27443-63020 |
2C..CM65..TS;2C,2Y..CM5#,60,61,YM55,6# |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-65010 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 27700-63021 |
1C,2C..CM5#,6# 12V 55A,70A |
1 | ||
| 27700-35040 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 27700-35040 |
2C..CM5#,6# |
1 | ||
| 27700-63021 |
1C,2C..CM5#,6# |
1 | ||
| 27700-54050 |
2C..CM5#,6# |
1 | ||
| Common parts | ||||
| 27374-16380 | ||||
| 27387-70171 | ||||
| 27389-63020 | ||||
| 90099-00268 | ||||
| 90099-00269 | ||||
| 90099-00276 | ||||
| 90099-00949 | ||||
| 90099-00959 | ||||
| 90099-04478 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90179-06158 | ||||
| 93319-14025 | ||||
(9310- )2C..5H
12V 70A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-64021 |
1C,2C..CM5#,6# 12V 55A |
1 | ||
| 27060-64011 |
1C,2C..CM5#,65..5H..IV 12V 70A |
1 | ||
| 27060-64210 |
2C..CM5#,6# 12V 55A |
1 | ||
| 27060-64220 |
2C..CM51..5H..IV;2C..CM52,55,65..(JL,SJL)..TS..5H 12V 70A |
1 | ||
| 27060-64140 |
2C..CM65..TS;2C..CM5#,60,61 12V 55A |
1 | ||
| 27060-64180 |
2C..CM51,52..5H..IV;2C..CM55,65..(JL,SJL)..TS..5H..CBU 12V 70A,ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 27060-64140 |
2C..CM5#,6# 12V 55A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-72110 |
1C,2C..CM5#,6# 12V 55A |
1 | ||
| 27039-72010 |
1C,2C..CM5#,65..5H..IV ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 27039-72110 |
1C,2C..CM5#,6# |
1 | ||
| 27039-64190 |
2C..CM5#,6# ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 27039-73020 |
2C..CM5#,6# |
1 | ||
| 27039-55080 |
2C..CM51,52..IV;2C..CM55,65..(JL,SJL)..TS ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 27039-16380 |
2C..CM5#,6# |
1 | ||
| 27039-55080 |
2C..CM5#..IV;2C..CM65..TS;2C..CM55..SJL..TS..5H..CBU ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 27039-73020 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 27064 - SEAL, ALTERNATOR PLATE | ||||
| 27064-42010 |
2C..CM51,52..5H..IV;2C..CM55,65..(JL,SJL)..TS..5H |
1 | ||
| 27064-42010 |
2C..CM51,52..IV;2C..CM55,65..(JL,SJL)..TS |
1 | ||
| 27064-42010 |
2C..CM5#..IV;2C..CM65..TS;2C..CM55..SJL..TS..5H..CBU |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-70200 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 27312-64130 |
1C,2C..CM5#,6# |
1 | ||
| 27312-64130 |
1C,2C..CM5#,6# 12V 55A,70A |
1 | ||
| 27312-42010 |
2C..CM51,52..IV;2C..CM55,65..(JL,SJL)..TS ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 27312-70200 |
2C..CM5#,6# |
1 | ||
| 27312-42010 |
2C..CM5#..IV;2C..CM65..TS;2C..CM55..SJL..TS..5H..CBU ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-64140 |
1C,2C..CM5#,6# |
1 | ||
| 27310-64190 |
2C..CM51..5H..IV;2C..CM52,65..JL..TS;2C..CM55..SJL..TS..5H..CBU ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 27310-64140 |
1C,2C..CM5#,6# 12V 55A |
1 | ||
| 27310-64500 |
2C..CM51,52..5H..IV;2C..CM55,65..(JL,SJL)..TS..5H ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 27310-64460 |
2C..CM5#,6# |
1 | ||
| 27310-64460 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10178 |
2C..CM5#,6# |
1 | ||
| 90099-10165 |
1C,2C..CM5#,6# 12V 55A,70A |
1 | ||
| 90099-10165 |
1C,2C..CM5#,6# |
1 | ||
| 90099-10178 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 90099-10192 |
2C..CM5#,65..5H..IV ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-72101 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 27330-64140 |
1C,2C..CM5#,6# 12V 55A |
1 | ||
| 27330-64140 |
1C,2C..CM5#,6# ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 27330-64190 |
2C..CM52,55,65..(JL,SJL)..TS..5H |
1 | ||
| 27330-72101 |
2C..CM5#,6# |
1 | ||
| 27330-76030 |
2C..CM5#,65..5H..IV ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 27330-11250 |
2C..CM5#,6# |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 90099-10140 |
1C,2C..CM5#,6# 12V 55A,70A |
1 | ||
| 90099-10140 |
1C,2C..CM5#,6# |
1 | ||
| 90099-10140 |
2C..CM5#,6# |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-63040 |
1C,2C..CM5#,6# 12V 55A |
1 | ||
| 27357-55080 |
2C..CM52;2C..CM51,55..5H..IV ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 27357-63040 |
1C,2C..CM5#,6# |
1 | ||
| 27357-13360 |
2C..CM5#,6# |
1 | ||
| 27357-63060 |
2C..CM5#,6# |
1 | ||
| 27357-63020 |
1C,2C..CM5#,65..5H..IV ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 27357-63060 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 27357-55080 |
2C..CM51,52..IV;2C..CM55..5H..IV ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 27357-55080 |
2C..CM5#..IV;2C..CM55..4HC ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-64140 |
1C,2C..CM5#,6# 12V 55A |
1 | ||
| 27359-64140 |
1C,2C..CM5#,6# |
1 | ||
| 27359-64130 |
1C,2C..CM5#,65..5H..IV ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 27359-64500 |
2C..CM51,52..IV;2C..CM55,65..(JL,SJL)..TS ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 27359-64461 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 27359-64460 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 27359-64462 |
2C..CM5#,6# |
1 | ||
| 27359-64461 |
2C..CM5#,6# |
1 | ||
| 27359-64500 |
2C..CM5#..IV;2C..CM65..TS;2C..CM55..SJL..TS..5H..CBU ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 27365 - PLATE, TERMINAL | ||||
| 27365-55080 |
2C..CM5#..IV;2C..CM65..TS;2C..CM55..SJL..TS..5H..CBU |
1 | ||
| 27365-55080 |
2C..CM51,52..IV;2C..CM55,65..(JL,SJL)..TS |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-75060 |
2C..CM55..4HC;2C..CM5#,65..5H..IV ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 27370-16011 |
1C,2C..CM5#,6# 12V 55A,70A |
1 | ||
| 27370-16011 |
1C,2C..CM5#,6# |
1 | ||
| 27370-58320 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 27370-54450 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 27370-75060 |
2C..CM51,52..IV;2C..CM55..5H..IV ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 27370-75060 |
2C..CM5#,65..IV ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
1 | ||
| 27370-58320 |
2C..CM5#,6# |
1 | ||
| 27384 - WASHER | ||||
| 27384-50030 |
2C..CM51,52..IV;2C..CM55,65..(JL,SJL)..TS |
1 | ||
| 27384-50030 |
2C..CM5#..IV;2C..CM65..TS;2C..CM55..SJL..TS..5H..CBU |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-64460 |
2C..CM65..TS;2C..CM5#,60,61 12V 50A |
1 | ||
| 27411-64500 |
2C..CM52..IV;2C..CM55,65..(JL,SJL)..TS..5H..CBU |
1 | ||
| 27411-64460 |
2C..CM5#,6# 12V 50A |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
1C,2C,2Y..CM5#,6#,YM55,60 12V 45A,55A,70A |
1 | ||
| 27443-63020 |
1C,2C,2Y..CM5#,6#,YM55,6# |
1 | ||
| 27443-63020 |
2C,2Y..CM5#,6#,YM55,6# |
1 | ||
| 27443-63020 |
2C..CM65..TS;2C,2Y..CM5#,60,61,YM55,6# |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-65010 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 27700-63021 |
1C,2C..CM5#,6# 12V 55A,70A |
1 | ||
| 27700-35040 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 27700-35040 |
2C..CM5#,6# |
1 | ||
| 27700-63021 |
1C,2C..CM5#,6# |
1 | ||
| 27700-54050 |
2C..CM5#,6# |
1 | ||
| Common parts | ||||
| 27387-42020 | ||||
| 27387-42021 | ||||
| 27388-42010 | ||||
| 27389-42010 | ||||
| 90099-00195 | ||||
| 90099-00197 | ||||
| 90099-00243 | ||||
| 90099-00246 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90099-05232 | ||||
| 90179-06158 | ||||
| 93319-14025 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
