CM52-TBQDS3 (1991)

Toyota Lite/Townace Truck

Production Oct 1991 - Jun 1999
Engine 2C
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )2C..CM52,61

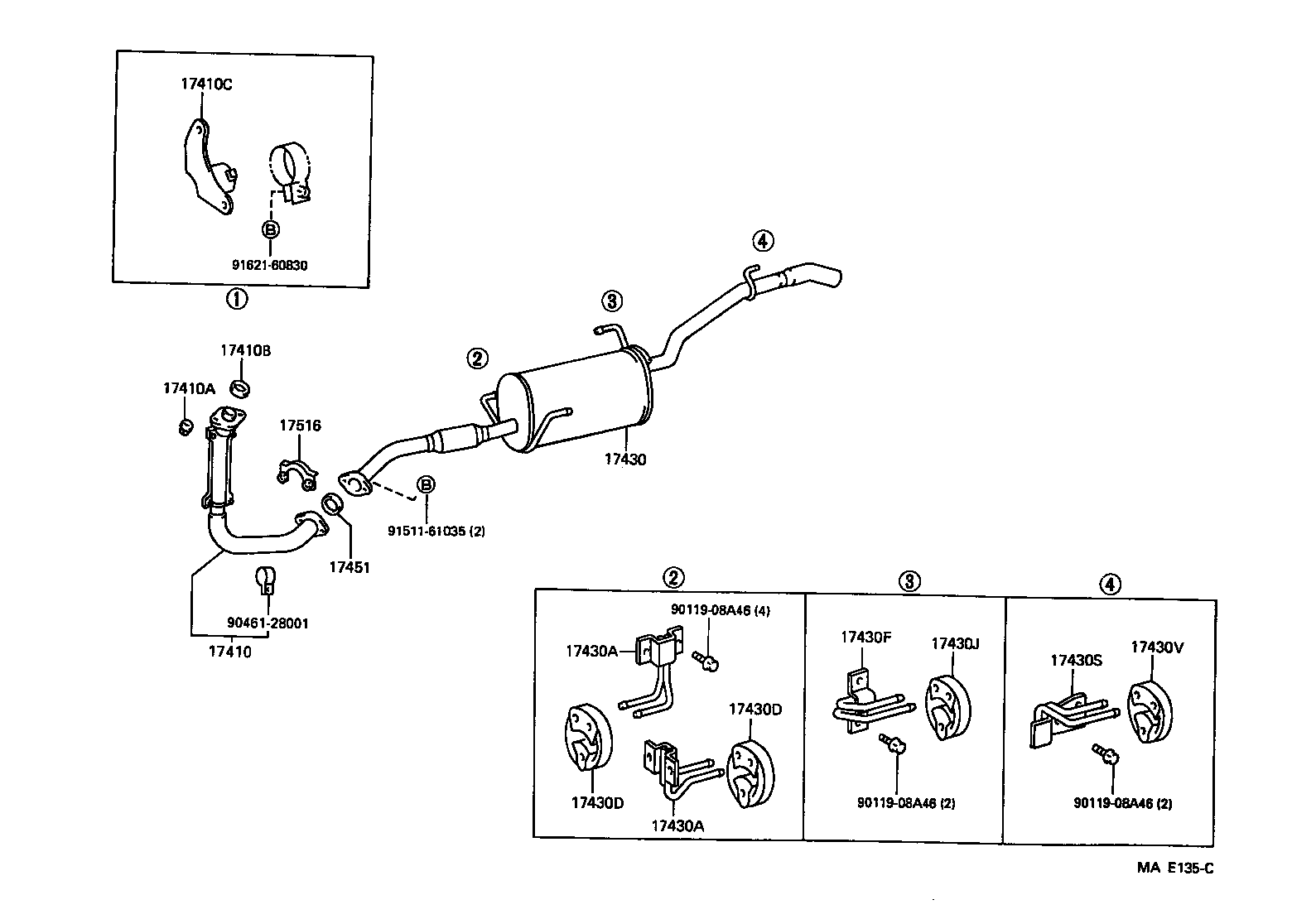

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410C 17430 17430A 17430A 17430D 17430D 17430F 17430J 17430S 17430V 17451 17516 9011908A46 9011908A46 9011908A46 9046128001 9151161035 9162160830
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-64560

2C..CM52,61

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

1C,2C,4K,5K..CM5#,6#,KM5#

 2
90179-10070

2C..CM5#,6#

 2
90179-10070

2C..CM65..TS;2C..CM5#,60,61

 2
17410B - GASKET, EXHAUST PIPE
90917-06061

2C..CM5#,6#

 1
90917-06061

2C..CM5#,6#

 1
90917-06004

1C,2C,4K,5K..CM5#,6#,KM5#

 1
90917-06061

2C..CM65..TS;2C..CM5#,60,61

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-64220

2C..CM52,61

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-64740

2C..CM52,61

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17572-64180

2C..CM52,61

左側

 1
17573-64040

1C,2C,2Y..CM5#,6#,YM55,60

OUTER

 1
17575-64020

1C,2C,2Y..CM5#,6#,YM55,60

INNER

 1
17573-64090

2C..CM52,61

右側

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17572-64180

2C..CM52,61

左側

 1
17573-64040

1C,2C,2Y..CM5#,6#,YM55,60

OUTER

 1
17575-64020

1C,2C,2Y..CM5#,6#,YM55,60

INNER

 1
17573-64090

2C..CM52,61

右側

 1
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17561-73020

2C..CM52,61

 2
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17561-73020

2C..CM52,61

 2
17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER)
17574-64080

2C..CM52,61

 1
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
17566-64010

1C,2C,2Y..CM5#,6#,YM55,60

 2
17561-73020

2C..CM52,61

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17575-64070

2C..CM52,61

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
17561-73020

2C..CM52,61

 1
17451 - GASKET, EXHAUST PIPE
90917-06004

1C,2C,4K,5K..CM5#,6#,KM5#

 1
90917-06044

2C..CM52,61

 1
17516 - RETAINER, EXHAUST PIPE, NO.2
18495-71010

2C..CM52,6#

 1
18495-38020

2C..CM52,6#

 1
18495-71010

2C..CM65..TS;2C..CM52,60,61

 1
18495-38020

2C..CM65..TS;2C..CM52,60,61

 1
Common parts
90119-08A46
90461-28001
91511-61035
91621-60830
