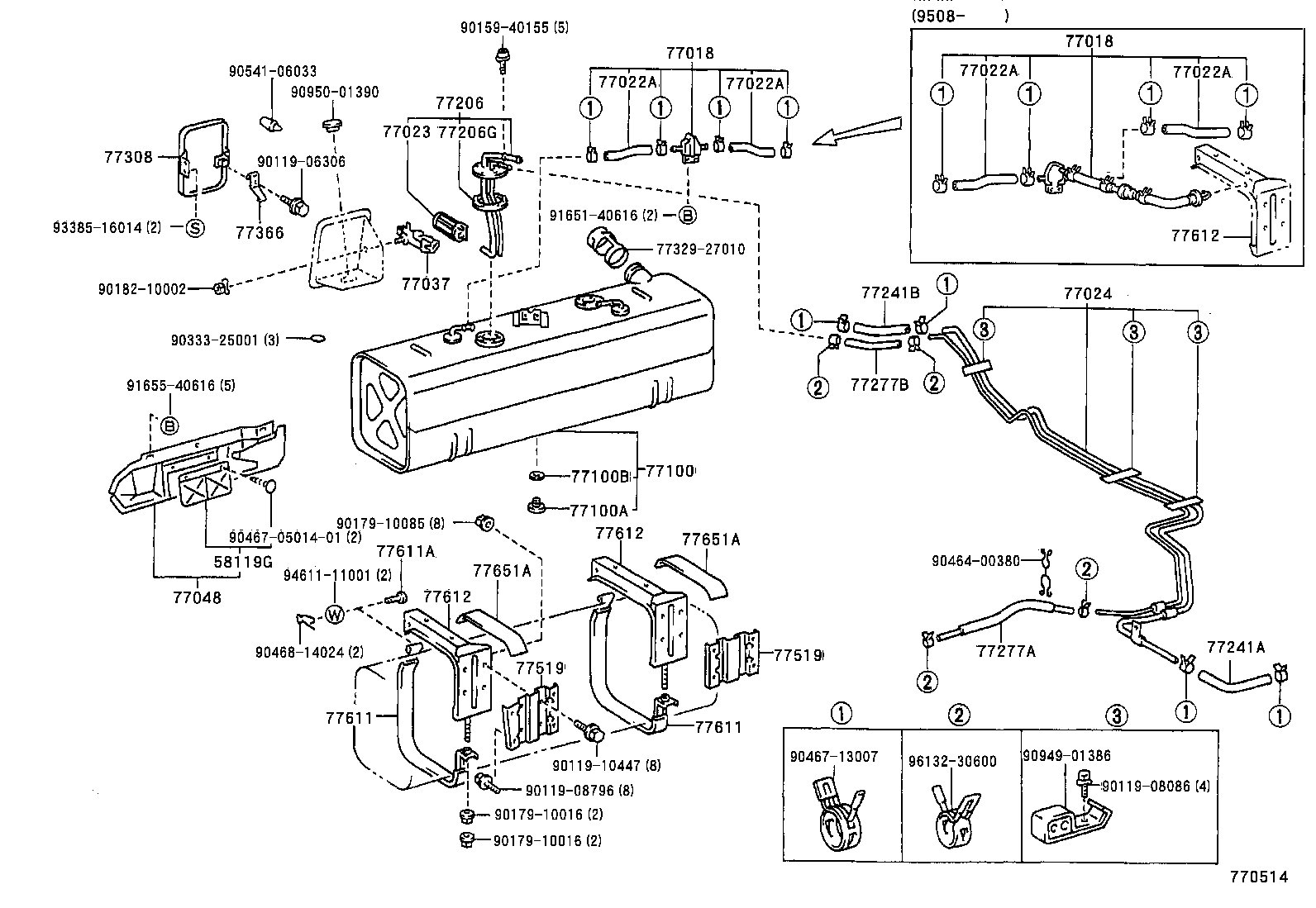

CM52-TBQDS (1991)
Toyota Lite/Townace Truck
(9110- )CM52,61
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58119G - COVER, REAR FLOOR SIDE, FRONT | ||||
| 58119-95700 |
CM5#,6#,KM51,YM55,6# |
1 | ||
| 58119-95700 |
CM65..TS;CM5#,60,61,KM51,YM55,6# |
1 | ||
| 58119-95700 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-27080 |
CM52,61 |
1 | ||
| 77018-27081 |
CM52,61 |
1 | ||
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-27080 |
CM52,61 |
1 | ||
| 77018-27081 |
CM52,61 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08020 |
CM52,61 *H,L=130,内径=7.6 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08020 |
CM52,61 *H,L=130,内径=7.6 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08020 |
CM52,61 *H,L=130,内径=7.6 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08020 |
CM52,61 *H,L=130,内径=7.6 |
2 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-22040 |
CM52,61 |
1 | ||
| 77024 - TUBE SUB-ASSY, FUEL MAIN & RETURN, FRONT | ||||
| 77024-27030 |
CM5#,6# |
1 | ||
| 77024-27040 |
CM52,61 |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-95700 |
CM65..TS;CM5#,60,61,KM51,YM55,6# |
1 | ||
| 77037-95700 |
CM5#,6#,KM51,YM55,6# |
1 | ||
| 77037-95700 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 77048 - SEAL SUB-ASSY, FUEL INLET PIPE, UPPER | ||||
| 77048-27010 |
CM52,61 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-27400 |
CM52,61 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20004 |
CM5#,6#,KM51,YM55,6# |
1 | ||
| 90341-20004 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 90341-20004 |
CM65..TS;CM5#,60,61,KM51,YM55,6# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20007 |
CM5#,6#,KM51,YM55,6# |
1 | ||
| 90430-20007 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 90430-20007 |
CM65..TS;CM5#,60,61,KM51,YM55,6# |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77017-27080 |
CM52,61 |
1 | ||
| 77206G - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14020 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 77169-14020 |
CM65..TS;CM5#,60,61,KM51,YM55,6# |
1 | ||
| 77169-14020 |
CM5#,6#,KM51,YM55,6# |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08040 |
CM5#,6# *H,L=320,内径=7.6 |
1 | ||
| 95333-08030 |
CM5#,6# *H,L=240,内径=7.6 |
1 | ||
| 95333-08030 |
CM65..TS;CM5#,60,61 *H,L=240,内径=7.6 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08020 |
CM5#,6# *H,L=200,内径=7.6 |
1 | ||
| 95333-08030 |
CM52,61 *H,L=240,内径=7.6 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 90447-12073 |
CM5#,6# 長さ=480 |
1 | ||
| 90447-12073 |
CM5#,60,61;CM65..JL..TS 長さ=480 |
1 | ||
| 90447-12073 |
CM5#,6# 長さ=480 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95333-06020 |
CM52,61 *H,L=200 |
1 | ||
| 95332-06020 |
CM5#,6# *H,L=180 |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77305-95701 |
CM65..TS;CM5#,60,61,KM51,YM55,6# |
1 | ||
| 77305-95701 |
CM5#,6#,KM51,YM55,6# |
1 | ||
| 77305-95700 |
CM5#,6#,KM5#,YM55,60 |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-95700 |
CM5#,6#,KM5#,YM55,60 |
1 | ||
| 77366-95702 |
CM5#,6#,KM51,YM55,6# |
1 | ||
| 77366-95702 |
CM65..TS;CM5#,60,61,KM51,YM55,6# |
1 | ||
| 77519 - SPACER, FUEL TANK BRACKET | ||||
| 77519-27010 |
CM52,61 ﾌﾛﾝﾄ |
1 | ||
| 77529-27010 |
CM52,61 ﾘﾔ |
1 | ||
| 77519 - SPACER, FUEL TANK BRACKET | ||||
| 77519-27010 |
CM52,61 ﾌﾛﾝﾄ |
1 | ||
| 77529-27010 |
CM52,61 ﾘﾔ |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-27011 |
CM52,61 |
2 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-27011 |
CM52,61 |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-25010 |
CM52,61 |
2 | ||
| 90240-10035 |
CM52,61 |
2 | ||
| 77612 - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77512-27020 |
CM5#,6#,KM5#,YM55,60 RR |
1 | ||
| 77501-25061 |
CM52,61 |
2 | ||
| 77501-25062 |
CM52,61 |
2 | ||
| 77511-27050 |
CM5#,6#,KM5#,YM55,60 FR |
1 | ||
| 77612 - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77512-27020 |
CM5#,6#,KM5#,YM55,60 RR |
1 | ||
| 77501-25061 |
CM52,61 |
2 | ||
| 77501-25062 |
CM52,61 |
2 | ||
| 77511-27050 |
CM5#,6#,KM5#,YM55,60 FR |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-27110 |
CM52,61 |
2 | ||
| 77651-27111 |
CM52,61 |
2 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-27110 |
CM52,61 |
2 | ||
| 77651-27111 |
CM52,61 |
2 | ||
| Common parts | ||||
| 77329-27010 | ||||
| 90119-06306 | ||||
| 90119-08086 | ||||
| 90119-08796 | ||||
| 90119-10447 | ||||
| 90159-40155 | ||||
| 90179-10016 | ||||
| 90179-10085 | ||||
| 90182-10002 | ||||
| 90333-25001 | ||||
| 90464-00380 | ||||
| 90467-0501401 | ||||
| 90467-13007 | ||||
| 90468-14024 | ||||
| 90541-06033 | ||||
| 90949-01386 | ||||
| 90950-01390 | ||||
| 91651-40616 | ||||
| 91655-40616 | ||||
| 93385-16014 | ||||
| 94611-11001 | ||||
| 96132-30600 | ||||
