CM52-TBQDS (1991)

Toyota Lite/Townace Truck

Production Oct 1991 - Jun 1999
Engine 2C
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

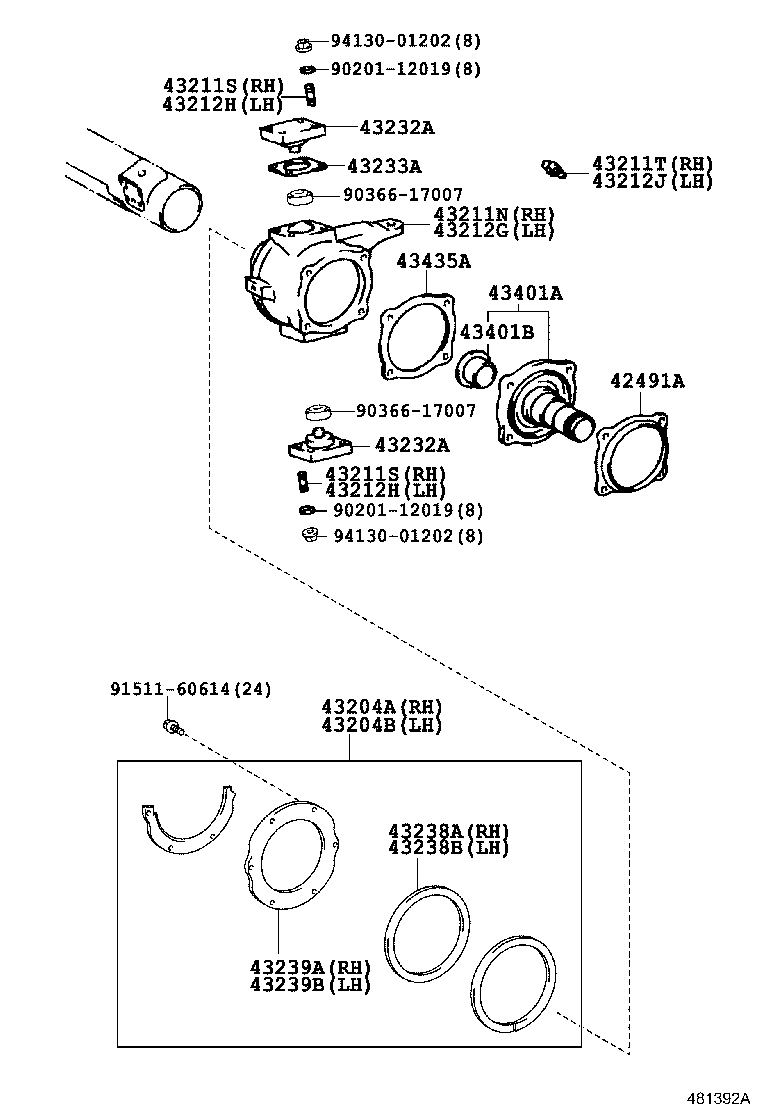

ILLUST NO. 2 OF 3(9110- )CM52,61

Click highlighted areas on diagram

diagram 42491A 43204A 43204B 43211N 43211S 43211S 43211T 43212G 43212H 43212H 43212J 43232A 43232A 43233A 43238A 43238B 43239A 43239B 43401A 43401B 43435A 9020112019 9020112019 9036617007 9036617007 9151160614 9413001202 9413001202
Part # Description Qty Price
42491A - PROTECTOR, REAR STEERING KNUCKLE SPINDLE
42491-27010

CM52,61

 2
43204A - SEAL SUB-ASSY, REAR STEERING KNUCKLE OIL, RH
43204-60040

CM52,61

 1
43204-60041

CM52,61

 1
43204B - SEAL SUB-ASSY, REAR STEERING KNUCKLE OIL, LH
43204-60040

CM52,61

 1
43204-60041

CM52,61

 1
43211N - KNUCKLE, REAR STEERING, RH
43211-27030

CM52,61

 1
43211S - BOLT, STUD (FOR REAR STEERING KNUCKLE RH)
90116-12007

CM52,61

 8
43211S - BOLT, STUD (FOR REAR STEERING KNUCKLE RH)
90116-12007

CM52,61

 8
43211T - PLUG (FOR REAR STEERING KNUCKLE RH)
90345-53020

CM52,61

 1
43212G - KNUCKLE, REAR STEERING, LH
43212-27010

CM52,61

 1
43212H - BOLT, STUD (FOR REAR STEERING KNUCKLE LH)
90116-12007

CM52,61

 8
43212H - BOLT, STUD (FOR REAR STEERING KNUCKLE LH)
90116-12007

CM52,61

 8
43212J - PLUG (FOR REAR STEERING KNUCKLE LH)
90345-53020

CM52,61

 1
43232A - CAP, REAR STEERING KNUCKLE BEARING
43232-35010

CM52,61

 4
43232A - CAP, REAR STEERING KNUCKLE BEARING
43232-35010

CM52,61

 4
43233A - SHIM, REAR STEERING KNUCKLE ADJUST, NO.1
43233-60011

CM52,61

厚さ=0.20

 1
43236-60010

CM52,61

厚さ=0.1

 1
43237-60030

CM52,61

厚さ=0.30

 1
43235-60010

CM52,61

厚さ=1.0

 1
43234-60011

CM52,61

厚さ=0.50

 1
43238A - SEAL, REAR STEERING KNUCKLE OIL, INNER RH
43238-60031

CM52,61

 1
43238-60030

CM52,61

 1
43238B - SEAL, REAR STEERING KNUCKLE OIL, INNER LH
43238-60031

CM52,61

 1
43238-60030

CM52,61

 1
43239A - SEAL, REAR STEERING KNUCKLE OIL, OUTER RH
43239-60041

CM52,61

 1
43239B - SEAL, REAR STEERING KNUCKLE OIL, OUTER LH
43239-60041

CM52,61

 1
43401A - SPINDLE SUB-ASSY, REAR STEERING KNUCKLE
43401-27010

CM52,61

 2
43401B - BUSH, SOLID (FOR REAR STEERING KNUCKLE SPINDLE)
90381-33001

CM52,61

 2
43435A - GASKET, REAR STEERING KNUCKLE SPINDLE
43435-27010

CM52,61

 2
Common parts
90201-12019
90366-17007
91511-60614
94130-01202

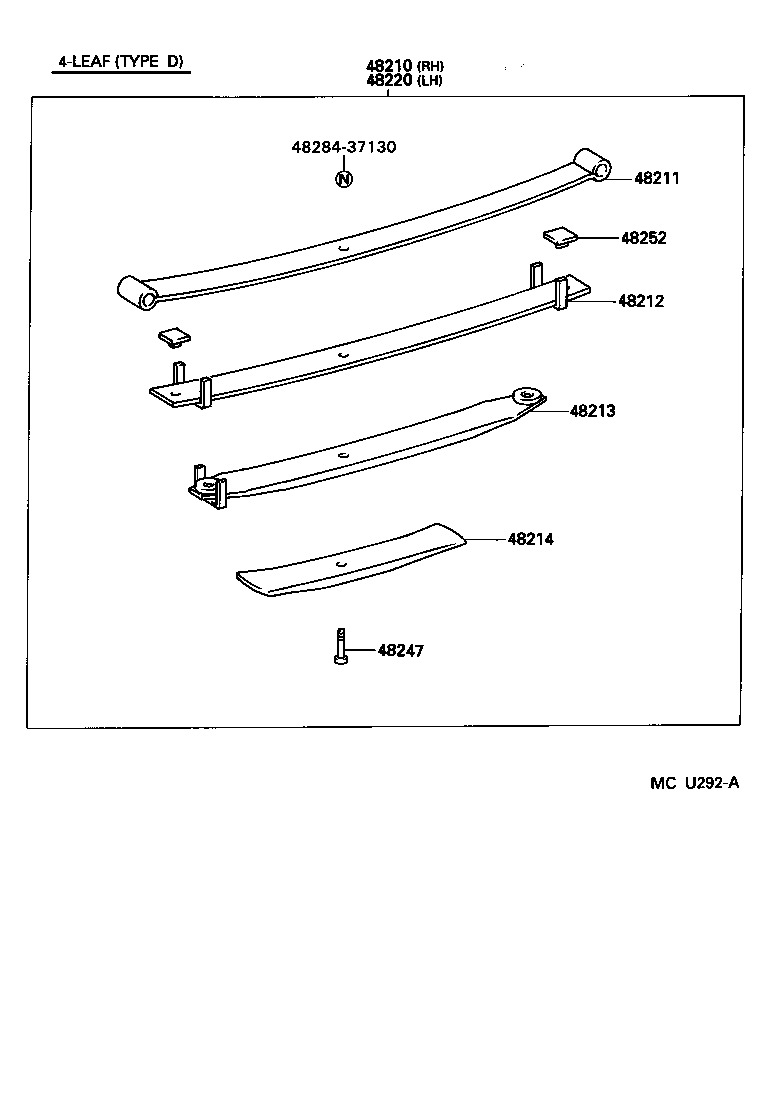

ILLUST NO. 3 OF 3(9110- )CM52,61

Click highlighted areas on diagram

diagram 48210 48211 48212 48213 48214 48220 48247 48252 4828437130
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-27500

CM5#,KM5#,YM55..3SO..(4H,4HC,5H)

4枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
48210-27740

CM52,61

4枚ﾘｰﾌ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48210-27730

CM52,61

4枚ﾘｰﾌ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ

 1
48211 - LEAF, REAR SPRING, NO.1
48211-27500

CM5#,6#,KM5#,YM55,60..3SO..(4H,4HC,5H)

4-LEAF(TYPE A)

 2
48211-27730

CM52,61

4-LEAF(TYPE D)

 2
48211-27740

CM52,61

4-LEAF(TYPE D) ﾄｸｿｳｼﾔ

 2
48212 - LEAF, REAR SPRING, NO.2
48202-27500

CM5#,KM5#,YM55..3SO..(4H,4HC,5H)

4-LEAF(TYPE A)

 2
48202-27740

CM52,61

4-LEAF(TYPE D) ﾄｸｿｳｼﾔ

 2
48202-27730

CM52,61

4-LEAF(TYPE D)

 2
48213 - LEAF, REAR SPRING, NO.3
48203-27740

CM52,61

4-LEAF(TYPE D) ﾄｸｿｳｼﾔ

 2
48203-27730

CM52,61

4-LEAF(TYPE D)

 2
48214 - LEAF, REAR SPRING, NO.4
48203-27500

CM5#,KM5#,YM55..3SO..(4H,4HC,5H)

4-LEAF(TYPE A)

 2
48214-27740

CM52,61

4-LEAF(TYPE D) ﾄｸｿｳｼﾔ

 2
48214-27730

CM52,61

4-LEAF(TYPE D)

 2
48220 - SPRING ASSY, REAR LH
48210-27500

CM5#,KM5#,YM55..3SO..(4H,4HC,5H)

4枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
48210-27730

CM52,61

4枚ﾘｰﾌ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ

 1
48210-27740

CM52,61

4枚ﾘｰﾌ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48247 - BOLT, REAR SPRING, CENTER
48247-27500

CM5#,60,KM5#,YM55,60..3SO..(4H,4HC,5H)

4-LEAF(TYPE A,C)

 2
48247-27500

CM5#,60,KM5#,YM55,60..3SO..(4H,4HC,5H)

4-LEAF(TYPE A,B)

 2
48247-36450

CM52,61

4-LEAF(TYPE D) ﾄｸｿｳｼﾔ

 2
48247-36060

CM52,61

4-LEAF(TYPE D)

 2
Common parts
48284-37130
